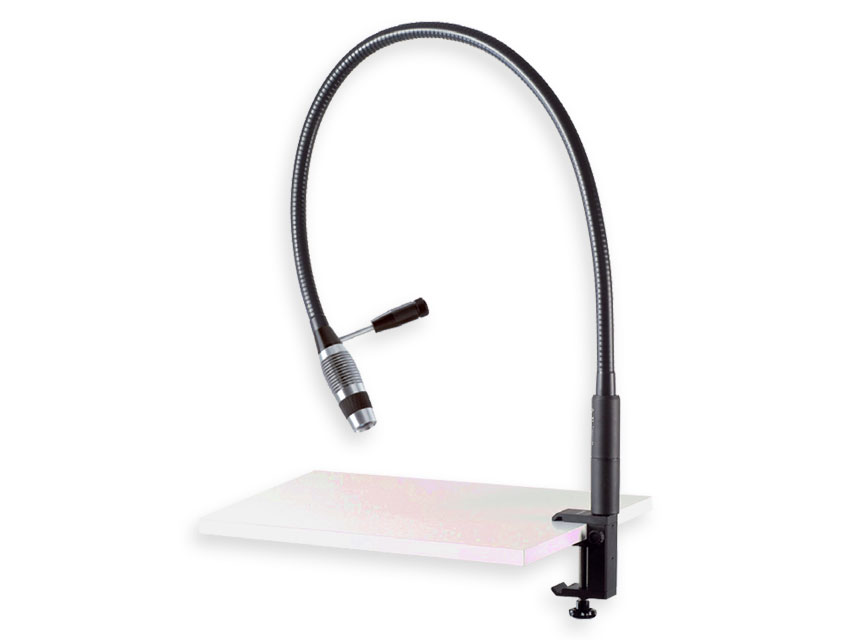

RI-MAGIC® HP LED - desktop model

High-tech LED medical lamps for examinations and medical procedures.
- high performance LED technology, 6,500 °K
- lamp life of up to 50,000 hours
- significantly lower heat generation and energy loss
- focusing device at the front of the lamp head
- long, very flexible arm can be bent in any direction
- simple operation and handling with rheostat for infinitely variable adjustment of the light intensity

Manual in: GB, FR, IT, ES, DE, RU.
German production. - Distance: 1000 mm - 800 mm - 600 mm - 400 mm - 200 mm
- Lux max: 15,000 - 20,000 - 30,000 - 45,000 - 55,000
- Light rim max. Ø: 340 mm - 270 mm - 215 mm - 155 mm - 90 mm
- Light circle min. Ø: 40 mm - 35 mm - 30 mm - 25 mm - 20 mm
- Voltage

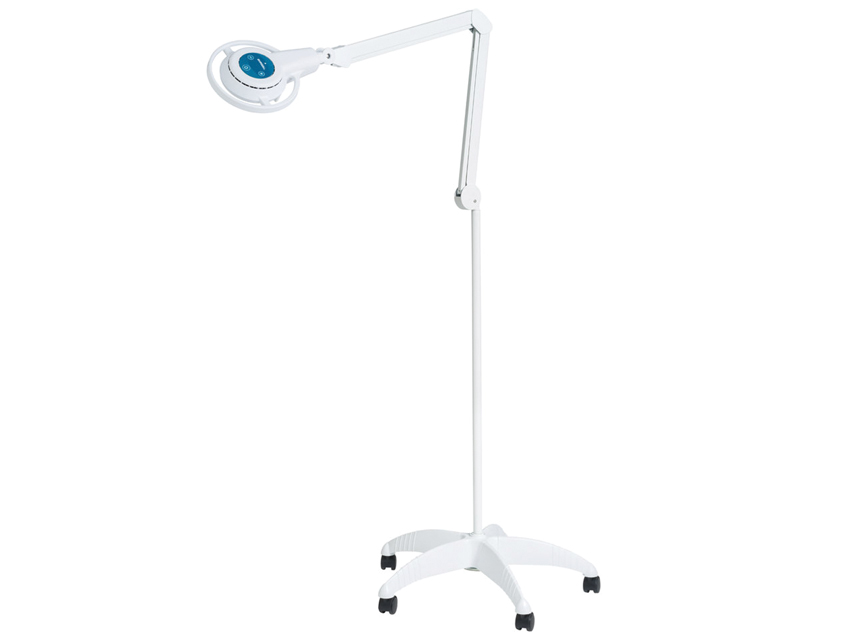

MS LED PLUS LAMP - trolley

Lamp for minor surgery, with LED light and a flexible or articulated arm of great precision, allowing the light to be directed in any position.
The quality of the materials used for manufacture makes it particularly suitable for intensive use in surgical operations and examinations.

Outstanding LED light quality
The powerful LED light offers exceptional lighting quality and a service life of more than 50,000 hours. The high colour rendering (Ra 97%) reflects the outstanding quality of white light, for excellent tissue distinction and
reproduction of all visible colours, naturally and accurately.

Ergonomic design
The circular shape of the dome and handle facilitate positioning. The soft shapes facilitate cleaning.

Adjustable light intensity 12W LED light source
Colour rendering > 97%.
Light intensity at 50 cm 65,000 lux
Lamp life 50,000 hours
Light intensity adjustment
Colour temperature 4,500 ºK
Colour White
Arm length 90 cm

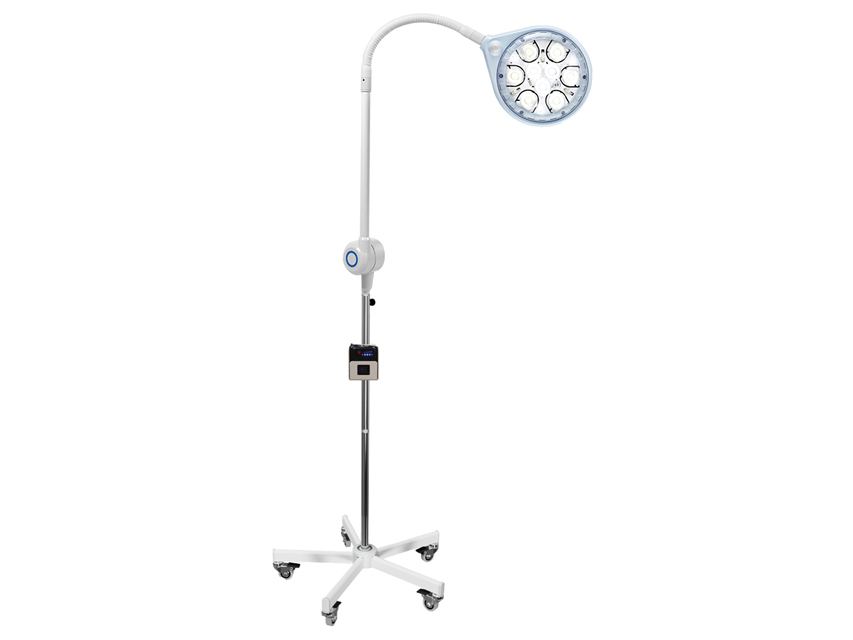

Primaled lamp - Flex - on trolley with battery

Attractive design and advanced technology.

Design: the rounded, ultra-flat shape makes this lamp ergonomic and suitable for any type of installation.

Ergo-Spring System: the movement of the articulated tubular arm is servo-assisted by a torsion spring, ensuring ease of movement and stability.

105,000 lux: unique efficacy with 105,000 lux at 50 cm.

Light intensity adjustment: six different levels of adjustment with buttons on the front panel.

Colour temperature selection 4,000-4,500 °K: the comparison of the two colours (K) increases the visibility of details.

Shadow suppression: The radial lens arrangement and large reflector diameter (195 mm) enable shadow suppression and three-dimensional illumination.

Adjustable courtesy light: integrates ambient light in addition to the traditional concentrated light.

Removable sterilisable handle: enables best asepsis.

Cool light: the LEDs' low IR emission and low power consumption allow minimal heat emission.

LED lifetime of 60,000 hours: the aluminium dome allows heat exchange, thus reducing the working temperature and considerably increasing the lifetime of the individual LEDs.

Interchangeable plugs: the transformer is integrated in the plug for a lighter and smoother arm movement. The lamp is equipped with interchangeable plugs (UK, US, EU).

Fully certified: complies with medical standards IEC 60601-1 and 60601-1-2 and special standards IEC 60601-2-41, EU 2017/745; CE-marked as Class I medical device.

Mechanical testing and safety in use: die-cast aluminium and tubular steel structure. The articulated arm has been mechanically tested for 40,000 continuous movements.

Continuity of illumination: the modular design of the LED power supply circuit ensures continuity of illumination even in the event of an LED failure.

Battery kit: included.

The lamp lenses are designed to provide good focus and depth of illumination. The diameter of the illuminated field is 16 cm at 0.5 m.

The following functions are activated by the membrane keypad:
- on/off
- selection of colour temperature 4,000°K and 4,500°K
- light intensity adjustment in 6 levels
- courtesy light

QR manual: GB, FR, IT, ES, PT.

Made in Italy. LED lifetime: >60,000 hours
Illuminated field at 50 cm: Ø 160 mm
Light intensity: 105,000 lux at 50 cm, 30,000 lux at 1 m
Colour temperature: 4,000-4,500 °K
Colour rendering index: 95 Ra
Outer diameter of reflector: 195 mm
Temperature increase

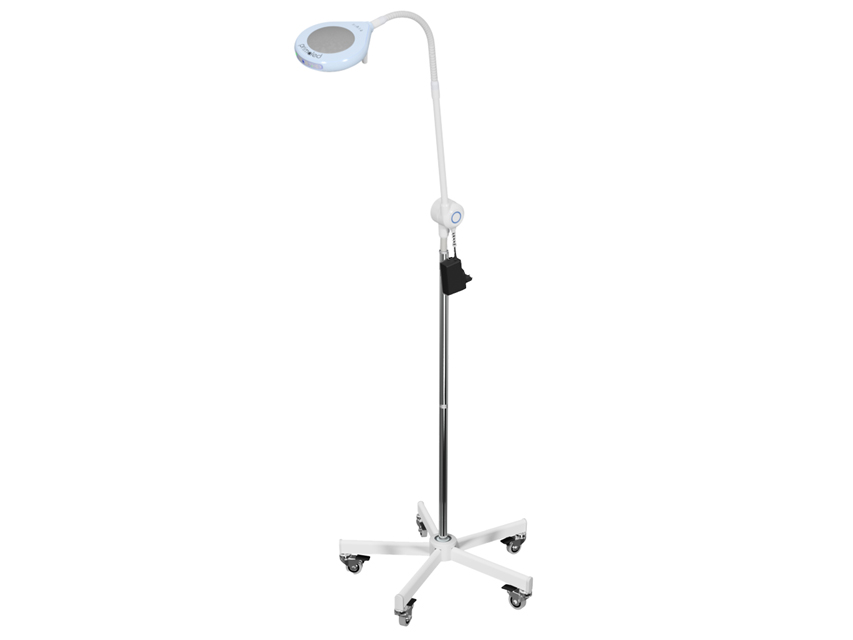

Primaled lamp - Flex - on trolley

Attractive design and advanced technology.

Design: the rounded, ultra-flat shape makes this lamp ergonomic and suitable for any type of installation.

Ergo-Spring System: the movement of the articulated tubular arm is servo-assisted by a torsion spring, ensuring ease of movement and stability.

105,000 lux: unique efficacy with 105,000 lux at 50 cm.

Light intensity adjustment: six different levels of adjustment with buttons on the front panel.

Colour temperature selection 4,000-4,500 °K: the comparison of the two colours (K) increases the visibility of details.

Shadow suppression: The radial lens arrangement and large reflector diameter (195 mm) enable shadow suppression and three-dimensional illumination.

Adjustable courtesy light: integrates ambient light in addition to the traditional concentrated light.

Removable sterilisable handle: enables best asepsis.

Cool light: the LEDs' low IR emission and low power consumption allow minimal heat emission.

LED lifetime of 60,000 hours: the aluminium dome allows heat exchange, thus reducing the working temperature and considerably increasing the lifetime of the individual LEDs.

Interchangeable plugs: the transformer is integrated in the plug for a lighter and smoother arm movement. The lamp is equipped with interchangeable plugs (UK, US, EU).

Fully certified: complies with medical standards IEC 60601-1 and 60601-1-2 and special standards IEC 60601-2-41, EU 2017/745; CE-marked as Class I medical device.

Mechanical testing and safety in use: die-cast aluminium and tubular steel structure. The articulated arm has been mechanically tested for 40,000 continuous movements.

Continuity of illumination: the modular design of the LED power supply circuit ensures continuity of illumination even in the event of an LED failure.

The lamp lenses are designed to provide good focus and depth of illumination. The diameter of the illuminated field is 16 cm at 0.5 m.

The following functions are activated by the membrane keypad:
- on/off
- selection of colour temperature 4,000°K and 4,500°K
- light intensity adjustment in 6 levels
- courtesy light

QR manual: GB, FR, IT, ES, PT.

Made in Italy. LED lifetime: >60,000 hours
Illuminated field at 50 cm: Ø 160 mm
Light intensity: 105,000 lux at 50 cm, 30,000 lux at 1 m
Colour temperature: 4,000-4,500 °K
Colour rendering index: 95 Ra
Outer diameter of reflector: 195 mm
Temperature increase

MS LED PLUS LAMP - trolley

Lamp for minor surgery, with LED light and a flexible or articulated arm of great precision, allowing the light to be directed in any position.
The quality of the materials used for manufacture makes it particularly suitable for intensive use in surgical operations and examinations.

Outstanding LED light quality
The powerful LED light offers exceptional lighting quality and a service life of more than 50,000 hours. The high colour rendering (Ra 97%) reflects the outstanding quality of white light, for excellent tissue distinction and
reproduction of all visible colours, naturally and accurately.

Ergonomic design
The circular shape of the dome and handle facilitate positioning. The soft shapes facilitate cleaning.

Adjustable light intensity 12W LED light source
Colour rendering > 97%.
Light intensity at 50 cm 65,000 lux
Lamp life 50,000 hours
Light intensity adjustment
Colour temperature 4,500 ºK
Colour White
Arm length 70 cm

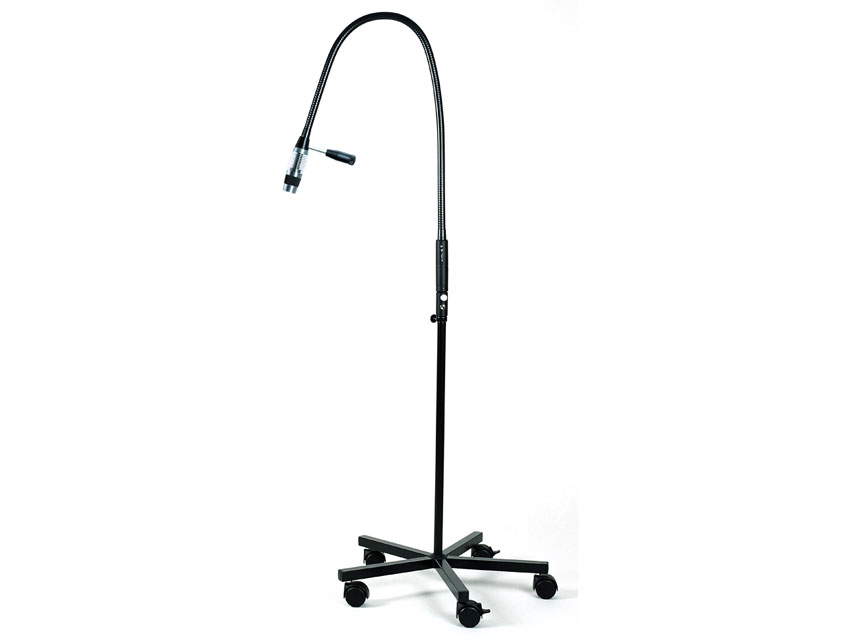

RI-MAGIC® HP LED - on trolley

- Mobile base Ø 53 cm
- Low-friction antistatic castors with brake
- Sturdy fibreglass base and chrome-plated rod

High-tech LED medical lamps for examinations and medical procedures.
- high-performance LED technology, 6,500 °K
- lamp life of up to 50,000 hours
- significantly lower heat generation and energy loss
- focusing device at the front of the lamp head
- long, very flexible arm can be bent in any direction
- simple operation and handling with rheostat for infinitely variable adjustment of the light intensity

Manual in: GB, FR, IT, ES, DE, RU.
German production. - Distance: 1000 mm - 800 mm - 600 mm - 400 mm - 200 mm
- Lux max: 15,000 - 20,000 - 30,000 - 45,000 - 55,000
- Light rim max. Ø: 340 mm - 270 mm - 215 mm - 155 mm - 90 mm
- Light circle min. Ø: 40 mm - 35 mm - 30 mm - 25 mm - 20 mm
- Voltage

Primaled lamp - Fix - wall

Attractive design and advanced technology.

Design: the rounded, ultra-flat shape makes this lamp ergonomic and suitable for any type of installation.

Ergo-Spring System: the movement of the articulated tubular arm is servo-assisted by a torsion spring, ensuring ease of movement and stability.

105,000 lux: unique efficacy with 105,000 lux at 50 cm.

Light intensity adjustment: six different levels of adjustment with buttons on the front panel.

Colour temperature selection 4,000-4,500 °K: the comparison of the two colours (K) increases the visibility of details.

Shadow suppression: The radial lens arrangement and large reflector diameter (195 mm) enable shadow suppression and three-dimensional illumination.

Adjustable courtesy light: integrates ambient light in addition to the traditional concentrated light.

Removable sterilisable handle: enables best asepsis.

Cool light: the LEDs' low IR emission and low power consumption allow minimal heat emission.

LED lifetime of 60,000 hours: the aluminium dome allows heat exchange, thus reducing the working temperature and considerably increasing the lifetime of the individual LEDs.

Interchangeable plugs: the transformer is integrated in the plug for a lighter and smoother arm movement. The lamp is equipped with interchangeable plugs (UK, US, EU).

Fully certified: complies with medical standards IEC 60601-1 and 60601-1-2 and special standards IEC 60601-2-41, EU 2017/745; CE-marked as Class I medical device.

Mechanical testing and safety in use: die-cast aluminium and tubular steel structure. The articulated arm has been mechanically tested for 40,000 continuous movements.

Continuity of illumination: the modular design of the LED power supply circuit ensures continuity of illumination even in the event of an LED failure.

The lamp lenses are designed to provide good focus and depth of illumination. The diameter of the illuminated field is 16 cm at 0.5 m.

The following functions are activated by the membrane keypad:
- on/off
- selection of colour temperature 4,000°K and 4,500°K
- light intensity adjustment in 6 levels
- courtesy light

QR manual: GB, FR, IT, ES, PT.

Made in Italy. LED lifetime: >60,000 hours
Illuminated field at 50 cm: Ø 160 mm
Light intensity: 105,000 lux at 50 cm, 30,000 lux at 1 m
Colour temperature: 4,000-4,500 °K
Colour rendering index: 95 Ra
Outer diameter of reflector: 195 mm
Temperature increase

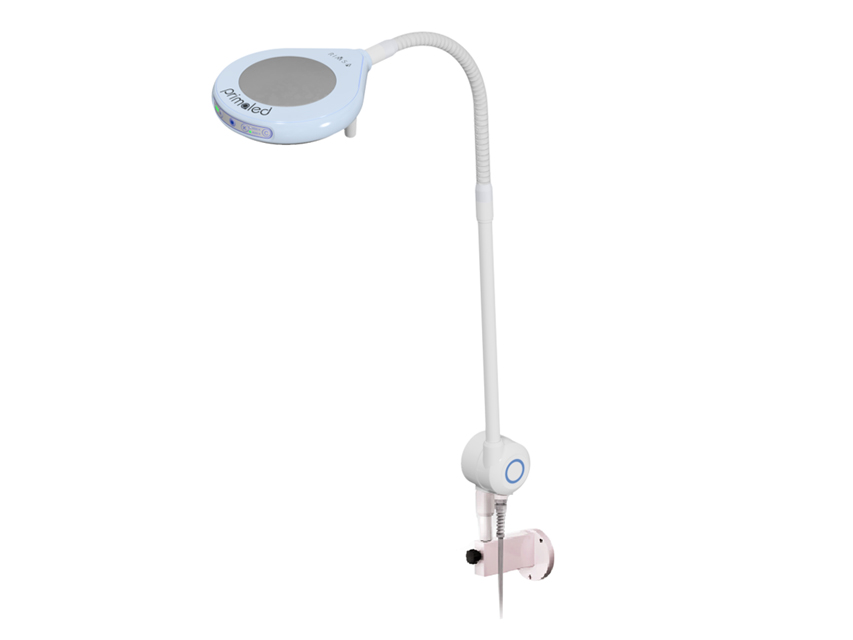

Primaled lamp - Flex - wall

Attractive design and advanced technology.

Design: the rounded, ultra-flat shape makes this lamp ergonomic and suitable for any type of installation.

Ergo-Spring System: the movement of the articulated tubular arm is servo-assisted by a torsion spring, ensuring ease of movement and stability.

105,000 lux: unique efficacy with 105,000 lux at 50 cm.

Light intensity adjustment: six different levels of adjustment with buttons on the front panel.

Colour temperature selection 4,000-4,500 °K: the comparison of the two colours (K) increases the visibility of details.

Shadow suppression: The radial lens arrangement and large reflector diameter (195 mm) enable shadow suppression and three-dimensional illumination.

Adjustable courtesy light: integrates ambient light in addition to the traditional concentrated light.

Removable sterilisable handle: enables best asepsis.

Cool light: the LEDs' low IR emission and low power consumption allow minimal heat emission.

LED lifetime of 60,000 hours: the aluminium dome allows heat exchange, thus reducing the working temperature and considerably increasing the lifetime of the individual LEDs.

Interchangeable plugs: the transformer is integrated in the plug for a lighter and smoother arm movement. The lamp is equipped with interchangeable plugs (UK, US, EU).

Fully certified: complies with medical standards IEC 60601-1 and 60601-1-2 and special standards IEC 60601-2-41, EU 2017/745; CE-marked as Class I medical device.

Mechanical testing and safety in use: die-cast aluminium and tubular steel structure. The articulated arm has been mechanically tested for 40,000 continuous movements.

Continuity of illumination: the modular design of the LED power supply circuit ensures continuity of illumination even in the event of an LED failure.

The lamp lenses are designed to provide good focus and depth of illumination. The diameter of the illuminated field is 16 cm at 0.5 m.

The following functions are activated by the membrane keypad:
- on/off
- selection of colour temperature 4,000°K and 4,500°K
- light intensity adjustment in 6 levels
- courtesy light

QR manual: GB, FR, IT, ES, PT.

Made in Italy. LED lifetime: >60,000 hours
Illuminated field at 50 cm: Ø 160 mm
Light intensity: 105,000 lux at 50 cm, 30,000 lux at 1 m
Colour temperature: 4,000-4,500 °K
Colour rendering index: 95 Ra
Outer diameter of reflector: 195 mm
Temperature increase

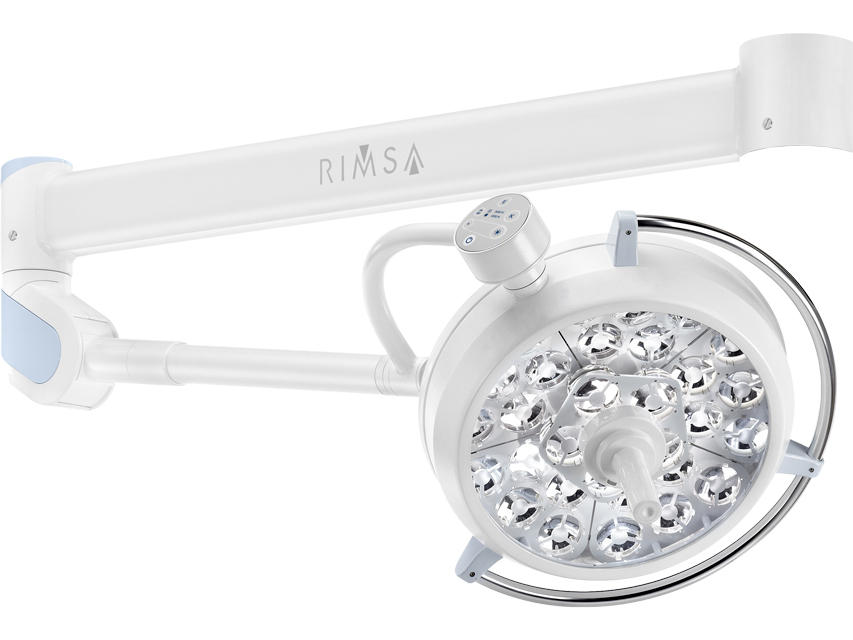

INNOVATIVE LED LIGHTING TECHNOLOGY

Pentaled 30E is a compact hi-tech luminaire that guarantees a high level of performance. Its 30 elliptical reflectors divided into 6 modules each comprise 5 LEDs providing 160,000 LUX light.

- choice between 4,500 and 5,000 °K: by simply pressing a digital button, the surgeon can choose between two white light temperatures
- electronic visualisation: innovative lenses allow the surgeon to increase/decrease the light field electronically, without altering the light intensity
- electronic comfort: indirect light creates 3D illumination of the working field without shadows and without risk of glare
- only white light to avoid the risk of perceived colour temperature variations or coloured shadows
- electronic depth: the light centre is equipped with an additional LED module designed to reflect deep light. The surgeon can therefore work with perfect 3D lighting
- optional battery and high-definition camera: optional battery with automatic charger (4 hours of autonomy) and integrated high-definition camera (ceiling and wall models only) - Light intensity at 1 m distance (Ec): Klx 160
- Colour temperature - selectable °K 4500 - 5000
- Colour rendering index (CRI) Ra 96
- Luminous field (electronically adjustable) 16-30 cm
- Ø of light field at 10% of luminous intensity

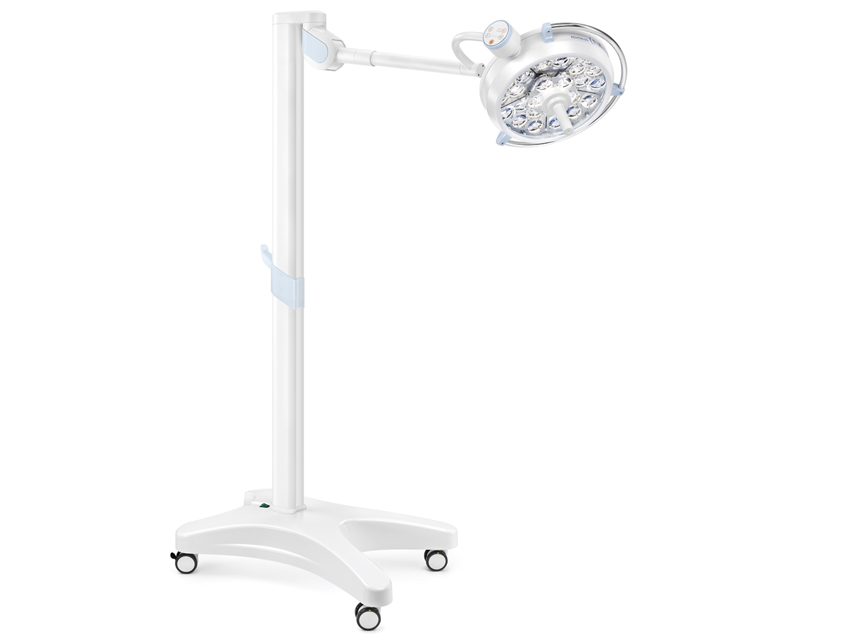

INNOVATIVE LED LIGHTING TECHNOLOGY

Pentaled 30E is a compact hi-tech luminaire that guarantees a high level of performance. Its 30 elliptical reflectors divided into 6 modules each comprise 5 LEDs providing 160,000 LUX light.

- choice between 4,500 and 5,000 °K: by simply pressing a digital button, the surgeon can choose between two white light temperatures
- electronic visualisation: innovative lenses allow the surgeon to increase/decrease the light field electronically, without altering the light intensity
- electronic comfort: indirect light creates 3D illumination of the working field without shadows and without risk of glare
- only white light to avoid the risk of perceived colour temperature variations or coloured shadows
- electronic depth: the light centre is equipped with an additional LED module designed to reflect deep light. The surgeon can therefore work with perfect 3D lighting
- optional battery and high-definition camera: optional battery with automatic charger (4 hours of autonomy) and integrated high-definition camera (ceiling and wall models only) - Light intensity at 1 m distance (Ec): Klx 160
- Colour temperature - selectable °K 4500 - 5000
- Colour rendering index (CRI) Ra 96
- Luminous field (electronically adjustable) 16-30 cm
- Ø of light field at 10% of luminous intensity
