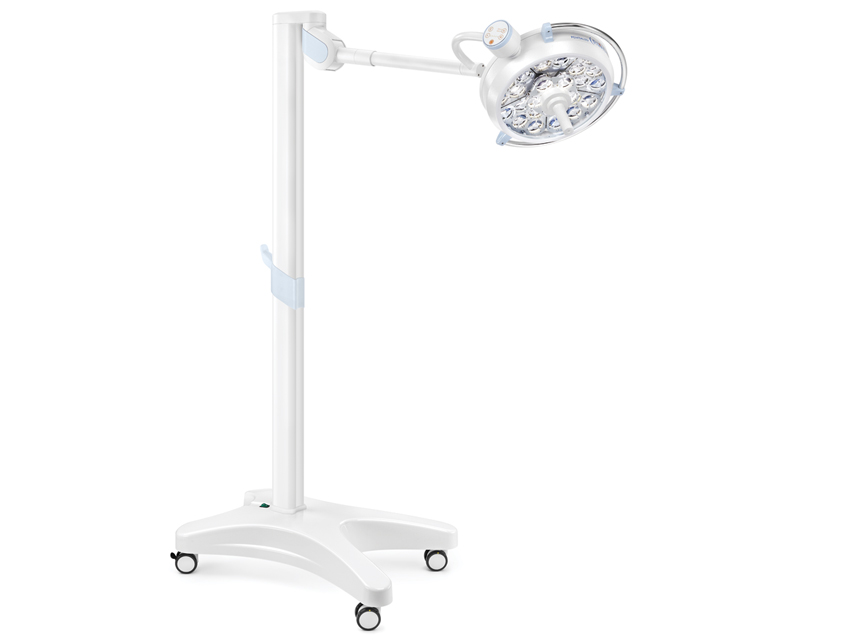

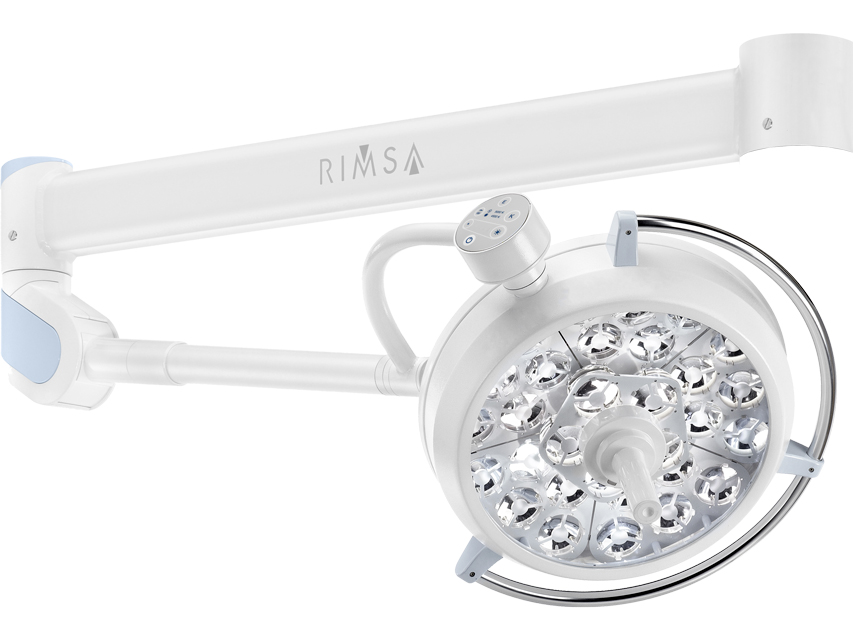

INNOVATIVE LED LIGHTING TECHNOLOGY

Pentaled 30E is a compact hi-tech luminaire that guarantees a high level of performance. Its 30 elliptical reflectors divided into 6 modules each comprise 5 LEDs providing 160,000 LUX light.

- choice between 4,500 and 5,000 °K: by simply pressing a digital button, the surgeon can choose between two white light temperatures
- electronic visualisation: innovative lenses allow the surgeon to increase/decrease the light field electronically, without altering the light intensity
- electronic comfort: indirect light creates 3D illumination of the working field without shadows and without risk of glare
- only white light to avoid the risk of perceived colour temperature variations or coloured shadows
- electronic depth: the light centre is equipped with an additional LED module designed to reflect deep light. The surgeon can therefore work with perfect 3D lighting
- optional battery and high-definition camera: optional battery with automatic charger (4 hours of autonomy) and integrated high-definition camera (ceiling and wall models only) - Light intensity at 1 m distance (Ec): Klx 160
- Colour temperature - selectable °K 4500 - 5000
- Colour rendering index (CRI) Ra 96
- Luminous field (electronically adjustable) 16-30 cm
- Ø of light field at 10% of luminous intensity

Autoclavable handle - replacement for Pentaled 30 up to s/n 12071.

For ceilings between 2.57 and 3.33 metres (for higher ceilings requires code 30788)
- 100,000 Lux at 1 m
- Indirect light with 12 elliptical reflectors.
They reflect the light rays emitted by the LEDs. No dazzle and no eye strain.

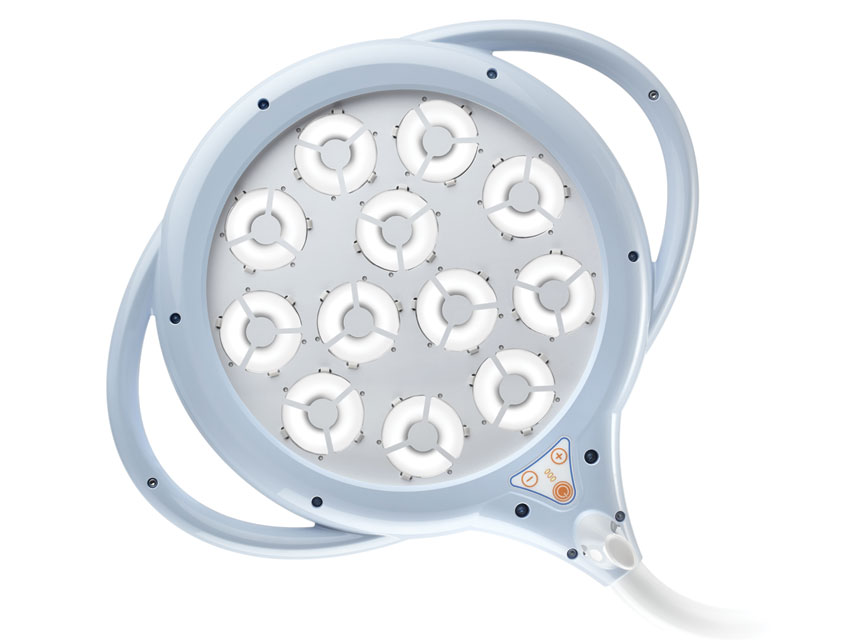

PENTALED is a perfect combination of advanced technology, innovation, ergonomics and a compact, ultra-light and handy design.
Available in 5 versions (free-standing, ceiling-mounted, double-mounted, free-standing with battery pack and wall-mounted), its technical features make PENTALED a suitable tool for precise operations, diagnostic use, operating theatres and minor surgery.

The version with battery pack is also available in wall-mounted and ceiling-mounted models on request.

- Cold LED light
The bright, cold light faithfully reproduces colours, guaranteeing excellent detail definition.

- Ergonomic
PENTALED can be easily rotated in 4 axes:
- the dome rotates fully 360°
- the arms move vertically thanks to a spring balancing system
- the reflector can be rotated on the vertical and horizontal axis. All movements are possible thanks to the sterilisable handle.

The low-consumption power supply and heat dissipation through the aluminium dome ensure a life of 50,000 hours for the LED.

Light intensity adjustment Adjustable light intensity via digital controls.

The ultra-flat illuminating rim is equipped with an ultra-resistant polycarbonate screen to ensure maximum protection against accidental impacts.
Digital light intensity adjustment control with visual indication of intensity settings. - Light intensity at a distance of 1 m: Lux 100,000
- Colour temperature: K° 4,500
- LED: N 12
- Average LED life: 50,000 hours
- CRI (Colour Rendering Index): Ra 96
- Light field: Ø mm 160
- Lighting depth (L1+L2) at 60%: cm 87
- Energy

- 100,000 Lux at 1 m
- Indirect light with 12 elliptical reflectors.
They reflect the light rays emitted by the LEDs. No dazzle and no eye fatigue.

PENTALED is a perfect combination of advanced technology, innovation, ergonomics and a design from the - Light intensity at 1 m distance: Lux 100,000
- Colour temperature: K° 4,500
- LED: N 12
- Average LED life: 50,000 hours
- CRI (Colour Rendering Index): Ra 96
- Light field: Ø mm 160
- Lighting depth (L1+L2) at 60%: cm 87
- Energy

- 100,000 Lux at 1 m
- Indirect light with 12 elliptical reflectors.
They reflect the light rays emitted by the LEDs. No dazzle and no eye fatigue.

PENTALED is a perfect combination of advanced technology, innovation, ergonomics and a design from the - Light intensity at 1 m distance: Lux 100,000
- Colour temperature: K° 4,500
- LED: N 12
- Average LED life: 50,000 hours
- CRI (Colour Rendering Index): Ra 96
- Light field: Ø mm 160
- Lighting depth (L1+L2) at 60%: cm 87
- Energy

Special frame for Pentaled 12 and 28 ceiling lights.

Required for installation on ceilings higher than 3.33 metres.

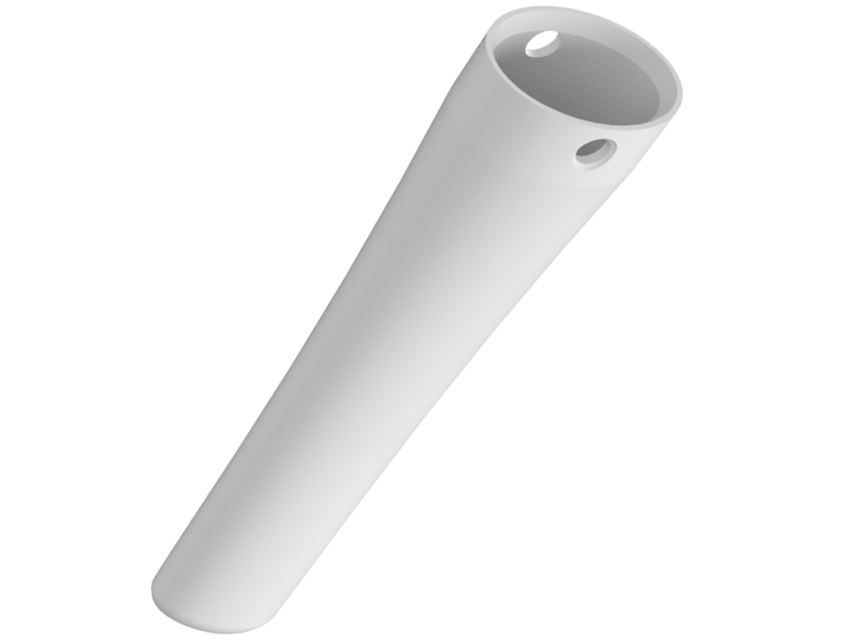

Replacement autoclavable handpiece for Pentaled lamps

Compatible with:
- PENTALED 12 LED LAMPS (cod. 30787 - 30789 - 30790 - 30791 - 30792)
- LED LAMPS PENTALED 28 (cod. 49115 - 49116 - 49117 - 49118 - 49119)

- 100,000 Lux at 1 m
- Indirect light with 12 elliptical reflectors.
They reflect the light rays emitted by the LEDs. No dazzle and no eye fatigue.

PENTALED is a perfect combination of advanced technology, innovation, ergonomics and a design from the - Light intensity at 1 m distance: Lux 100,000
- Colour temperature: K° 4,500
- LED: N 12
- Average LED life: 50,000 hours
- CRI (Colour Rendering Index): Ra 96
- Light field: Ø mm 160
- Lighting depth (L1+L2) at 60%: cm 87
- Energy

INNOVATIVE LED LIGHTING TECHNOLOGY

Pentaled 30E is a compact hi-tech luminaire that guarantees a high level of performance. Its 30 elliptical reflectors divided into 6 modules each comprise 5 LEDs providing 160,000 LUX light.

- choice between 4,500 and 5,000 °K: by simply pressing a digital button, the surgeon can choose between two white light temperatures
- electronic visualisation: innovative lenses allow the surgeon to increase/decrease the light field electronically, without altering the light intensity
- electronic comfort: indirect light creates 3D illumination of the working field without shadows and without risk of glare
- only white light to avoid the risk of perceived colour temperature variations or coloured shadows
- electronic depth: the light centre is equipped with an additional LED module designed to reflect deep light. The surgeon can therefore work with perfect 3D lighting
- optional battery and high-definition camera: optional battery with automatic charger (4 hours of autonomy) and integrated high-definition camera (ceiling and wall models only) - Light intensity at 1 m distance (Ec): Klx 160
- Colour temperature - selectable °K 4500 - 5000
- Colour rendering index (CRI) Ra 96
- Luminous field (electronically adjustable) 16-30 cm
- Ø of light field at 10% of luminous intensity

- 100,000 Lux at 1 m
- Indirect light with 12 elliptical reflectors.
They reflect the light rays emitted by the LEDs. No dazzle and no eye fatigue.

PENTALED is a perfect combination of advanced technology, innovation, ergonomics and a design from the - Light intensity at 1 m distance: Lux 100,000
- Colour temperature: K° 4,500
- LED: N 12
- Average LED life: 50,000 hours
- CRI (Colour Rendering Index): Ra 96
- Light field: Ø mm 160
- Lighting depth (L1+L2) at 60%: cm 87
- Energy
