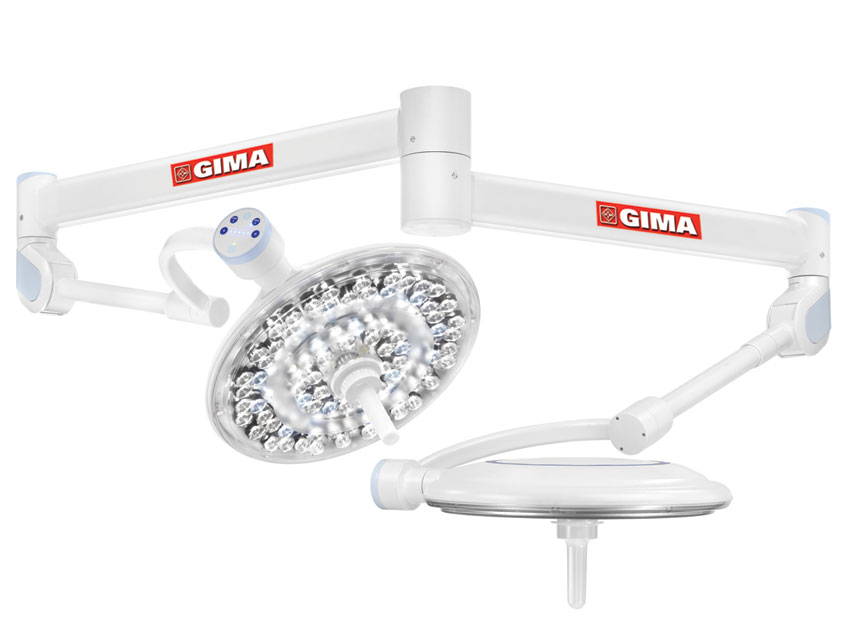

GIMALED SCIALITIC LAMP - double ceiling (for ceilings higher than 3.80 m, fitting code 49220 is required)

Gimaled lamp with 81 LEDs: a sophisticated design that combines excellent lighting characteristics with state-of-the-art mechanical quality for ultra-smooth movement.

Intense light: 27 fixed LEDs for central illumination and 54 LEDs (six modules with 9 LEDs each) moved by a servo-motor that allows the physician to adjust the diameter of the field of vision.

Shadow-free light: 81 LEDs positioned on a round surface provide high illumination and prevent shadows caused by interpositions between the light beam and the illuminated surface.

Brightness: selection of two colours: 4,000 K and 4,600 K consisting exclusively of white LEDs, without coloured shadow effects.

Main features:
- collimated light beam for a working distance of 70 to 160 cm
- high colour rendering index (CRI) 95, R9>90
- optimised thermal management of LEDs through heat dissipation to avoid the risk of reduced illumination during operations
- PMMA optical lens and polycarbonate protective shield
- Zener: ensures light even in case of LED failure
- low consumption, high efficiency
- Wi-Fi camera ready on request - Light intensity at a distance of 1 m (Ec): Klx 320
- 2 selectable colour temperatures:°K 4,000 and 4,600
- Colour rendering index (CRI): Ra 95
- Ø of light field (electronically adjustable): 11-35 cm
- Ø of the light field where the illum

IR remote control - single lamp.

Wi-Fi HD camera for GimaLed lamps.

Requires Wi-Fi HD camera setting kit code 49186 (installation must be carried out by Gima).

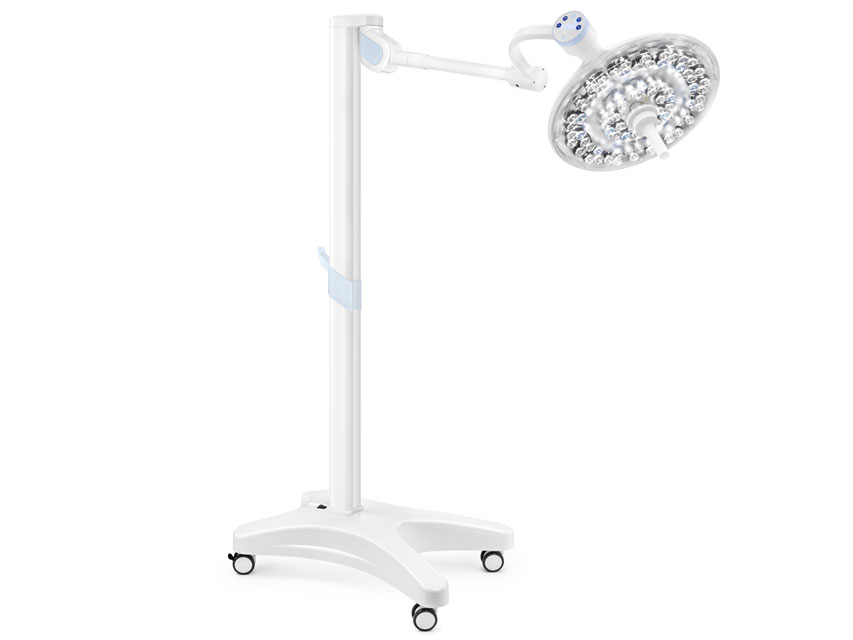

Gimaled lamp with 81 LEDs: a sophisticated design that combines excellent lighting characteristics with state-of-the-art mechanical quality for ultra-smooth movement.

Intense light: 27 fixed LEDs for central illumination and 54 LEDs (six modules with 9 LEDs each) moved by a servo-motor that allows the physician to adjust the diameter of the field of vision.

Shadow-free light: 81 LEDs positioned on a round surface provide high illumination and prevent shadows caused by interpositions between the light beam and the illuminated surface.

Brightness: selection of two colours: 4,000 K and 4,600 K consisting exclusively of white LEDs, without coloured shadow effects.

Light intensity: 160,000 Lux

Main features:
- collimated light beam for a working distance of 70 to 160 cm
- high colour rendering index (CRI) 95, R9>90
- optimised thermal management of LEDs through heat dissipation to avoid risk of reduced illumination during operation
- PMMA optical lens and polycarbonate protective shield
- Zener: ensures light even in case of LED failure
- low consumption, high efficiency
- Wi-Fi camera ready on request - Light intensity at a distance of 1 m (Ec): Klx 160
- 2 selectable colour temperatures:°K 4,000 and 4,600
- Colour rendering index (CRI): Ra 95
- Ø of light field (electronically adjustable): 11-35 cm
- Ø of light field where the illum

Wi-Fi HD camera set-up kit (installation to be carried out by Gima).

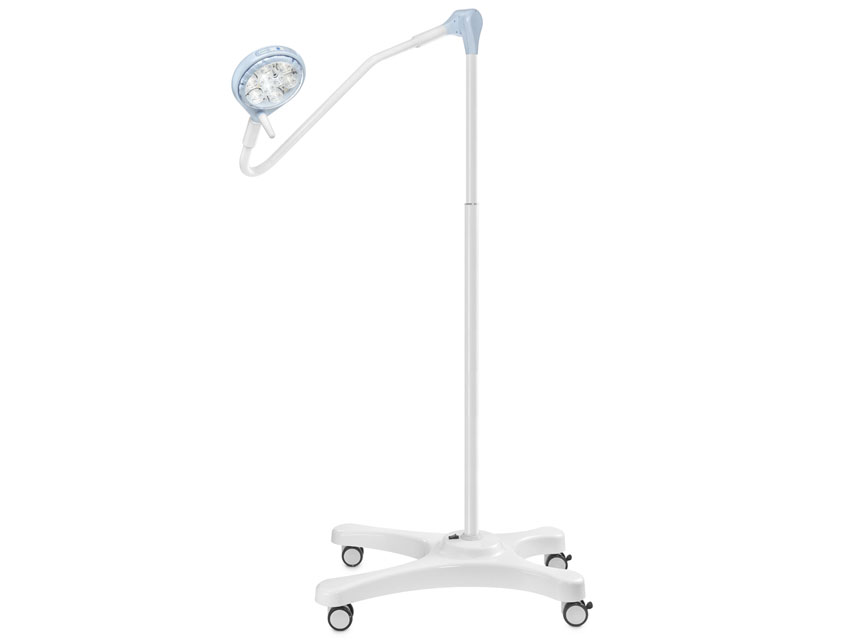

SATURNO LED LAMP FOR SMALL SURGERY

SATURNO is a shadowless lamp suitable for minor surgery, gynaecology and examinations.

Available in 3 versions: free-standing with castors, wall-mounted and ceiling-mounted.

- light beams are generated by 9 LEDs of 2.5 W each
- heat is dissipated through the aluminium reflector
- choice of 2 different types of white temperature: 4,000 °K and 4,500 °K
- light intensity adjustable in 6 different levels via digital controls on the front membrane
- light intensity of 50,000 LUX at 1 m Ø 28 cm light field
- adjustable friction pads are mounted on each joint of the lamp
- no focusing required - Light intensity at 1 m distance: 50,000 lux
- Colour temperature adjustment: 4000/4500 ± 5% °K
- 9 LEDS: 2.5 W
- Average LED service life: 50,000 h
- CRI (Colour Rendering Index): 95 Ra
- Luminous field where illumination reaches

Battery pack with automatic battery charger for 63N + 30N
to be ordered with lamp (49201)

GIMALED wall-mounted remote control.

SATURNO LED LAMP FOR SMALL SURGERY

SATURNO is a shadowless lamp suitable for minor surgery, gynaecology and examinations.

Available in 3 versions: free-standing with castors, wall-mounted and ceiling-mounted.

- light beams are generated by 9 LEDs of 2.5 W each
- heat is dissipated through the aluminium reflector
- choice of 2 different types of white temperature: 4,000 °K and 4,500 °K
- light intensity adjustable in 6 different levels via digital controls on the front membrane
- light intensity of 50,000 LUX at 1 m Ø 28 cm light field
- adjustable friction pads are mounted on each joint of the lamp
- no focusing required
- battery pack with charger: 4 hours operating time, 6 hours charging time - light intensity at 1 m distance: 50,000 lux
- Colour temperature adjustment: 4000/5000 ± 5% °K
- 9 LEDS: 2.5 W
- Average LED lifetime: 50,000 h
- CRI (Colour Rendering Index): 95 Ra
- Diameter of illuminated field: Ø 28 cm
- Profo

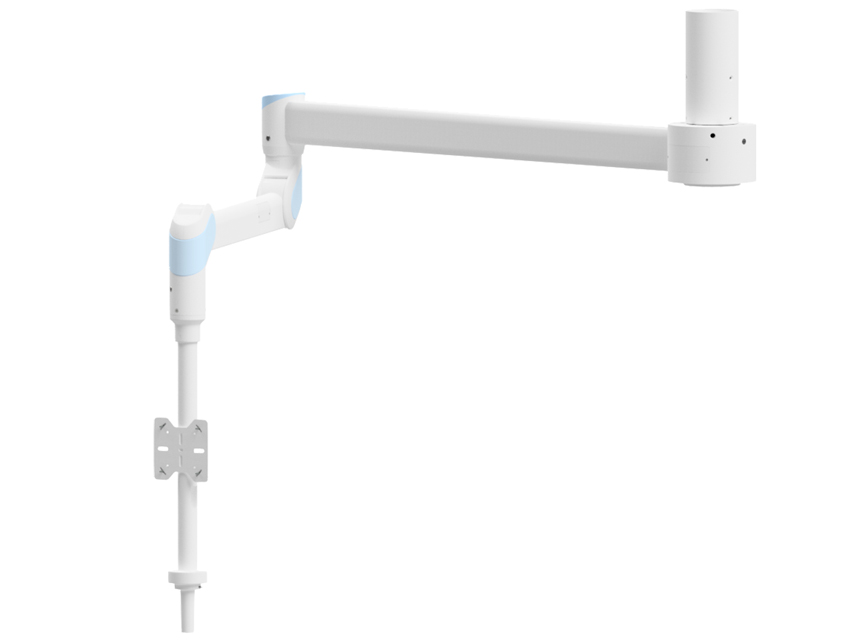

Monitor arm - free-standing

For:
PentaLed 63N (49200 - 49201 - 49202)
PentaLed 30E (30780 - 30779 - 307981 - 30782 - 30783)
GimaLed (49180 - 49181 - 49182 - 49183)
