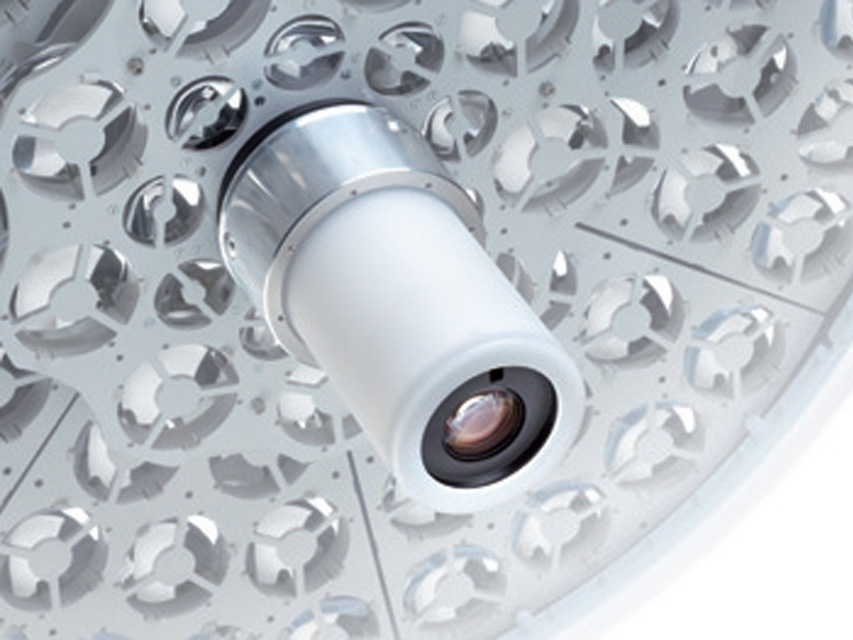

HD CCTV camera for 63N - with set-up.
To be ordered with lamp.

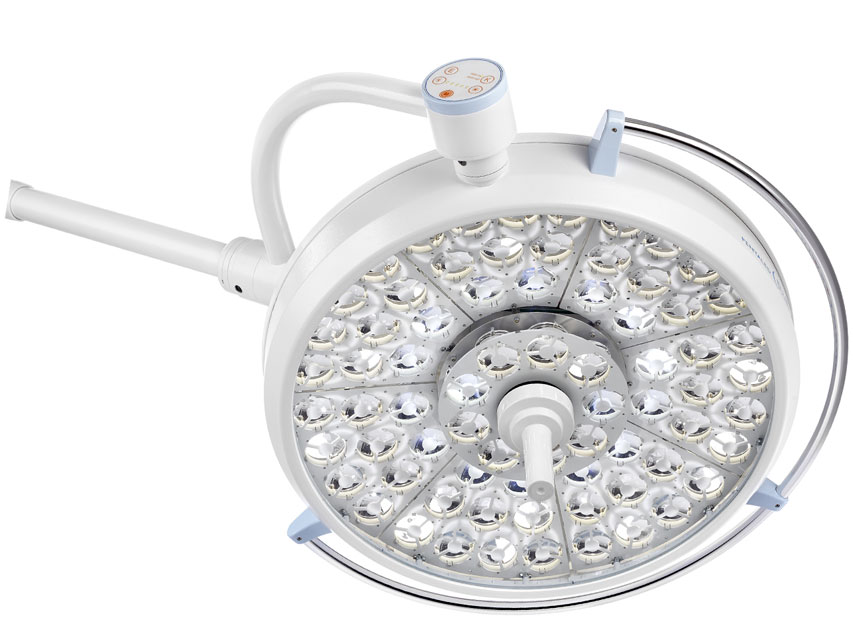

PENTALED 63N - 160,000 LUX

The Pentaled 63N is a high-tech fixture designed for excellent performance. It consists of 72 elliptical reflectors divided into 8 modules of 9 LEDs each. The modules are mechanically focused by rotating the handle. The multiplicity of light sources and the reflected light system make it possible to achieve the scialytic effect, for three-dimensional, shadow-free illumination.

Comfortable use
Thanks to the indirect light principle, the lamp oriented in different positions does not dazzle the surgeon and assistants. The size of the illuminated field is adjusted mechanically with a handle in relation to the type of light that the surgical speciality requires.

Superior lighting features
Controls on the membrane keypad activate the functions of:
- colour temperature selection 5,000°K and 4,500°K
- light intensity adjustment up to 160 Klx
- on/off
- endoled with colour selection (support light for endoscopy operations)
The 5,000°K colour temperature stimulates the surgeon's concentration, does not strain the eyes, faithfully reproduces tissue colour and increases contour definition.

Reliable and long-lasting performance
The modular design of the LED power supply circuit board ensures continuity of light even in the remote event of an LED failure. The light is protected by a tempered glass diffuser screen, rotation is 360° without stops on both the central and lateral axes, with sliding contact tracks for current transmission.

Easy manoeuvrability
The small size and reflector ensure high manoeuvrability and stability. Smooth 360° rotation. The extreme lightness of the structure, the aluminium-treated bar at the front of the dome, and the ultra-thin dish (only 13 cm) allow for easy movements.

Battery pack, CCTV camera, monitor arm on request
Each luminaire can be supplied with an emergency battery pack with automatic battery charger (hours of autonomy: 2.5 (49200), 2.5 (49201), 2 (49202), CCTV camera or monitor arm.

Full certification
In compliance with European Directives 93/42/EEC and 2007/47/EC Class I - CE marking medical device. Manufactured in Italy. Performance:
- Light intensity at 1 m distance (Ec): 160 klx
- Colour temperature: double selection 4500/5000 °K
- Colour rendering index (CRI): 96 Ra
- Light field diameter: variable from 21 to 42 cm
- Total radiated energy Ee quan

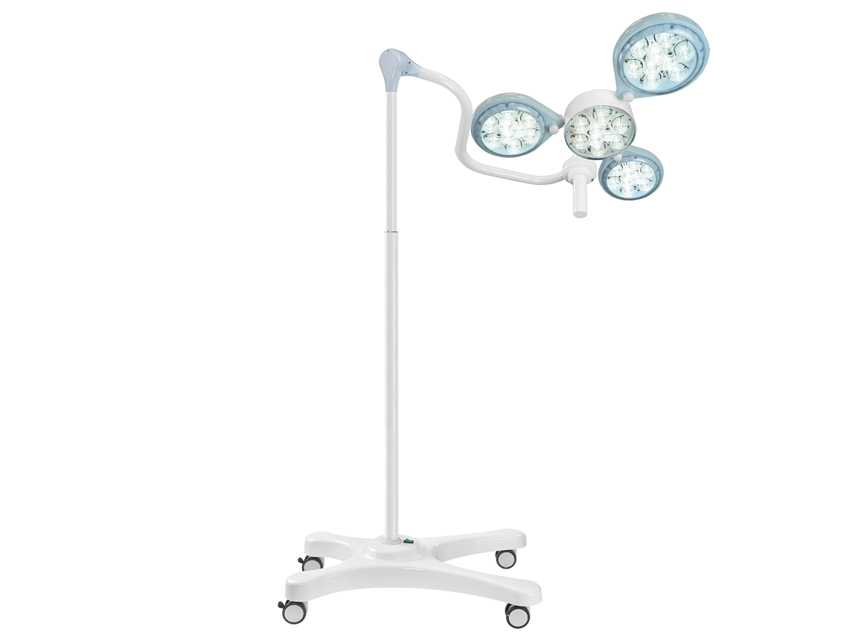

Quattroluci LED lamp - on trolley

Aerodynamic design, highly practical construction, advanced technology, quality and performance in one lamp.
The multi-circular reflector, designed to fully illuminate the work area by eliminating all shadows, has a central handle for easy positioning.
The ultra-slim luminaire body is fitted with an ultra-resistant polycarbonate screen, providing protection against accidental impact.
The 4-axis rotation facilitates positioning.
The dome consists of 36 LED lenses arranged radially on 4 modules of 9 LEDs each, to ensure continuity of illumination even in the rare case of failure of a single LED.
The light intensity is 160,000 lux.
Excellent for dental and maxillofacial surgery and aesthetic plastic surgery.

QR Manual: GB, FR, IT, ES, PT.

Made in Italy. Light intensity at 1 m distance: 160,000 lux
Colour temperature: 4,900° K
Average life of 36 LEDs: >60,000 hours
Colour rendering index (CRI): 94
Diameter of reflector: 60 cm
Diameter of illuminated field: 30 cm
Illuminance depth

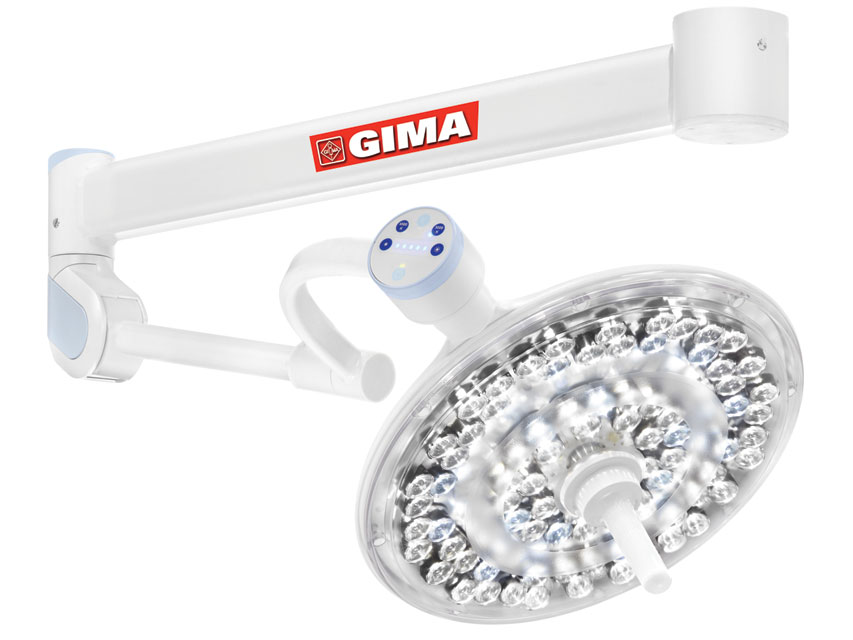

GIMALED SCIALITIC LAMP - ceiling (for ceilings higher than 3.80 m, fitting code 49220 is required)

Gimaled lamp with 81 LEDs: a sophisticated design that combines excellent lighting characteristics with state-of-the-art mechanical quality for ultra-smooth movement.

Intense light: 27 fixed LEDs for central illumination and 54 LEDs (six modules with 9 LEDs each) moved by a servo-motor that allows the physician to adjust the diameter of the field of vision.

Shadow-free light: 81 LEDs positioned on a round surface provide high illumination and prevent shadows caused by interpositions between the light beam and the illuminated surface.

Brightness: selection of two colours: 4,000 K and 4,600 K consisting exclusively of white LEDs, without coloured shadow effects.

Light intensity: 160,000 Lux

Main features:
- collimated light beam for a working distance of 70 to 160 cm
- high colour rendering index (CRI) 95, R9>90
- optimised thermal management of LEDs through heat dissipation to avoid risk of reduced illumination during operation
- PMMA optical lens and polycarbonate protective shield
- Zener: ensures light even in case of LED failure
- low consumption, high efficiency
- Wi-Fi camera ready on request - Light intensity at a distance of 1 m (Ec): Klx 160
- 2 selectable colour temperatures:°K 4,000 and 4,600
- Colour rendering index (CRI): Ra 95
- Ø of light field (electronically adjustable): 11-35 cm
- Ø of light field where the illum

Quattroluci LED lamp - ceiling mounted (Ceilings >3.34 m need 30788)

Aerodynamic design, highly practical construction, advanced technology, quality and performance in one lamp.
The multi-circular reflector, designed to fully illuminate the work area by eliminating all shadows, has a central handle for easy positioning.
The ultra-slim luminaire body is fitted with an ultra-resistant polycarbonate screen, providing protection against accidental impact.
The 4-axis rotation facilitates positioning.
The dome consists of 36 LED lenses arranged radially on 4 modules of 9 LEDs each, to ensure continuity of illumination even in the rare case of failure of a single LED.
The light intensity is 160,000 lux.
Excellent for dental and maxillofacial surgery and aesthetic plastic surgery.

QR Manual: GB, FR, IT, ES, PT.

Made in Italy. Light intensity at 1 m distance: 160,000 lux
Colour temperature: 4,900° K
Average life of 36 LEDs: >60,000 hours
Colour rendering index (CRI): 94
Diameter of reflector: 60 cm
Diameter of illuminated field: 30 cm
Illuminance depth

PENTALED 63N + 30N double - 320,000 LUX - compact

Pentaled 63N is a high-tech fixture designed for excellent performance. It consists of 72 elliptical reflectors divided into 8 modules of 9 LEDs each. The modules are mechanically focused by rotating the handle. The multiplicity of light sources and the reflected light system make it possible to achieve the scialytic effect, for three-dimensional, shadow-free illumination.

Comfortable use
Thanks to the indirect light principle, the lamp oriented in different positions does not dazzle the surgeon and assistants. The size of the illuminated field is adjusted mechanically with a handle in relation to the type of light that the surgical speciality requires.

Superior lighting features
Controls on the membrane keypad activate the functions of:
- colour temperature selection 5,000°K and 4,500°K
- light intensity adjustment up to 160 Klx
- on/off
- endoled with colour selection (support light for endoscopy operations)
The 5,000°K colour temperature stimulates the surgeon's concentration, does not strain the eyes, faithfully reproduces tissue colour and increases contour definition.

Reliable and long-lasting performance
The modular design of the LED power supply circuit board ensures continuity of light even in the remote event of an LED failure. The light is protected by a tempered glass diffuser screen, rotation is 360° without stops on both the central and lateral axes, with sliding contact tracks for current transmission.

Easy manoeuvrability
The small size and reflector ensure high manoeuvrability and stability. Smooth 360° rotation. The extreme lightness of the structure, the aluminium-treated bar at the front of the dome, and the ultra-thin dish (only 13 cm) allow for easy movements.

Battery pack, CCTV camera, monitor arm on request
Each luminaire can be supplied with an emergency battery pack with automatic battery charger (hours of autonomy: 2.5 (49200), 2.5 (49201), 2 (49202), CCTV camera or monitor arm.

Full certification
In compliance with European Directives 93/42/EEC and 2007/47/EC Class I - CE marking medical device. Manufactured in Italy. Performance:
- Light intensity at 1 m distance (Ec): 160 klx
- Colour temperature: double selection 4500/5000 °K
- Colour rendering index (CRI): 96 Ra
- Light field diameter: 21-42 cm (63N) / 18-30 cm (30N)
- Total radiated energy

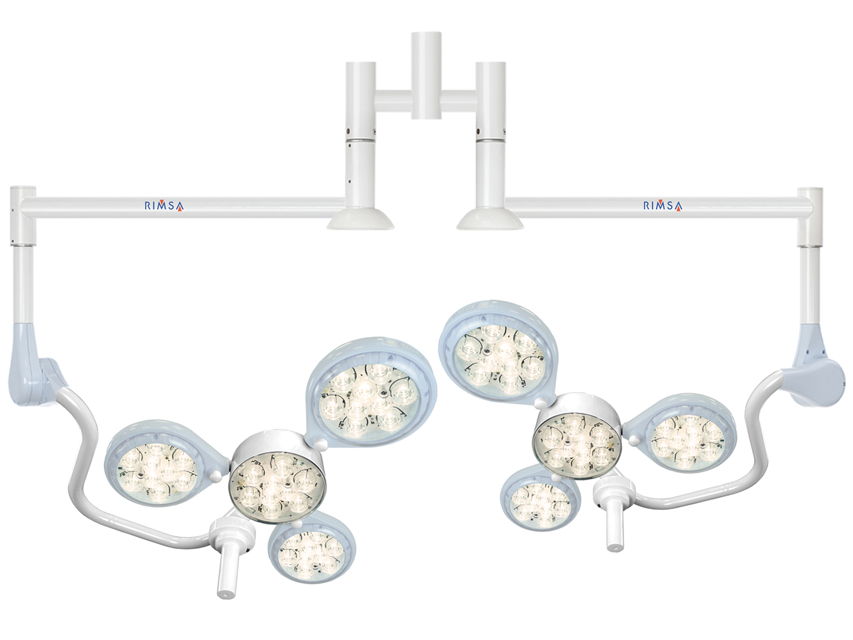

Quattroluci LED double lamp - ceiling mounted (ceilings >3.58 m need 30788)

Aerodynamic design, highly practical construction, advanced technology, quality and performance in one lamp.
The multi-circular reflector, designed to fully illuminate the work area by eliminating all shadows, has a central handle for easy positioning.
The ultra-slim luminaire body is fitted with an ultra-resistant polycarbonate screen, providing protection against accidental impact.
The 4-axis rotation facilitates positioning.
The dome consists of 36 LED lenses arranged radially on 4 modules of 9 LEDs each, to ensure continuity of illumination even in the rare case of failure of a single LED.
The light intensity is 160,000 lux.
Excellent for dental and maxillofacial surgery and aesthetic plastic surgery.

QR Manual: GB, FR, IT, ES, PT.

Made in Italy. Light intensity at 1 m distance: 160,000 lux
Colour temperature: 4,900° K
Average life of 36 LEDs: >60,000 hours
Colour rendering index (CRI): 94
Diameter of reflector: 60 cm
Diameter of illuminated field: 30 cm
Illuminance depth

Gimaled lamp with 81 LEDs: a sophisticated design that combines excellent lighting characteristics with state-of-the-art mechanical quality for ultra-smooth movement.

Intense light: 27 fixed LEDs for central illumination and 54 LEDs (six modules with 9 LEDs each) moved by a servo-motor that allows the physician to adjust the diameter of the field of vision.

Shadow-free light: 81 LEDs positioned on a round surface provide high illumination and prevent shadows caused by interpositions between the light beam and the illuminated surface.

Brightness: selection of two colours: 4,000 K and 4,600 K consisting exclusively of white LEDs, without coloured shadow effects.

Light intensity: 160,000 Lux

Main features:
- collimated light beam for a working distance of 70 to 160 cm
- high colour rendering index (CRI) 95, R9>90
- optimised thermal management of LEDs through heat dissipation to avoid risk of reduced illumination during operation
- PMMA optical lens and polycarbonate protective shield
- Zener: ensures light even in case of LED failure
- low consumption, high efficiency
- Wi-Fi camera ready on request - Light intensity at a distance of 1 m (Ec): Klx 160
- 2 selectable colour temperatures:°K 4,000 and 4,600
- Colour rendering index (CRI): Ra 95
- Ø of light field (electronically adjustable): 11-35 cm
- Ø of light field where the illum

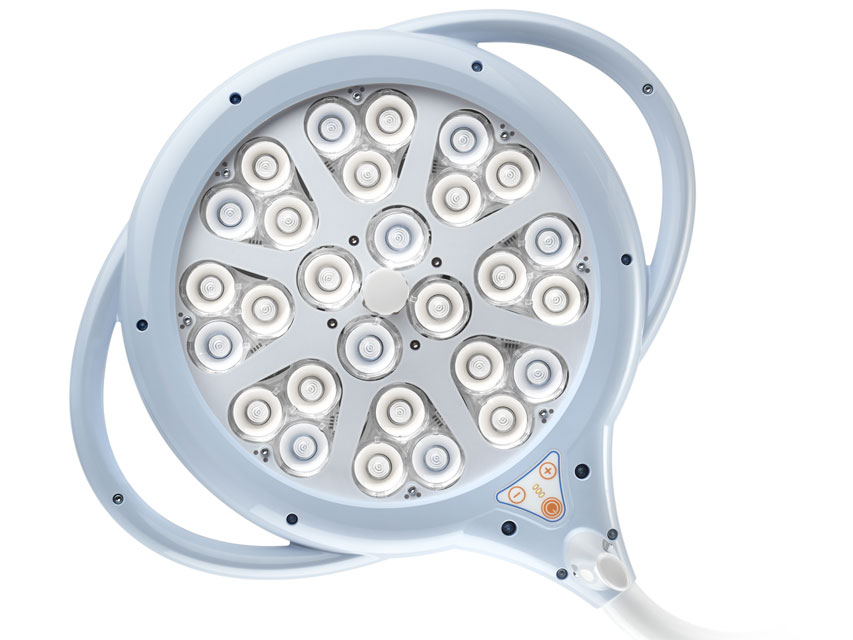

- 120,000 Lux at 1 m
- direct light with 28 LED lenses
- choice of two colours: 4,500 or 5,000 K
- light area adjustment

PENTALED is a perfect combination of advanced technology, innovation, ergonomics and a compact, ultralight design - Light intensity at 1 m distance: Lux 120,000
- Colour temperature: K° 4,500/5,000
- LED: N 28
- Average LED life: 50,000 hours
- CRI (Colour Rendering Index): Ra 92(5,000 K) Ra 96(4,500 K)
- Light field: Ø mm 135-270
- Lighting depth

Quattroluci LED lamp - on trolley + battery pack and charger

Aerodynamic design, extremely practical construction, advanced technology, quality and performance in one lamp.
The multi-circular reflector, designed to fully illuminate the work area by eliminating all shadows, has a central handle for easy positioning.
The ultra-slim luminaire body is fitted with an ultra-resistant polycarbonate screen, providing protection against accidental impact.
The 4-axis rotation facilitates positioning.
The dome consists of 36 LED lenses arranged radially on 4 modules of 9 LEDs each, to ensure continuity of illumination even in the rare case of failure of a single LED.
The light intensity is 160,000 lux.
Excellent for dental and maxillofacial surgery and aesthetic plastic surgery.

QR Manual: GB, FR, IT, ES, PT.

Made in Italy. Light intensity at 1 m distance: 160,000 lux
Colour temperature: 4,900° K
Average life of 36 LEDs: >60,000 hours
Colour rendering index (CRI): 94
Diameter of reflector: 60 cm
Diameter of illuminated field: 30 cm
Illuminance depth
