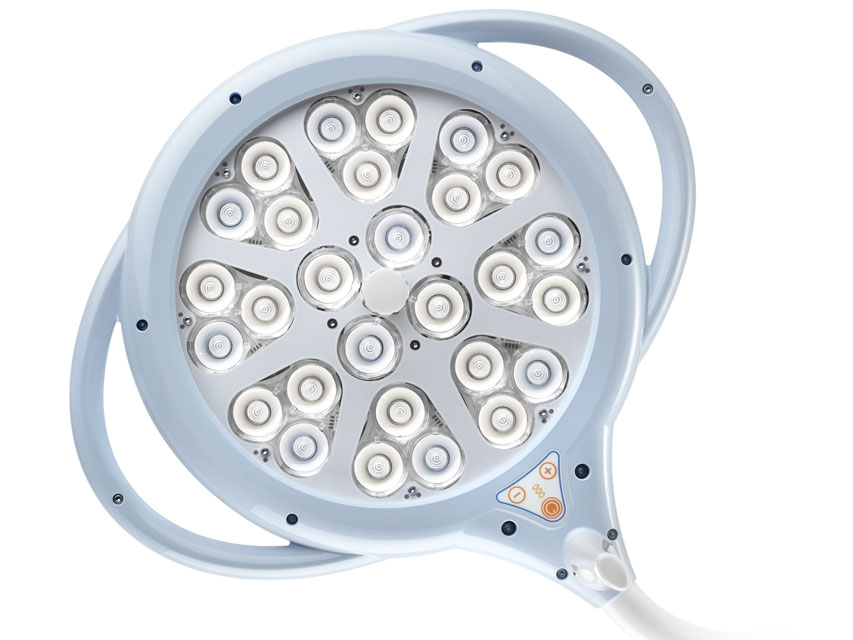

PENTALED 28 on trolley, with battery

- 80,000 Lux at 1 metre
- Direct light with 28 LED lenses
- Colour temperature selectable: 4,500 or 5,000 K
- Light area adjustment

PENTALED is a perfect combination of advanced technology, innovation, ergonomics and a compact, ultra-light and handy design.

Available in 5 versions (free-standing, ceiling-mounted, double-mounted, free-standing with battery pack and wall-mounted), its technical features make PENTALED a suitable tool for precise operations, diagnostic use, operating theatres and minor surgery.

Version with battery pack with an autonomy of 1.5 hours.

Cold LED light: The bright, cold light faithfully reproduces colours, guaranteeing excellent detail definition.

Ergonomic: PENTALED can be easily rotated on 4 axes:
- the dome rotates fully 360°
- the arms move vertically thanks to a spring balancing system
- the reflector can be rotated on the vertical and horizontal axis. All movements are possible thanks to the sterilisable handle

The low-consumption power supply and heat dissipation through the aluminium dome ensure a life of 50,000 hours for the LED.

Adjustable light intensity through digital control Digital control with visual setting indication.

The ultra-flat illuminating circle is equipped with an ultra-resistant polycarbonate screen that ensures maximum protection against accidental impacts.

The dome can be adjusted thanks to the sterilisable handle.

The two opposite handles allow the light to be directed to any position. - Light intensity at a distance of 1 m: Lux 120,000
- Colour temperature: K° 4,500/5,000
- LED: N 28
- Average LED life: 50,000 hours
- CRI (Colour Rendering Index): Ra 92(5,000 K) Ra 96(4,500 K)
- Light field: Ø mm 135-270
- Lighting depth

Rechargeable adult Li-ion battery** 3.5 V for 34457, 34482

**for handles sold after May 2013

GIMA GREEN" RECHARGEABLE HANDLES F.O. XENON/HALOGEN 3,5 V
- Closed battery compartment to prevent liquids from entering
- Handles supplied with bulb. Battery not included.
- Sturdy handle made of chrome-coated metal

GIMA GREEN LARYNGOSCOPES
- maximum light transmission thanks to high-quality, durable fibres
- blades designed for easy intubation
- matt finish to reduce reflections
- autoclavable up to 134°C for 5 minutes. blades autoclavable up to 2,000 times
- compatible with plasma gas sterilisation
- all blades are Green BS EN ISO 7376 compatible
- all blades are rust-resistant austenitic stainless steel
- long-lasting blades. GIMA offers a 3-year warranty.
- wide selection of power sources: 'AA' and 'C' type batteries or 2.5 and 3.5 V rechargeable batteries
- handles available with 2.5 and 3.5 V xenon/halogen or LED bulbs
- 2.5 V handles can be used with standard or rechargeable batteries
- non-magnetic blades

Paediatric rechargeable Li-ion battery** 3.5 V for 34456

**for handles sold after May 2013

GIMA GREEN" RECHARGEABLE HANDLES F.O. XENON/HALOGEN 3,5 V
- Closed battery compartment to prevent liquids from entering
- Handles supplied with bulb. Battery not included.
- Sturdy handle made of chrome-coated metal

GIMA GREEN LARYNGOSCOPES
- maximum light transmission thanks to high-quality, durable fibres
- blades designed for easy intubation
- matt finish to reduce reflections
- autoclavable up to 134°C for 5 minutes. blades autoclavable up to 2,000 times
- compatible with plasma gas sterilisation
- all blades are Green BS EN ISO 7376 compatible
- all blades are rust-resistant austenitic stainless steel
- long-lasting blades. GIMA offers a 3-year warranty.
- wide selection of power sources: 'AA' and 'C' type batteries or 2.5 and 3.5 V rechargeable batteries
- handles available with 2.5 and 3.5 V xenon/halogen or LED bulbs
- 2.5 V handles can be used with standard or rechargeable batteries
- non-magnetic blades

3.5 V lithium-ion rechargeable battery for plug-in handle 31537 - replacement

GIMA RECHARGE BASE - 100/200 V - 50/60 Hz

Can charge both 2.5 V/3.5 V NiCa, NimH and Li-Ion rechargeable batteries.
The unit is designed to avoid overcharging thanks to the charge level indicator.
It can charge both the adult and paediatric handles at the same time.

The charging base includes a paediatric adapter, wall bracket, UK, US and EU connector.

LED SET F.O. MAXLITE - 2.5 V

- Adult set (4 Mc Intosh blades 1-2-3-4)

- F.O. laryngoscopes offering bright cold light
- Maxlite fibre optic blades with integrated fibre
- rechargeable handle with LED bulb
- 2.5 rechargeable handle (battery not included). The 2.5 V rechargeable handle can be used with rechargeable or alkaline batteries. Rechargeable handles must be used with charging base 31542 (not included)
- non-magnetic blades

Blade No. 00 MILLER OXY - premature
Total length: 65 mm
Distal width: 11.5 mm

High-quality line:
- standard 2.5 V vacuum bulb
- ergonomic, lightweight, satin-finished handle reduces reflections
- long-lasting stainless steel contacts
- ETO or steam sterilisation
- full range of Mc Intosh and Miller blades, latex free
- ISO 7376 compatibility allows use with other brand handles
- set packed in shockproof plastic case
- 2.5 V handles: works with alkaline and rechargeable batteries
- excellent light transmission of 3,500 LUX with 2.5 V handles
- autoclavable up to 134° for 5 minutes (approx. 2,000 times)
- non-magnetic blades

DISPOSABLE LARYNGOSCOPE BLADES F.O.

- No. 0 Miller - infants
- Total length: 90 mm
- Distal width: 22 mm

Choice of 5 different types: Mc Intosh No. 2, 3, 4 and Miller No. 0 and 1, all tested for tensile strength. Manufactured in polycarbonate. Individually packaged; non-sterile.

COMPATIBLE WITH ALL GREEN LINES.

XENON/HALOGEN F.O. MAXLITE SET - 2.5 V

- Adult set (4 Mc Intosh blades 1-2-3-4)

- F.O. laryngoscopes offering bright cold light
- Maxlite fibre optic blades with integrated fibre
- rechargeable handle with xenon/halogen bulb
- 2.5 rechargeable handle (battery not included). The 2.5 V rechargeable handle can be used with rechargeable or alkaline batteries. Rechargeable handles must be used with charging base 31542 (not included)
- non-magnetic blades

Blade No. 5 Mc INTOSH - adult/extra large
Total length: 175 mm
Distal width: 14 mm

High-quality line:
- standard 2.5 V vacuum bulb
- ergonomic, lightweight, satin-finished handle reduces reflections
- long-lasting stainless steel contacts
- ETO or steam sterilisation
- full range of Mc Intosh and Miller blades, latex free
- ISO 7376 compatibility allows use with other brand handles
- set packed in shockproof plastic case
- 2.5 V handles: works with alkaline and rechargeable batteries
- excellent light transmission of 3,500 LUX with 2.5 V handles
- autoclavable up to 134° for 5 minutes (approx. 2,000 times)
- non-magnetic blades
