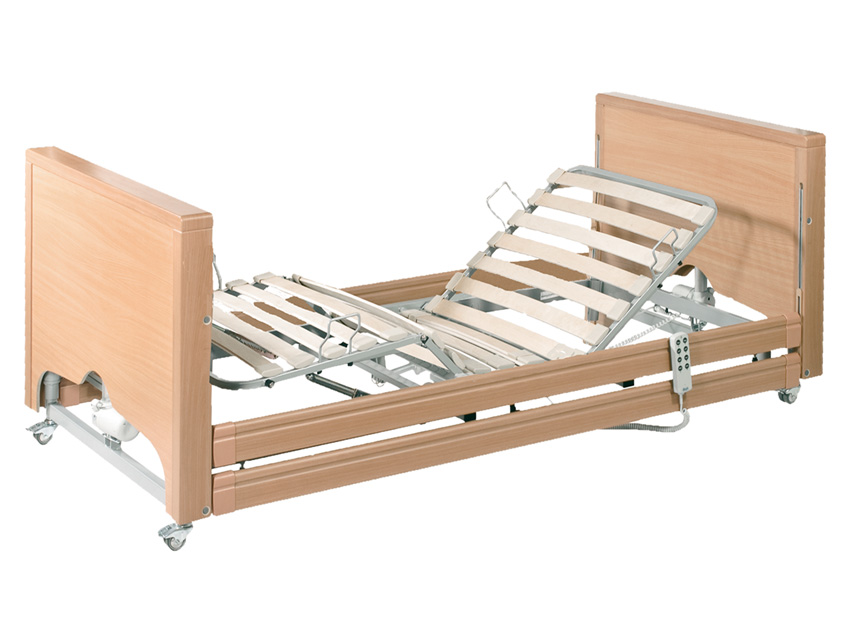

4 SECTION LOW BED - electric

LOW SPECIALIST BED with Trendelenburg - 23-63 cm

Three-articulated, four-section bed with adjustable height from 23 to 63 cm with fully electric movements.
Entirely welded structure made of 50x25x2 mm rectangular section steel profiles.
Bed base with flexible wooden slats, complete with mattress support guides.
Backrest and leg section adjustable by means of two independent 24V DC electric motors and push-button panel.
Foot section adjustable by means of a rack.
Fixed pelvis section.
Removable headboard and footboard with solid wood edges.
Supplied complete with 2 vertical sliding bars with upper and lower locking/unlocking mechanism and lift bar.
Legs with 4 swivel castors Ø 100 mm with independent brake. Net dimensions: 900x2,000 mm
Net height: 230-630 mm
External dimensions: 1,030x2,140 mm
Maximum load capacity: 135 kg
Weight: 102 kg
Operating power: 230V - 50Hz
