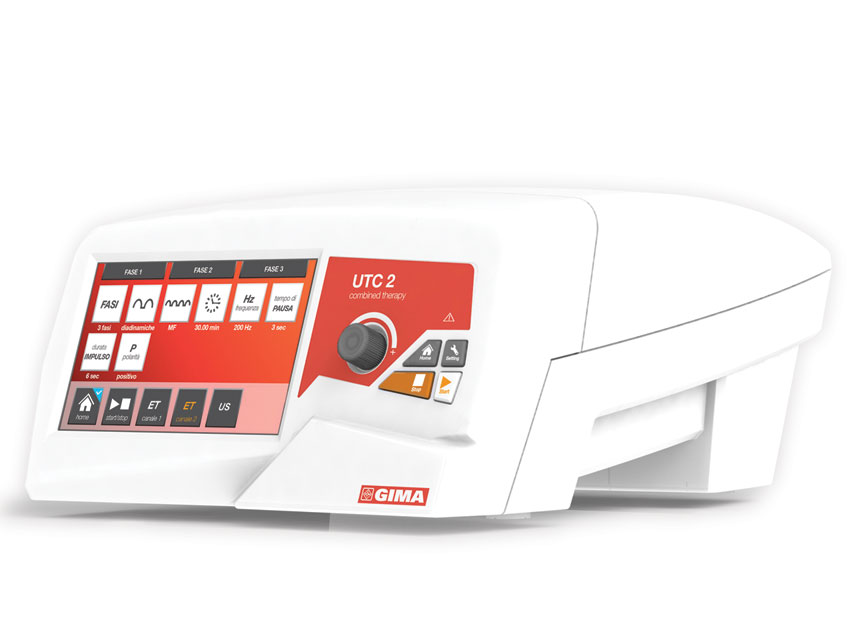

GIMA UTC2 - ULTRASOUND+ELECTROTHERAPY

UTC 2 is a programmable unit for connecting ultrasonic transducers with frequencies from 1 to 3 MHz with the possibility of combining 2 electrotherapy channels. With UTC 2 it is possible to obtain continuous or modulated ultrasound emissions with programmable intensity and delivery times, thus suitable for deep thermo-therapeutic treatment of different pathological stages. The transducer handpieces of UTC 2 can be used in immersion. UTC 2 has diadynamic, faradic, galvanic, impulsive, T.E.N.S. and bipolar electrotherapeutic currents.

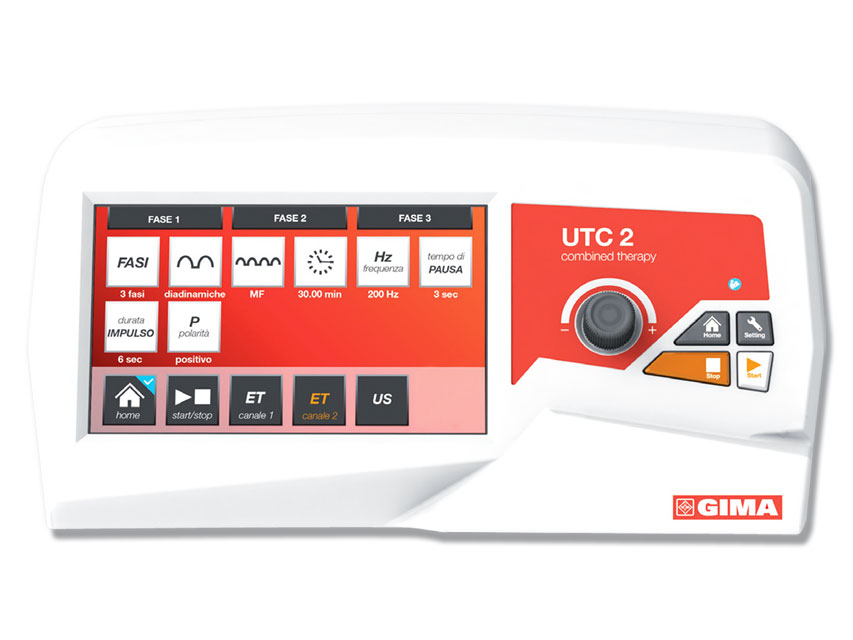

- High-brightness touchscreen display
- Intuitive icon-based interface
- Upgradeable
- Preset protocols, customised programmes
- Automatic recognition of connected accessory
- Continuous or pulsed emission
- Combined association with electrotherapy
- Sequential programming for each channel
- Totally independent channels
- Safety control systems with current deactivation in the event of accidental disconnection of the electrodes

Manufactured in Italy.
Software in 6 languages: GB, FR, IT, ES, DE, PT. - Output frequency (MHz): 1.0 to 3.0
- Maximum intensity (W/sq cm): 3.0
- ET channels: 2
- Maximum continuous current (mA): 30
- Maximum pulse current (mA): 70
- Max. output voltage (Vdc): 100
- Power (Vac/Hz): 90-240 / 50-60
- Power supply - Ultrasound handpiece 1-3 MHz Ø 35 mm
- Connection cable for electrotherapy 1-2 (28303)
- 4 rubber electrodes 120 x 80 mm
- 4 rubber electrodes 45 x 60 mm
- 3 elastic Velcro strips
- 8 x 40 cm
- 8 x 60 cm
- 8 x 100 cm
- Power cable
