BASIC MAGNETOTHERAPY

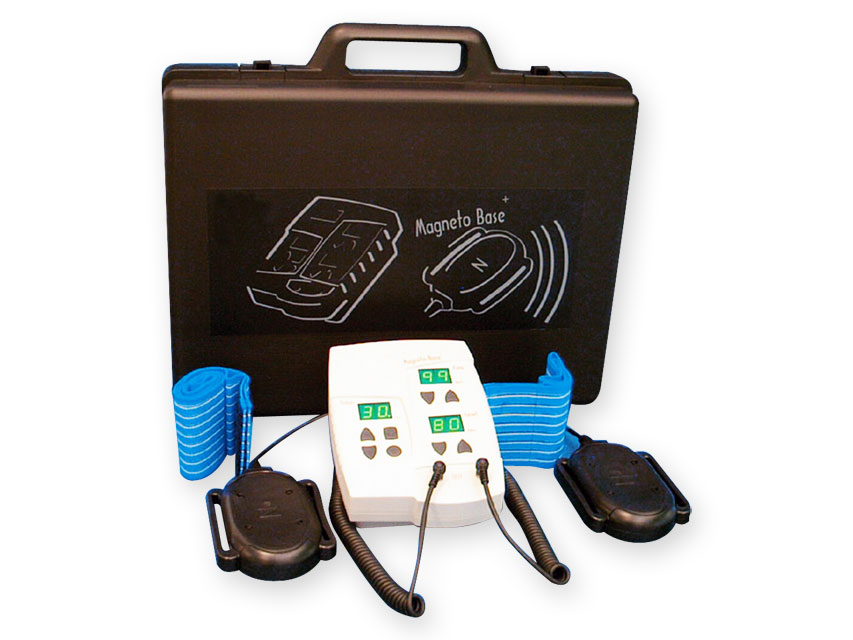

GIMA MT BASE PLUS - magnetotherapy

The Magneto Base Plus is a low-frequency magnetotherapy apparatus designed and manufactured for home applications.

The main effects of low-frequency magnetic fields are: Anti-edema / Antalgic / Antiphlogistic / Regenerative and find application mainly in:
traumatology, rheumatology, angiology, neurology, dermatology, endocrinology.

The magnetic field produced is impulsive. The apparatus has incorporated a square-wave electric current generator with variable frequency from 10 to 99 Hz and variable pulse duration to obtain a field intensity that can be predetermined from 10 to 80 Gauss.

The device incorporates an audible magnetic field detector and a safety system that blocks the supply in the event of a short circuit.
The two plates can be connected simultaneously (the field produced by each plate is half of the total). - Modulation waveform: square
- Maximum emission ratio: 50%
- Adjustable magnetic field: 10-80 Gauss
- Field frequency: selectable from 10 to 99 Hz
- Maximum field strength: 80 Gauss (8mT)
- Supply voltage: 230 V - Power cable
- 2 plates 80 Gauss for applications cm 120 x 70 mm
- 1 velcro elastic band 60 x h 8 cm
- 1 velcro elastic band 100 x h 8 cm
- ABS carrying case
- User manual: GB, IT
