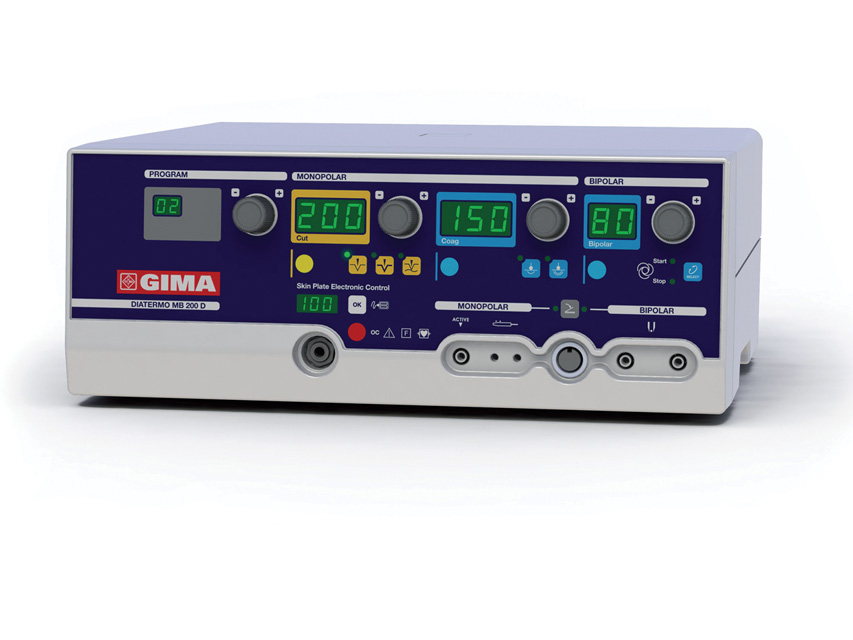

DIATERMO MB 200D - single-bipolar 200 Watt

DIATERMO MB200D - mono-bipolar - 200 Watts

The MB 200D is a high-frequency electric scalpel for monopolar and bipolar precision surgery. For minimally invasive surgical resection, evaporation and coagulation treatments, it performs pure CUT cutting, incisions with reduced necrosis production, BLEND coagulated cutting, FORCED COAG surface coagulation, SOFT COAG depth coagulation and BIPOLAR bipolar coagulation.
Digital readout of the power output and micro-processor monitoring of the operating functions ensure absolutely reliable working conditions.
For highly professional surgery thanks to the ergonomic and safety solutions adopted.
The electrosurgical unit is equipped with a control system to check the correct functioning of the neutral electrode.
The possibility of switching functions and controlling the power output of the electrode holder allows surgery to be performed without
diverting attention from the operating field.

- plate-patient contact control
- possibility of using single or bipartite neutral electrodes
- use in minimally invasive surgery
- monopolar/ bipolar cutting and coagulation function
- auto start/stop in bipolar COAG
- storage of working conditions
- power activation with foot pedal and/or handpiece
- digital power adjustment and display
- adjustment of sound emission intensity - Max. power CUT: 200W - 250 Ohm
- Max. power ENHANCED: 120W - 250 Ohm
- Max. power BLEND: 120W - 200 Ohm
- Max. power FORCED COAG: 150W - 150 Ohm
- Max. power SOFT COAG: 90W - 100 Ohm
- Max. power BIPOLAR COAG: 80W - 50 Ohm
- Wash frequency - MB handpiece with 2 autoclavable buttons (30536)
- MB watertight foot pedal (30577)
- Metal plate with cable (30564)
- Kit 10 standard electrodes, Ø 2.4 mm
- 3 blade + 3 needle + 3 ball electrodes 7 cm
- Power cable 5 m
- User manual: IT, GB
