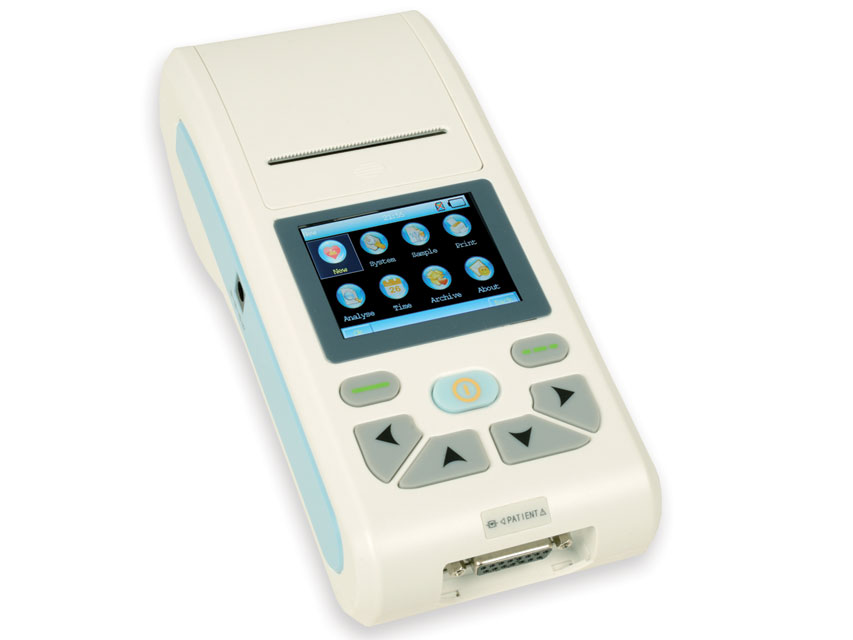

CARDIOPOCKET 3-channel ECG with software

3-CHANNEL CARDIOPOCKET ECG with software

12-lead ECG that prints out ECG waves via a thermal system; measures and diagnoses ECG parameters automatically.

- Fully automatic analysis function: self-analysis and self-diagnosis for routine ECG parameters. Provides measurement results and self-diagnosis conclusions for HR, P-R interval, P duration, QRS duration, Q-T interval, Q-tc, P-axis, QRS axis, T-axis, R(V5), S(V1), R(V5)+S(V1)
- 2.83" LCD colour display (320x240 resolution) operating both as touchscreen and keyboard
- high resolution 8 dots/mm thermal order output system (vertical)
- included removable rechargeable lithium battery can operate for up to 4 consecutive hours and prints up to 90 minutes and 150 ECGs
- stores up to 100 cases on an SD card
- digital filter eliminates baseline distortions from ECG waves
- ECG synchronisation software forms an ECG workstation

Dimensions: 207 x 96 x 62 mm
Net weight: 500 g - Power supply: AC: 100-240 V, 50/60 Hz - DC 12V rechargeable lithium battery 2,000 mAh
-Noise level:
- =15 µVp-p
- CMRR: >60 dB, >100 dB (with filter added)
- EMG filter:
- 25/35 Hz
- Time constant:=3.2 s
- Response frequency: 0 Patient cable
1 paper roll
1 rechargeable lithium battery
4 peripheral electrodes
6 precordial electrodes
1 user manual (GB, IT, FR)
1 software CD (GB, FR, IT, ES, DE, TR) and cable for PC connection
