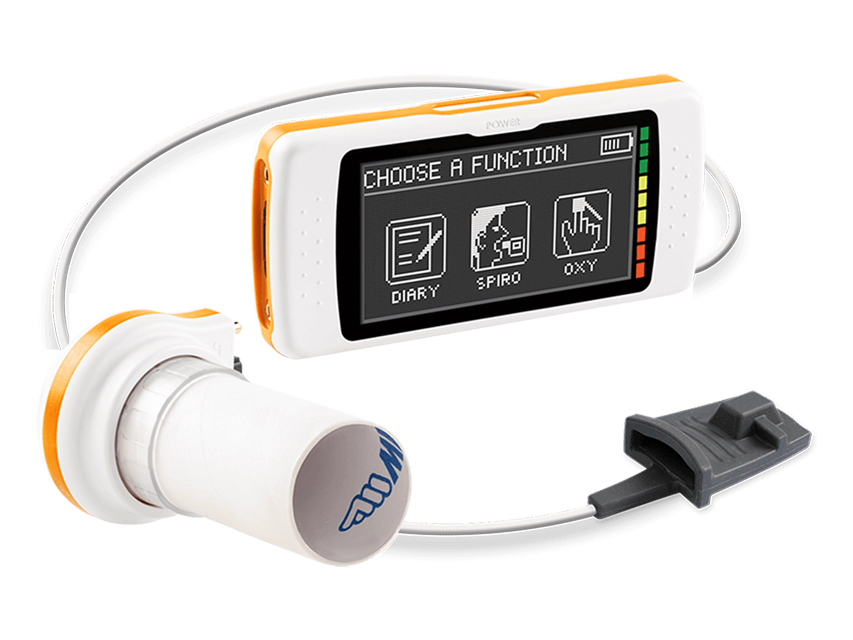

SPIROMETER+OXIMETER SPIRODOC+SOFTWARE
Mini 3D laboratory for respiratory analysis.
Two modes of use: doctor and patient
Full spirometer, ATS/ERS compliant
Specialised analysis, screening and home monitoring. Designed with customisation of functions according to mode of use: advanced parameters for specialist, reduced for screening and simplified version for home use. FVC, VC, IVC, MVV, PRE-POST. Accurate interpretation of spirometry even after bronchodilator. Records all tests performed. Automatic conversion to BTPS. Memory capacity: 10,000 tests. Wide selection of theoretical values.
Intelligent Pulse Oximeter with on-screen results
Simple and clear measurement of SpO2 and pulse rate with plethysmographic curve display. With a single six-minute walk test, Spirodoc provides an estimate of the oxygen to be administered to the respiratory patient. Analysis of sleep desaturations with event storage and automatic body position detection.
3D Accelerometer with motion analysis
"3D® Oximeter" integrating a triaxial motion sensor to correlate saturation (%SpO2) with physical activity (pedometer, motion analysis, VMU).
Questionnaire for symptom control at home
Quick and easy entry of symptoms. Confi guration with wide choice of symptoms and quality-of-life questions for automatically stored daily diary.
PC software for high-performance spirometry and oximetry
Data stored by Spirodoc are automatically imported with automatic patient card creation and curve preview. WinspiroPRO can be easily linked to hospital databases and medical records, practice management systems and occupational health software. It provides graphs with trends of selected parameters. Tests in memory can be overlaid for comparison.
Supplied with reusable turbine.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL SE, CZ, LV, TR, RU, CN, JP. Central unit
- Display: backlit touch-screen LCD, 128x64 pixels
- Power supply: 3.7 V, 1100 mA rechargeable lithium battery with 50 hours of measurement backup
- Accelerometer: triaxial ± 2 g, 400 Hz sampling
- Dimensions and weight: unit
