SP-100B SPIROMETER - available from March 2024

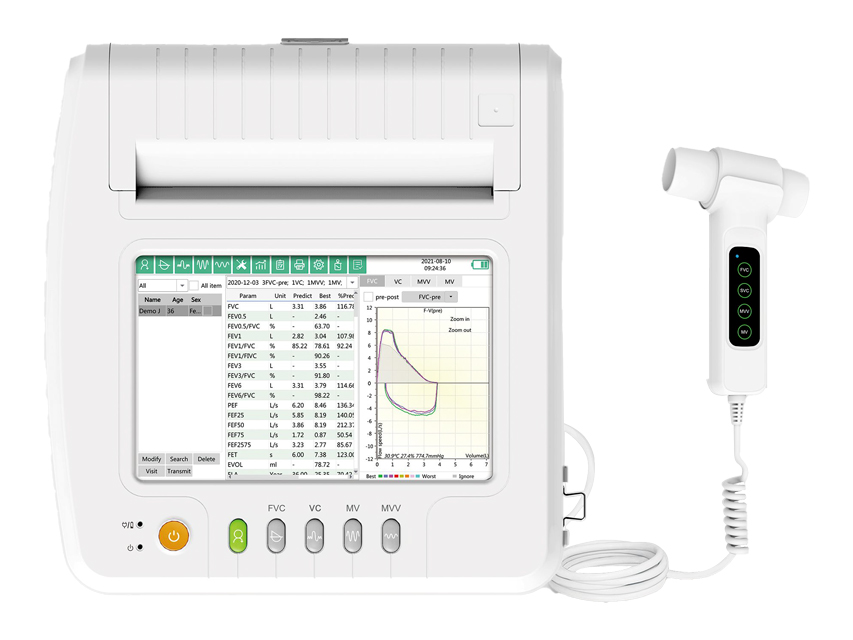

SPIROMETER TOUCH SCREEN SP100B WITH PRINTER

Portable device for checking lung function.
It adopts the differential pressure acquisition principle to measure over 100 function-related parameters: Forced Vital Capacity (FVC), FEV1/FVC ratio, Vital Capacity (VC), Maximum Voluntary Ventilation (MVV) and Ventilation per Minute (MV).

Real-time visualisation of respiratory tracing: flow-volume curve and volume-time curve, applicable for diagnosis and therapy of lung diseases.

- firmware and software in English and Italian
- inhalation and exhalation parameters, real time curve display
- BTPS correction function automatically measures temperature, humidity and barometric pressure
- calibration check: volume calibration, three-flow check
- optimal value display for many measurements
- verification conditions are reflected in the ratio of measured value to predicted value
- data storage, deletion and review functions
- trend graph display
- alarm for exceeding volume and flow limits
- rechargeable lithium battery, low battery warning
- built-in multiple predicted values
- supports bronchodilation/bronchial challenge test
- lung function assessment
- input, management and query of patient information
- test report can be sent to the built-in 210 mm thermal printer Screen: 10.1" colour LCD touch screen
Screen resolution: 1280x800 pixels
Volume range: 0~10 l ± 3% or ± 0.05 l (whichever is greater)
Flow range: 0~16 l/s ± 5% or ± 0.17 l/s (whichever is greater)
Power supply: l battery Spirometer probe
Thermal paper
100 mouthpieces (50 flat and 50 round)
Power cable
Nose clip
User manual: GB, FR, IT, ES
