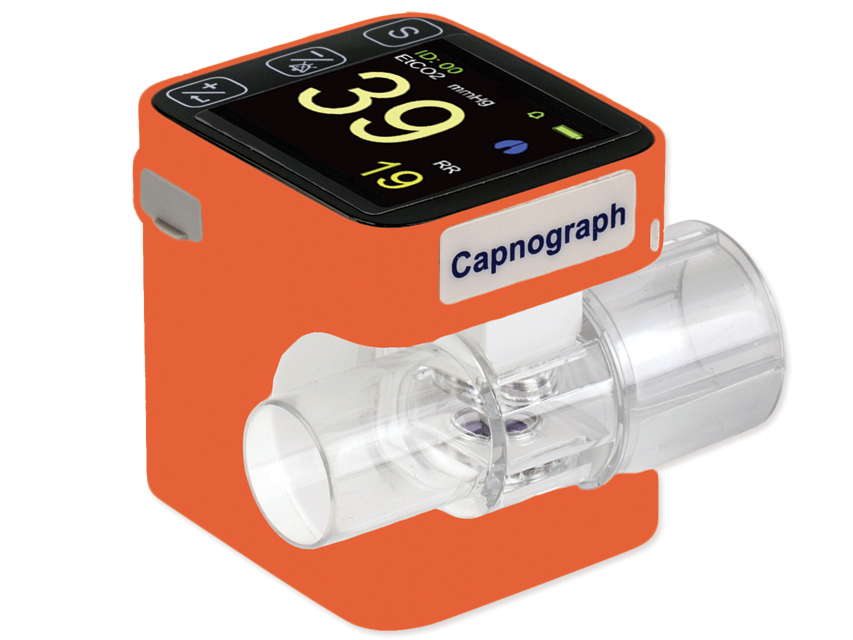

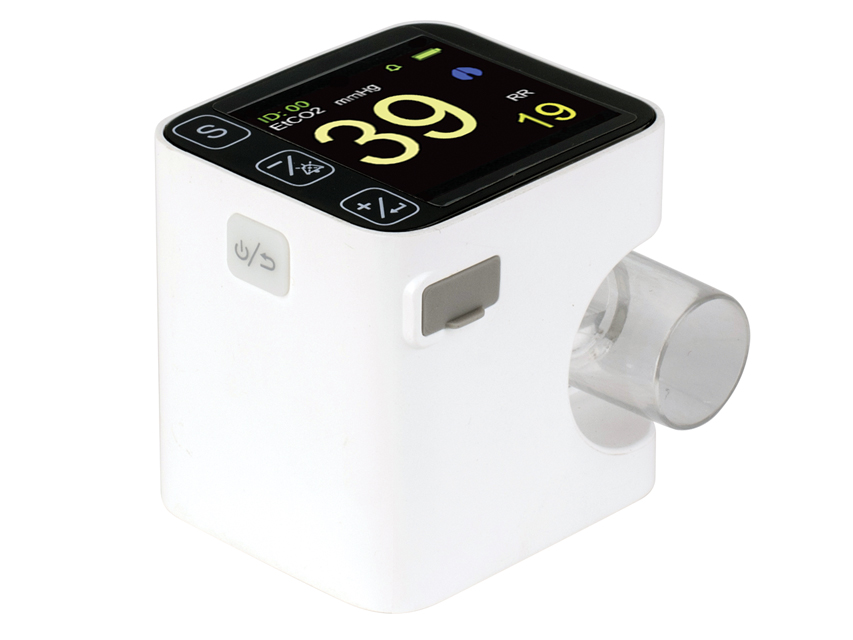

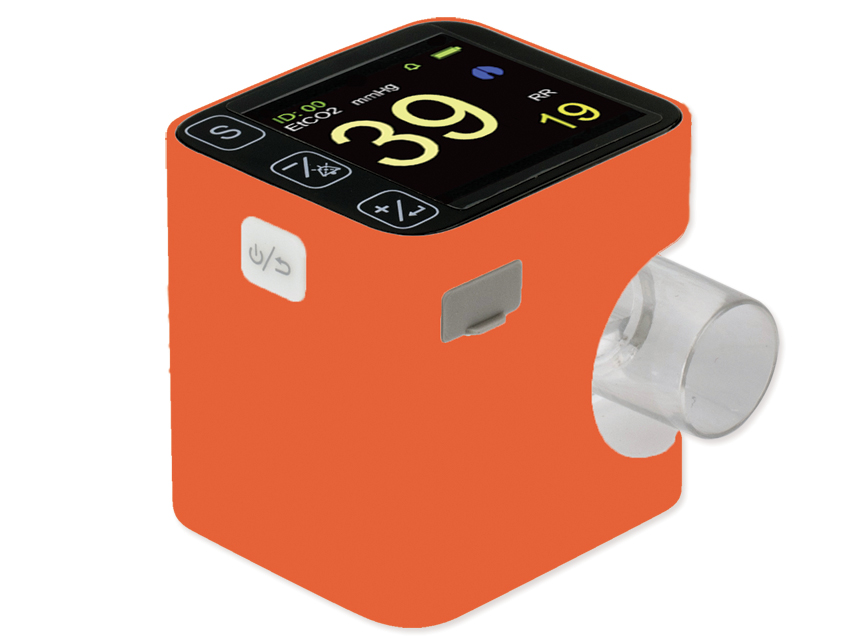

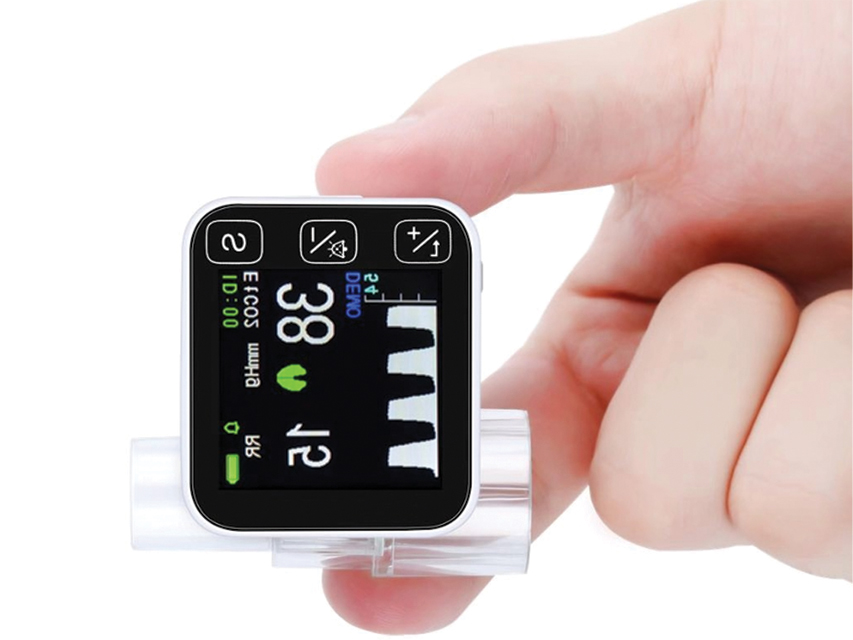

CAPNOGRAPH CAPNO CUBE

Innovative capnograph to monitor the physiological vital signs of patients, from newborns to adults.

- sensitive and accurate monitoring of EtCO2, Respiratory Rate, Real-time Capnogram in 15 seconds
- suitable for pre-hospital first aid, incubation, anaesthesiology, respiration, sleep monitoring and monitoring of intubated patients
- 24-hour memory with data management software
- large numerical screen visible from 5 metres

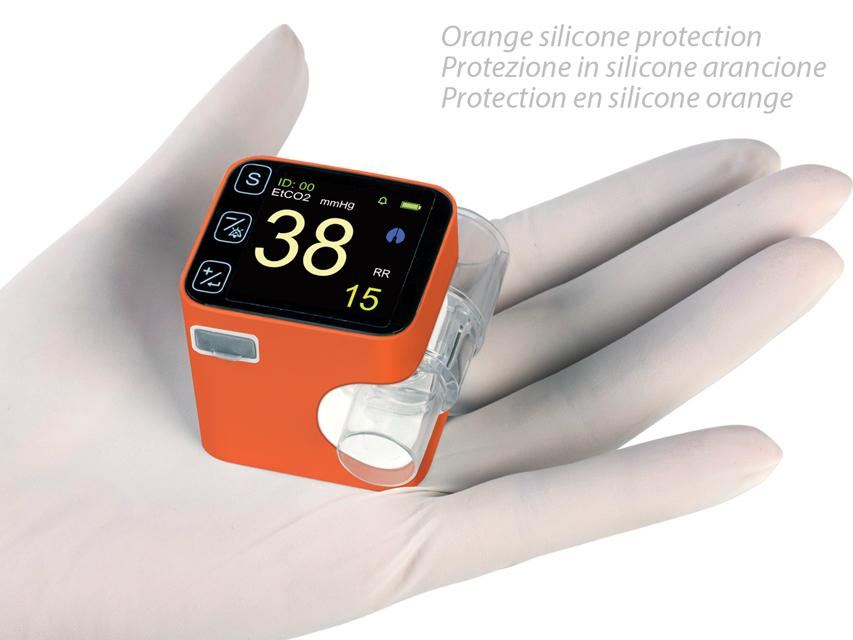

Supplied with adult/pediatric adaptor, infant adaptor, silicone protector, USB cable, AC adaptor, software on CD and manual (GB, IT).

End-tidal CO2
Multifunction key
Start button for full accuracy in 15 sec.
USB socket, charging and data output
Dimensions: 38 x 42 x 44 mm
Weight: 80 g including battery and adapter
Respiratory frequency
Capnogram 8 sec. real time data
Airway Adapter Adult/Pediatric/Neonate EtCO2
- Method: Non-dispersive IR spectroscopy
- Range: 0-150 mmHg or 0-20 kPa
- Accuracy:
± 2 mmHg, range 0-40 mmHg
± 5%, range 41-70 mmHg
± 8%, range 71-100 mmHg
- Update: Every breath
- Warm-up: < 15 seconds
- Memory: 24 hours co
