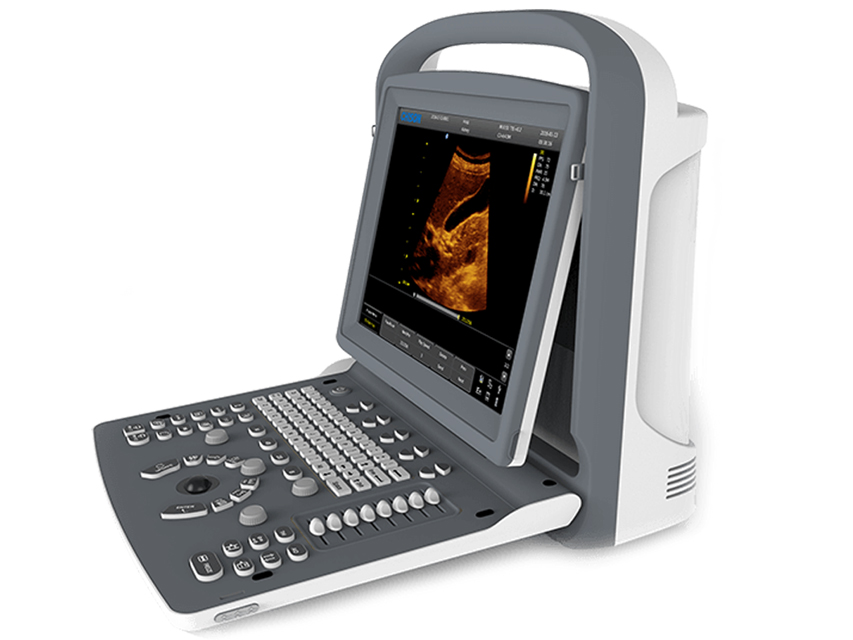

ECOGRAPH CHISON ECO2 B/W - 1 probe connector
CHISON ECO2 with 1 probe connector, without probe
ECO2 Powerful, affordable black-and-white ultrasound scanner
- compact and lightweight, easy to carry
- screen with new generation LED technology; ultra-bright images allow optimal viewing even outdoors
- ergonomic monitor design, 30 degree rotation, adjustable
- long battery life of up to 2.5 hours, for outdoor use
- full screen image magnification, for better viewing at a distance
- straightforward, user-friendly workflow, 6 quick keys to finalise the diagnosis cycle
Display and image processing modes
B, B/B, 4B, M, B/M, PW (ECO2, ECO3EXP. only) multi-frequency imaging.
Image processing
- composite images - trapezoidal
- intelligent I-image optimisation - automatic PW
- THI (Harmonic Tissue Imaging) (ECO2, ECO3EXP. only)
- SRA (focal spot reduction algorithm) - Chroma
- digital beam-former system - AIO (Optimisation
- full screen display Automatic image)
User interface
- foldable control panel and alphanumeric keyboard
- backlit keypad for optimal visibility in the dark
- illuminated indicators identify activated keys
- 8 TGCs for easy adjustment
- user-defined hotkey for quick adjustment
- clear and intuitive keyboard layout, quick to memorise
- interactive backlighting - user-defined settings
Straightforward workflow, one key to
- select desired function with automatic settings
- optimise image automatically (AIO) - create reports
- save freeze frame and CINE loop - measure
- print from PC printer* (laser or inkjet) or video printer
*List of compatible printers is on our website
EASYVIEW™ Archiving System
- image archive on hard disk and USB mobile memories
- different image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (setting for auto review) for 2D, M, PW images (ECO2, ECO3EXP. only)
- cine memory capacity (256 frames/10s)
- 3 USB ports
Standards
IEC 60601-1, IEC 60601-1-1 Electromedical equipment
IEC 60601-1-2 Electromagnetic compatibility
IEC 60601-1-4 Programmable medical systems,
IEC 60601-2-37 Dimensions and weight: 33.5x15.5xh 35 cm; 6 kg
Screen: 12" LED, high resolution 1024x768
Power supply: AC 100-240 V - 50/60 Hz
Rechargeable Li-ion battery - optional
- Software (user selectable language): GB, IT, FR, ES, DE, CZ, TR, CN, R 12" high resolution LED screen - B/W
LED screen 12" high resolution - colour
8G memory card
Hotkeys
PC printer connection
3 USB ports, 1 Ethernet port
1 video port, 1 VGA port, 1 footswitch port
Schwartz mode
