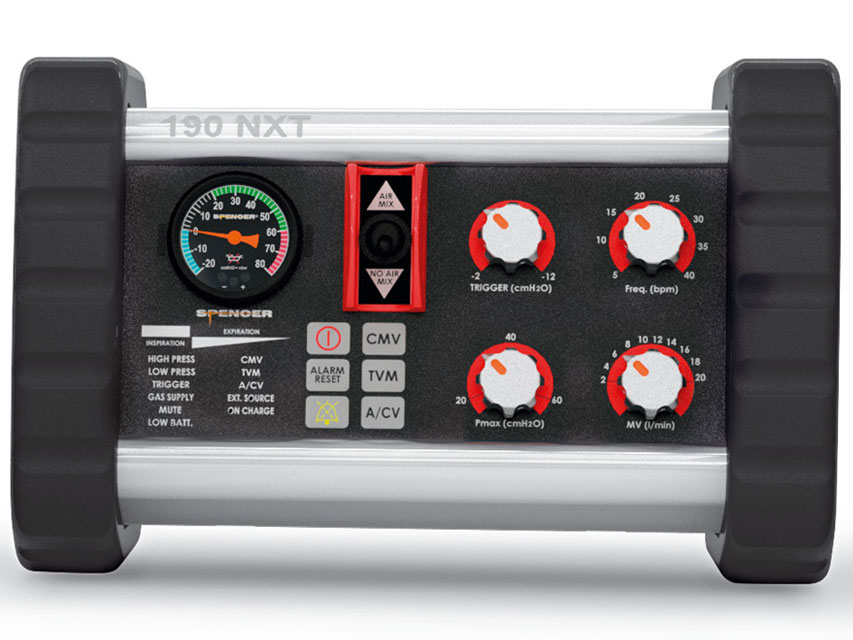

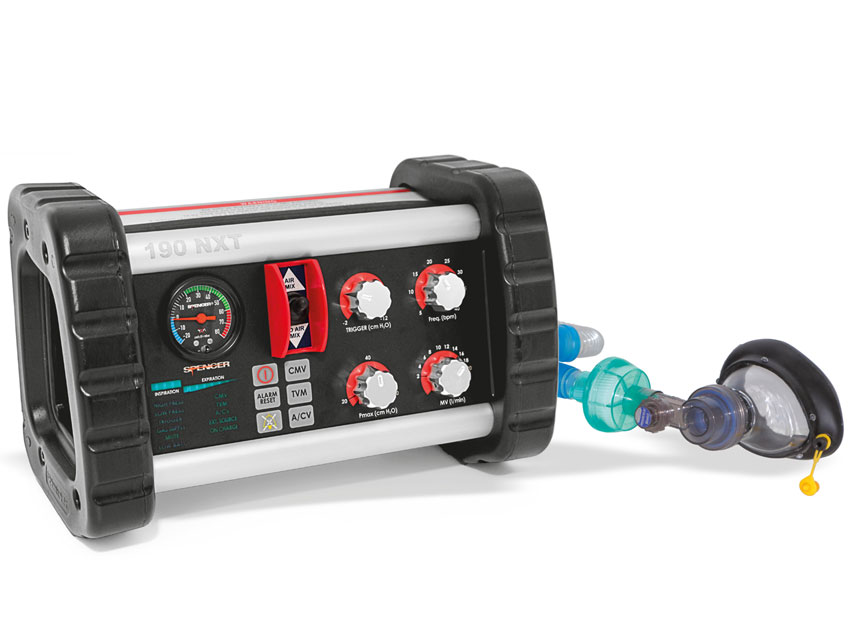

SPENCER 190 ELECTRONIC RESPIRATOR

SPENCER 190 NXT ELECTRONIC RESPIRATOR

Electronic lung ventilators for non-invasive ventilation of adults and paediatric patients.

- selection lever for protection against accidental activation of the AIR mix
- colour coded pressure gauge for easy identification of pressure range
- placement of inlet and outlet ports on the side of the device, making it easier to connect and disconnect and offering greater protection to items connected to the device
- control knobs on a high-contrast background for better identification of set values
- compact and lightweight aluminium frame
- the position and shape of the control knobs allow parameters to be set more easily and in all operating conditions
- constant I/E ratio
- alarms for monitoring and management of ventilation devices

Features 190 NXT respirator
- LED for respiratory monitoring
- three ventilation modes
- CMV: mandatory inflation is started according to the set parameters
- TVM: inflation is only started according to set parameters if activated by the patient
- AC/AV. ensures that inflation is started at intervals determined by set parameters unless triggered by a previous patient-activated event.

Made in Italy. - Operation: Electronic
- Frequency: 5 to 40 BPM
- Alarms:
- High pressure
- Low pressure
- Apnoea
- Pneumatic power supply
- Low battery
- Flow: 2 to 20 l/min
- I/E ratio: 1:2
- Oxygen concentration: 60% to 10 - Patient circuit (corrugated tube with non-rebreathing valve)
- Power cable
- Oxygen tube
- Manual: GB, IT, on request FR, ES, DE, PT
- Adult mask
- Battery
- UNI adapter
