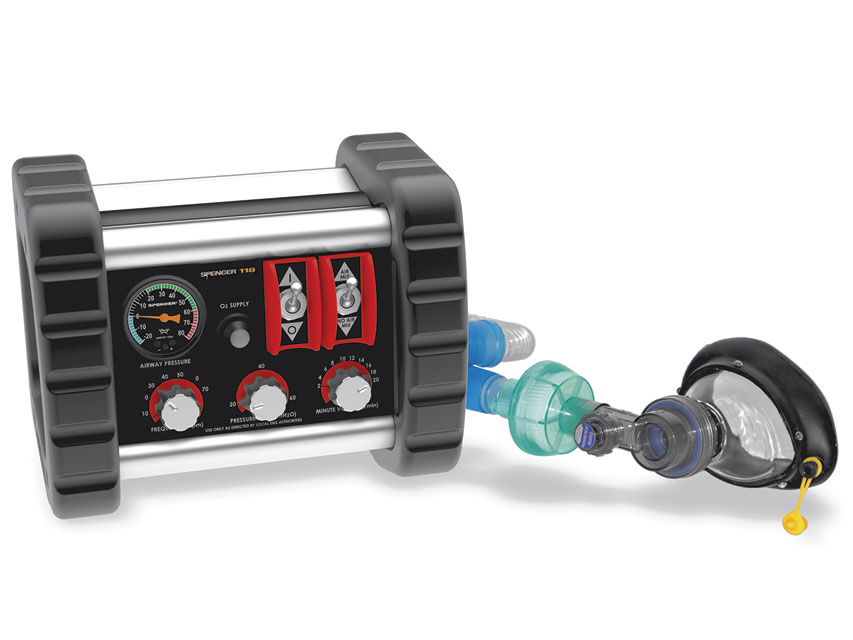

SPENCER 118 NXT AUTOMATIC FAN

Pneumatic lung ventilator for non-invasive ventilation of adult and paediatric patients.
The pneumatic mode of operation allows for a significant reduction in maintenance costs associated with electrical requirements and safety regulations.

Total absence of risk of electric shock generated by the device.
Protection against accidental switch-on and AIR MIX levers.

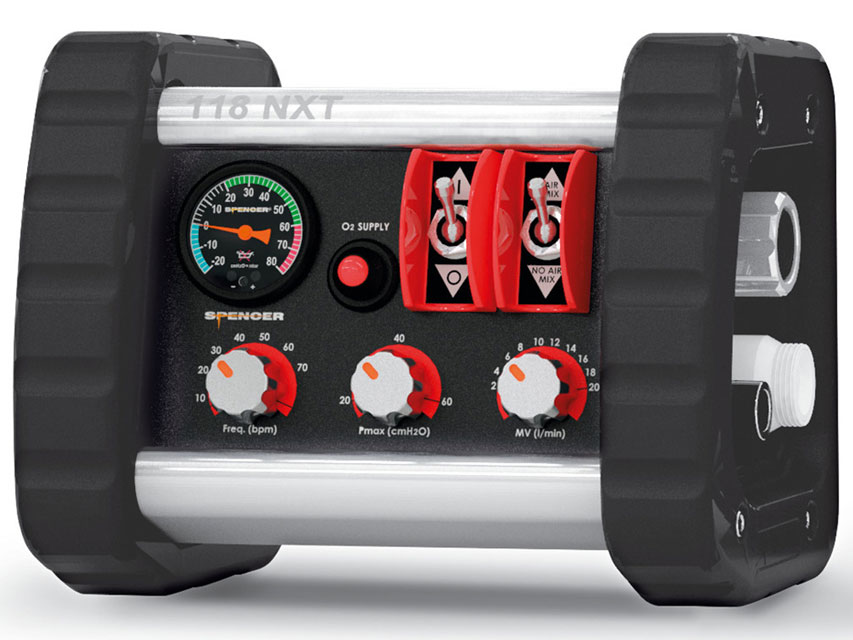

Colour coded hand-vacuum meter for immediate display of pressure in the patient circuit.
Lateral positioning of the medical gas inlet and outlet makes connection and disconnection easy and offers greater protection for the elements
connected to the device. High-contrast knob adjustment background for better identification of settings.
Compact and lightweight aluminium frame.
Positioning and shape of the adjustment knobs facilitating the setting of ventilation parameters under all operating conditions.
Non-constant l/E ratio makes ventilation management more versatile.
The presence of a single ventilation mode makes it simple and easy to use.

Supplied with alarm system required by EN 794-3 standards.
Medical Class II B device. Device according to Dir.93/42/CEE.
Made in Italy. - Operation: 100% pneumatic
- Ventilation mode: Controlled (VC - CMV)
- Respiratory rate: 10 to 70 breaths/min.
- Inspiration-exhalation phase time: 1:2.0 ±0.3 at 10 bpm - 1:1.5 ±0.3 at 70 bpm
- Frequency: 10 to 70 bpm
- Fluss - Patient Circuit (corrugated tube with non-rebreathing valve)
- Adult mask
- Anti-bacterial filter
- Oxygen tube 100 cm - UNI adapter
- Manual: GB, IT (on request FR, ES, DE, PT)
