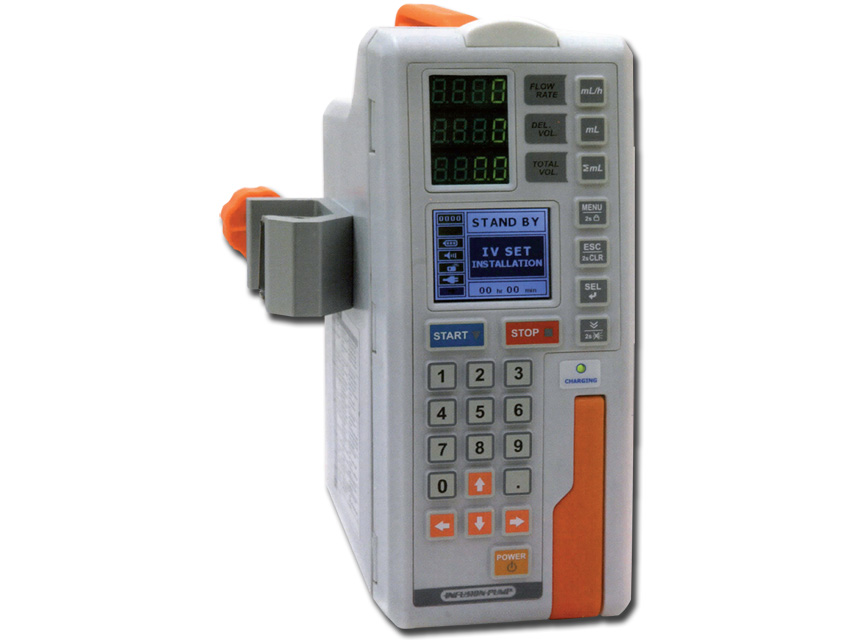

INFUSION PUMP

The pump uses the peristaltic method and guarantees high flow accuracy and is compatible with infusion sets of different pumps thanks to ultrasonic air bubble detection.

Its silicone keypad allows easy setting of procedures.
The FND and colour LCD display shows comprehensive and easy-to-read information.
Infusion conditions such as K.V.O. (anti-obstruction vein function), venting speed and bolus can be set by the operator. Supplied complete with battery.

Key features
Lightweight and compact. Only 3.5 kg, compact design and easy to use.
- Compatible with 4 main brands of infusion sets: BD (A122), TERUMO (TSPA 200L), KOREAN VACCINE (1 AND 2), ARIES. Each pump can be calibrated for more than 9 different infusion sets
Flexible flow setting and ease of use: the flow adjustment range 1~1000 ml/h, 0.1~999.9 ml/h is available for a wide range of calibrations; in addition, the numeric keypad is easy to use in the flow/volume setting.
- Identifies the exact dosage for the customer and proceeds to dispensing
- Easily detectable alarms: notifies errors and emergency situations with an LED light and audible signal, simultaneous visual and audible alarms.
- Remaining battery charge indication: an LED indicator shows the battery level and warns when it needs to be recharged.
- Anti-clogging vein function: when the preset value is reached, conversion to the low-flow rate of 3ml/h (when the pump is set to 15, 19, 20 drops/ml) or 1ml/h (setting to 60 drops/ml) takes place. The process occurs automatically in order to prevent the risk of vein clogging due to blood clotting.
- Ultrasonic air bubble detention
- Also suitable for veterinary use - Flow adjustment range
- 1 ~ 1000 ml/h (infusion interval 1 ml)
- 0.1 ~ 999.9 ml/h (infusion interval 0.1 ml)
- Volume flow margin of error ±5%.
- Limiting range of infusion volume: 1 ~ 9999 ml
- Total estimated volume range - Manual (English, Italian)
