DEFIBRILLATOR iPAD CU-SP1 AED - GB,FR,IT,ES,DE,PL,US, JP, KR, Arabic specify language when ordering

iPAD DEFIBRILLATOR CU-SP1 - semi-automatic

CU-SP1 is the latest generation of defibrillators for public use with innovative features.

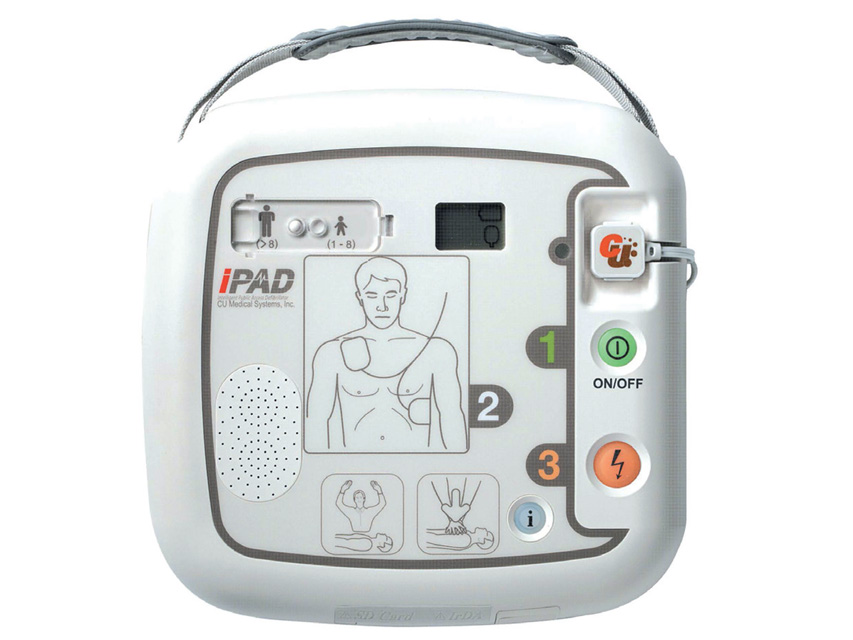

CU-SP1 Semi-Automatic External Defibrillator (AED)
Battery-powered, easy-to-use, compact, lightweight and portable external semi-automatic defibrillator. The AED automatically reads the patient's electrocardiogram (ECG) and determines whether a cardiac arrest requiring defibrillation has occurred, so it is easily used by both medical and non-medical users.

- Automatic Volume Adjustment
The CU-SP1 automatically adjusts its volume in proportion to noises emitted in the surrounding environment.

- Pre-connected plates for an always-ready defibrillator
The CU-SP1 is equipped with pre-connected paddles housed in a special compartment underneath the defibrillator. This ensures that the defibrillator is ready for use in the shortest possible time. It is also capable of performing a precise check on the life status of the paddles themselves. The front of the defibrillator houses an indicator light that changes colour both 3 months before the pads expire and when they have expired.

- CPR detection
CPR increases the probability of survival. The CU-SP1 detects whether the rescuer is performing CPR or not and prompts the rescuer to perform CPR or continue CPR, respectively.

- Easy Communication with the CU-EX1 Software
By installing the CU-EX1 software on a computer, it is possible to view and analyse how the device has been used. Information such as start-up time, patient's heart rate and applied shocks are all presented clearly.

- Available in 25 languages (please indicate when ordering)
Selectable software languages: US, GB, FR, IT, ES, DE, PL, KR
Manual: US, GB, IT, ES, DE, PL, KR, JP, Arabic (For languages listed only in 'Software item', the manual is in English) Defibrillator
Mode: Semi-automatic
Waveform: Truncated exponential biphasic
Energy:
- Adult: Nominal 150J at 50 ohms
- Infant/Child: 50 J nominal at 50 ohms
Charge control: automatic patient analysis system
Charging time: <10 seconds after discharge warning required
Water resistance: IPX5 water jet protection according to IEC60529 (IP55)
Dust protection IP5X according to IEC60529
Dimensions - Weight: 260x256x69.5 mm - 2.4 kg

User Interface
User support: Detailed voice messages and flashing indicators
CPR guidance: Voice prompts indicate how to perform CPR on adults and children
Controls: On/off button, 'i' button, discharge button
Indicators: LCD display (device status, battery status, plate status)
Sensors: Paddles expiry date, paddles connection status
CPR monitoring
Automatic volume adjustment

Data recording and transmission
IrDA port: for communication with PC
Internal memory capacity: multiple recordings 5 single events / Max. 3 hours
PC data review programme CU-EX1

Patient Analysis System
Patient Analysis: Shockable Rhythms - Ventricular Fibrillation, Tachycardia
Sensitivity/Specificity Compliant with AAMI guideline DF80

High capacity disposable battery
Standard Type: DC 12 Volt 4.2 Ah, LiMnO2
Capacity: Minimum 200 discharges or 8 hours of operation

Operating altitude range
Altitude 0-4,570 m (0-15,000 ft) Adult plates
Carrying bag
Disposable lithium battery
Printed manual (GB, IT)
Multilingual manual on CD
