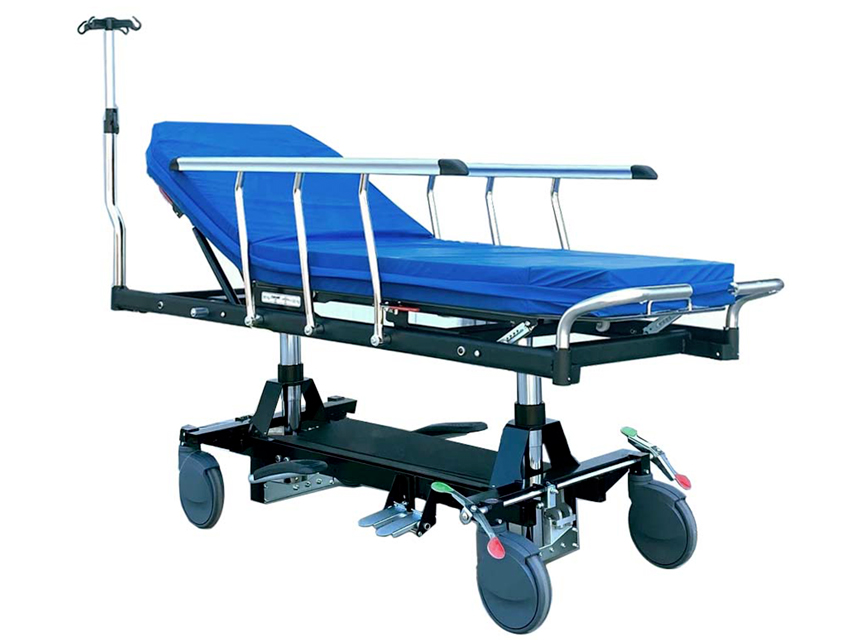

VARIABLE HEIGHT HYDRAULIC TROLLEY with TR and RTR

VARIABLE HEIGHT HYDRAULIC TROLLEY ON COLUMNS WITH TR AND RTR side rails included

Stretcher with 1 joint, 3 sections and radiolucent HPL horizontal top.
Headboard adjustable with gas-operated devices up to 80°; backrest adjustable with gas-operated devices and footboard adjustable by rastomat.
Epoxy powder-coated steel frame, multifunctional supports at corners for inserting up to two accessories per corner, such as console rods, monitor holders or others.
Base with protective cover and compartment for oxygen cylinders and other objects.
4 swivel castors Ø 200 mm and 1 with directional lock.
Centralised simultaneous braking system by pressing a pedal located on the footboard.
Folding handle on the side of the footboard.
Pair of folding side rails with compass movement, made of extruded aluminium alloy with automatic lock and double down position.
Optional height-adjustable side rail with 4 hooks.
Large foot pedal on both sides of the stretcher to adjust the height from 550 to 850 mm.
Foot pedals on both sides for lowering and reaching Trendelenburg and reverse Trendelenburg positions (18°/ + 18°).
Control pedal with three positions: 1 free, 1 directional and 1 total lock.
Suitable for transport over long distances.

Made in Italy. Total dimensions: 2060x820xh 550850 mm
Weight dimensions: 1950x650 mm 105 kg
Max backrest inclination: 80°
TR / RTR: 18° / + 18°
Max. patient load: 260 kg
Standards: RDM 2017/745; Medical Device Class I
