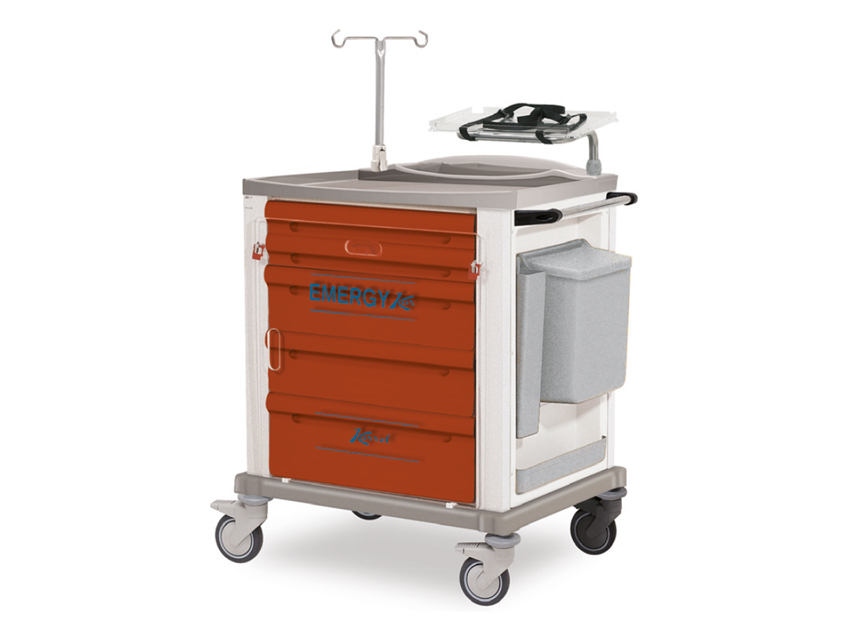

Standard PAINTED EMERGENCY TROLLEY

Standard painted steel trolley
Trolley dimensions (cm): 82x64xh 100160
Number of drawers: 5
Drawer material: plastic

Professional emergency trolleys, solid and robust, with components in technopolymer plastic or epoxy painted stainless steel sheet for maximum lightness, manoeuvrability and ease of use.
Self-supporting, monocoque structure.
The upper part has a large technopolymer plastic support surface for easy cleaning and disinfection.
Ergonomic push handle firmly attached to the right side of the trolley.
Front section designed to accommodate modular drawers, sliding noiselessly on ball-bearing guides; end stops and central locking with key.
The defibrillator holder consists of a plexiglass tray and a stainless steel tubular arm, rotatable through 360° and lockable every 10°; the device can be locked by means of straps that can be adjusted to any size.
Height-adjustable pole with locking device.
Transparent plexiglass heart massage plate.

Four or five standard drawers made entirely of AISI 304 stainless steel (456956) or plastic (27479, 27482, 456934).

Additional removable work surface made of technopolymer plastic material on the left side; integrated compartment with four shelves with front panel, entirely made of technopolymer plastic material.
4 swivel castors Ø 125 mm, non-marking, 2 of which are antistatic and 2 with locking lever, castors and fork on ball bearings. Number and size of drawers:
2) 60x47.5xh 7.5 cm
2) 60x47.5xh 15 cm
1) 60x47.5xh 22.5 cm

Defibrillator tray: 39x32xh 2 cm
Dimensions (cm): 82x64xh 100160 Right side:
Waste bin
Tray or probe holder
Shelf with faceplate
Recessed compartment

Left side
Removable worktop
Compartment with 4 shelves and front panel

Upper side:
Holder rod
Defibrillator holder

Rear side
