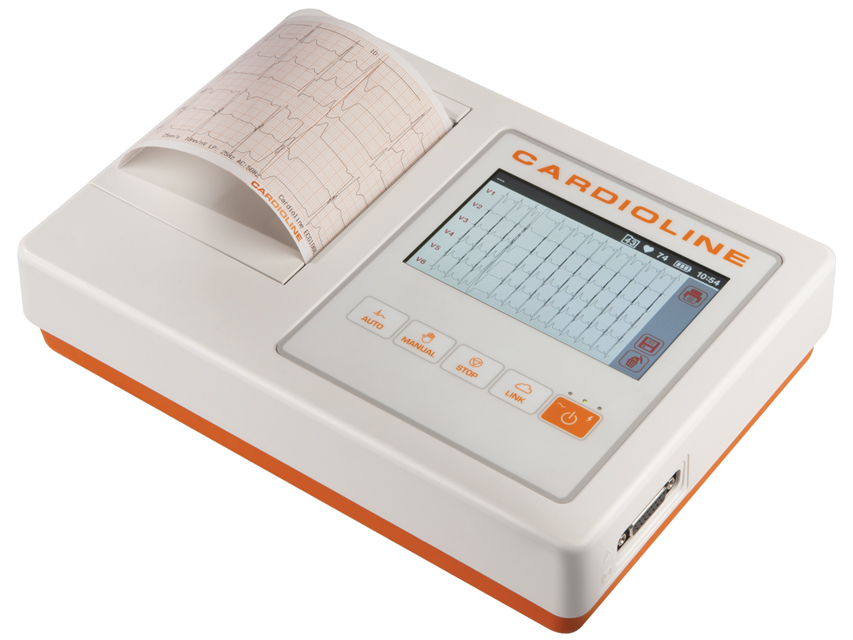

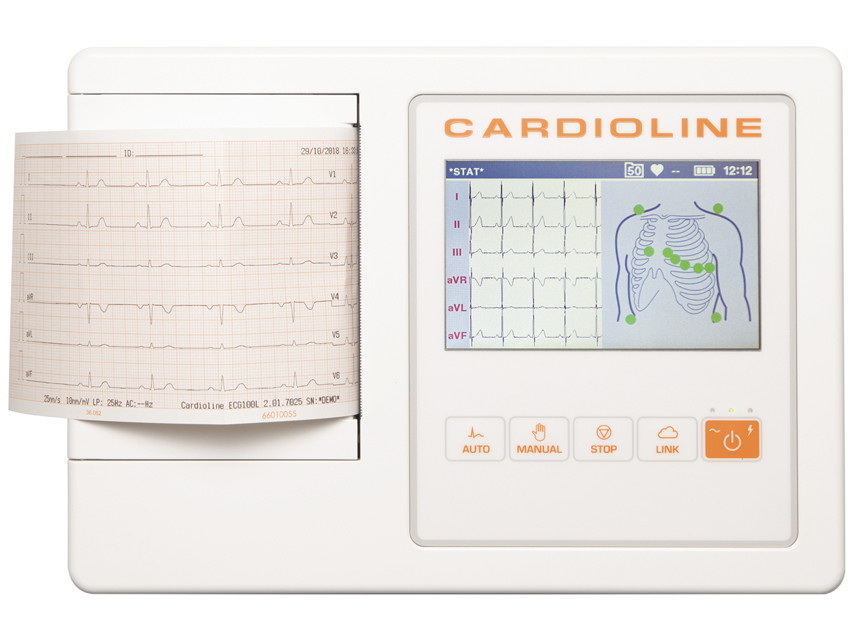

CARDIOLINE ECG100L GLASGOW - 5" colour touch screen
CARDIOLINE ECG 100L GLASGOW - 5" screen
Cardioline ECGs are designed to quickly and easily acquire a 12-lead resting ECG in a doctor's office.
Particular attention has been paid to ease of use with a bright colour 5" (54200-2) or 7" (54204-5) touch screen and dedicated keys for quick operation.
The user is guided step-by-step through ECG acquisition, from electrode positioning to quality control, acquisition, printing and storage.
At the touch of a button, ECGs can be acquired in Automatic, Manual, Stat or Rhythm mode.
The new ECG Rhythm function allows rhythm analysis of 3 minutes of ECG, including trend and heart rate variability.

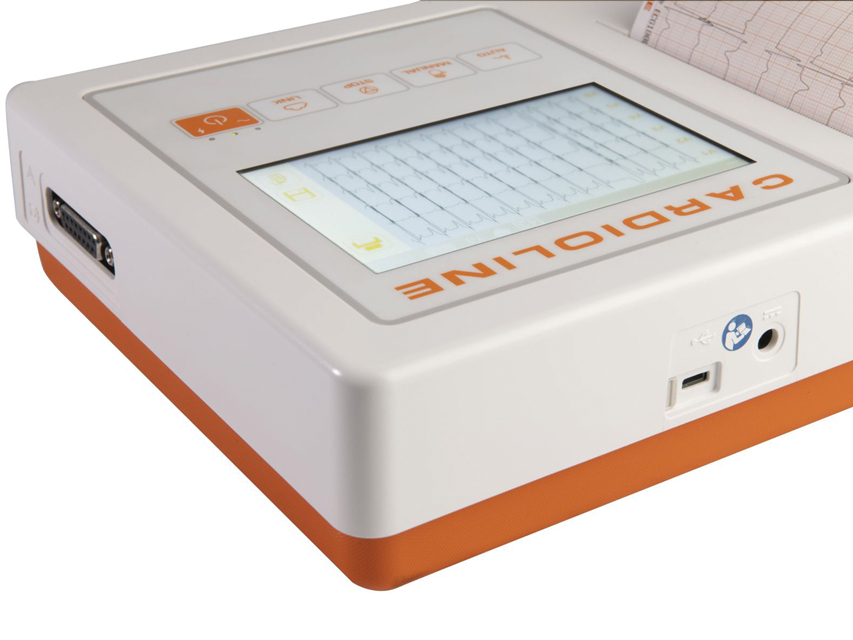

ECG files can be stored in the device or exported via a USB connection to a PC or memory stick.
Support of most print formats
Standard or cabrera 3, 3+1, 3+3, 6 or 12 (12 only 54204-5) channels printing in automatic mode and 3, 6 or 12 channels printing in continuous mode as well as rhythm strip printing.
Switchable internal multilingual software in 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL.
Glasgow algorithm for paediatric and adult interpretation (54201 - 54205 only)
The algorithm can diagnose any abnormality usually recognisable by ECG: myocardial infarction, including IMA, ventricular hypertrophy, ST-T abnormalities and common rhythm abnormalities. The programme also detects disorders such as conduction delay and QT interval lengthening.

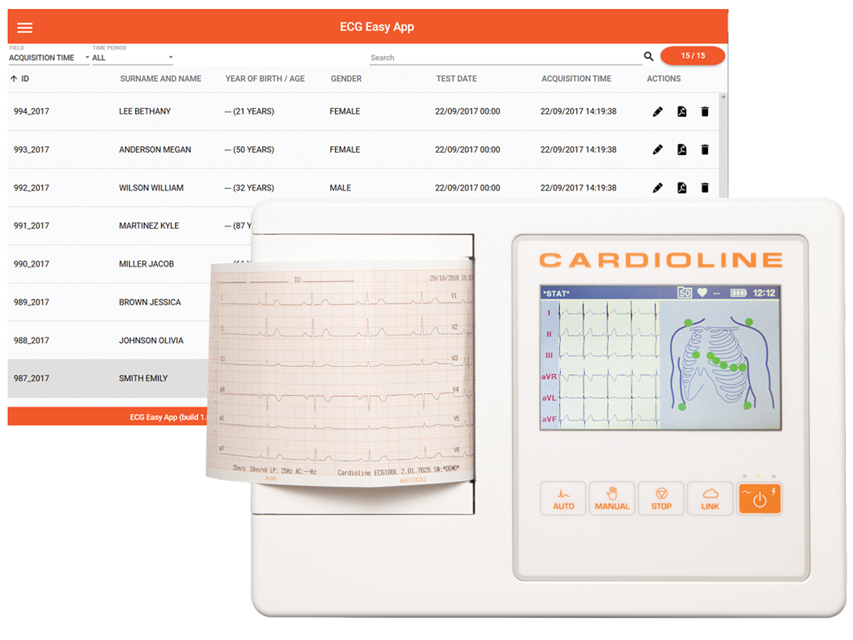

ECG EasyApp to manage patient ECGs (supplied with 54202, 54205, optional for 54200-1, 54204)
With this App, ECG acquisitions can be received in SCP format on a PC (via USB) and printed. Patient data and automatic interpretations provided by the ECG, including examination results, are editable. The operator can also customise the rhythm strip pattern with specific commands (speed, gain, filter, etc.). ECG acquisition
- ECG channels: 12 leads (I, II, III, aVR-L-F, V1-6)

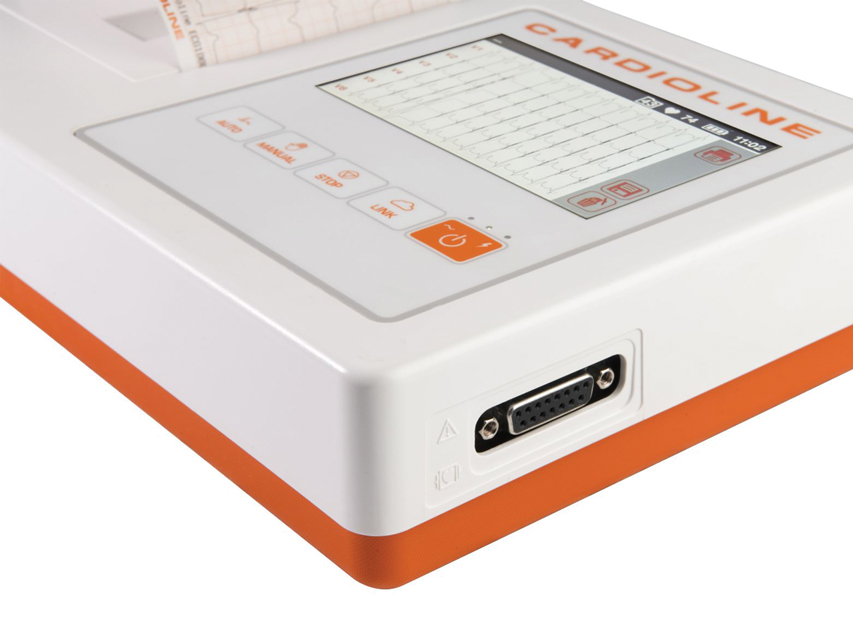

- Patient cable: Standard 15D, 10-wire
- CMRR: >100 dB
- Input impedance: 100 MOhm
- Input stage sampling rate: 32000 samples/second/channel
- Risol Patient cable
2 paper rolls
Battery
Power supply cable
Snap connector adapter 4 mm (pack of 10)
Glasgow Interpretation
Disposable tab electrodes (pack of 100)
Manual on CD (GB, FR, IT, ES, PT, DE, NL, CZ, HR, HU, PL, RO, RU)
