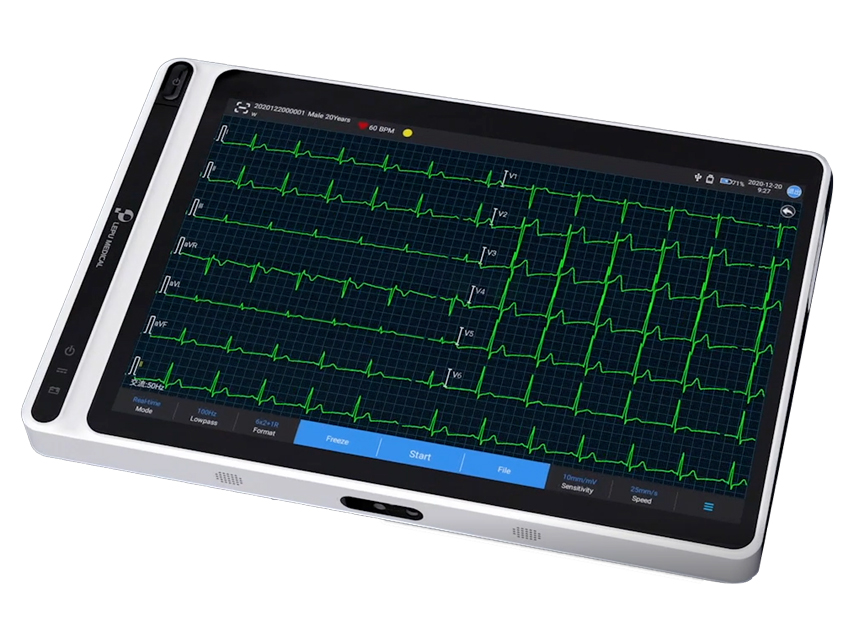

NEO ECG S120 - ECG TABLET
NEO ECG S120 - ECG TABLET
Lightweight and portable ECG tablet for acquiring and displaying 9/12-lead traces and heart rate.
Easy-to-use, high-resolution 7" colour touch screen.
Store, preview, review, edit and upload patient data via wireless transmission of ECG data over mobile networks and WiFi. Patient data exportable to USB flash disk via USB connector.
- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, trigger sampling
- automatic pacemaker pulse detection and marking
- self-analysis RR, HRV, test medicine, ECG event mode
- files in multiple formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
- on-screen ECG trace image block
- virtual keyboard and barcodes for entering patient information
- external DC power supply and integrated rechargeable battery
- selectable multi-language software: GB, FR, IT, ES, PT, DE, GR, PL ECG derivations: synchronous acquisition 9,12
A/D resolution: 24 bit
Heart rate range: 30bpm - 300bpm ± 1
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, error less than ± 5%
Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, error inf 1 ECG cable (IEC, Ø 4 mm, banana jack)
6 precordial suction cup electrodes for adults (Ø 4 mm)
4 arm/leg clamp electrodes for adults
1 rechargeable lithium battery
1 power adapter
Multilingual manual: GB, IT, on request FR, E
