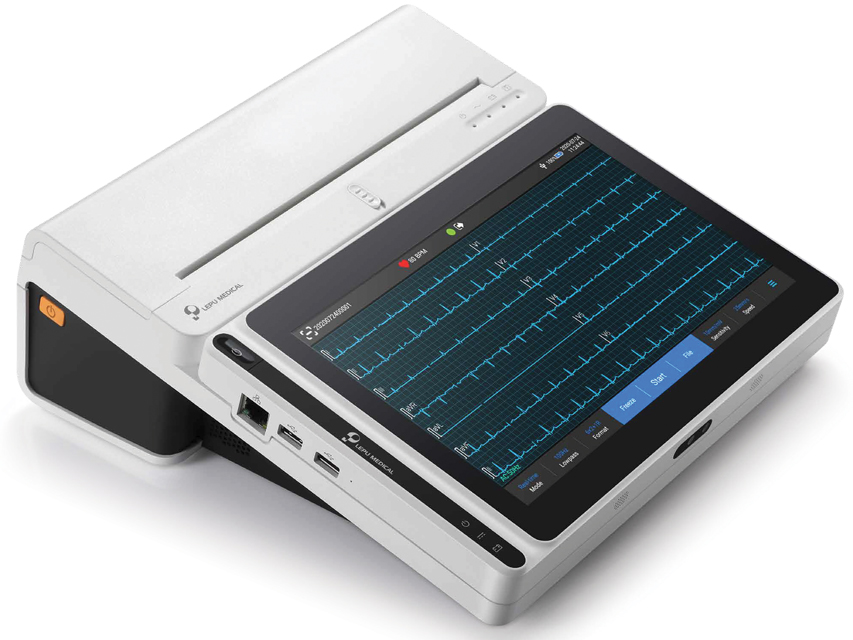

NEO ECG T180 - ECG TABLET with printer
NEO ECG T180 - ECG TABLET with printer
Lightweight and portable ECG tablet for acquiring and displaying 9/12-lead traces and heart rate.
Easy-to-use, high-resolution 10.1" colour touch screen.
Store, preview, review, edit and upload patient data via wireless transmission of ECG data over mobile networks and WiFi. Patient data exportable to USB flash disk via USB connector.
- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, trigger sampling
- automatic pacemaker pulse detection and marking
- self-analysis RR, HRV, test medicine, ECG event mode
- files in multiple formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
- on-screen ECG trace image block
- virtual keyboard and barcodes for entering patient information
- integrated thermal printer
- external DC power supply and integrated rechargeable battery
- recorder charging port
- selectable multi-language software: GB, FR, IT, ES, PT, DE, GR, PL ECG derivations: synchronous acquisition 9,12
A/D resolution: 24 bit
Heart rate range: 30bpm - 300bpm ± 1
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, error less than ± 5%
Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, error inf 1 ECG cable (IEC, Ø 4 mm, banana jack)
6 precordial suction cup electrodes for adults (Ø 4 mm)
4 arm/leg clamp electrodes for adults
1 roll of thermal paper - 20mx216 mm
1 rechargeable lithium battery
1 power adapter
Manual
