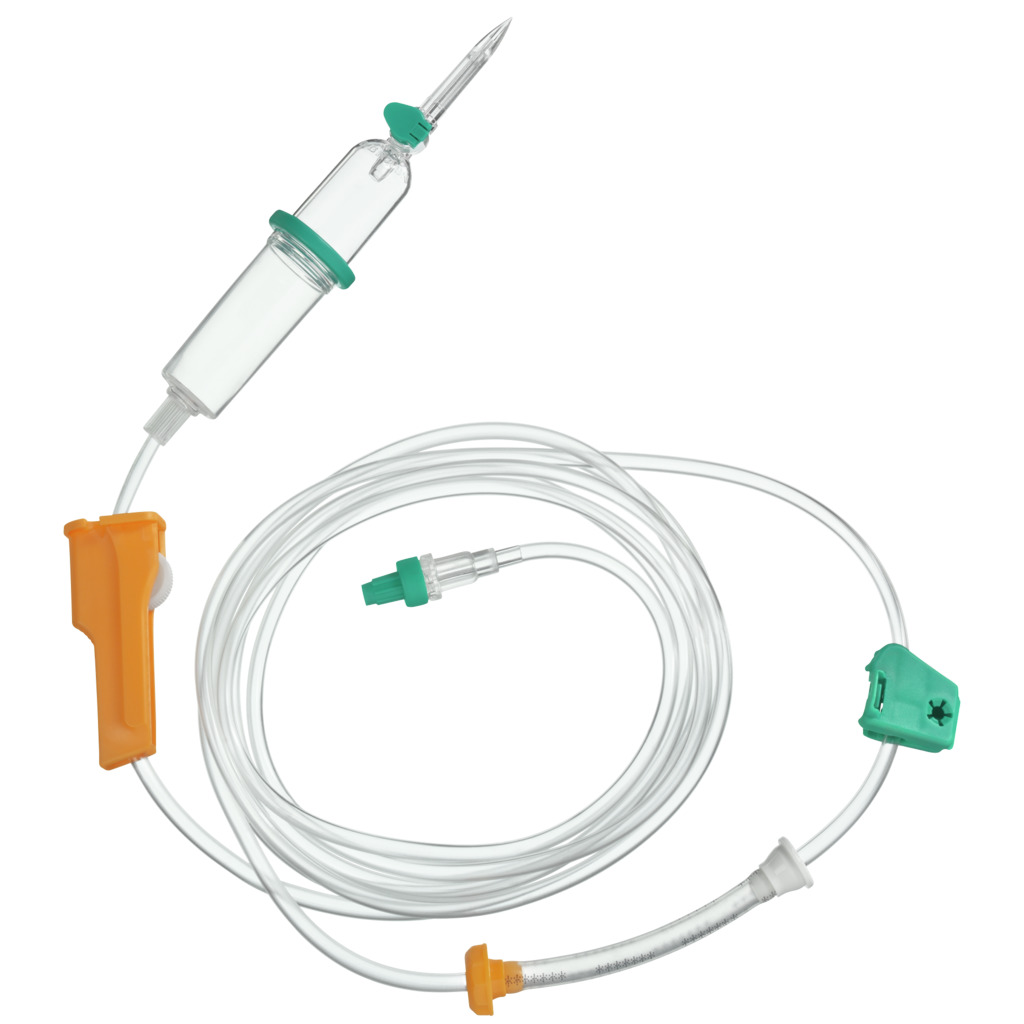

INFUSOMAT PLUS SAFESET STANDARD

Infusion pump infuser B. Braun Infusomat Compact Plus for infusion of drugs, infusion solutions, chemotherapy and parenteral nutrition through appropriate infusion routes. Perforator
- Dual way, liquid and air
- Provided with air and liquid holes spaced to minimize air bubble recalls in the liquid pathway
- Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling
- Calibrated to achieve 20 drops of distilled water per milliliter

Drip chamber
- With high transparency
- Wide
- Easily compressible at its bottom for liquid recall
- Equipped at the base with AIR-STOP filter: a three-dimensional type filter that retains particulate matter (> 15 µm) and prevents air from passing into the tubing following emptying of the drip chamber

Tubing
(referring to Infusomat Standard set)
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 7 ml/m at 40°C and 2 bar
- Total length 240 cm, pump-patient section 150 cm
- High transparency

Precision Roller Clamp
- Ergonomic
- Equipped with non-slip resistant knurled wheel
- Equipped with hook for positioning the end of the outflow device during filling and stand-by period before connection to the patient
- Equipped with perforator port for safe disposal

Segment for Pump
- Segment that adheres to the peristalsis of the volumetric pump
- Inner diameter: 4.0 mm
- Outer diameter: 6.0 mm
- High strength
- Indeformable
