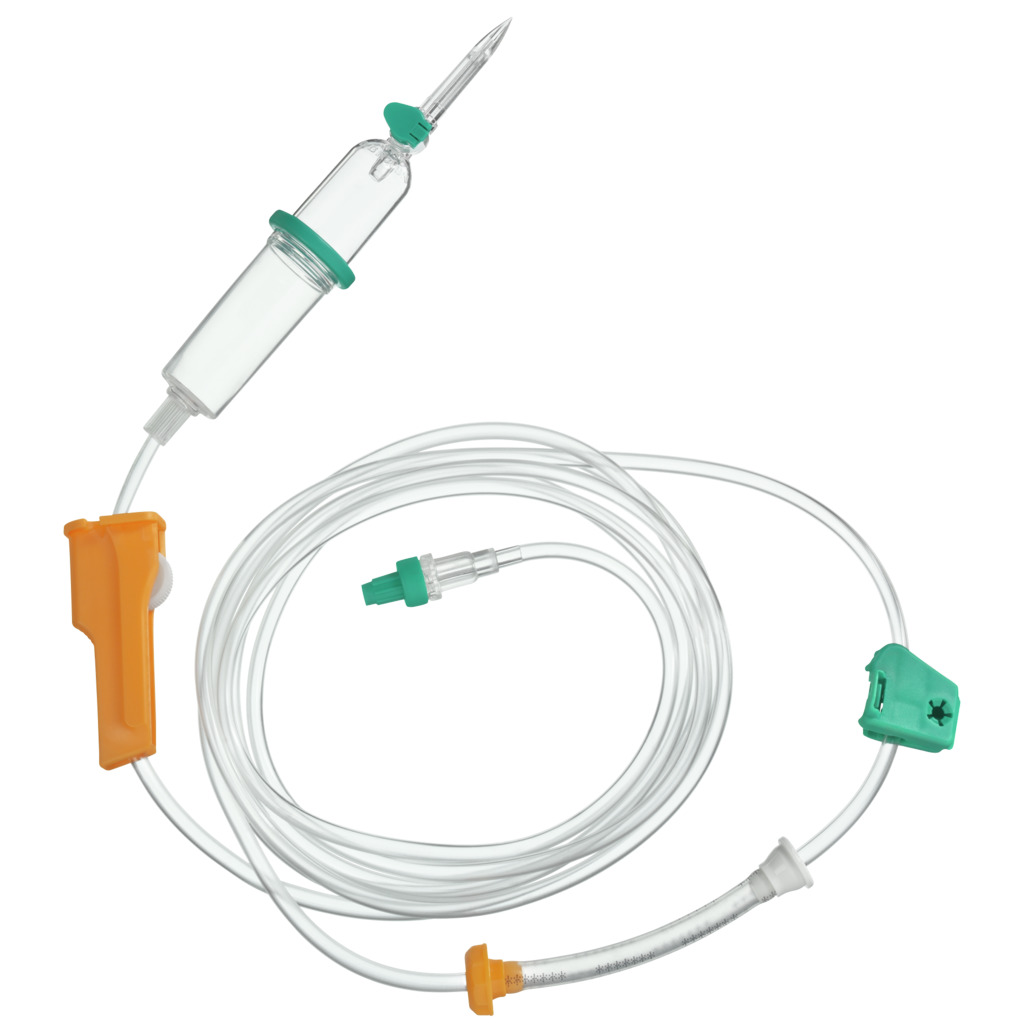

INFUSOMAT PLUS SAFESET SET WITH SECOND WAY

Infusion pump infuser B. Braun Infusomat Compact Plus for infusion of drugs, infusion solutions, chemotherapy drugs with injection point without use of needles Perforator
- Dual way, liquid and air
- Provided with air and liquid holes spaced to minimize air bubble recalls in the liquid pathway
- Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling
- Calibrated to achieve 20 drops of distilled water per milliliter

Drip chamber
- With high transparency
- Wide
- Easily compressible at its bottom for liquid recall
- Equipped at the base with AIR-STOP filter: a three-dimensional type filter that retains particulate matter (> 15 µm) and prevents air from passing into the tubing following emptying of the drip chamber

Tubing
(referring to Infusomat Standard set)
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 7 ml/m at 40°C and 2 bar
- Total length 240 cm, pump-patient section 150 cm
- High transparency

Precision Roller Clamp
- Ergonomic
- Equipped with non-slip resistant knurled wheel
- Equipped with hook for positioning the end of the outflow device during filling and stand-by period before connection to the patient
- Equipped with perforator port for safe disposal

Segment for Pump
- Segment that adheres to the peristalsis of the volumetric pump
- Inner diameter: 4.0 mm
- Outer diameter: 6.0 mm
- High strength
- Indeformable
