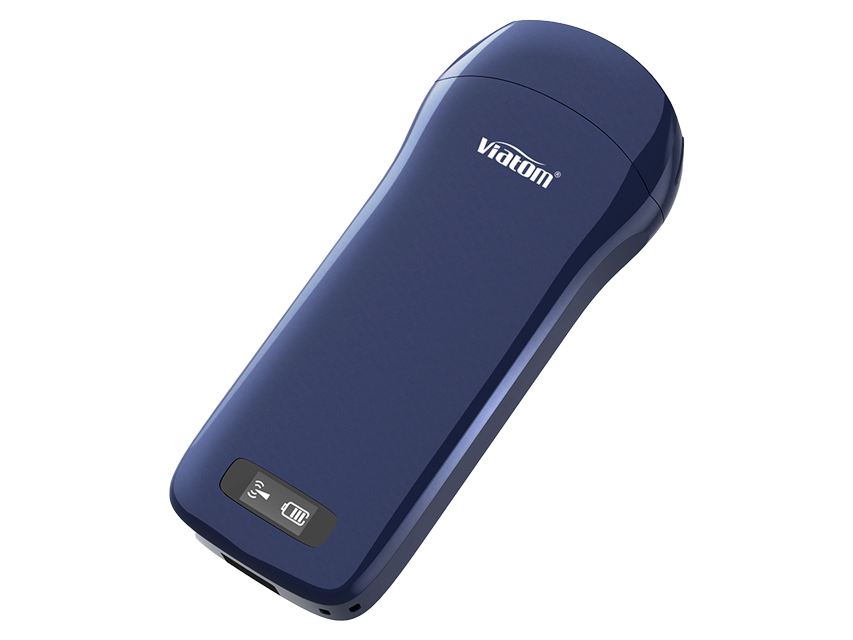

3-IN-1 WIRELESS VIATOM PORTABLE LINEAR/CONVEX/CARDIAC ULTRASOUND SCANNER
WIRELESS PORTABLE ULTRASOUND SCANNERS
Scanning:
- Linear (VASCULAR / MSK / PEDIATRICS / BREAST / THYROID / CARotids / SMALL ORGANS)
- Frequency range (MHz): 7.5-10
- Convex (POLMONIES / ABDOMEN / CARDIOLOGY / GYNECOLOGY / OSTETRICIA / UROLOGY / RENI)
- Frequency range (MHz): 3.5-5
- Cardiac (VASCULAR / CARDIOLOGY / ARTERIES)
- Frequency range (MHz): 2.5-5
Linear probe: Examination of superficial organs such as breast, thyroid, lymph nodes, etc., and blood vessels such as carotids, arteries of the upper extremities, arteries of the lower extremities and other small organs, examination of musculoskeletal system.
Convex probe: abdominal and pelvic organ scan, FAST scan, pleural effusion scan and lung ultrasound.
Cardiac probe: Echocardiogram for ultrasound of heart, thoracic arteries and intracranial blood vessels.

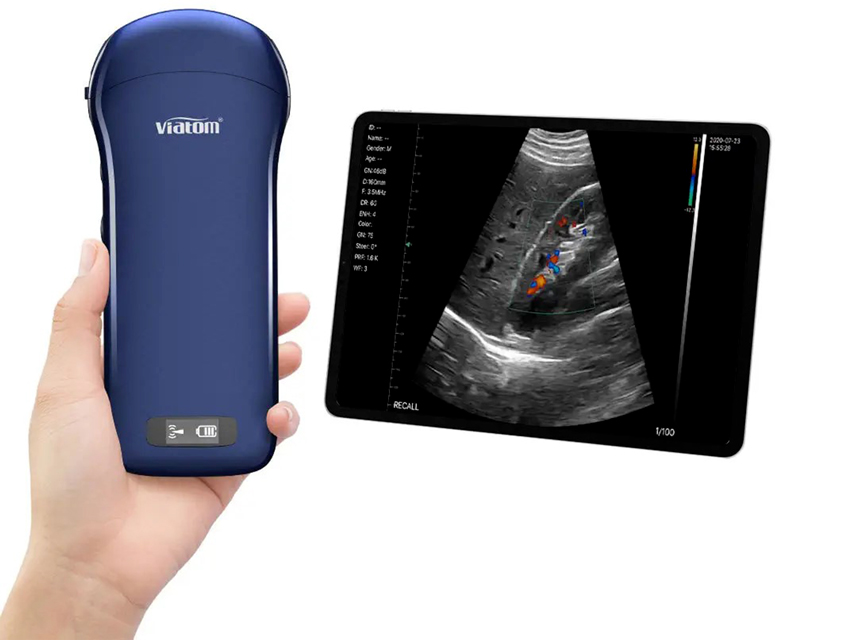

Easy-to-use wireless portable ultrasound machines, allowing the physician to manage the ultrasound results and share them with the patient with the appropriate software, anywhere, anytime.
Cases and reports can be saved and printed with a single click.
The high frame rate per second allows the smallest details to be obtained with maximum clarity, for rapid image-based diagnosis.

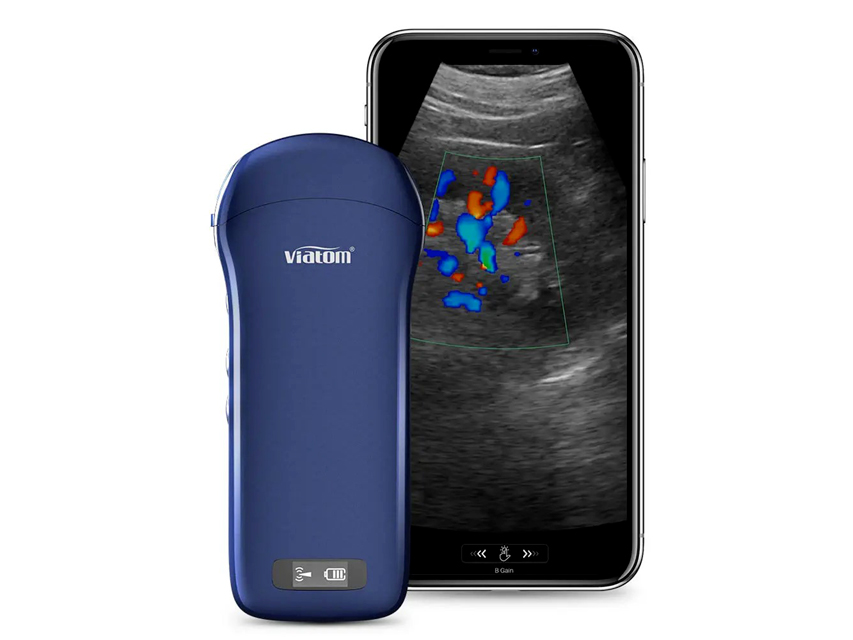

- wireless connection, compatible with tablets and smartphones (iOS, Android)
- replaceable integrated battery
- support for wireless charging
- advanced digital technology for sharp images
- convenience and ease of transport
- for hospital, emergency room, clinic, outdoor use
- intelligent terminal platform, powerful application expansion functions, storage
3-in-1 ultrasound scanner
The linear + convex + phased array (cardiac) probe allows the transition from depth to surface scanning without changing probes.
Very broad frequency and scanning depth allow examination of the entire body. Very sharp images and very long standby time (=12h) with very large 4200 mAh. 3.7V lithium battery.
Integrated independent Wi-Fi module, which realises instant image transmission without external network, reduces data transmission delay and improves image clarity.

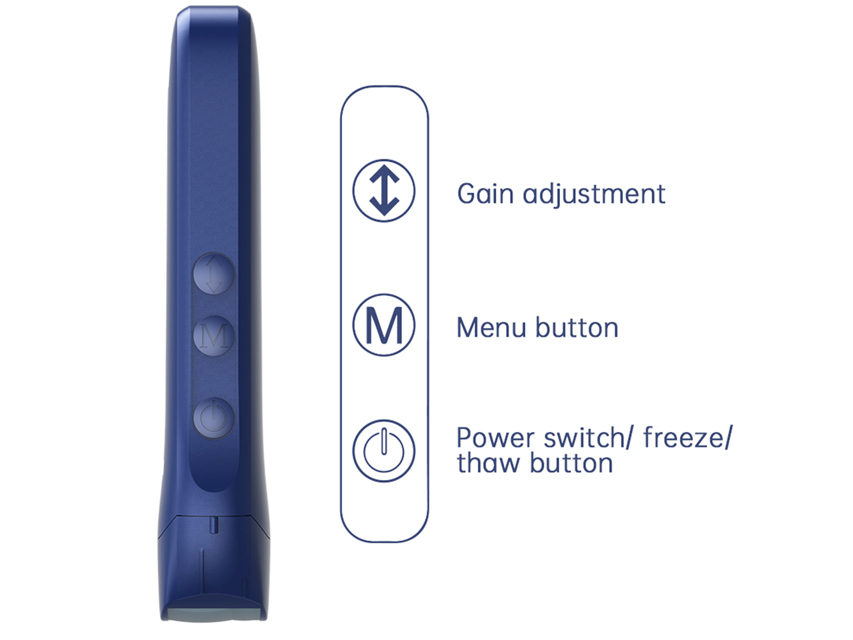

Scanning parameters (depth, gain, power and colour) adjustable with a simple and intuitive multi-key interface.
All models have GB, IT manual. Probe type: Linear / Convex / Cardiac
Frequency range: 7.5-10 MHz / 3.5-5 MHz / 2.5-5 MHz
Scanning depth: 20~80 mm / 90~305 mm / 90~160 mm
Head width: 60 mm
Doppler: B/BM/Colour/PDI/PW
Battery life: 3 hours
Recharge time Wireless charging support
USB cable
Charger adapter
Carrying bag
