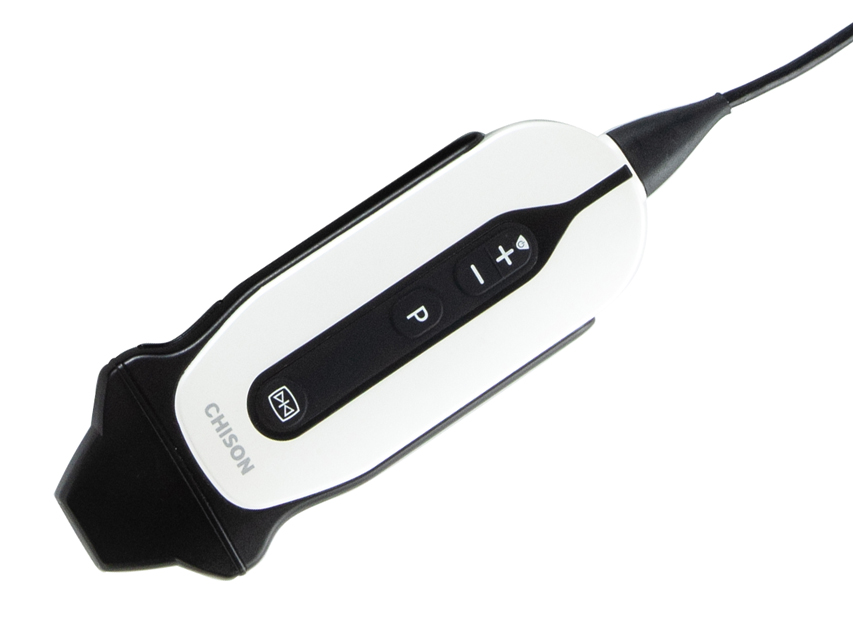

SONOEYE PORTABLE ULTRASOUND
- P3 Phased Array
- Network frequency: 3.0 MHz
- Frequency range: 2.5-4 MHz
- Suitable for: Lungs, Abdomen, Emergency medicine, Heart

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with one thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Phased Array
Frequency cent

7.5 MHz linear doppler probe

- Scanning method: linear
- Frequency (MHz)
- Main frequency: 7.5
- Probe bandwidth: 5.0 - 12.0
- Main application: microsurgery, haematology

Compatible with:
- No. 33951 - CHISON Q9 + 4D PORTABLE ECOCOLOROPPLER
- Code 33952 - CHISON Q9 PORTABLE ECOCOLOROPPLER
- Code 33965 - CHISON i8 ECOCOLORDOPPLER
- Code 33966 - ECOCOLORDOPPLER CHISON i8 + 4D (probe and software)
- Code 33882 - CHISON i3 COLOUR ECOGRAPHER
- Code 33883 - CHISON i3 COLOUR ECOGRAPH + package and 4D probe

Tablet for SonoEye.

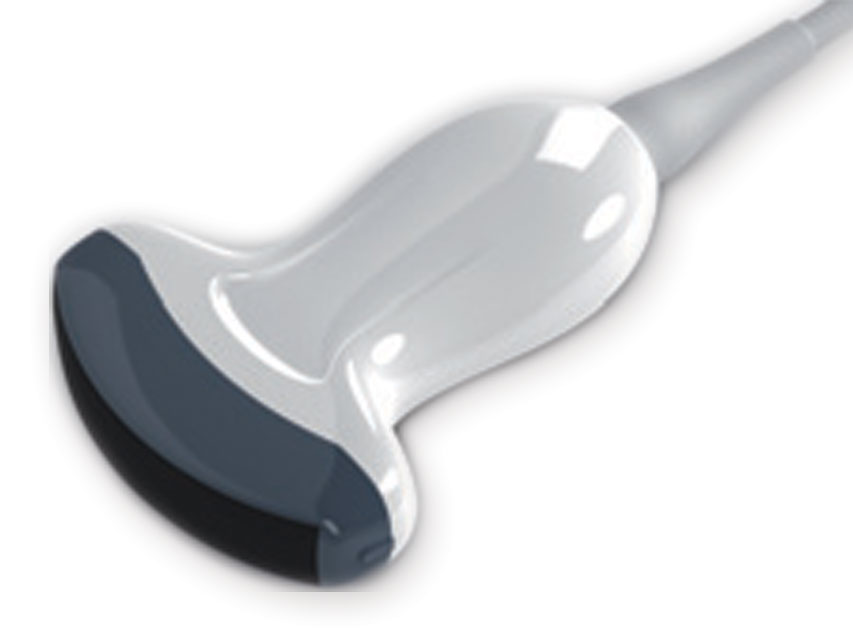

CONVEX 3.5 MHz probe

- Scanning method: convex
- Main frequency (MHz): 3.5
- QBit5 probe bandwidth (MHz): 2-6.8
- Main application: abdominal, gynaecology, urology

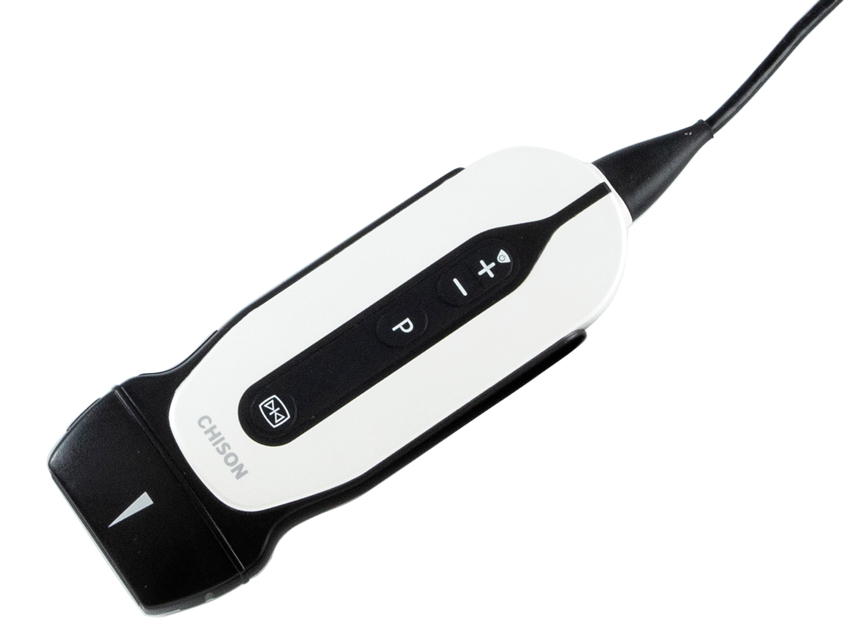

SONOEYE PORTABLE ULTRASOUND
- P2 Linear
- Linear frequency: 7.5 MHz
- Frequency range: 7-12 MHz
- Suitable for: Vascular, MSK, Nerves, Lungs, Small parts, Emergency medicine

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with a thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Linear
Centre frequency

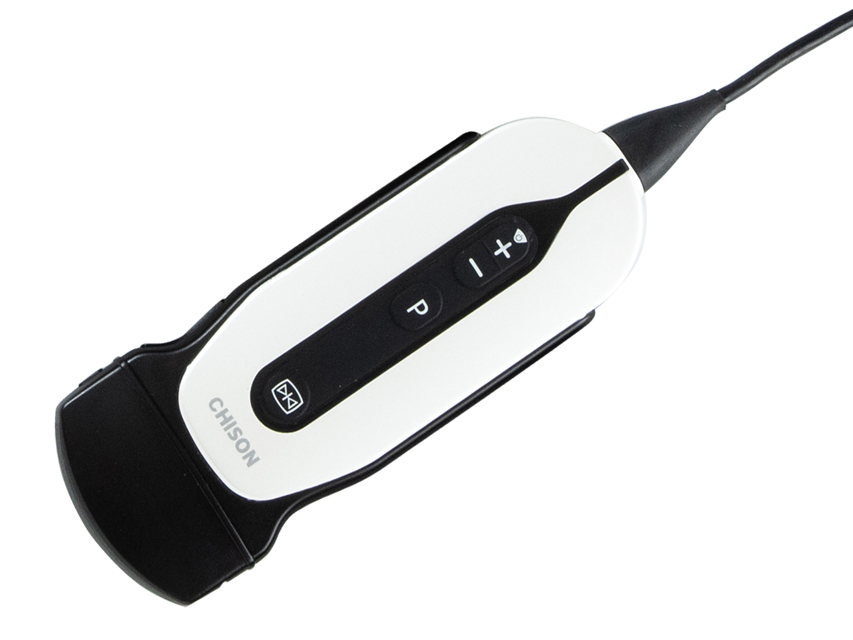

SONOEYE PORTABLE ULTRASOUND
- P5 Convex
- Network frequency: 3.5 MHz
- Frequency range: 3-5 MHz
- Suitable for: Lungs, Abdomen, Obstet./Gyn., Urology, Emergency medicine, FAST (targeted assessment with ultrasound for trauma)

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with one thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Convex
Centre frequency:

Probe for ECOCOLORDOPPLER QBit5

- Scanning method: CARDIAC (PHASED ARRAY)
- Main frequency: 2.5 MHz
- Probe bandwidth (MHz): 1.5-5.3
- Applications: CARDIOLOGY, TCD

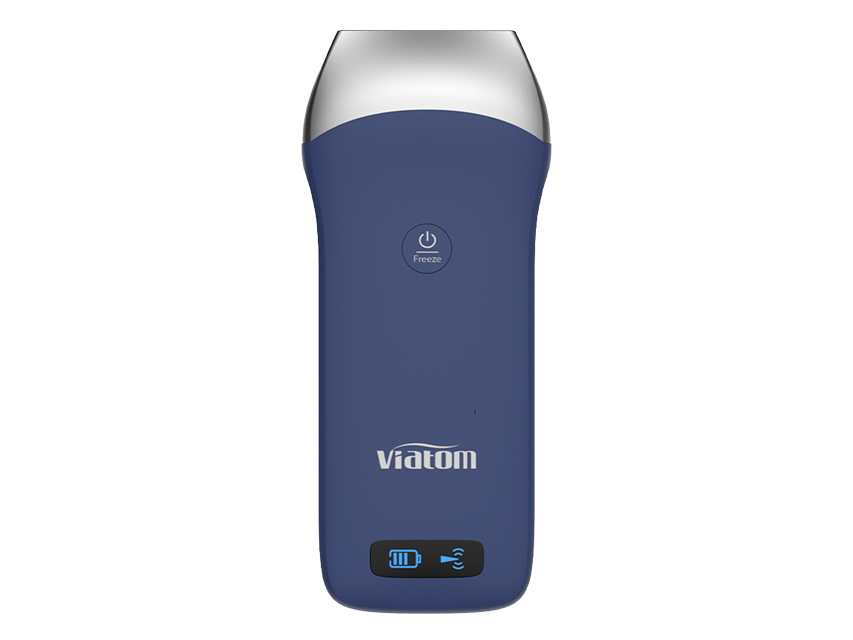

WIRELESS PORTABLE ULTRASOUND SCANNERS

Scanning:
- Linear VASCULAR / MSK / PEDIATRICS / BREAST / THYROID / CARotids / SMALL ORGANS)
- Frequency range (MHz): 7.5-10

Linear probe: Examination of superficial organs such as breast, thyroid, lymph nodes, etc., and blood vessels such as carotids, arteries of the upper extremities, arteries of the lower extremities and other small organs, examination of musculoskeletal system.

Easy-to-use wireless portable ultrasound scanners allow the physician to manage the ultrasound results and share them with the patient with the appropriate software, anywhere, anytime.
Cases and reports can be saved and printed with a single click.
The high frame rate per second allows the smallest details to be obtained with maximum clarity, for rapid image-based diagnosis.

- wireless connection, compatible with tablets and smartphones (iOS, Android)
- replaceable integrated battery
- support for wireless charging
- advanced digital technology for sharp images
- convenience and ease of transport
- for hospital, emergency room, clinic, outdoor use
- intelligent terminal platform, powerful application expansion functions, storage

Scanning parameters (depth, gain, power and colour) adjustable with a simple and intuitive multi-key interface.

All models have GB, IT manual. Probe type: Linear
Frequency range: 7.5-10 MHz
Scanning depth: 20/40/60/100 mm
Head width: 40 mm
Doppler: B, B/M
Battery life: 3~5 hours
Charging time: 2 hours
Dimensions: 15.6x6x2 cm
Weight: 230 g

Images
Measurement: Probe support
Wireless charging support
USB cable

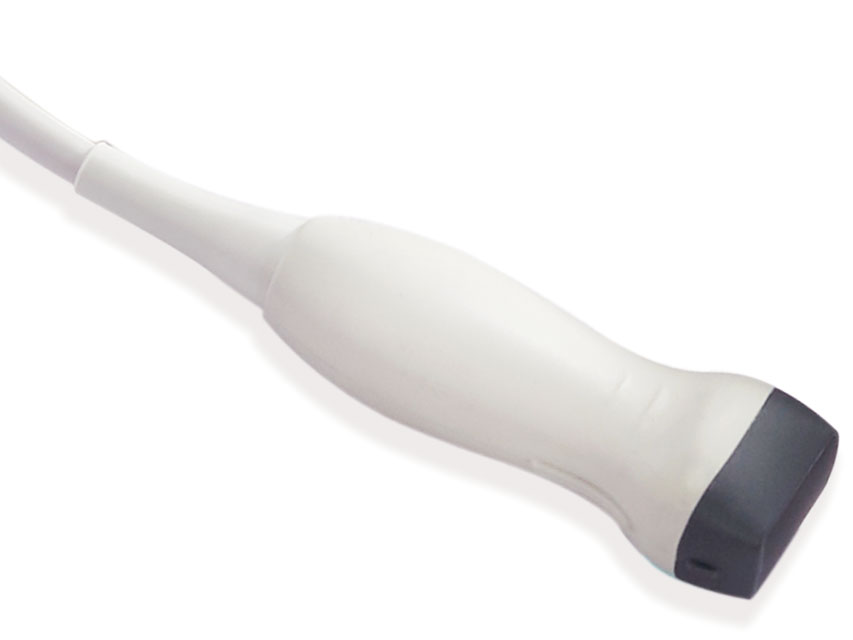

Doppler probe

- Scanning method: micro convex (BASIC CARDIAC)
- Main frequency: 3.0 MHz
- QBit5 probe bandwidth (MHz): 2-6.8
- Main application: CARDIOLOGY, PEDIATRICS

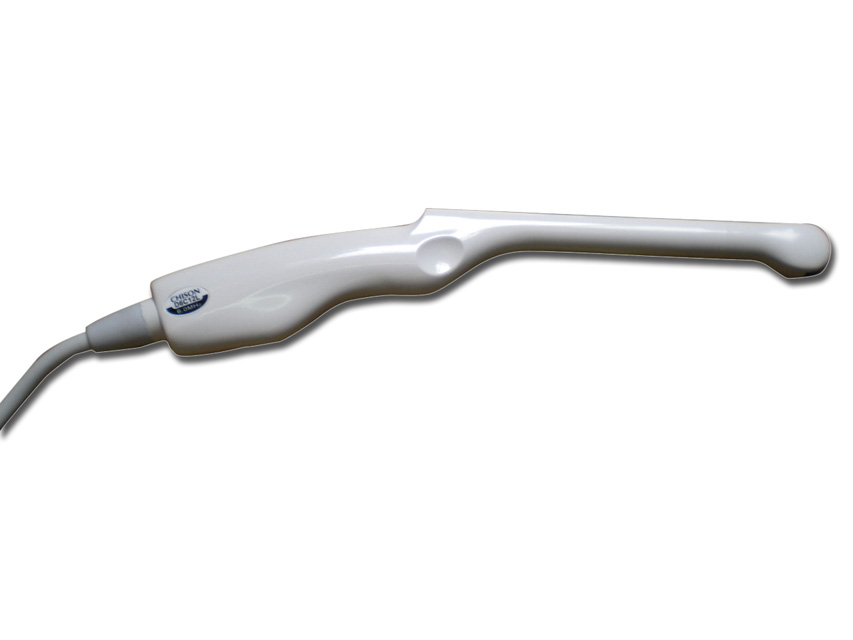

6.0 MHz probe - micro convex (transvaginal) for doppler

- Scanning method: micro convex (transvaginal)
- Frequency (MHz)
- Main frequency: 6.0
- Probe bandwidth: 4.0 - 12.0
- Main application: gynaecology
