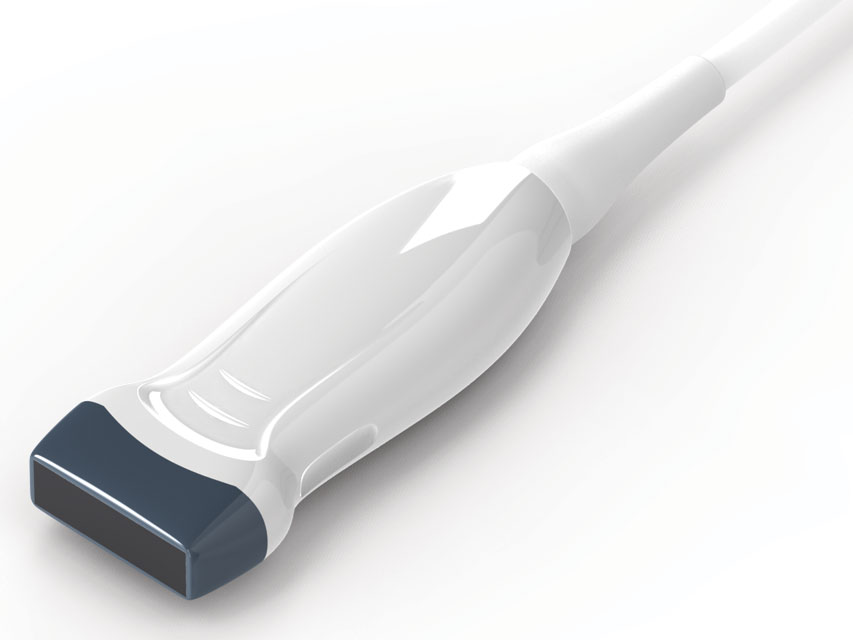

Chison portable ultrasound probe:

- Chison Code: L7S-A
- Scanning method: Linear (with 30 mm trace for examination of superficial tissue, higher resolution)
- Main frequency: 9.0 MHz
- Frequency range (MHz): 5.3 / 11
- Applications: Small parts, MSK, vascular, paediatrics, orthopaedics

SONOEYE PORTABLE ULTRASOUND
- P3 Phased Array
- Network frequency: 3.0 MHz
- Frequency range: 2.5-4 MHz
- Suitable for: Lungs, Abdomen, Emergency medicine, Heart

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with one thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Phased Array
Frequency cent

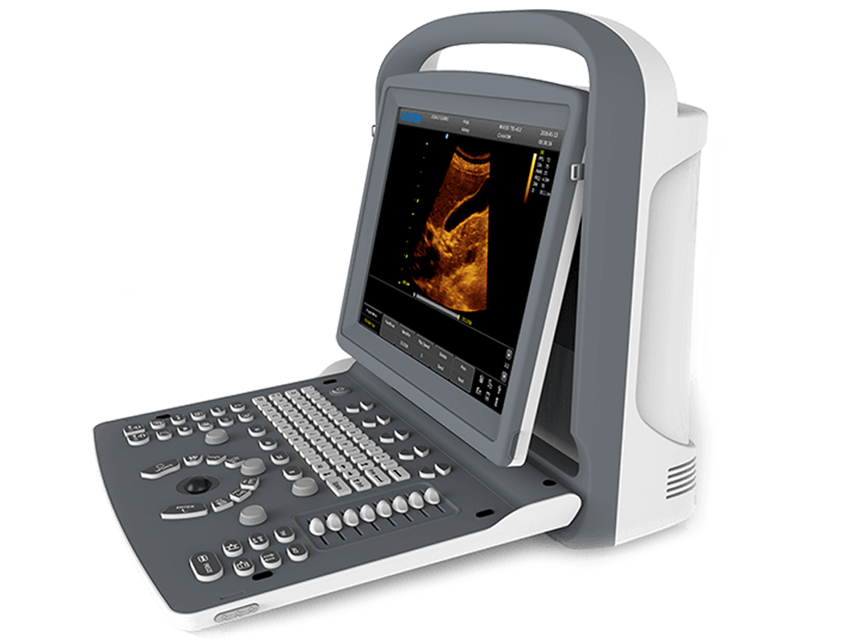

CHISON ECO2 with 1 probe connector, without probe

ECO2 Powerful, affordable black-and-white ultrasound scanner
- compact and lightweight, easy to carry
- screen with new generation LED technology; ultra-bright images allow optimal viewing even outdoors
- ergonomic monitor design, 30 degree rotation, adjustable
- long battery life of up to 2.5 hours, for outdoor use
- full screen image magnification, for better viewing at a distance
- straightforward, user-friendly workflow, 6 quick keys to finalise the diagnosis cycle

Display and image processing modes
B, B/B, 4B, M, B/M, PW (ECO2, ECO3EXP. only) multi-frequency imaging.

Image processing
- composite images - trapezoidal
- intelligent I-image optimisation - automatic PW
- THI (Harmonic Tissue Imaging) (ECO2, ECO3EXP. only)
- SRA (focal spot reduction algorithm) - Chroma
- digital beam-former system - AIO (Optimisation
- full screen display Automatic image)

User interface
- foldable control panel and alphanumeric keyboard
- backlit keypad for optimal visibility in the dark
- illuminated indicators identify activated keys
- 8 TGCs for easy adjustment
- user-defined hotkey for quick adjustment
- clear and intuitive keyboard layout, quick to memorise
- interactive backlighting - user-defined settings

Straightforward workflow, one key to
- select desired function with automatic settings
- optimise image automatically (AIO) - create reports
- save freeze frame and CINE loop - measure
- print from PC printer* (laser or inkjet) or video printer
*List of compatible printers is on our website

EASYVIEW™ Archiving System
- image archive on hard disk and USB mobile memories
- different image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (setting for auto review) for 2D, M, PW images (ECO2, ECO3EXP. only)
- cine memory capacity (256 frames/10s)
- 3 USB ports

Standards
IEC 60601-1, IEC 60601-1-1 Electromedical equipment
IEC 60601-1-2 Electromagnetic compatibility
IEC 60601-1-4 Programmable medical systems,
IEC 60601-2-37 Dimensions and weight: 33.5x15.5xh 35 cm; 6 kg
Screen: 12" LED, high resolution 1024x768
Power supply: AC 100-240 V - 50/60 Hz

Rechargeable Li-ion battery - optional

- Software (user selectable language): GB, IT, FR, ES, DE, CZ, TR, CN, R 12" high resolution LED screen - B/W
LED screen 12" high resolution - colour
8G memory card
Hotkeys
PC printer connection
3 USB ports, 1 Ethernet port
1 video port, 1 VGA port, 1 footswitch port
Schwartz mode

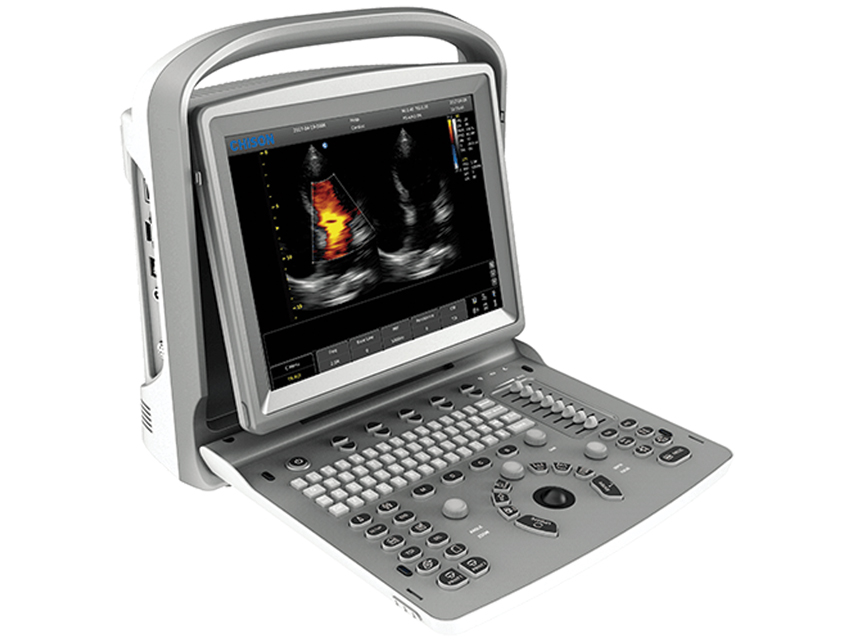

CHISON ECO6 Colordoppler 12" high resolution LED screen, 8G high-speed memory, 3 USB ports, 2 probe connectors, EASYVIEW™ storage system, without probe, with optional cardio package, Super Needle, Auto IMT.

Image modes: B, B/B, 4B, B/M, M, CFM, PW, PD, DPD, B/BC, Triplex

Image processing:
- MCI (Multi Image Compositing)
- i-image intelligent image optimisation
- THI (tissue harmonic imaging)
- trapezoidal images
- SRA (Focal spot reduction algorithm)
- Chroma
- digital beam-former system
- full screen visualisation
- AIO (Automatic Image Optimisation)
- Automatic PW
Additional features such as ECO3EXP.

ECO6 EXCLUSIVE FEATURES

Triplex - standard
Triplex combines B-mode, colour and PW to make diagnosis easier and more accurate, improving efficiency.

Auto IMT function - optional (code 33861)
Automatically tracks and measures average intimal thickness with ease and accuracy.

Super Needle - optional (code 33860)
With Super Needle, clinicians can more clearly see the needle inside tissue during medical procedures. Needle angle up to ±30°.

Continuous Wave (CW) Doppler - optional (code 33859)
Detects blood flowing at high speed and contributes to diagnosis with more clinical information.

Tissue Doppler Imaging (TDI) - optional (code 33859)
New echocardiography technique that directly measures myocardial velocity. The measurement of systolic TD allows the contractile function of the left and right ventricle to be assessed. TD values reflect myocardial relaxation.

LANGUAGES - user selectable:
Software: GB, IT, FR, ES, PT, DE, PL, CZ, TR, CN, RU
User manual: GB IT, CN Dimensions - weight: 33.5x15.5xh 35 cm - 6.5 kg
Screen: 12" LED, high resolution, colour 1024x768
Power supply: AC 100-240 V, 50-60 Hz; rechargeable Li-ion battery 14.8 V 4400 mAh

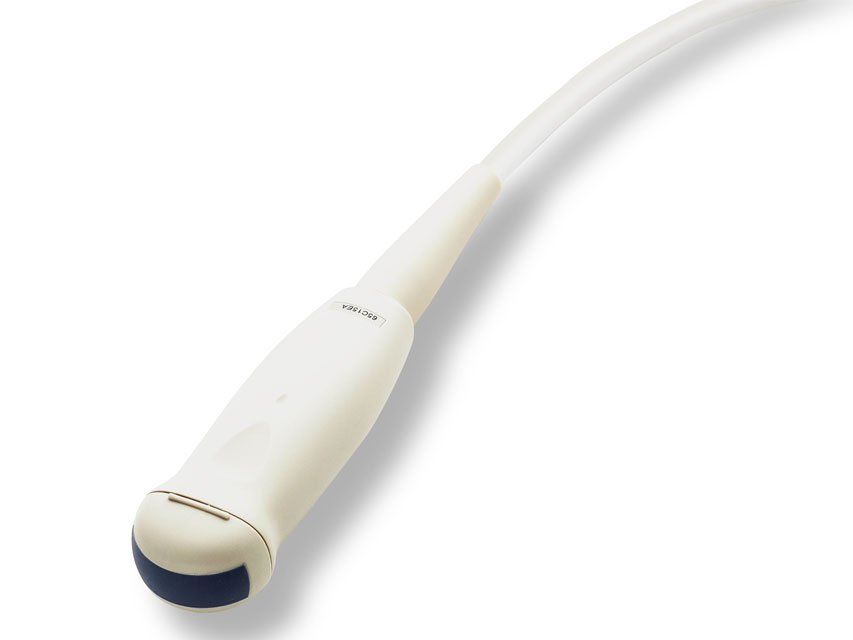

Micro-Convex 6.5 MHz probe

- Mindray code: 65C15EA
- Scanning method: Micro-Convex
- Main freq: 6.5
- Probe bandwidth: 5.0 - 8.5

Rechargeable Li-ion battery.

Rechargeable lithium battery for ECO series portable ultrasound scanners.

BT-2500 Li-ion battery
Charging time: 2.5 hours

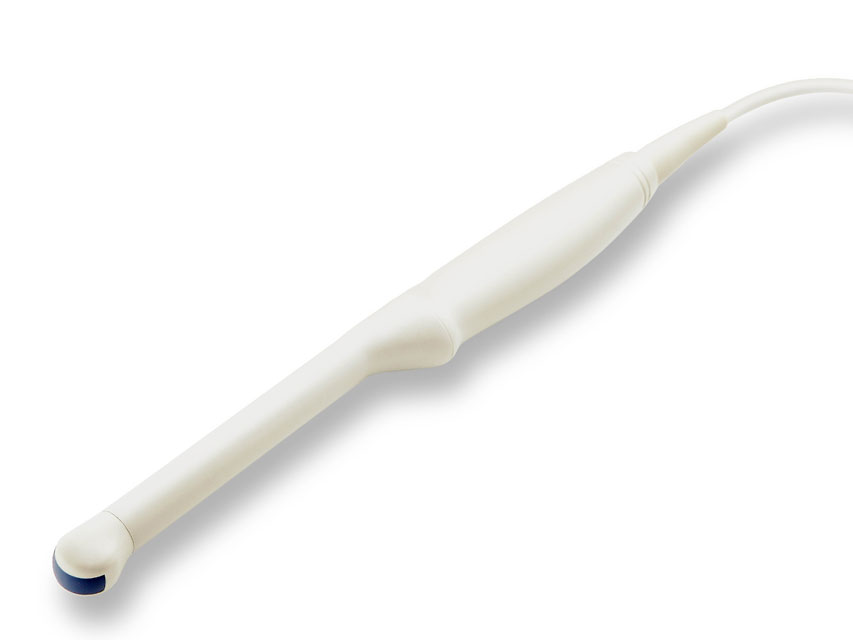

Chison portable ultrasound probe:

- Chison code: V6-A
- Scanning method: Trans-vaginal
- Main frequency: 6.0 MHz
- Frequency range (MHz): 4.5 / 8.0
- Applications: OST. & GIN / urology

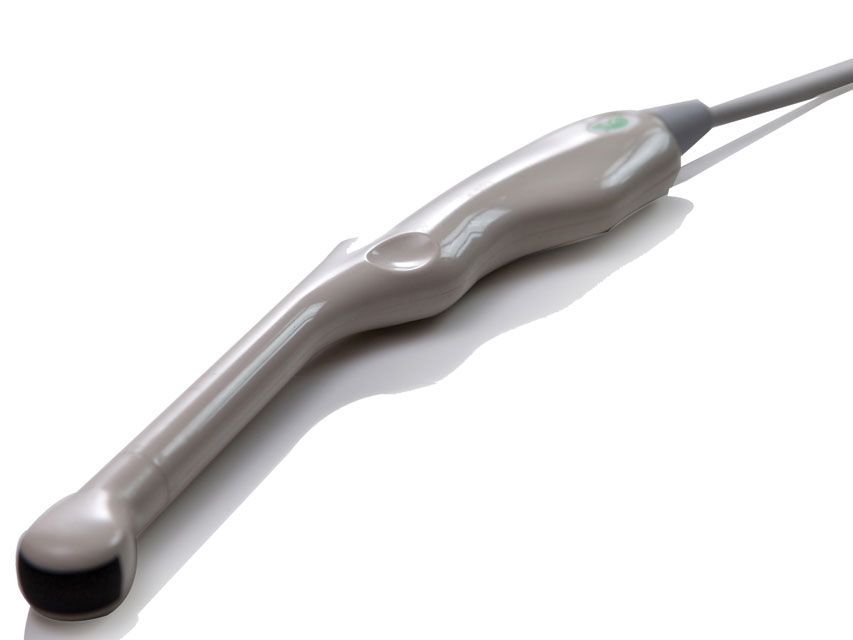

Micro-Convex 6.5 MHz probe

- Mindray part number: 65EC10EB
- Scanning method: Micro-Convex
- Main freq: 6.5
- Probe bandwidth: 5.0 - 8.5

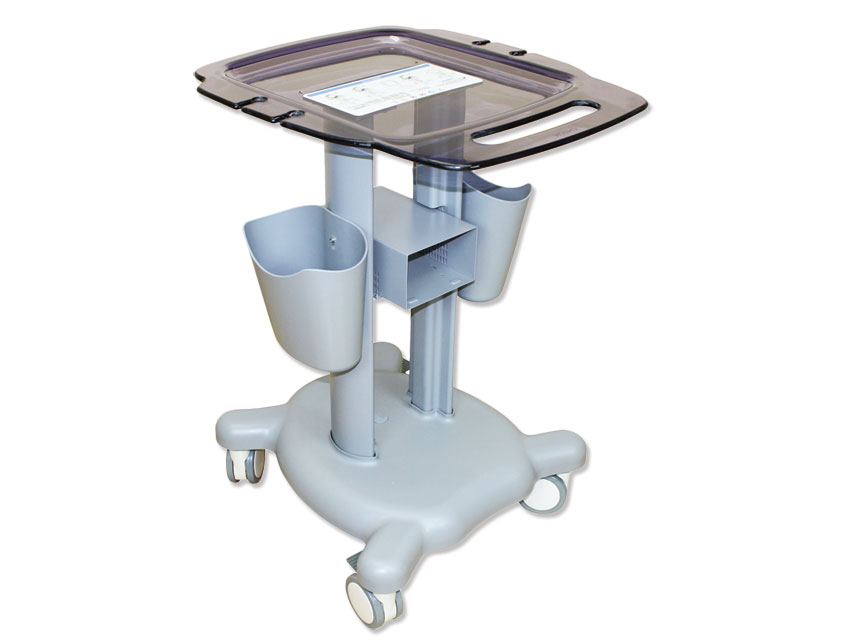

Trolley trolley model TR-9000 for portable ultrasound scanners of the ECO series.
