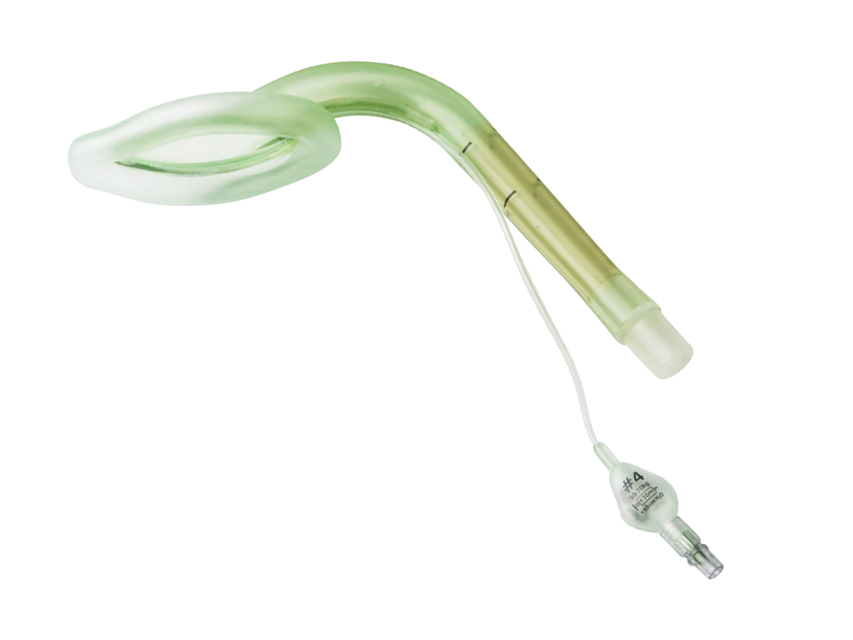

AMBU® AURAONCE™ DISPOSABLE LARYNGEAL MASK

- N 4 laryngeal mask
- Colour: yellow
- Patient weight: 50-70 kg
- Max. cuff inflation volume: 30 ml

AuraOnce features a special curvature that faithfully replicates the human anatomy.
The unique shape is moulded directly onto the tube and ensures correct insertion without irritating the upper airways.
The curvature also ensures that the patient's head remains in a natural supine position when the mask is in use, without adding pressure on the upper jaw. In addition, Auraonce is specially designed to provide the ventilation tube with the flexibility to adapt to individual anatomical variables and a wide range of head positions.

The D-shaped ventilation tube allows a secure and ergonomic grip during insertion.
Positioning is fast and precise, with minimal internal pressure.

AMBU® AURAONCE™ VENTILATION
The ventilation tube is flexible near the cuff and rigid near the connector to make insertion and removal easy and atraumatic.
Liner and ventilation tube moulded in one piece with anatomically correct curvature.
Smooth edges without protrusions or fins that could scratch delicate tissue.
Practical transparent 'window' to view condensation.
Reinforced tip does not bend during insertion so positioning is always correct.
Ultra-thin pilot balloon with universal control valve provides precise tactile indication of inflation.
15 mm universal connector (ISO). Maximum intra-balloon pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/hose material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

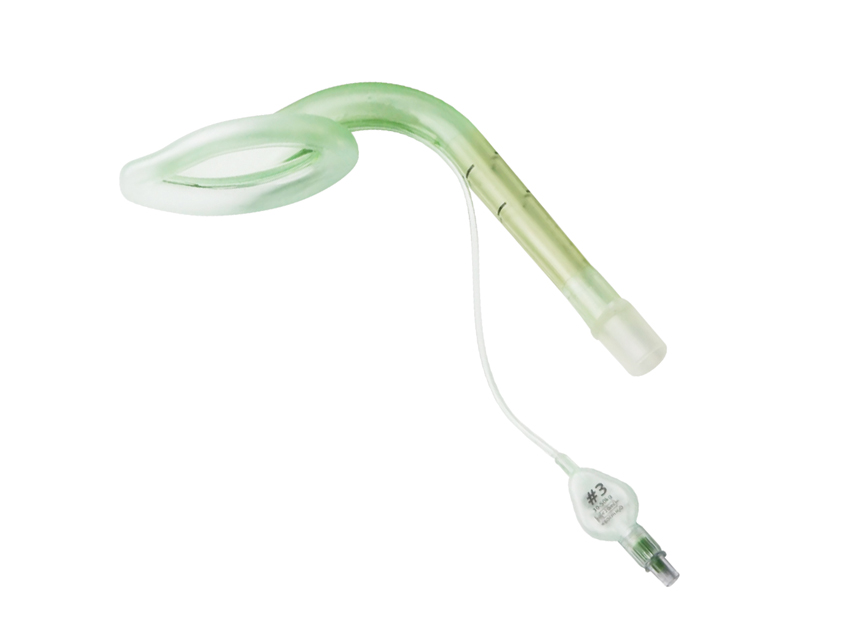

AMBU® AURAONCE™ DISPOSABLE LARYNGEAL MASK

- N 3 laryngeal mask
- Colour: green
- Patient weight: 30-50 kg
- Max. cuff inflation volume: 20 ml

AuraOnce features a special curvature that faithfully replicates the human anatomy.
The unique shape is moulded directly onto the tube and ensures correct insertion without irritating the upper airways.
The curvature also ensures that the patient's head remains in a natural supine position when the mask is in use, without adding pressure on the upper jaw. In addition, Auraonce is specially designed to provide the ventilation tube with the flexibility to adapt to individual anatomical variables and a wide range of head positions.

The D-shaped ventilation tube allows a secure and ergonomic grip during insertion.
Positioning is fast and precise, with minimal internal pressure.

AMBU® AURAONCE™ VENTILATION
The ventilation tube is flexible near the cuff and rigid near the connector to make insertion and removal easy and atraumatic.
Liner and ventilation tube moulded in one piece with anatomically correct curvature.
Smooth edges without protrusions or fins that could scratch delicate tissue.
Practical transparent 'window' to view condensation.
Reinforced tip does not bend during insertion so positioning is always correct.
Ultra-thin pilot balloon with universal control valve provides precise tactile indication of inflation.
15 mm universal connector (ISO). Maximum intra-balloon pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/cuff material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

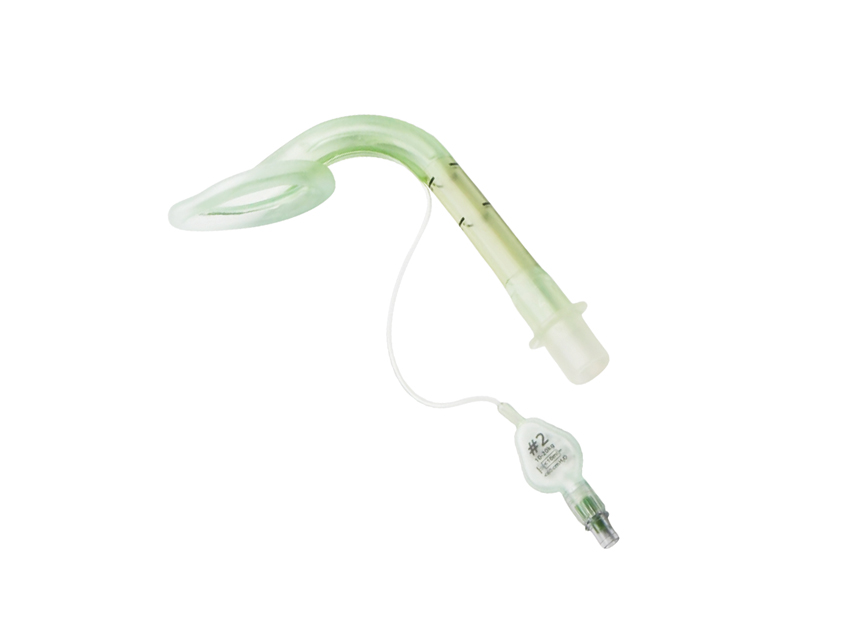

AMBU® AURAONCE™ DISPOSABLE LARYNGEAL MASK

- N 2 laryngeal mask
- Colour: pink
- Patient weight: 10-20 kg
- Max. cuff inflation volume: 10 ml

AuraOnce features a special curvature that faithfully replicates the human anatomy.
The unique shape is moulded directly onto the tube and ensures correct insertion without irritating the upper airways.
The curvature also ensures that the patient's head remains in a natural supine position when the mask is in use, without adding pressure on the upper jaw. In addition, Auraonce is specially designed to provide the ventilation tube with the flexibility to adapt to individual anatomical variables and a wide range of head positions.

The D-shaped ventilation tube allows a secure and ergonomic grip during insertion.
Positioning is fast and precise, with minimal internal pressure.

AMBU® AURAONCE™ VENTILATION
The ventilation tube is flexible near the cuff and rigid near the connector to make insertion and removal easy and atraumatic.
Liner and ventilation tube moulded in one piece with anatomically correct curvature.
Smooth edges without protrusions or fins that could scratch delicate tissue.
Practical transparent 'window' to view condensation.
Reinforced tip does not bend during insertion so positioning is always correct.
Ultra-thin pilot balloon with universal control valve provides precise tactile indication of inflation.
15 mm universal connector (ISO). Maximum intra-balloon pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/hose material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

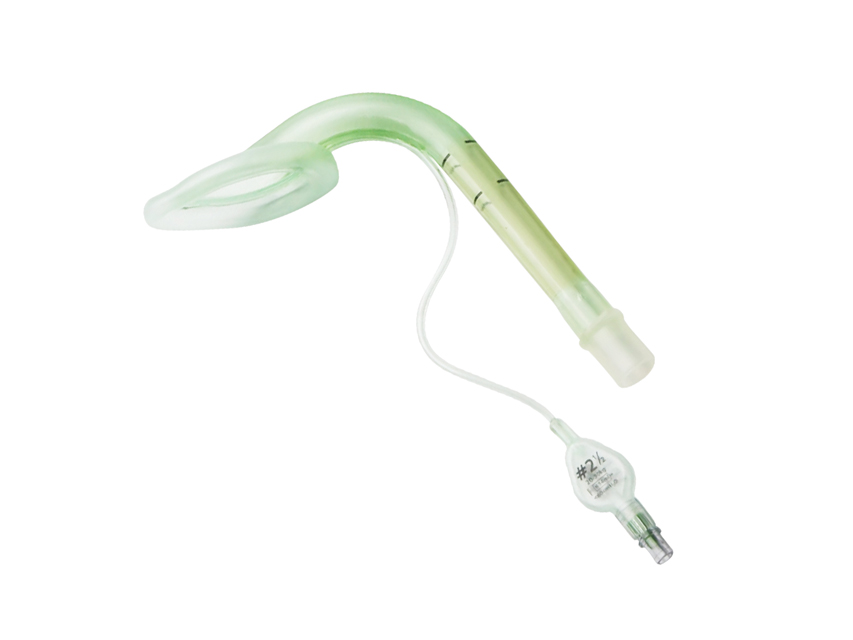

AMBU® AURAONCE™ DISPOSABLE LARYNGEAL MASK

- N 2.5 laryngeal mask
- Colour: pink
- Patient weight: 20-30 kg
- Max. cuff inflation volume: 14 ml

AuraOnce features a special curvature that faithfully replicates the human anatomy.
The unique shape is moulded directly onto the tube and ensures correct insertion without irritating the upper airways.
The curvature also ensures that the patient's head remains in a natural supine position when the mask is in use, without adding pressure on the upper jaw. In addition, Auraonce is specially designed to provide the ventilation tube with the flexibility to adapt to individual anatomical variables and a wide range of head positions.

The D-shaped ventilation tube allows a secure and ergonomic grip during insertion.
Positioning is fast and precise, with minimal internal pressure.

AMBU® AURAONCE™ VENTILATION
The ventilation tube is flexible near the cuff and rigid near the connector to make insertion and removal easy and atraumatic.
Liner and ventilation tube moulded in one piece with anatomically correct curvature.
Smooth edges without protrusions or fins that could scratch delicate tissue.
Practical transparent 'window' to view condensation.
Reinforced tip does not bend during insertion so positioning is always correct.
Ultra-thin pilot balloon with universal control valve provides precise tactile indication of inflation.
15 mm universal connector (ISO). Maximum intra-balloon pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/hose material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

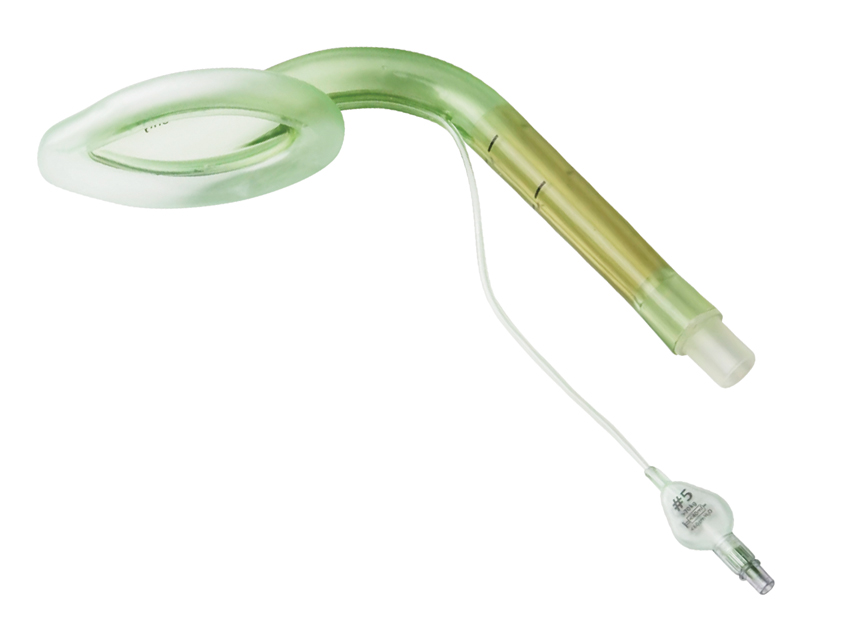

AMBU® AURAONCE™ DISPOSABLE LARYNGEAL MASK

- N 5 laryngeal mask
- Colour: blue
- Patient weight: 70-100 kg
- Max. cuff inflation volume: 40 ml

AuraOnce features a special curvature that faithfully replicates the human anatomy.
The unique shape is moulded directly onto the tube and ensures correct insertion without irritating the upper airways.
The curvature also ensures that the patient's head remains in a natural supine position when the mask is in use, without adding pressure on the upper jaw. In addition, Auraonce is specially designed to provide the ventilation tube with the flexibility to adapt to individual anatomical variables and a wide range of head positions.

The D-shaped ventilation tube allows a secure and ergonomic grip during insertion.
Positioning is fast and precise, with minimal internal pressure.

AMBU® AURAONCE™ VENTILATION
The ventilation tube is flexible near the cuff and rigid near the connector to make insertion and removal easy and atraumatic.
Liner and ventilation tube moulded in one piece with anatomically correct curvature.
Smooth edges without protrusions or fins that could scratch delicate tissue.
Practical transparent 'window' to view condensation.
Reinforced tip does not bend during insertion so positioning is always correct.
Ultra-thin pilot balloon with universal control valve provides precise tactile indication of inflation.
15 mm universal connector (ISO). Maximum intra-balloon pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/cuff material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

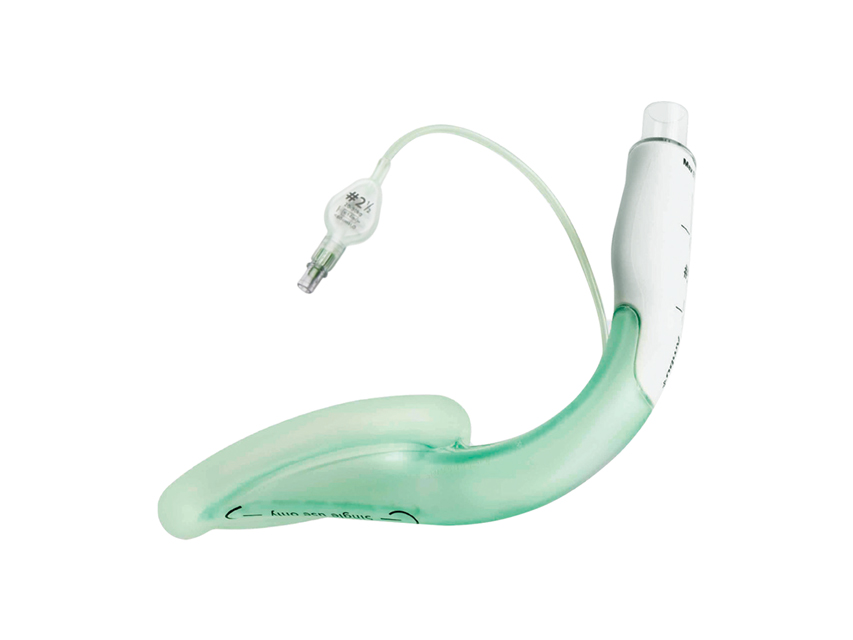

AMBU® AURA-i™ DISPOSABLE LARGE MASK

- Laryngeal mask N 2.5
- Colour: violet
- Patient weight: 20-30 kg
- Max. cuff inflation volume: 14 ml
- Max. ET tube (max. endotracheal tube Ø): 5.5 mm

Aura-i's soft curvature, preformed to follow the anatomy of the human airway, ensures quick and easy placement and long-term performance.
Aura-i is the ideal device for routine interventions to maintain the airway when the use of the ET tube is not deemed necessary. At the same time, it can be useful for the management of difficult airways.
In CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-i can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.
The ventilation tube is designed to facilitate passage of appropriately sized endotracheal tubes.
The recommended ET tube size is indicated on the mask connector block.

AMBU® AURA-i™ VENTILATION & INTUBATION
Curved anatomical shape for quick and easy insertion.
Navigation markers to guide the flexible videoscope.
Facilitates intubation with standard ET tubes.
Reinforced tip resists bending during insertion and seals the upper oesophageal sphincter.
Smooth edges without protrusions or fins that could scratch delicate tissue.
The ultra-thin pilot balloon recognises the size of the mask and provides precise tactile indication of the level of inflation.
Direct endotracheal intubation using a flexible videoscope and standard ET tubing.
15 mm universal connector (ISO). Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/headphone material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

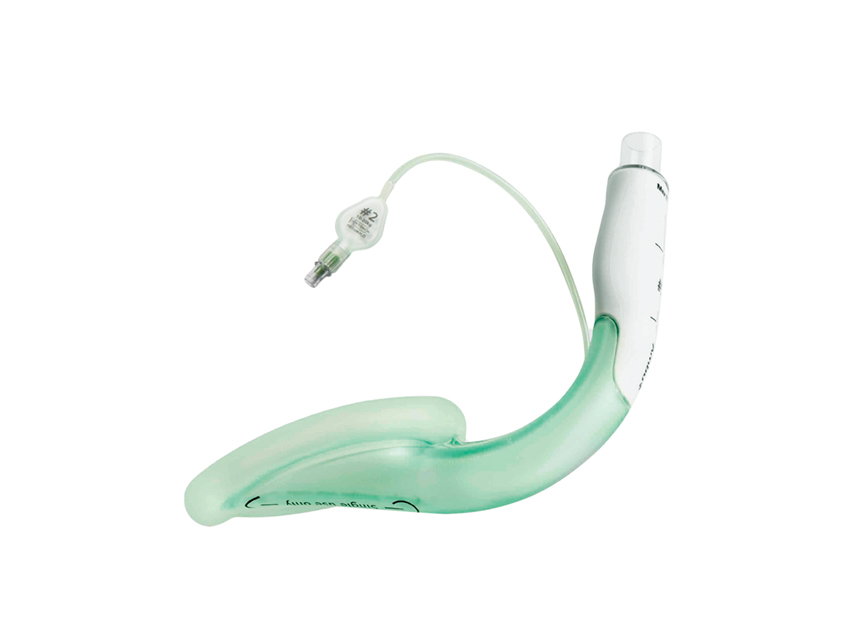

AMBU® AURA-i™ DISPOSABLE LARGE MASK

- Laryngeal mask N 2
- Colour: pink
- Patient weight: 10-20 kg
- Max. cuff inflation volume: 10 ml
- Max. ET tube (max. endotracheal tube Ø): 5.0 mm

Aura-i's soft curvature, preformed to follow the anatomy of the human airway, ensures quick and easy positioning and long-term performance.
Aura-i is the ideal device for routine interventions to maintain the airway when the use of an ET tube is not deemed necessary. At the same time, it can be useful for the management of difficult airways.
In CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-i can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.
The ventilation tube is designed to facilitate passage of appropriately sized endotracheal tubes.
The recommended ET tube size is indicated on the mask connector block.

AMBU® AURA-i™ VENTILATION & INTUBATION
Curved anatomical shape for quick and easy insertion.
Navigation markers to guide the flexible videoscope.
Facilitates intubation with standard ET tubes.
Reinforced tip resists bending during insertion and seals the upper oesophageal sphincter.
Smooth edges without protrusions or fins that could scratch delicate tissue.
The ultra-thin pilot balloon recognises the size of the mask and provides precise tactile indication of the level of inflation.
Direct endotracheal intubation using a flexible videoscope and standard ET tubing.
15 mm universal connector (ISO). Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/headphone material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

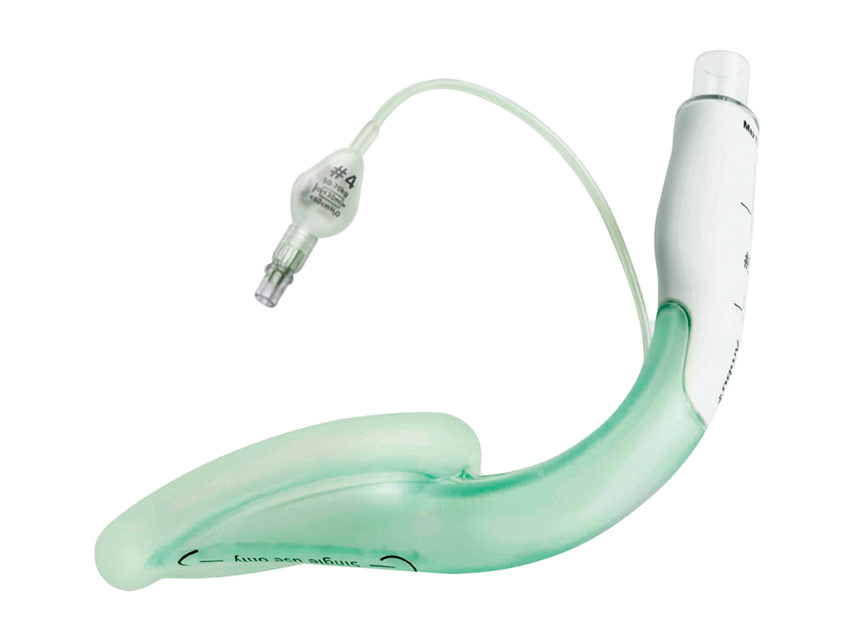

AMBU® AURA-i™ DISPOSABLE LARGE MASK

- Laryngeal mask N 4
- Colour: orange
- Patient weight: 50-70 kg
- Max. cuff inflation volume: 30 ml
- Max. ET tube (max. endotracheal tube Ø): 7.5 mm

Aura-i's soft curvature, preformed to follow the anatomy of the human airway, ensures quick and easy placement and long-term performance.
Aura-i is the ideal device for routine interventions to maintain the airway when the use of an ET tube is not deemed necessary. At the same time, it can be useful for the management of difficult airways.
In CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-i can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.
The ventilation tube is designed to facilitate passage of appropriately sized endotracheal tubes.
The recommended ET tube size is indicated on the mask connector block.

AMBU® AURA-i™ VENTILATION & INTUBATION
Curved anatomical shape for quick and easy insertion.
Navigation markers to guide the flexible videoscope.
Facilitates intubation with standard ET tubes.
Reinforced tip resists bending during insertion and seals the upper oesophageal sphincter.
Smooth edges without protrusions or fins that could scratch delicate tissue.
The ultra-thin pilot balloon recognises the size of the mask and provides precise tactile indication of the level of inflation.
Direct endotracheal intubation using a flexible videoscope and standard ET tubing.
15 mm universal connector (ISO). Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/headphone material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

REUSABLE SILICONE LARYNGEAL MASK

<img src="http://www.gimaitaly.com/it/assets/altreimmagini/34424-29_point.jpg">

1. Excellent anatomical design ensures a comfortable and safe insertion. 15 mm universal connector (ISO).

2. Transparent hose. Guide for easy insertion.

3. Slight protuberances minimise vomiting of substances from oesophagus and stomach.

4. The seamless edge offers maximum comfort.

5. The reinforced oval tip prevents bending during insertion.

6. A pilot balloon helps manage sensitivity during insertion

Each laryngeal mask has a serial number to ensure traceability.

AUTOCLAVABLE UP TO 40 TIMES. - Size: 3
- Patient type: boy
- Weight: 30-50 kg
- Cap volume (air flow in ml): 20 ml

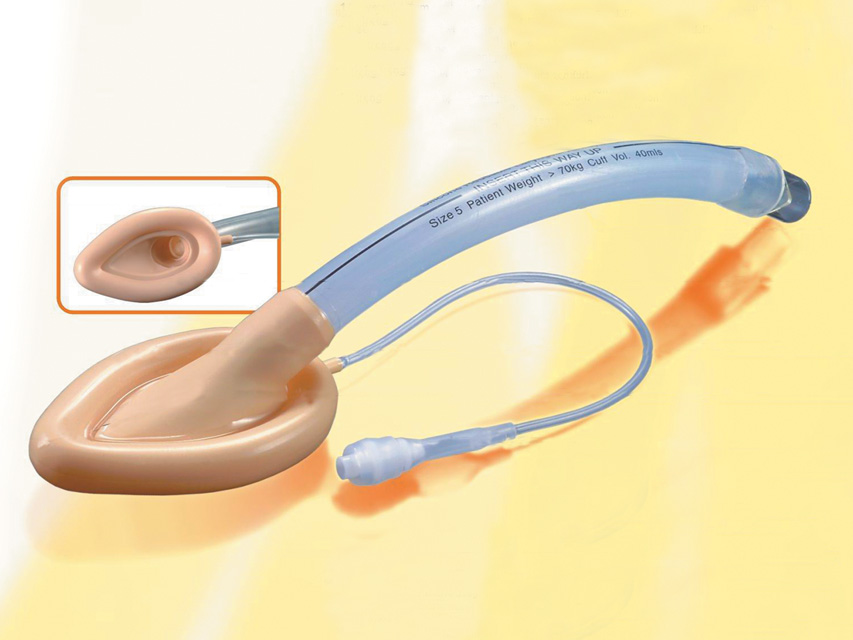

REUSABLE SILICONE LARYNGEAL MASK

<img src="http://www.gimaitaly.com/it/assets/altreimmagini/34424-29_point.jpg">

1. Excellent anatomical design ensures a comfortable and safe insertion. 15 mm universal connector (ISO).

2. Transparent hose. Guide for easy insertion.

3. Slight protuberances minimise vomiting of substances from oesophagus and stomach.

4. The seamless edge offers maximum comfort.

5. The reinforced oval tip prevents bending during insertion.

6. A pilot balloon helps manage sensitivity during insertion

Each laryngeal mask has a serial number to ensure traceability.

AUTOCLAVABLE UP TO 40 TIMES. - Size: 5
- Patient type: adult
- Weight: &gt; 70 kg
- Cap volume (air flow in ml): 40 ml
