Control solution - 1kit

Strip tray - replacement

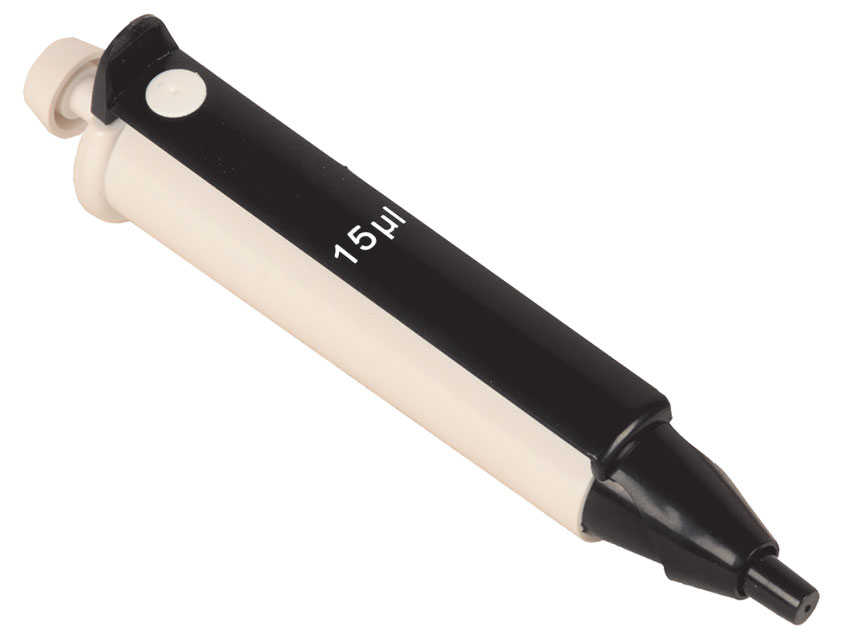

PIPETTE 15 ul for lipid profile strips (cod.23984).

Accessory for LUX Monitor (cod.23983).

Packaged in a single box that includes a lancet, individual swab and user manual. This product is certified for self-diagnosis and can be sold to the end user as a benchtop product. No additional device is required.

Multilingual manual and box: GB, FR. IT, GR.

ATTENTION: TESTS WITH A SHORT SHELF LIFE.
Tests have 24 months shelf life from the date of production.
Stock may vary from 10 to 22 months

Replacement strip cart for Urine Lab (code 24050).

Printer cable for PT/INR.

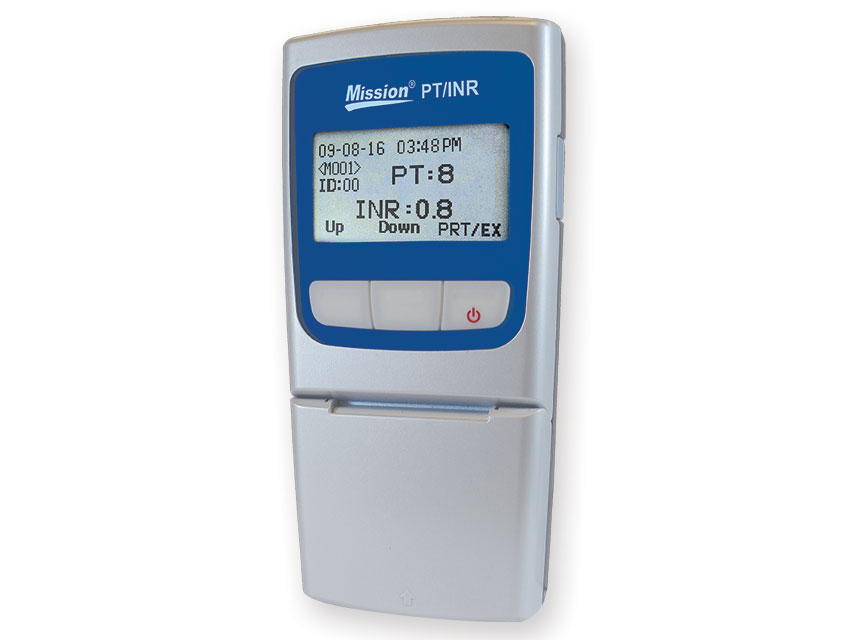

MISSION® PT/INR PROTHROMBIN MONITORING SYSTEM

Coagulation test for professional and home use

Reliable
- fast results to monitor Prothrombin Time (PT) in seconds and International Normalised Ratio (INR)
- wide INR range of 0.7-7.0
- individually packaged strips with 24 months shelf life
- optional printer for quick printing of results
- clinical accuracy: ISO 17593 compliant

Simple operation
- results in approximately 2 minutes
- a single drop of capillary blood or 15 µL of venous whole blood is required
- insert strip, place sample and read results

Easy operation
- portable device that is easy to use and ideal for both doctor's offices and at home
- patient ID and password protect results
- runs on 4 AA batteries or standard AC adapter Measurement method Optical fluorescence
Time for results Approx. 2 minutes
Memory 200 results with date/time
Sample volume 15 µL
Sample type Capillary blood or whole venous blood
Measurement range INR 0.7-7.0
HCT range 25-60 % 25- 1 quick guide
1 AC adapter
4 AA batteries
1 carrying case
1 manual (GB, IT) and on request DE, ES, PT

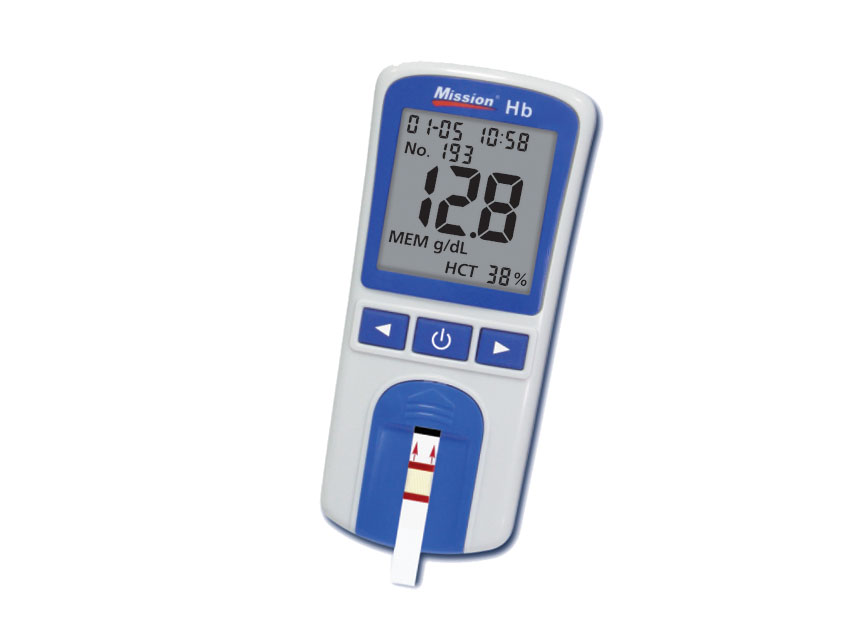

MISSION® HB HAEMOGLOBIN ANALYSIS SYSTEM

PROFESSIONAL USE.

Detects Hb and Hct levels with professional precision

Fast
- haemoglobin (Hb) and haematocrit (Hct) results in < 15 seconds
- insert strip, place sample and read results
- auto-calibration
- no sample preparation necessary

Precise
- only 10 µL of capillary or venous blood required
- accurate results on par with automatic haematology analysers
- wide Hb measurement range 4.5-25.6 g/dL with Hct range of 13-75%
- memory for up to 1,000 results

Portable
- works with batteries
- practical, for immediate diagnosis
- strips avoid problems with transport and storage of liquid reagents

Practical
- can analyse capillary and venous whole blood
- does not require special training
- output for Mini USB connection

Multi-language box: GB, FR, IT, ES, PT, DE, PL, RO, SE, FI, GR, TR, Arabic. Method: Photometric reflectance
Detection: Methaemoglobin principle
Time for results: < 15 seconds
Memory: 1,000 tests with date/time and ID number
Volume / sample type: 10 µL / capillary and venous whole blood
Measuring range: Hb 4.5 - 25 10 test strips
1 chip code
3 AAA batteries
10 lancets (26 G)
2 control strips
1 carrying bag
1 lancing device
10 capillary transfer tubes - plastic
Manual GB, EN

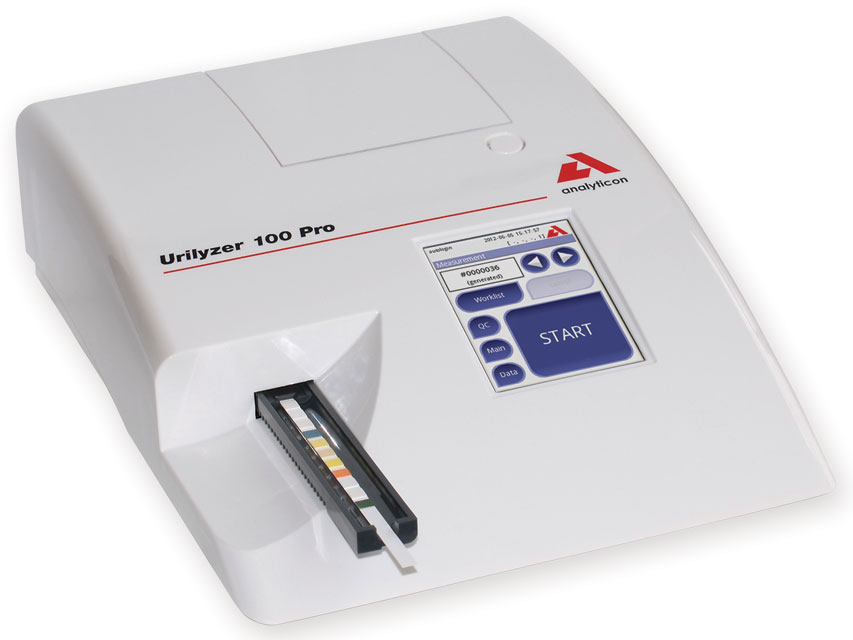

URILYZER® 100 PRO URINE READER - semi-automatic and with integrated printer

The Urilyzer® 100 PRO is a semi-automatic and compact urine strip reader with many innovative features.
The intuitive interface improves data entry and allows manual colour and turbidity indication from a predefined list or with an additional comment.
The system also provides a high level of customisation with flexible testing and various reporting options.
The intelligent database includes several filtering options.

For use with urine strips 24056, 24057, 24058, 24062, 24063, 24064.

Manual: GB, FR, IT, ES. Other languages available at www.analyticon-diagnostics.com GB, FR, IT, ES, DE, SE, DK, NL, CZ, PL, BG, RO, RU, LT, NO.
Internal software: GB, FR, IT, ES, DE, GR, NO, SE, FI, DK, HU, CZ, PL, RO, RU.

Made in Hungary. Measurements: 50 measurements per hour in economy mode, 120 measurements per hour in fast mode
Memory: 3,000 patient test results and 1,000 quality control results
Display: 3.5'' QVGA LCD touchscreen (resolution 240x320)
St

Glucose control solution for Lux Reader (code 23983)

One 2 ml bottle.
