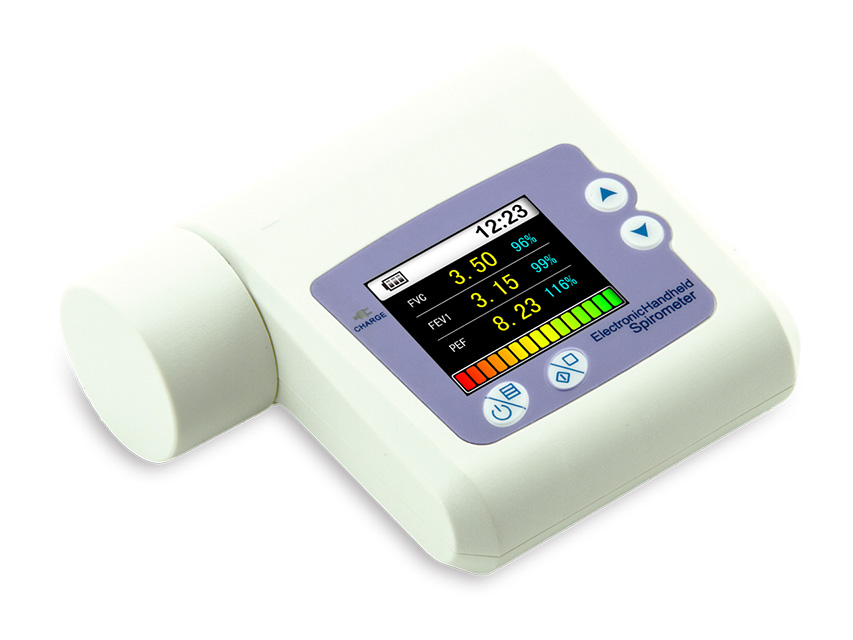

POCKET SPIROMETER - SP-10

Pocket-sized, portable spirometer with TFT display for clear viewing of numbers and graphs.

Synchronised measurement of: FVC, PEF, FEV1, FEV1%, FEV25, FEF2575, FEF75.

Flow-volume and volume-time graphs can be displayed for easy diagnosis. Predicted values included.

Rechargeable lithium battery and battery charge level indication.

Supplied with USB cable for PC connection, battery charger and software for calculating data and analysis trends. Max. volume: 10 l
Volume accuracy: ±3% or 50 ml (whichever is greater)
Flow range: 1 l/sec - 16 l/sec
Flow accuracy: ±10% or 0.3 l/sec (whichever is greater)
Parameters: FVC, FEV1, PEF, FEV1%, FEF25, FEF2575, FEF75
CE 92/42 - EMC group I clas Internal lithium battery
USB cable
PC software (in English)
Manual: GB, FR, IT, ES.

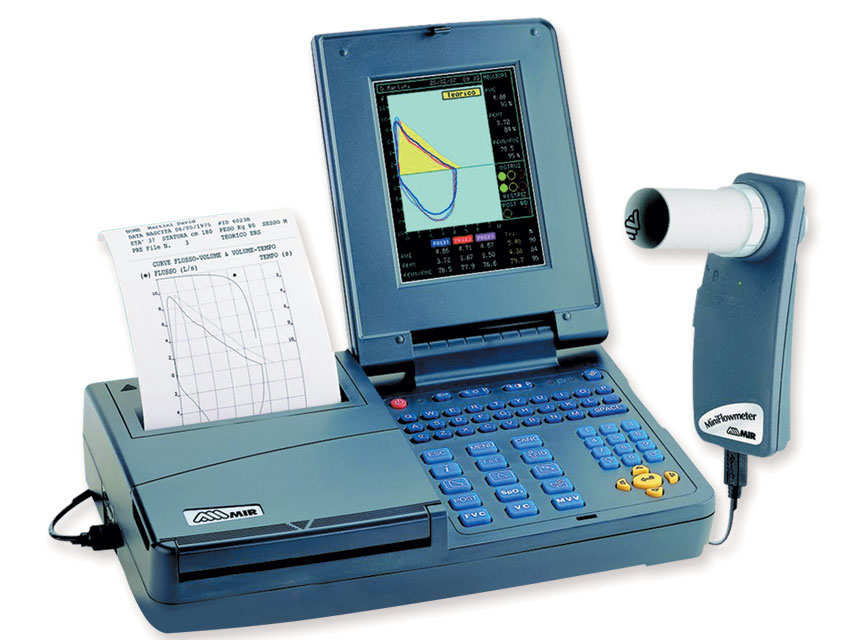

Complete spirometer with high-resolution colour screen and integrated printer:

- FVC, VC with respiratory pattern
- MVV test with real-time curves
- More than 30 parameters with automatic interpretation and quality control tests
- PRE/POST bronchial provocation test with F/V loop comparison
- Possibility to display up to 8 flow-vol curves in one screen
- Internal database with approximately 6000 tests
- Predicted values with various reference authors
- Integrated printer plus connection to external printer
- Rechargeable battery and mains supply 220V, 50-60 Hz
- User-friendly keyboard with function keys
- Internal temperature sensor for automatic BTPS conversion
- Internal software selectable (GB, FR, IT).

Can also be ordered with the following internal software: DE, ES, PL, PT, RU, CN, TR

Measurement quality and accuracy. The digital turbine flow sensor requires no calibration and is compatible with ATS 24/26 waves. Certified by LDS hospital in Salt Lake City - Utah - Flow/volume scale: ± 16 L/s
- Volume accuracy: ± 3% or 50 ml
- Flow accuracy: ± 5% or 200 ml/s
- Dynamic resistance: <0.8 cm H2O/L/sec
- Dimensions: 310 x 205 x 65 mm
- LCD display 240 x 320 pixels, (size 90 x 120 mm)
- Printer
- Mini - Carrying case
- Charger
- Thermal paper roll
- Nose clip
- Winspiro PRO software
- USB port and cable
- Manual on CD: GB, FR, IT, ES, DE, PT

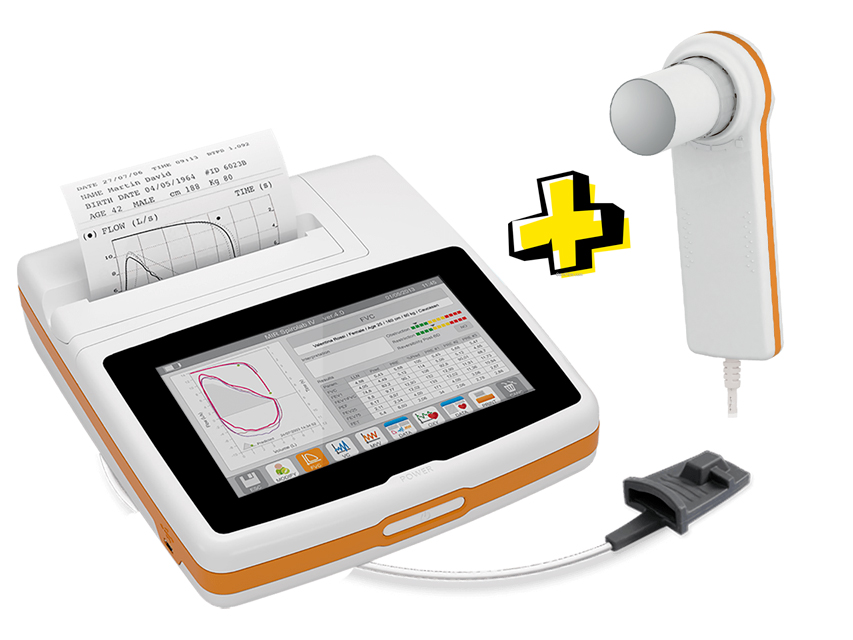

SPIROLAB® SPIROMETER 7" WITH Spo2 + Minispir®

Fast, easy-to-use, durable spirometer combined with Minispir® instead of Miniflowmeter. Fast test execution.
Minispir® is portable and can be used alone connected to a PC for home visits

Features
- FVC, VC, MVV, PRE/POST bronchodilator comparison with a wide range of selectable parameters
- long-lasting rechargeable battery
- 7" colour touchscreen display
- direct connection to external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- real-time wireless testing on PC via Bluetooth®
- B/W printer included, fast and silent, with customisable print format
-selectable software languages: GB, FR, IT, ES, DE, PT

Oximetry option
Reusable finger probe for adults and children.

Quick and easy to use
Each function can be activated with a simple touch.

FlowMIR® disposable turbine - complies with ATS /ERS standards
The disposable mouthpiece and turbine guarantee 100% hygiene and no risk of cross-contamination. No calibration required.

Suitable for children
Patented paediatric incentive visible on screen.
No adapter required.

Dimensions: 220x210x51 mm
Weight: 1450 g (including battery pack)

Made in Italy.

WinspiroPRO®
High-performance PC software for spirometry and oximetry, with free update.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN. SPIROMETRY:
Power supply: Rechargeable battery, approx. 10 hours autonomy
Charger: 100-240 V, 50-60 Hz, 400-200 mA
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bidirectional digital turbine
Flow range: ±16L/s ±5% or Battery charger
WinspiroPRO® software
1 roll of thermal paper
USB port and cable
Reusable turbine
Adult SpO2 sensor
Nose clip
Manual CD: GB, FR, IT, ES, DE, PT
Carrying bag
Minispir bag

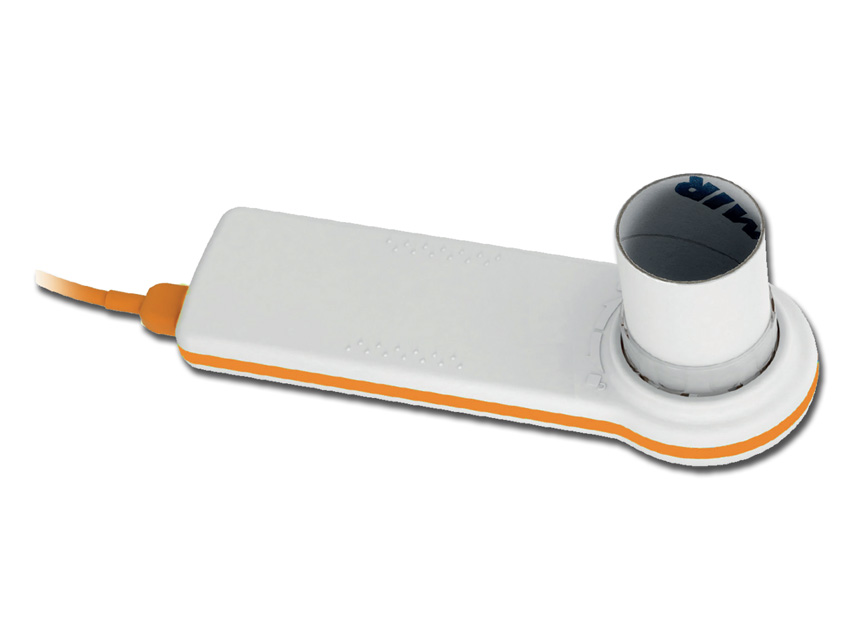

MINISPIR with Winspiro PRO

Real-time Flow/Volume and Volume/Time curves with PRE/POST comparison. Advanced spirometry test interpretation. Paediatric incentive with animations. Estimation of Lung Age (ELA). Bronchial provocation test with new Mannitol protocol with FEV1 dose - response. Digital temperature sensor for conversion to BTPS. Reusable turbine.

32 parameters measured: FVC, FEV1, FEV1%, FEV3, FEV3%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FET, Vext, lung age, FIVC, FIV1, FIV1%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV

Manual on CD: GB, FR, IT, ES, DE, PT.

Winspiro PRO is a unique software for spirometry and oximetry included with Minispir. The patient test summary is available in a single screen with dynamic control of all data and graphs. - Temperature sensor: semiconductor (0-45°)
- Flow sensor: bi-directional digital turbine
- Flow range: ±16 L/s
- Volume accuracy: ± 3% or 50 mL
- Flow accuracy: ± 5% or 200 mL/s
- Dynamic resistance at 12 L/s: <0.5 cm H2O/L/

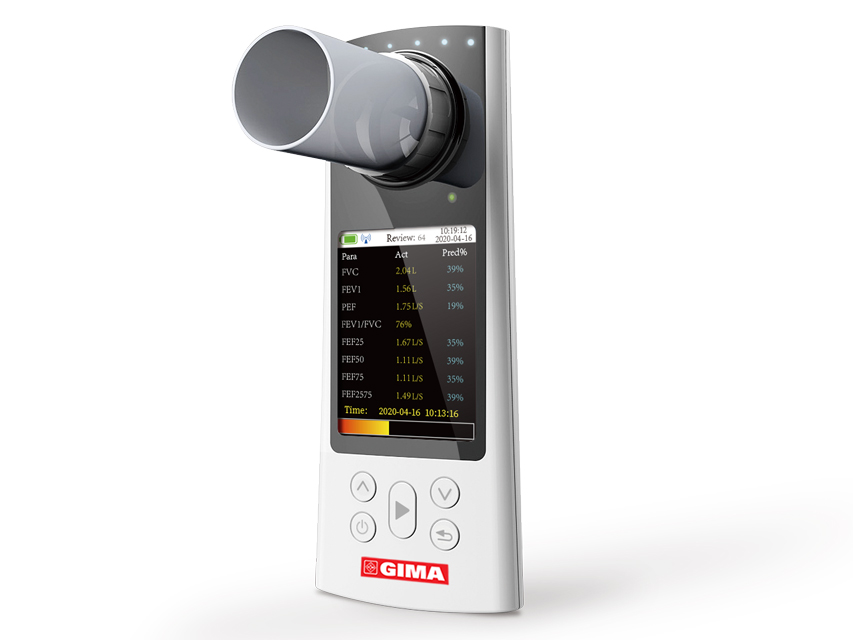

PORTABLE SPIROMETER SP80B

Small, portable spirometer for examining lung function.
The high definition screen directly displays measured parameters such as Forced Vital Capacity (FVC), Maximum Expiratory Volume in One Second (FEV1), FEV1/FVC Ratio between Maximum Expiratory Volume in One Second (FEV1) and Forced Vital Capacity (FVC), Peak Expiratory Flow (PEF), Forced Expiratory Flow at 25% of FVC (FEF25), Forced Expiratory Flow at 50% of FVC (FEF50), Forced Expiratory Flow at 75% of FVC (FEF75), and Forced Expiratory Flow 25~75% of FVC (FEF2575).

High accuracy and repeatability. Suitable for hospitals, clinics, families for routine testing.

- management of patient information (height, age, gender, etc.)
- flow-volume and volume-time graph visualisation
- trend graph display
- health status indication
- calibration function
- data can be stored, deleted, loaded and reviewed
- alarm for exceeding volume and flow limits
- indicates exhalation within 6 seconds
- data transmission via Bluetooth or USB cable
- automatic switch-off within 2 minutes

Supplied with USB cable, 2 disposable mouthpieces, PC software (GB, IT, ES, PT) and manual GB, FR, IT, ES, PT.
DE, PL, RO, SE, GR available at www.gimaitaly.com Method: Turbine
Parameters: 8 FVC-related parameters (FVC, FEV1, FEV1/FVC, PEF, FEF 25, FEF 50, FEF 75, FEF 2575)
Volume range: 0~10 l ± 3% or 0.05 l (whichever is greater)
Flow range: 0~16 l/s ± 5% or 0.2 l/s (whichever is greater)

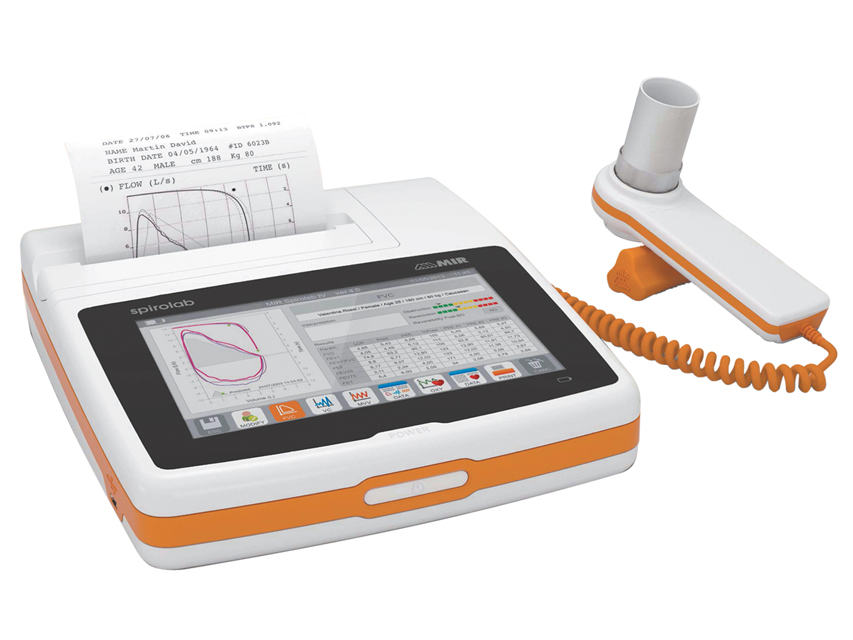

SPIROLAB® 7" TOUCHSCREEN SPIROMETER

Fast, easy-to-use, durable spirometer with Miniflowmeter.

Features
- FVC, VC, MVV, PRE/POST bronchodilator comparison with a wide range of selectable parameters
- long-life rechargeable battery
- 7" colour touchscreen display
- direct connection to external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- real-time wireless testing on PC via Bluetooth®
- B/W printer included, fast and silent, with customisable print format
-selectable software languages: GB, FR, IT, ES, DE, PT

Fast and easy to use
Every function can be activated with a simple touch.

FlowMIR® disposable turbine - complies with ATS /ERS standards
The disposable mouthpiece and turbine guarantee 100% hygiene and no risk of cross-contamination. No calibration required.

Suitable for children
Patented paediatric incentive visible on screen.
No adapter required.

Dimensions: 220x210x51 mm
Weight: 1450 g (including battery pack)

Made in Italy.

WinspiroPRO®
High-performance PC software for spirometry and oximetry, with free update.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN. SPIROMETRY:
Power supply: Rechargeable battery, approx. 10 hours autonomy
Charger: 100-240 V, 50-60 Hz, 400-200 mA
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bidirectional digital turbine
Flow range: ±16L/s ±5% or Battery charger
WinspiroPRO® software
1 roll of thermal paper
USB port and cable
Reusable turbine
Nose clip
Manual CD: GB, FR, IT, ES, DE, PT
Carrying bag

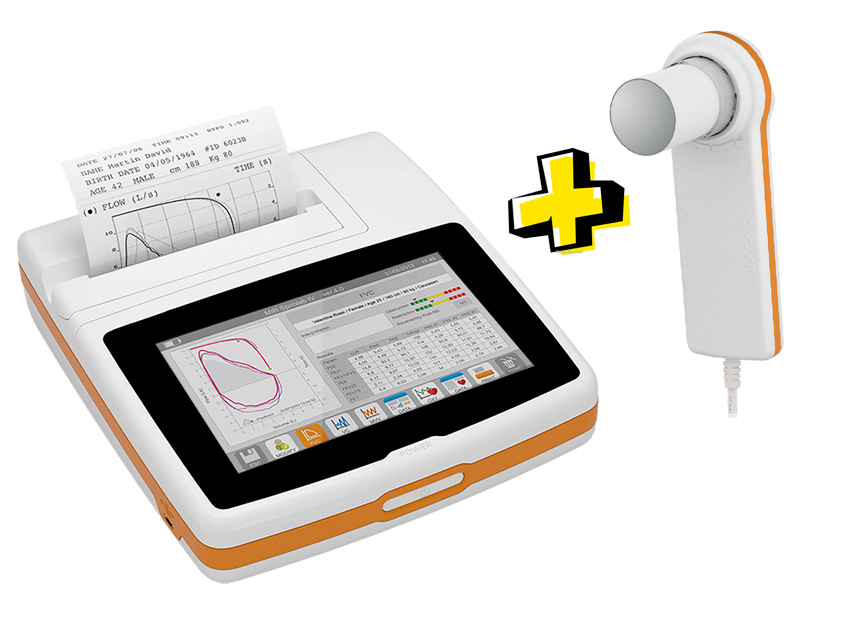

SPIROLAB® 7" + Minispir® SPIROMETER

Fast, easy-to-use, durable spirometer combined with Minispir® instead of Miniflowmeter. Fast test execution.
Minispir® is portable and can be used alone connected to a PC for home visits.

Features
- FVC, VC, MVV, PRE/POST bronchodilator comparison with a wide range of selectable parameters
- long-life rechargeable battery
- 7" colour touchscreen display
- direct connection to external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- real-time wireless testing on PC via Bluetooth®
- B/W printer included, fast and silent, with customisable print format
-selectable software languages: GB, FR, IT, ES, DE, PT

Fast and easy to use
Every function can be activated with a simple touch.

FlowMIR® disposable turbine - complies with ATS /ERS standards
The disposable mouthpiece and turbine guarantee 100% hygiene and no risk of cross-contamination. No calibration required.

Suitable for children
Patented paediatric incentive visible on screen.
No adapter required.

Dimensions: 220x210x51 mm
Weight: 1450 g (including battery pack)

Made in Italy.

WinspiroPRO®
High-performance PC software for spirometry and oximetry, with free update.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN. SPIROMETRY:
Power supply: Rechargeable battery, approx. 10 hours autonomy
Charger: 100-240 V, 50-60 Hz, 400-200 mA
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bidirectional digital turbine
Flow range: ±16L/s ±5% or Battery charger
WinspiroPRO® software
1 roll of thermal paper
USB port and cable
Reusable turbine
Nose clip
Manual CD: GB, FR, IT, ES, DE, PT
Carrying bag
Minispir handbag

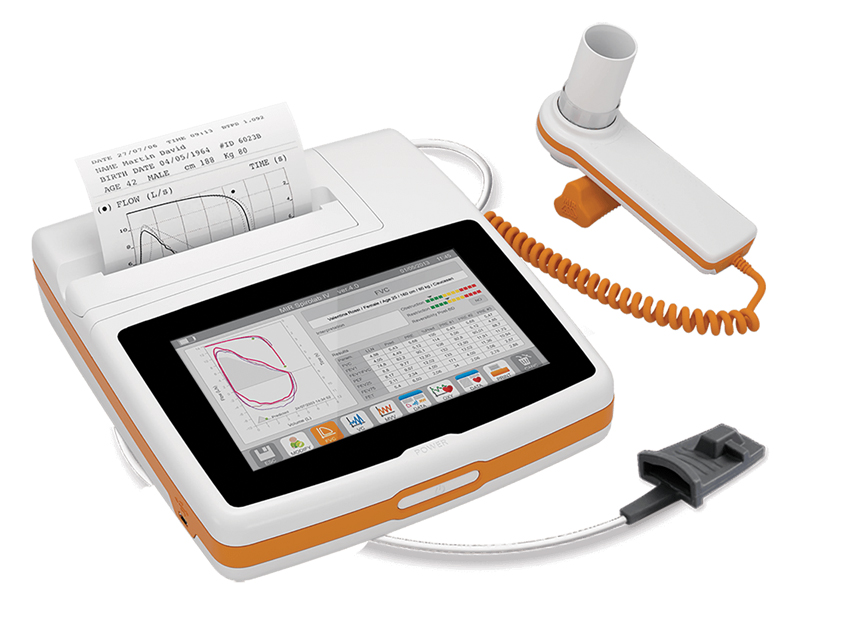

SPIROLAB® 7" TOUCHSCREEN SPIROMETER with SpO2

Fast, easy-to-use, durable spirometer with Miniflowmeter.

Features
- FVC, VC, MVV, PRE/POST bronchodilator comparison with a wide range of selectable parameters
- long-life rechargeable battery
- 7" colour touchscreen display
- direct connection to external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- real-time wireless testing on PC via Bluetooth®
- B/W printer included, fast and silent, with customisable print format
-selectable software languages: GB, FR, IT, ES, DE, PT

Oximetry option
Reusable finger probe for adults and children.

Quick and easy to use
Each function can be activated with a simple touch.

FlowMIR® disposable turbine - complies with ATS /ERS standards
The disposable mouthpiece and turbine guarantee 100% hygiene and no risk of cross-contamination. No calibration required.

Suitable for children
Patented paediatric incentive visible on screen.
No adapter required.

Dimensions: 220x210x51 mm
Weight: 1450 g (including battery pack)

Made in Italy.

WinspiroPRO®
High-performance PC software for spirometry and oximetry, with free update.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN. SPIROMETRY:
Power supply: Rechargeable battery, approx. 10 hours autonomy
Charger: 100-240 V, 50-60 Hz, 400-200 mA
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bidirectional digital turbine
Flow range: ±16L/s ±5% or Battery charger
WinspiroPRO® software
1 roll of thermal paper
USB port and cable
Reusable turbine
Adult SpO2 sensor
Nose clip
Manual CD: GB, FR, IT, ES, DE, PT
Carrying bag

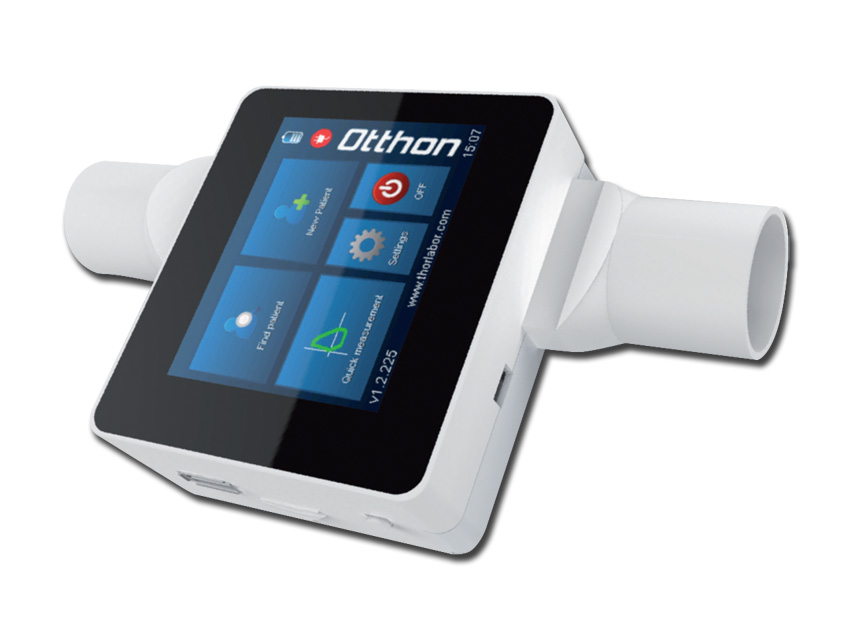

Spirometer for general practitioners, respiratory specialists and patients, for diagnosing and monitoring respiratory function.
Compact, portable, cost-effective solution for COPD (Chronic Obstructive Pulmonary Disease) and asthma screening.

- Automatic diagnostic interpretation
- Voice and video messages explain the use of the device and communicate results
- Battery or USB charger
- High resolution QVGA (320x240) LCD display with brilliant colours, touch-screen, 16 million colours
- Connectivity with external printer
- Automatic internal calibration
- Disinfectable flow transducer with cold sterilisation
- Power supply: USB 5V or built-in rechargeable battery
- Internal software languages: GB, FR, IT, DE, ES, HU, AU, HR.
- Voice messages available in languages: US (English), AU, FR, IT, DE, ES, AT, HU. Please indicate the required language with your order.
Made in Europe.

Dimensions: 35 x 120 x 120 mm
Weight: 300 g

REGISTRATIONS
All spirometers are CE-marked and registered in Indonesia, Singapore, Hong Kong, Australia, New Zealand, Korea, Saudi Arabia.

THORSOFT - PULMONARY DIAGNOSTIC SOFTWARE FOR PC
Standard medical interfaces (HL7, GDT, BDT, XML). Automatic interpretation module. Diagnostic decision support system (for general practitioners and professionals). Complete stress test procedure. Languages: GB, FR, IT, DE, ES, SE, TR, RO, HU, SL, CZ, HR, NL, KR, CN. - Flow measuring principle: Idegen™ multiple-path
- Flow transducer: Ø 30 mm (OD)
- Dead space: 16.8 ml
- Flow resolution: 8 ml/s
- Flow accuracy: 3%.
- Flow measurement: ±18 l/s
- PC connection: USB
- Dimensions: 35 x - Thorsoft software
- Plastic mouthpiece
- Mini USB cable
- Disinfection cap
- Battery charger
- Antibacterial filter
- Transport bag
- Printed manual (GB)
- Manual on CD (GB, IT, ES, DE, HU)

SPIROBANK II SMART + WINSPIROPRO SOFTWARE

Spirometer with memory capacity of 10,000 spirometry tests, monochrome LCD display, 6-key membrane keyboard.
Battery power supply (lithium 3.7 V - 1100 mA) with approximately 50 hours of continuous use, rechargeable via USB port.
- connection via cable (USB 2.1) or wireless (Bluetooth 2.0)
- internal temperature sensor for BTPS conversion
- high-resolution graphic display
- automatic recording of an entire spirometry session, including best tests
- USB cable, carrying case, manual on CD (GB, FR, IT, ES, DE, PT) reusable turbine and software included Selectable internal software (GB, FR, IT, ES, DE, PT)

Winspiropro software functions: (PC system requirements: XP, Seven, Vista, 8, 10)
- Languages: GB, FR, IT, DE, ES, PT, PL, SE, NL, LV, CZ, TR, RU, CN, JP
- on-line PC connection with intuitive icons
- real-time oximetry testing, new curves
- bronchial dilatation protocols with FEV1
- attractive paediatric incentives
- integration with EPR system
- lung age estimation (ELA)
- data reports and graphs also via e-mail

PC system requirements: XP, Seven, Vista, 8, 10
160 x 80 pixel display
Weight 140 g
Dimensions 55 x 160 x 25 mm
PC connection via USB or Bluetooth®
Compatible with iPad or tablet mini iPad TECHNICAL SPECIFICATIONS - SPIROMETER
- Measured parameters: FVC, FEV1, FEV1/FVC%, DTPEF, FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FEF75-85%, FET, Vext, Lung
