Ni-MH battery for part number 35205

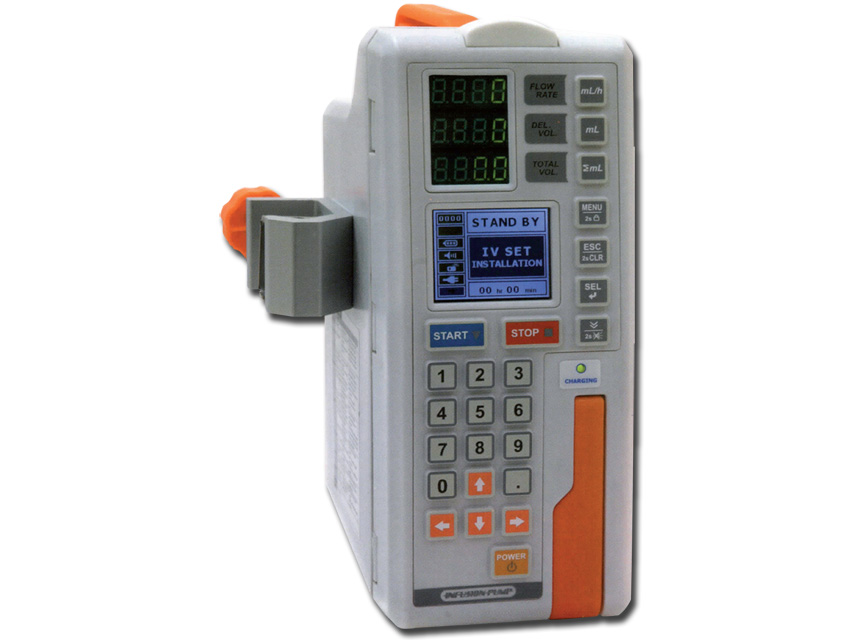

The pump uses the peristaltic method and guarantees high flow accuracy and is compatible with infusion sets of different pumps thanks to ultrasonic air bubble detection.

Its silicone keypad allows easy setting of procedures.
The FND and colour LCD display shows comprehensive and easy-to-read information.
Infusion conditions such as K.V.O. (anti-obstruction vein function), venting speed and bolus can be set by the operator. Supplied complete with battery.

Key features
Lightweight and compact. Only 3.5 kg, compact design and easy to use.
- Compatible with 4 main brands of infusion sets: BD (A122), TERUMO (TSPA 200L), KOREAN VACCINE (1 AND 2), ARIES. Each pump can be calibrated for more than 9 different infusion sets
Flexible flow setting and ease of use: the flow adjustment range 1~1000 ml/h, 0.1~999.9 ml/h is available for a wide range of calibrations; in addition, the numeric keypad is easy to use in the flow/volume setting.
- Identifies the exact dosage for the customer and proceeds to dispensing
- Easily detectable alarms: notifies errors and emergency situations with an LED light and audible signal, simultaneous visual and audible alarms.
- Remaining battery charge indication: an LED indicator shows the battery level and warns when it needs to be recharged.
- Anti-clogging vein function: when the preset value is reached, conversion to the low-flow rate of 3ml/h (when the pump is set to 15, 19, 20 drops/ml) or 1ml/h (setting to 60 drops/ml) takes place. The process occurs automatically in order to prevent the risk of vein clogging due to blood clotting.
- Ultrasonic air bubble detention
- Also suitable for veterinary use - Flow adjustment range
- 1 ~ 1000 ml/h (infusion interval 1 ml)
- 0.1 ~ 999.9 ml/h (infusion interval 0.1 ml)
- Volume flow margin of error ±5%.
- Limiting range of infusion volume: 1 ~ 9999 ml
- Total estimated volume range - Manual (English, Italian)

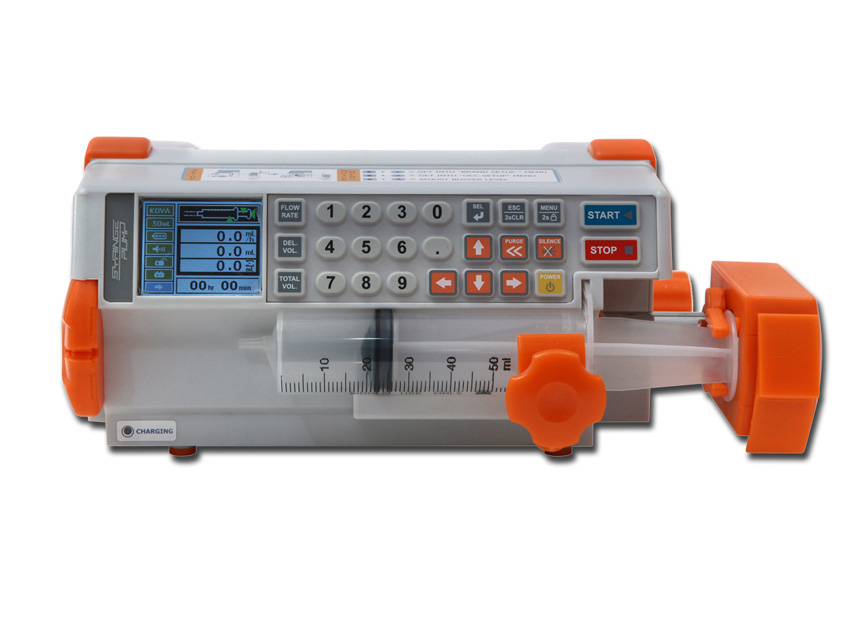

Lightweight, compact syringe pump with easy one-touch syringe installation via cursor hook, different information can be easily viewed via the LCD display. Adjustments and operation of the device are extremely simple.
The product is supplied with a battery.

Flexible setting of flow volume.
- Comprehensive dosing programme: automatically calculates the amount needed for the infusion by examining the patient's weight, injection mass and liquefaction.
- Anti-obstruction vein functionality: when the preset value is reached, automatic conversion to a low flow rate of 0.1ml/h takes place to prevent the risk of vein obstruction due to blood clotting.
- Compatibility with 5 major syringe brands: the system can be set up by choosing from the following syringe manufacturers: BD (Plastipak, Precise), TERUMO, RAYS, PENTAFERTE, KOVA.
Alarm and warning functionality: notifies errors and emergency situations with an LED light and acoustic signal, simultaneous visual and audible alarm system.
Obstruction error range setting: plasma occlusion pressure level is adjustable in high, medium and low depending on the patient's age.

We can calibrate our pumps for other syringe brands, please provide a minimum of 5 samples. Availability in 60 days. Calibration is possible with 10/20/30/50 ml syringes. - Flow adjustment range
- 10ml syringe: 0.1-300ml/h
- 20ml syringe: 0.1-400ml/h
- Syringe 30ml: 0.1-500ml/h
- Syringe 50ml: 0.1-1200ml/h
- Volume flow margin of error ±3%
- Limiting range of infusion volume
0.1 ~ 999.9 ml (range - Manual (English, Italian)

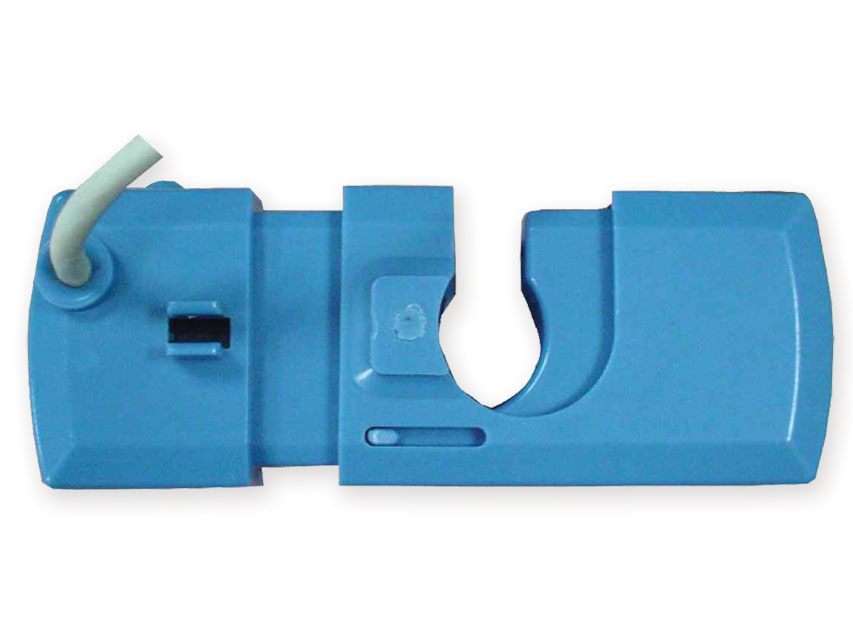

Sensor for more accurate drip control, suggested for neonatal ICUs.

Ni-Mh battery for part no. 35200

Adapter 110V - 60 Hz - for part no. 35200.

Password for dosage and profile options.

Ni-Mh battery for part no. 35200

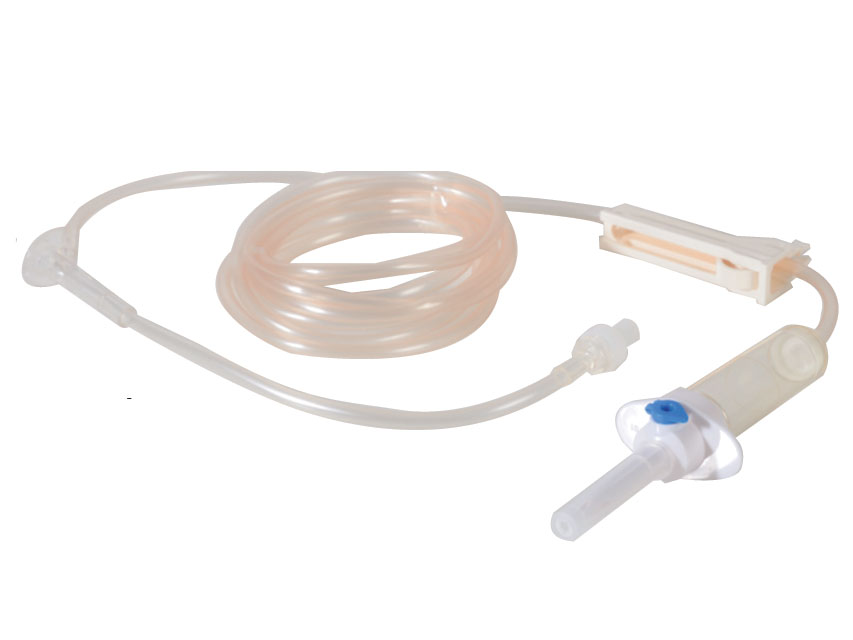

ARIES INFUSION SET - pack of 150 (6 bags of 25)

Infusion set for administering solutions via pump directly into the body.

Tested with Argus 707 and Optima PT infusion pump.
