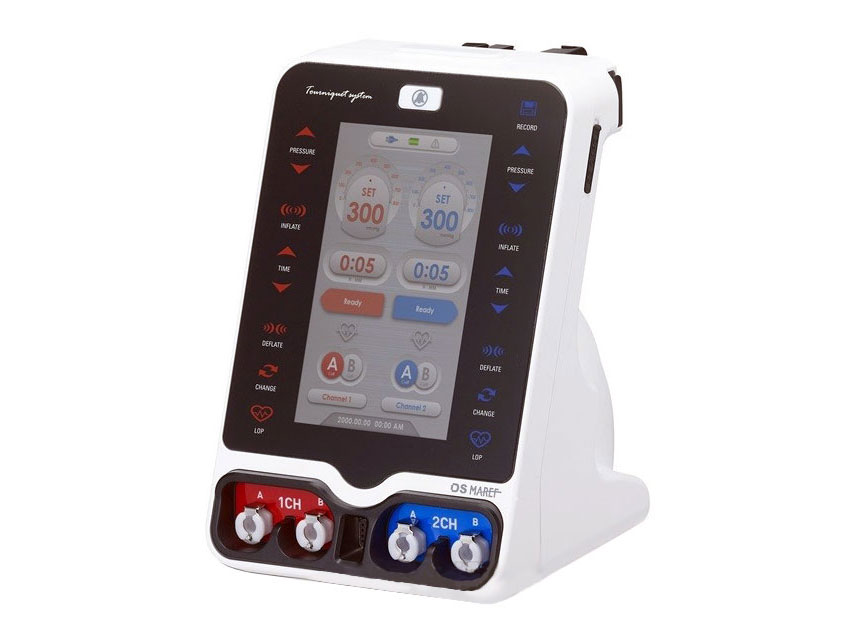

PNEUMATIC TOURNIQUET DTS-3000 - 2 CHANNELS FOR 2 double or single cuffs supplied with 5 cuffs no pinch
The tourniquet DTS-3000 ensures stable operation, is easy to use and equipped with an alarm system for safe operation.
Main features:
- 2 channels (4 ports for 2 double or single cuffs)
- easy selection of settings via touch screen keyboard
- LCd screen: easy to view and clean
- operation memory (date, time, pressure)
- LOP sensor (limb occlusion pressure) to check limb occlusion pressure and automatically set optimal pressure
- self-test of pressure and control system
- self-calibration of air pressure sensor
- safety alarm system (cuff, pressure, battery, time)
- integrated battery (maximum duration: 12-72 hours)
fully autoclavable no-pinch cuffs included:
- no pinching, no skin damage
- lower pressure than classic cuffs (approx. 50 mmHg less)
- no leakage (main reason for lower pressure)
USE OF THE TOURNIQUET SYSTEM:
Used by qualified medical professionals to temporarily occlude blood flow in the patient's extremities during surgical procedures.
Allows safe operation in operations involving the limbs, including:
- bone grafts
- nerve injuries
- reduction of certain fractures
- removal of Kirschner's thread
- tumour or cyst removal
- subcutaneous fasciotomy
- reimplantation
- wrist joint replacements
- finger prostheses
- knee joint replacements
- amputations
- tendon operations Maximum pressure: 800 mmHg
Voltage: Ac 100-240 V - 50/60 Hz
Power consumption: 50 W
Time interval: 5-180 min.
Compressor dimensions: 170 x 210 x 260 mm
Weight: 3 kg. Single anti-pinch cuff 61x9 cm - red - arm L or thigh S

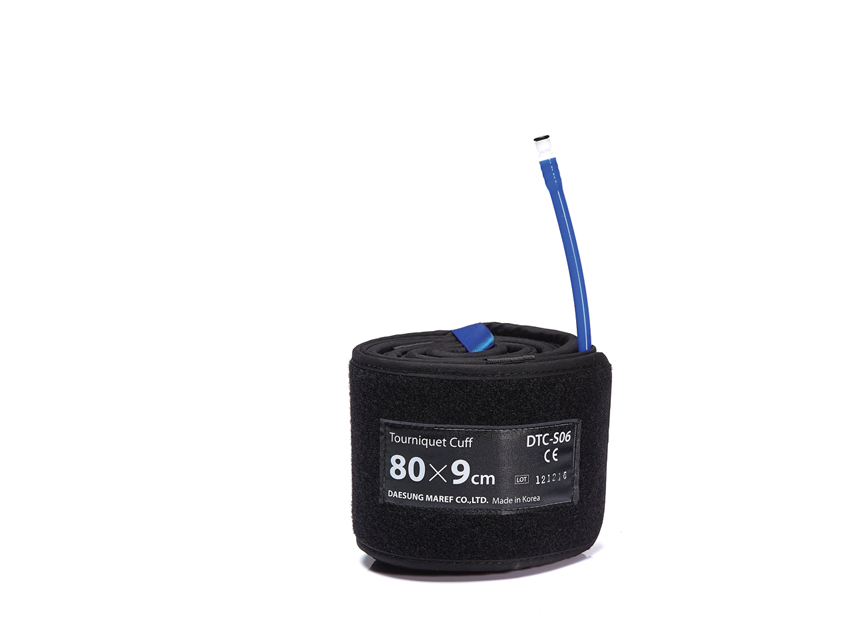

Single anti-pizzle cuff 80x9 cm - blue - thigh - M
Single anti-pizzle cuff 90x12 cm - blue - thigh - L

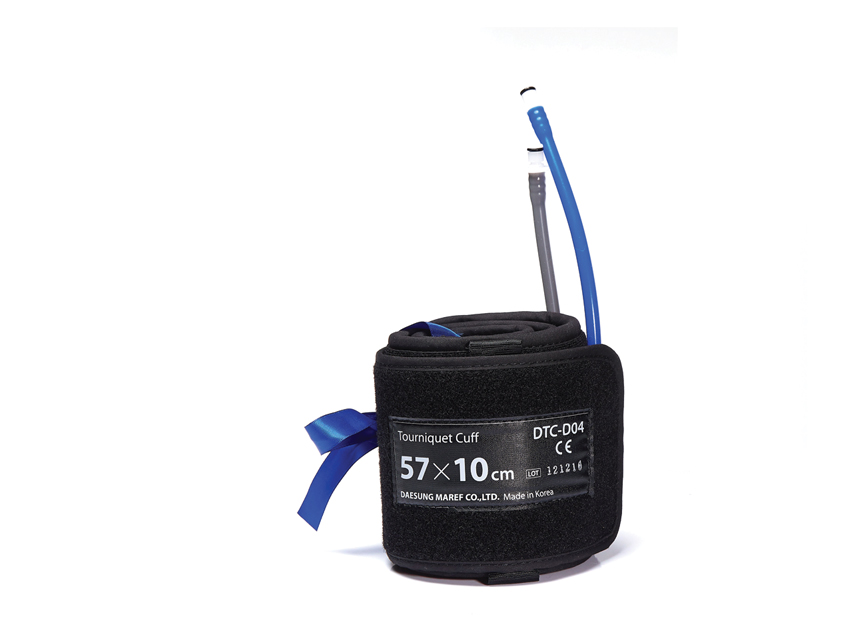

Double anti-pizzle cuff 57x10 cm - blue - arm - L thigh
