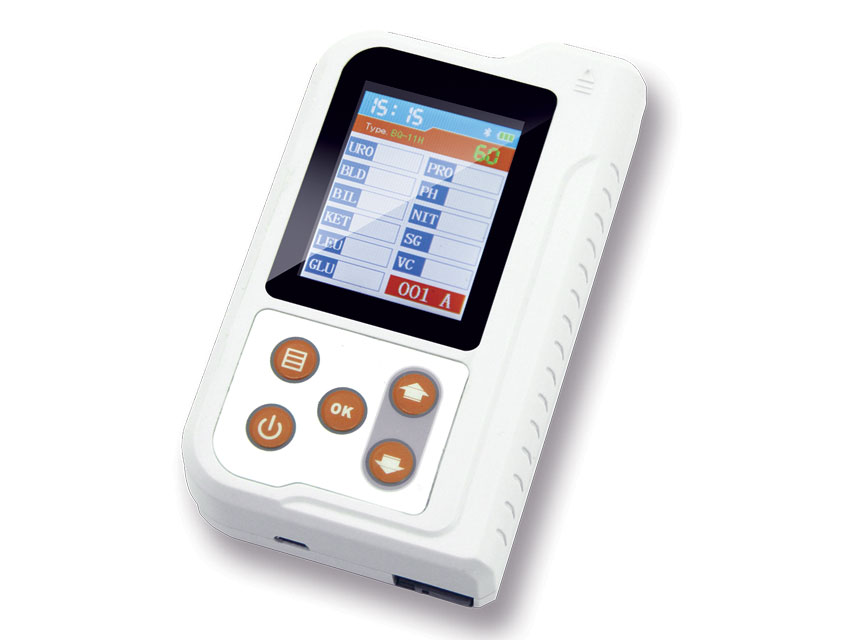

GIMA BLUETOOTH URINE ANALYSER

The GIMA urine analyser is a high-precision, high-tech instrument useful for clinically inspecting urine.
Easy and quick to use, it provides exact results and excellent repeatability.

Features:
- high brightness and white LED guarantee a good stability of the detected data
- large LCD screen
- intuitive interface
- monitoring of the entire analysis process and acoustic alarm
- data transmission function.

Applications:
- useful for use at the patient's home
- chronic diseases, in particular long-term follow-ups of nephrotic patients
- screening checks
- telemedicine terminal.

Parameters analysed Glucose (GLU), Bilirubin (BIL), Specific Gravity (SG), PH, Ketones (KET), Occult Blood (BLD), Protein (PRO), Urobilinogen (URO), Nitrites (NIT), Leucocytes (LEU), Ascorbic Acid (VC).

Can be used with Urinalysis Strips 24076.

PHMS App
Free app to save data and check reports and results.

Multilingual manual and box: GB, FR, IT, ES. Operation: quick test
Languages: English and Italian
Display: 2.4" LCD, resolution: 320x240
Data memory: 500 measurements
Principle: RGB three-colour test theory
Communication interface: Micro USB interface, Bluetooth wirel communication

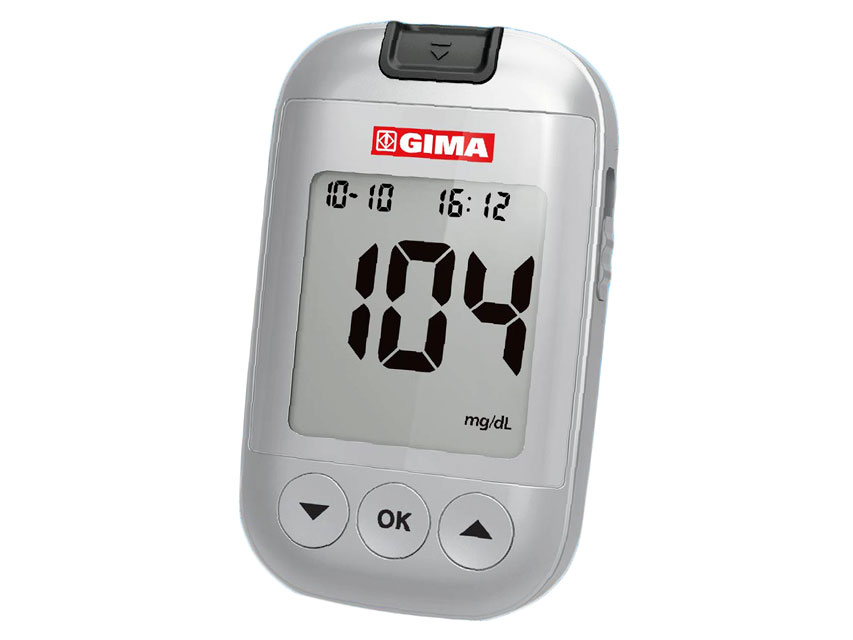

GIMA Glucometer Kit - Bluetooth

- Bluetooth version: fully integrated Bluetooth enables data transmission to data management platforms.

- Complete kit including 10 strips, control solution, 10 sterile lancets, lancing pen, transparent cap (for forearm or palm testing), carrying case, user manual.

Accurate and reliable glucose meters for self-diagnosis and professional use. Extensive clinical studies demonstrate the accuracy of the Gima glucose testing system, developed by Acon, with fresh capillary, venous and neonatal blood samples.

Compliant with ISO15197:2013/EN ISO15197:2015.

Box and manual language: GB, FR, IT, ES. (manual PT, DE, GR, SE not included in the box, downloadable at www.gimaitaly.com) Technology: Biosensor/Electrochemistry, Glucose Dehydrogenase (GDH-FAD)
Calibration method: No coding
Calibration results: Plasma-equivalent
Test time: 5 seconds
Sample volume: 0.6µL
Sample type: Fresh whole blood (capillary, venos

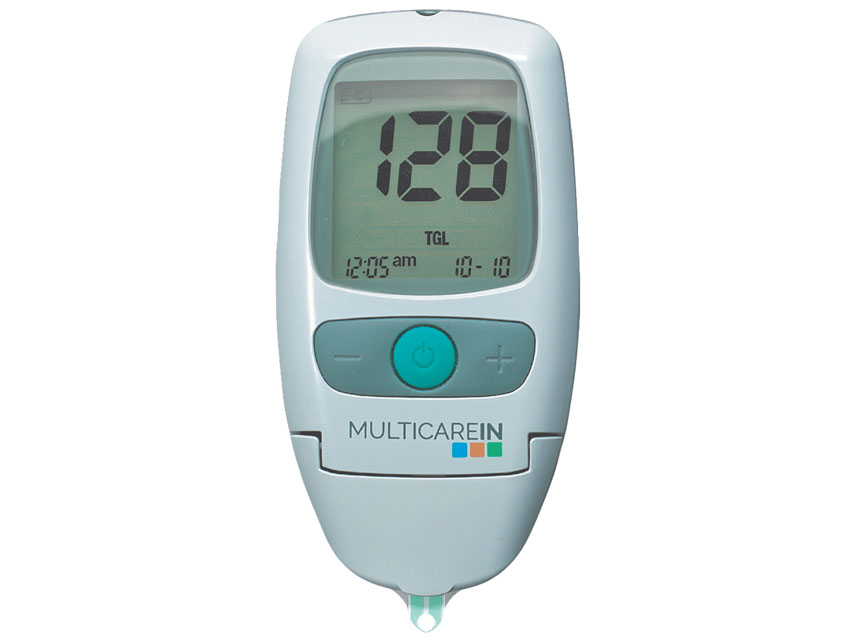

MULTICAREIN BLUETOOTH STARTER KIT

Supplied in a cardboard box with nylon pouch, 10 glucose strips, 5 cholesterol strips, 5 triglyceride strips, 25 safety lancets, user manual (GB, IT), quick guide and QR code with full manual in 8 languages (GB, IT, FR, ES, PT, GR, PL, HU).

Multicarein is a multi-parameter diagnostic device for periodic self-monitoring of risk factors: cholesterol, triglycerides and glucose. Portable for easy testing and quick results.
Accurate, with Amperometric Technology for glucose and Reflectometric Technology for cholesterol and triglycerides.
Switchable mg/dL - mmol/L
Multi-language box: GB, FR, IT, ES, GR, PT, PL, HU, RU and selectable internal software: GB, IT. - Electrochemical glucose
Measuring range: 10-600 mg/dL - 0.6-33.3 mmol/L
Measurement time: 5"
Blood sample: 0.5 µl

- Cholesterol
Measuring range: 130-400 mg/dL - 3-10.2 mmol/L
Measuring time: 30"-60"
Blood sample: 10 µl

-
