UTC 2 is a programmable unit for connecting ultrasonic transducers with frequencies from 1 to 3 MHz with the possibility of combining 2 electrotherapy channels. With UTC 2 it is possible to obtain continuous or modulated ultrasound emissions with programmable intensity and delivery times, thus suitable for deep thermo-therapeutic treatment of different pathological stages. The transducer handpieces of UTC 2 can be used in immersion. UTC 2 has diadynamic, faradic, galvanic, impulsive, T.E.N.S. and bipolar electrotherapeutic currents.

- High-brightness touchscreen display
- Intuitive icon-based interface
- Upgradeable
- Preset protocols, customised programmes
- Automatic recognition of connected accessory
- Continuous or pulsed emission
- Combined association with electrotherapy
- Sequential programming for each channel
- Totally independent channels
- Safety control systems with current deactivation in the event of accidental disconnection of the electrodes

Manufactured in Italy.
Software in 6 languages: GB, FR, IT, ES, DE, PT. - Output frequency (MHz): 1.0 to 3.0
- Maximum intensity (W/sq cm): 3.0
- ET channels: 2
- Maximum continuous current (mA): 30
- Maximum pulse current (mA): 70
- Max. output voltage (Vdc): 100
- Power (Vac/Hz): 90-240 / 50-60
- Power supply - Ultrasound handpiece 1-3 MHz Ø 35 mm
- Connection cable for electrotherapy 1-2 (28303)
- 4 rubber electrodes 120 x 80 mm
- 4 rubber electrodes 45 x 60 mm
- 3 elastic Velcro strips
- 8 x 40 cm
- 8 x 60 cm
- 8 x 100 cm
- Power cable

Ultrasound handpiece 1-3 MHz Ø 15 mm.
For GIMA UTC 2 (order no. 28301).

I-TECH UT2 ULTRASUONOTHERAPY - 2 probes

Professional ultrasound therapy device equipped with a double handpiece with 5 cm2 and 1 cm2 probes. This equipment, together with parameter storage, makes it an ideal device for the professional operator.

It is equipped with 10 preset programmes, of which the professional can independently vary the following parameters
- frequency (1 or 3 MHz)
- effective power (up to 3 W/cm2)
- Duty cycle (10% ÷ 100% in steps of 10)
- therapy time (up to 30 minutes)

APPLICATIONS: Tendonitis - Bursitis - Capsulitis - Organised haematoma and scar tissue - Muscle contractures/cramps - Neuralgia - Periarthritis - Cervicalgia - Sciatica/lumbago - Carpal tunnel - Epicondylitis/epitrochleitis - Contusions - Sprains - Chondropathy - Massage - Cavitation arms/abdomen/legs/gluteus - Acne. - Operating voltage: 100-240 V, 47/63 Hz, 1.35 A, output 15 V 3A max.
- Ultrasound frequency
- 1 MHz ± 10%
- 3 MHz ± 10%
- Power:
- 0.5 W - 10 W ± 20% with duty cycle = 80% on 5 cm2
- 0.5 W - 15 W ± 20% with duty cycle = 70% on - 1 handpiece with a 5 cm2 head
- 1 handpiece with 1 cm2 head
- 1 power cable
- 1 power cable 15 V, 3 A
- 1 ultrasound therapy gel
- 1 user manual: GB, IT, ES, FR

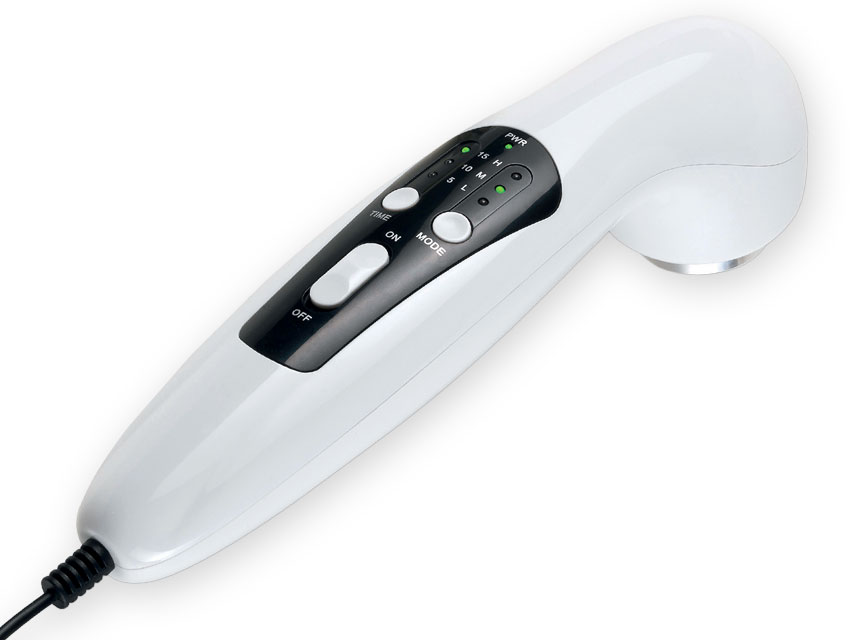

Innovative, quality device suitable for both home and professional use.

Compact, high-performance, small and easy to use. Its light weight and easy handling allow it to be used continuously without difficulty.

Mio Sonic is suitable in the following areas
- pain relief treatments
- sports injuries
- aesthetic treatments

Supplied with gel bottle, carrying case, medical power pack and multilingual manual:
GB, FR, IT, ES. DE on request. - 9 programmes
- Ultrasound 1 MHz, maximum power 6.4 W, maximum intensity 1.6 W/cm²
- Collimated ultrasonic beam for optimal penetration
- 3 levels of ultrasonic beam intensity; 0.08 W/cm² (low) - 0.8 W/cm² (medium) -1.6 W/cm² (high)
