7.5 MHz linear doppler probe

- Scanning method: linear
- Frequency (MHz)
- Main frequency: 7.5
- Probe bandwidth: 5.0 - 12.0
- Main application: microsurgery, haematology

Compatible with:
- No. 33951 - CHISON Q9 + 4D PORTABLE ECOCOLOROPPLER
- Code 33952 - CHISON Q9 PORTABLE ECOCOLOROPPLER
- Code 33965 - CHISON i8 ECOCOLORDOPPLER
- Code 33966 - ECOCOLORDOPPLER CHISON i8 + 4D (probe and software)
- Code 33882 - CHISON i3 COLOUR ECOGRAPHER
- Code 33883 - CHISON i3 COLOUR ECOGRAPH + package and 4D probe

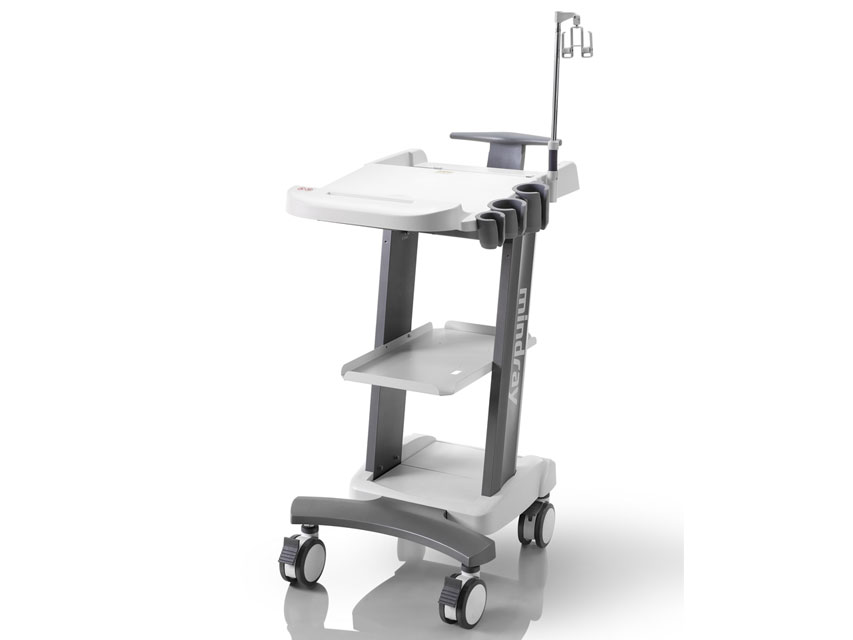

UMT-150 trolley for Mindray portable dopplers.

Tablet for SonoEye.

CONVEX 3.5 MHz probe

- Scanning method: convex
- Main frequency (MHz): 3.5
- QBit5 probe bandwidth (MHz): 2-6.8
- Main application: abdominal, gynaecology, urology

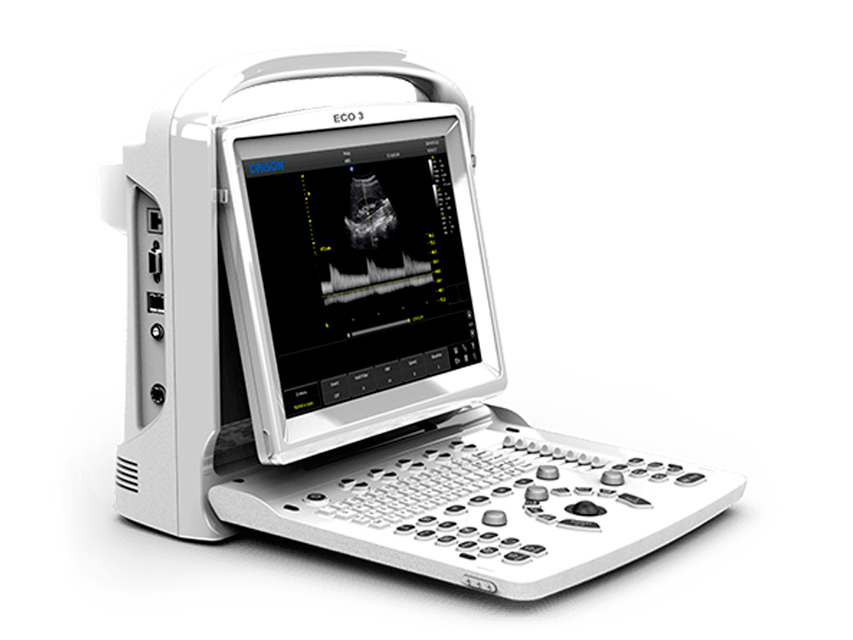

CHISON ECO3EXP. with 2 probe connectors, without probe

ECO3EXP. B/W model with Doppler
- compact and lightweight, easy to carry
- screen with new-generation LED technology; ultra-bright images allow optimal viewing even outdoors
- ergonomic monitor design, 30 degree rotation, adjustable
- long battery life of up to 2.5 hours, for outdoor use
- full screen image magnification, for better viewing at a distance
- straightforward, user-friendly workflow, 6 quick keys to finalise the diagnosis cycle

Display and image processing modes
B, B/B, 4B, M, B/M, PW (ECO2, ECO3EXP. only) multi-frequency imaging.

Image processing
- composite images - trapezoidal
- intelligent I-image optimisation - automatic PW
- THI (Harmonic Tissue Imaging) (ECO2, ECO3EXP. only)
- SRA (focal spot reduction algorithm) - Chroma
- digital beam-former system - AIO (Optimisation
- full screen display Automatic image)

User interface
- foldable control panel and alphanumeric keyboard
- backlit keypad for optimal visibility in the dark
- illuminated indicators identify activated keys
- 8 TGCs for easy adjustment
- user-defined hotkey for quick adjustment
- clear and intuitive keyboard layout, quick to memorise
- interactive backlighting - user-defined settings

Straightforward workflow, one key to
- select desired function with automatic settings
- optimise image automatically (AIO) - create reports
- save freeze frame and CINE loop - measure
- print from PC printer* (laser or inkjet) or video printer
*List of compatible printers is on our website

EASYVIEW™ Archiving System
- image archive on hard disk and USB mobile memories
- different image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (setting for auto review) for 2D, M, PW images (ECO2, ECO3EXP. only)
- cine memory capacity (256 frames/10s)
- 3 USB ports

Standards
IEC 60601-1, IEC 60601-1-1 Electromedical equipment
IEC 60601-1-2 Electromagnetic compatibility
IEC 60601-1-4 Programmable medical systems,
IEC 60601-2-37 Dimensions and weight: 33.5x15.5xh 35 cm; 6 kg
Screen: 12" LED, high resolution 1024x768
Power supply: AC 100-240 V - 50/60 Hz
Rechargeable Li-ion battery

- Software (user selectable language): GB, IT, FR, ES, DE, CZ, TR, CN, RU
- Manual: - 12" high resolution B/W LED screen
- 8G memory card
- Hotkeys
- PC printer connection
- 3 USB ports
- 1 Ethernet port
12" LED screen high resolution - B/W
12" high resolution LED screen - colour
8G memory card
D keys

SONOEYE PORTABLE ULTRASOUND
- P2 Linear
- Linear frequency: 7.5 MHz
- Frequency range: 7-12 MHz
- Suitable for: Vascular, MSK, Nerves, Lungs, Small parts, Emergency medicine

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with a thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Linear
Centre frequency

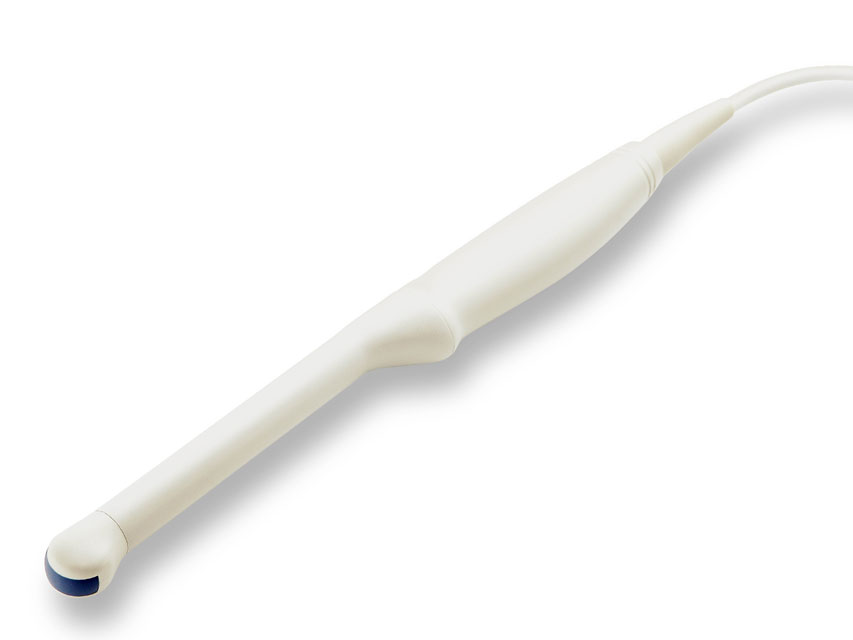

Micro-Convex 6.5 MHz probe

- Mindray code: 65EC10EA
- Scanning method: Micro-Convex
- Main freq: 6.5
- Probe bandwidth: 5.0 - 8.5

SONOEYE PORTABLE ULTRASOUND
- P5 Convex
- Network frequency: 3.5 MHz
- Frequency range: 3-5 MHz
- Suitable for: Lungs, Abdomen, Obstet./Gyn., Urology, Emergency medicine, FAST (targeted assessment with ultrasound for trauma)

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with one thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Convex
Centre frequency:

Trolley UMT-150 for DP-50 Expert, Z50

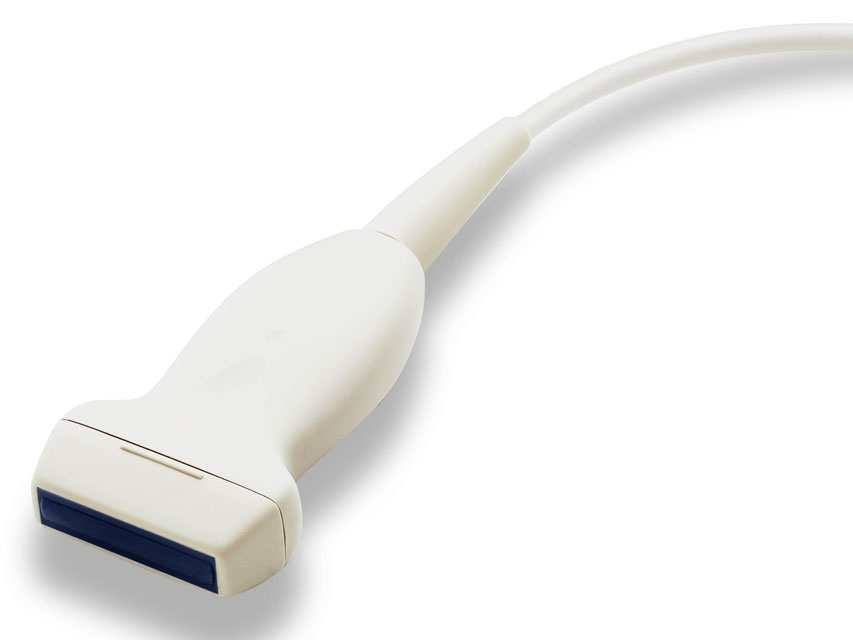

Linear Probe 7.5 MHz

- Mindray code: 75L38EB
- Scanning method: Linear
- Main freq: 7.5
- Probe bandwidth: 5.0 - 10.0
