ECOCOLORDOPPLER i8 - 19" high resolution flat screen

Supplied with 4 connectors for probes, trolley, keyboard, image archive: HardDisk 500 GB, 6 USB ports, DVD-RW, VGA format, I-image, heart packet without probes.

Digital colordoppler system with professional features:
- I-IMAGE: improves image quality and offers ECG image optimisation

- Image modes:
- B, 2B, 4B, B/M, M-CFM, Power doppler, directional PD
- PW mode, CW mode (with heart probe)
- triplex, duplex, instantaneous quadplex
- trapezoidal on linear-panoramic probe
- chroma B/M/PW/CW
- B/BC mode

- Image processing:
- Image tissue harmonisation (THI) on all probes
- Speckle Algorithm Reduction (SRA)
- Multiple Image Composition (MCI)

- Broadband multi-frequency probes:
- Continuously adjustable, 2.5-12 MHz
- Operating voltage: 100-240V, 50-60 Hz

- Cardiac package (colour M, CW, rotation M, ECG, TDI, IMT)

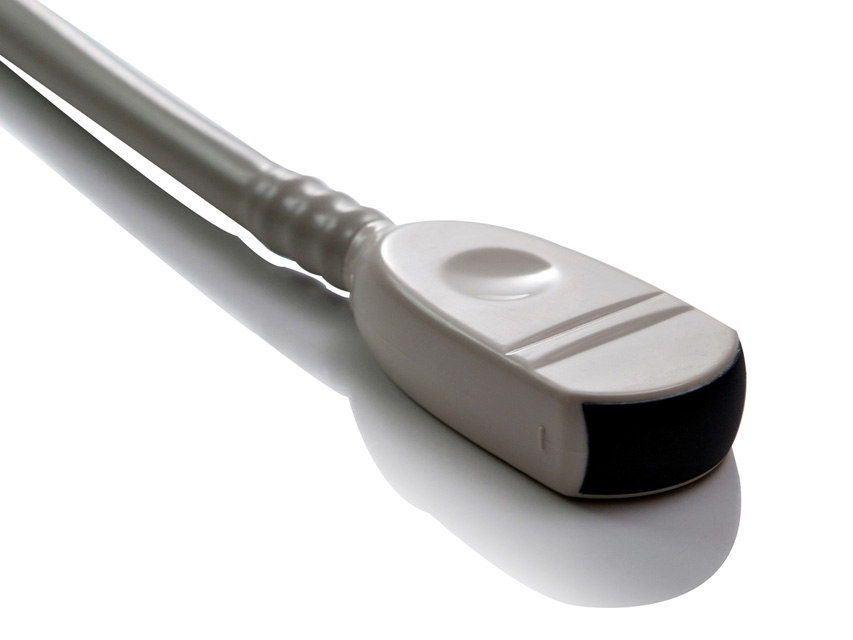

LINEAR PROBE 7.5 MHz

- Scanning method: linear
- Main frequency (MHz): 7.5
- QBit5 probe bandwidth (MHz): 4-15
- Main application: Small parts, vessels

5.0 MHz paediatric doppler probe

- Scanning method: paediatric
- Frequency (MHz)
- Main frequency: 5.0
- Probe bandwidth: 4-10.7
- Main application: paediatrics

PHENOL FREE: completely phenol-free, ensuring maximum user safety

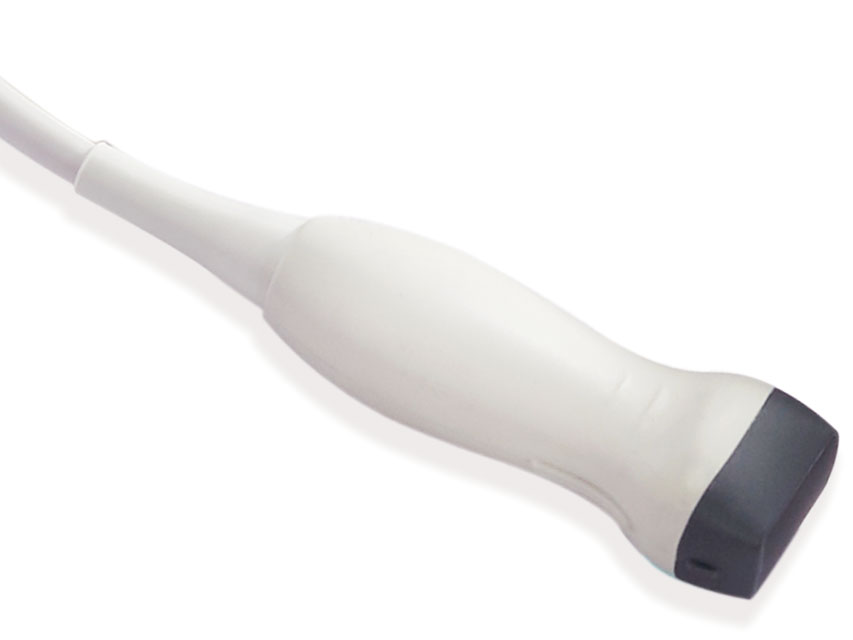

Chison i8 echolordoppler probe (ref. 33965/66).

- Scanning method: cardiac (phased array)
- Frequency (MHz)
- Main frequency: 3.0
- Probe bandwidth: 2.0 - 5.4
- Main application: cardiology

CHISON ECO5 COLORDOPPLER WITH TWO PROBE CONNECTORS (probes not included).

CHISON ECO5 Colordoppler with 12" LED colour screen, high resolution, 8G high speed memory, 3 USB ports, 2 probe connectors, EASYVIEW™ storage system.

Imaging model: B, B/B, 4B, B/M, M, CFM, PW

- Image processing:
- MCI (Multicomposition Imaging)
- trapezoidal
- intelligent I-image optimisation
- automatic PW tracking
- AIO (Automatic Image Optimisation)
- THI (Textile Image Balancing)
- Chroma
- SRA (Focal spot reduction algorithm)
- full screen mode
- digital beam-former system

- User interface
- foldable control panel and alphanumeric keypad
- backlit keypad for optimal visibility in the dark
- interactive backlighting
- identification lights indicate active keys
- 8 TGCs for easy adjustment
- knob for easy adjustment
- clear and intuitive keyboard layout, quick to memorise
- predefined user settings

- Straightforward workflow, one key to
- select desired function with automatic settings
- optimise image automatically (AIO)
- create reports
- save freeze frame and CINE loop
- measure
- print from PC (laser or ink printer) or video printer

- EASYVIEW™ archiving system
- image storage on hard disk and USB
- 3 USB ports
- various image formats: BMP, JPG, DCM, CIN
- cine review: auto, manual (auto review setting) for 2D, M-images
- cine memory capacity (256 images/8s) Dimensions: 33.5 x 15.5 x h 35 cm (13.2 "x6.1 "xh 13.8")
Weight: 6.5 kg
Screen: 12" LED colour, high resolution 1024 x 768
Power supply: AC 100-240 V, 50-60 Hz
Rechargeable Li-ion battery 14.8 V 4400 mAh

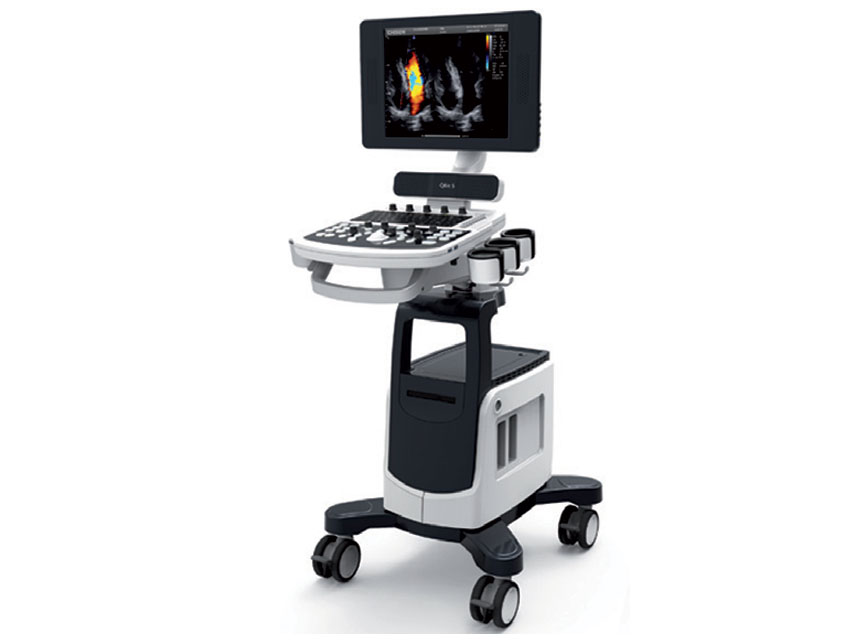

ECOCOLORDOPPLER QBit5 - 15" high resolution LED flat screen.

Supplied with 2 probe connectors and 1 probe connection holder, trolley, keyboard, image archive: 32 GB HardDisk, 6 USB ports, VGA format, without probes.
Affordable and reliable Doppler equipped with advanced technology: image composition, quad beam, Q-image, Q-flow, X-contrast enable excellent images. Linear workflow and ergonomic design improve efficiency.

Image modes:
- CFM
- PW
- Pulsed Doppler/Directional PD
- B/BC
- chroma B/M/PW/CW
- B, 2B, 4B, B/M, M
- trapezoidal on linear probe

Image processing:
- Speckle Algorithm Reduction (SRA)
- direct printing from PC or video printer
- automatic image optimisation (AIO)
- harmonic image fusion (FHI)

Special radiology function: 2D orientation and hook (optional)

Phased array probe and package: phased array function includes CW, TDI, ECG, M colour and complete calculation package including PISA/Dp/Dt.

Dimensions: 747 x 517 x 1283 mm
Net weight: 50 kg

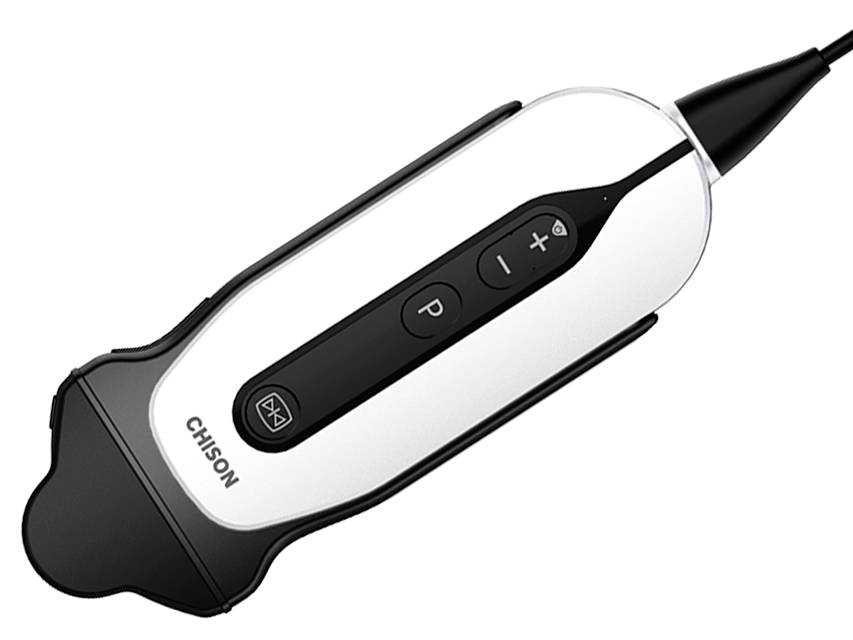

SONOEYE PORTABLE ULTRASOUND
- P6 Micro-Convex
- Network frequency: 6.5 MHz
- Frequency range: 4.0-8.0 FHI 6.0-10.0
- Suitable for: Abdomen, Obstet./Gyn., Urology, Small parts, Emergency medicine

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with one thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Micro-Convex
Frequency cent

WIRELESS PORTABLE ULTRASOUND SCANNERS

Scanning:
- Linear (VASCULAR / MSK / PEDIATRICS / BREAST / THYROID / CARotids / SMALL ORGANS)
- Frequency range (MHz): 7.5-10
- Convex (POLMONIES / ABDOMEN / CARDIOLOGY / GYNECOLOGY / OSTETRICIA / UROLOGY / RENI)
- Frequency range (MHz): 3.5-5

Linear probe: Examination of superficial organs such as breast, thyroid, lymph nodes, etc., and blood vessels such as carotids, arteries of the upper extremities, arteries of the lower extremities and other small organs, examination of musculoskeletal system.

Convex probe: abdominal and pelvic organ scan, FAST scan, pleural effusion scan and lung ultrasound.

Easy-to-use wireless portable ultrasound scanners, allowing the physician to manage the ultrasound results and share them with the patient with the appropriate software, anywhere, anytime.
Cases and reports can be saved and printed with a single click.
The high frame rate per second allows the smallest details to be obtained with maximum clarity, for rapid image-based diagnosis.

- wireless connection, compatible with tablets and smartphones (iOS, Android)
- replaceable integrated battery
- support for wireless charging
- advanced digital technology for sharp images
- convenience and ease of transport
- for hospital, emergency room, clinic, outdoor use
- intelligent terminal platform, powerful application expansion functions, storage

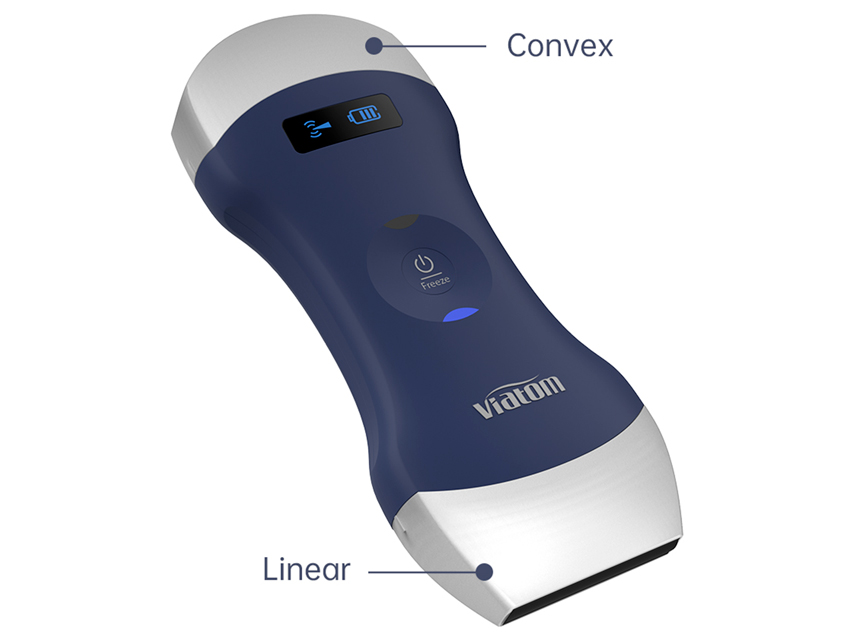

Dual-head ultrasound
Linear head and convex head interchangeable by simply turning the device.

Built-in independent Wi-Fi module realises instant image transmission without external network, reduces data transmission delay and improves image clarity.

Scanning parameters (depth, gain, power and colour) adjustable with a simple and intuitive multi-key interface.

All models have GB, IT manual. Probe type: Linear / Convex
Frequency range: 7.5-10 MHz / 3.5-5 MHz
Scanning depth: 20/40/60/100 mm / 90/160/220/305 mm
Head width: 40 mm / 45 mm
Doppler: B, B/M, B+Colour, B+PDI, B+PW
Battery life: = 2.5 hours
Recharge time Probe support
Wireless charging support
USB cable

WIRELESS PORTABLE ULTRASOUND SCANNERS

Scanning:
- Linear (VASCULAR / MSK / PEDIATRICS / BREAST / THYROID / CARotids / SMALL ORGANS)
- Frequency range (MHz): 7.5-10
- Convex (POLMONIES / ABDOMEN / CARDIOLOGY / GYNECOLOGY / OSTETRICIA / UROLOGY / RENI)
- Frequency range (MHz): 3.5-5
- Cardiac (VASCULAR / CARDIOLOGY / ARTERIES)
- Frequency range (MHz): 2.5-5

Linear probe: Examination of superficial organs such as breast, thyroid, lymph nodes, etc., and blood vessels such as carotids, arteries of the upper extremities, arteries of the lower extremities and other small organs, examination of musculoskeletal system.

Convex probe: abdominal and pelvic organ scan, FAST scan, pleural effusion scan and lung ultrasound.

Cardiac probe: Echocardiogram for ultrasound of heart, thoracic arteries and intracranial blood vessels.

Easy-to-use wireless portable ultrasound machines, allowing the physician to manage the ultrasound results and share them with the patient with the appropriate software, anywhere, anytime.
Cases and reports can be saved and printed with a single click.
The high frame rate per second allows the smallest details to be obtained with maximum clarity, for rapid image-based diagnosis.

- wireless connection, compatible with tablets and smartphones (iOS, Android)
- replaceable integrated battery
- support for wireless charging
- advanced digital technology for sharp images
- convenience and ease of transport
- for hospital, emergency room, clinic, outdoor use
- intelligent terminal platform, powerful application expansion functions, storage

3-in-1 ultrasound scanner
The linear + convex + phased array (cardiac) probe allows the transition from depth to surface scanning without changing probes.
Very broad frequency and scanning depth allow examination of the entire body. Very sharp images and very long standby time (=12h) with very large 4200 mAh. 3.7V lithium battery.
Integrated independent Wi-Fi module, which realises instant image transmission without external network, reduces data transmission delay and improves image clarity.

Scanning parameters (depth, gain, power and colour) adjustable with a simple and intuitive multi-key interface.

All models have GB, IT manual. Probe type: Linear / Convex / Cardiac
Frequency range: 7.5-10 MHz / 3.5-5 MHz / 2.5-5 MHz
Scanning depth: 20~80 mm / 90~305 mm / 90~160 mm
Head width: 60 mm
Doppler: B/BM/Colour/PDI/PW
Battery life: 3 hours
Recharge time Wireless charging support
USB cable
Charger adapter
Carrying bag
