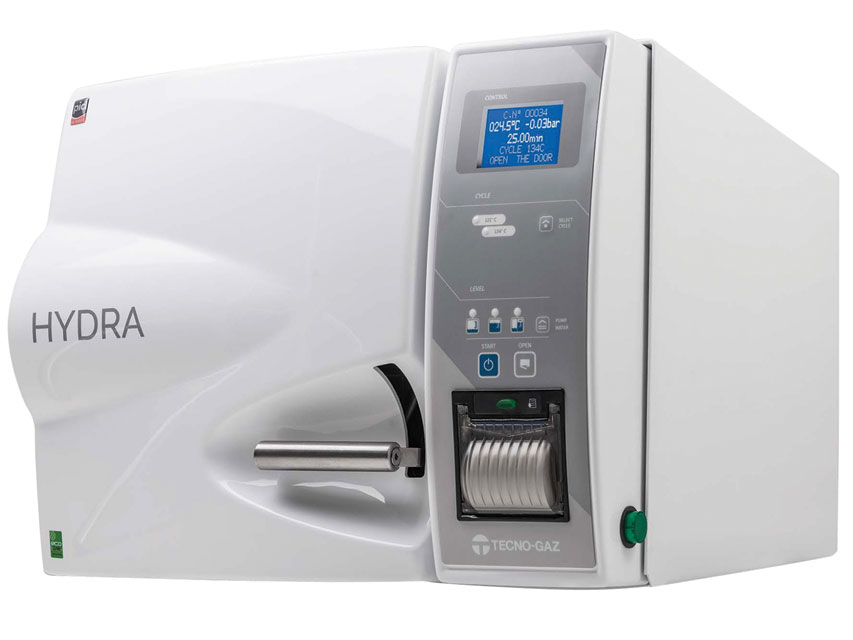

AUTOCLAVE HYDRA EVO with 15-litre printer
AUTOCLAVE HYDRA EVO with printer 15 litres 230 V
The Hydra EVO is an automatic steam autoclave for sterilising instruments.
Operator safety pin closure.

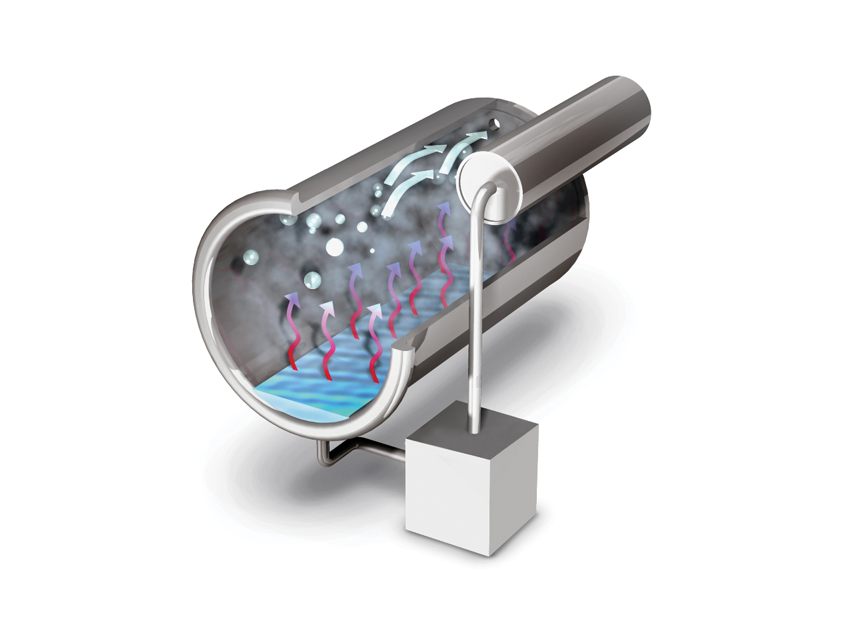

Thermodynamic method for expulsion of "cold" air bags.
Two sterilisation cycles: 121°C and 134°C
Automatic preheating, sterilisation and drying phases.
Non-manipulable pre-set cycles
All cycles are pre-set and always guarantee safe sterilisation of treated materials. There is no possibility for operators to intervene and manipulate the cycles, thus avoiding any kind of possible human error.
Pre-set temperatures
The set temperatures on our autoclave cycles are 134°C and 121°C. The 134°C cycles are normally used for sterilisation of solid and ferrous materials. 121°C cycles are used for sterilisation of thermoplastic and delicate materials.
Water tanks
The HYDRA EVO is equipped with an internal tank for clean water and another for used water. Each tank is equipped with probes to detect minimum and maximum water levels.
Fully automatic cycles
All cycles are fully automatic and all phases are managed by a motherboard with a powerful microprocessor. Each phase (vacuum, pre-heating, exposure time, drying) is monitored, assisted and managed automatically. There is no need for human intervention in cycle management.
Door safety
The door is equipped with 2 safety devices:
a mechanical one, which does not allow opening in the event of pressure
a dynamic one, which seals the door
Built-in printer
Built-in printer for recording the cycles performed.
Installed safety devices
Certified safety valve
PED on sterilisation chambers
Chamber insulation with certified ceramic material
Machine controls
Control of water entering the chamber
Safety thermostat
Time-related controls

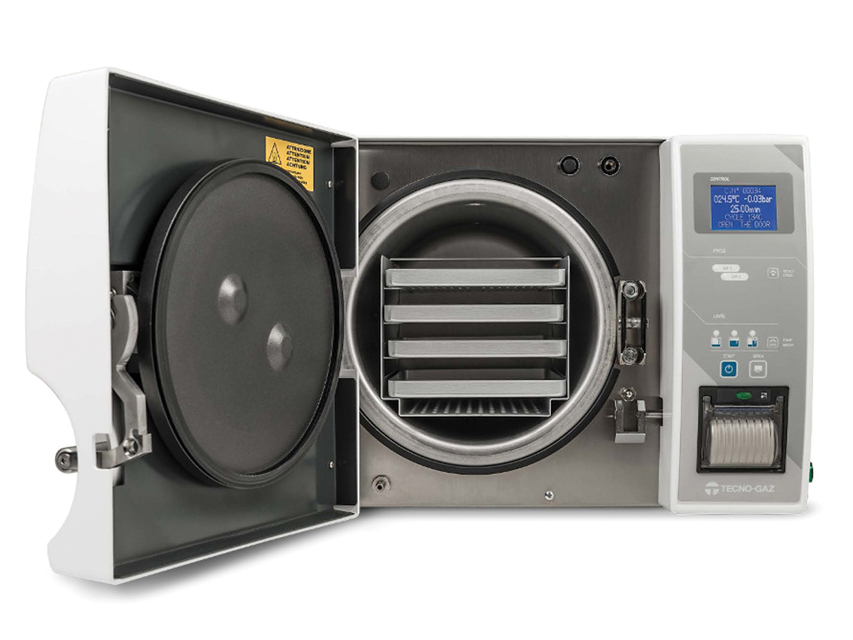

The sterilisation chamber is made entirely of AISI 304 stainless steel and is heated by a heating element that guarantees heat uniformity.
Supplied with 4 aluminium trays and a clamp for their extraction.
User manual in English, French, Italian and Spanish. - Stainless steel chamber: Ø 24.5 x 32 cm
- External dimensions: 51 x 39 x 59 cm (W x H x D)
- Net weight: 54 Kg
- 2 sterilisation cycles: 121 °C and 134 °C
- Operating voltage: 230 V ± 10% 50/60 Hz
- Power consumption: 1500 W
-
