NEO ECG T180 - ECG TABLET with printer

Lightweight and portable ECG tablet for acquiring and displaying 9/12-lead traces and heart rate.
Easy-to-use, high-resolution 10.1" colour touch screen.
Store, preview, review, edit and upload patient data via wireless transmission of ECG data over mobile networks and WiFi. Patient data exportable to USB flash disk via USB connector.

- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, trigger sampling
- automatic pacemaker pulse detection and marking
- self-analysis RR, HRV, test medicine, ECG event mode
- files in multiple formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
- on-screen ECG trace image block
- virtual keyboard and barcodes for entering patient information
- integrated thermal printer
- external DC power supply and integrated rechargeable battery
- recorder charging port
- selectable multi-language software: GB, FR, IT, ES, PT, DE, GR, PL ECG derivations: synchronous acquisition 9,12
A/D resolution: 24 bit
Heart rate range: 30bpm - 300bpm ± 1
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, error less than ± 5%
Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, error inf 1 ECG cable (IEC, Ø 4 mm, banana jack)
6 precordial suction cup electrodes for adults (Ø 4 mm)
4 arm/leg clamp electrodes for adults
1 roll of thermal paper - 20mx216 mm
1 rechargeable lithium battery
1 power adapter
Manual

Replacement battery for Cardioline ECG.

Rechargeable battery 5000 mah for 54230, 54231 - spare part

VETERINARY ECG CLIP x 5 mouth and paws - replacement

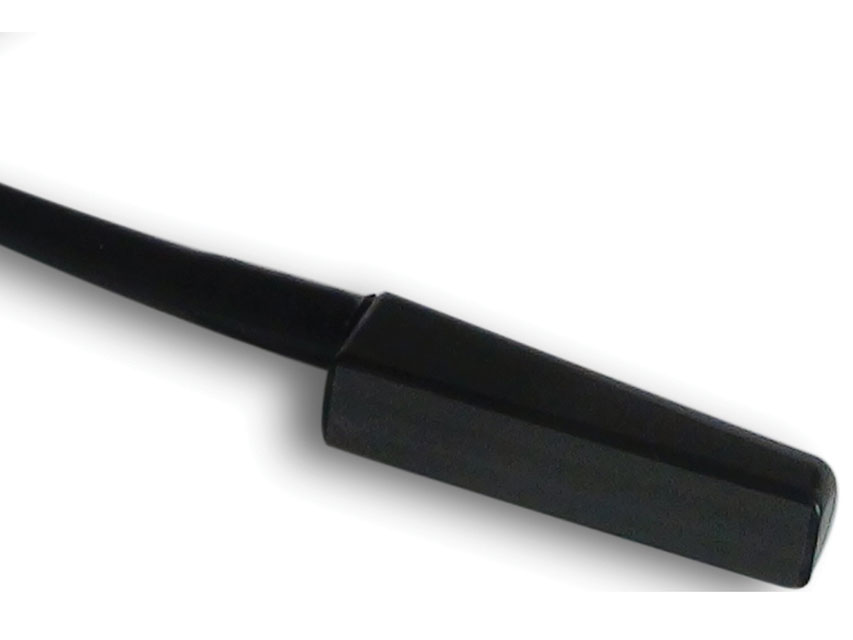

CHISON transrectal probe, main frequency 7.5 MHz, for ECO VET series portable ultrasound machines.

- Chison code: L7V-A
- Scanning method: Trans-rectal
- Main frequency: 7.5 MHz
- Frequency range (MHz): 5.3 - 10.0
- Applications: SHEEP, HORSES AND CATTLE

Compatible with:
- CHISON ECO 1 VET (cod. 33994)
- CHISON ECO 3EXP. VET (cod. 33995)
- CHISON ECO 5 VET (cod. 34008)

CHISON ECO2 VET with 1 probe connector, without probe

- compact and lightweight, easy to carry
- screen with new-generation LED technology; ultra-bright images allow optimal viewing even outdoors
- ergonomic monitor design, 30 degree rotation, adjustable
- long battery life of up to 2 hours, for outdoor use
- full screen image magnification, better viewing at a distance
- smooth workflow, easy to use, 6 quick keys to finalise the diagnosis cycle

Display and image processing modes
B, B/B, 4B, M, B/M

Image processing
- composite images
- trapezoidal
- intelligent I-image optimisation
- THI (Tissue Image Balancing)
- SRA (Focal spot reduction algorithm)
- Chroma
- digital beam-former system
- AIO (automatic image optimisation)
- full screen display

user interface
- foldable control panel and alphanumeric keyboard
- backlit keyboard for optimal visibility in the dark
- interactive backlighting
- identification lights indicate active keys
- 8 TGCs for easy adjustment
- rotary knob for easy adjustment (shortcut keys)
- clear and intuitive keyboard layout, quick to memorise
- predefined user settings

Straightforward workflow, one key to
- select desired function with automatic settings
- optimise image automatically (AIO)
- create reports
- save freeze frame and CINE loop
- Measure
- print from PC* (laser or ink printer) or video printer

EASYVIEW™ archiving system
- image storage on hard disk and USB
- 3 USB ports
- various image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (auto review setting) for 2D, M-images
- cine memory capacity (256 images/10s) Dimensions and weight: 33.5x15.5xh 35 cm; 6 kg
Screen: 12" LED, high resolution 1,024x768
Power supply: AC 100-240 V - 50/60 Hz

LANGUAGES - user selectable
Software: GB, IT, FR, ES, DE, CZ, TR, CN, RU
Manual: GB, IT, FR on request 12" high resolution LED screen - B/W
8G memory card
Hotkeys
PC printer connection
3 USB ports
1 Ethernet port
1 video output port, 1 VGA output port
1 footswitch port
Full screen mode
Li-i battery

NIBP cuff 6-11 cm - replacement

Veterinary SpO2 probe - cable 3 m - spare part

NIBP bracelet 10-19 cm - optional

VETERINARY ECG CABLE 5 DERIVATIVES - spare part
