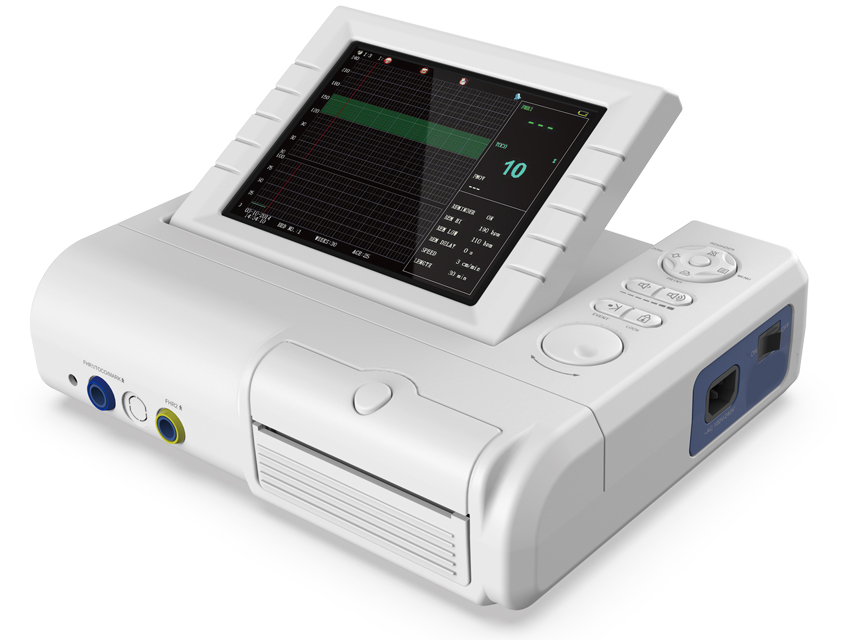

CMS800G FETAL MONITOR
Offers different configurations according to different user requirements: FHR1 (Ultrasonic Channel I), FHR2 (Ultrasonic Channel II), TOCO, FMOV (Fetal Movement Marker).
Continuous fetal monitoring during the perinatal period provides reference data for clinical use.
Results can be recorded by the built-in recorder, for continuous or intermittent documentation.
Can be used alone or in connection with a PC via the RJ45 interface for centralised monitoring.
Reserved for medical personnel in hospitals, clinics and other healthcare institutions.
Features:
- 8.0" colour LCD screen foldable up to 60°.
- clear display of data and monitoring curves
- manual/automatic recording of fetal movements
- audible and visual warning of high and low fetal heart rate
- 24-hour continuous real-time monitoring function
- storage, playback and printing of monitoring curve and data for 12 continuous hours
- image lock function
- 12-crystal and broadband pulsed wave transducer
- end-of-print beeper
- manual marking beeper
- Fischer, NST and Krebs automatic scoring system
- external USB flash disk, SD card for data storage and external USB flash disk for program update
- built-in high-resolution thermal printer
- built-in rechargeable batteries to continue working normally for more than 3 hours after power failure Dimensions - weight: 32x26xh 8 cm - 3 kg
Screen: 8" colour LCD (800x600), foldable to 60 degrees
3 channels: FHR1, FHR2, UC
Thermal printer: double Z-fold paper, size 112x100 mm, print speed: 1, 2, 3 cm/min
AC power supply 100V~240V 3-in-1 probe (29587)
Power supply
2 abdominal straps
Ground cable
2 thermal paper
User manual GB, IT, FR
