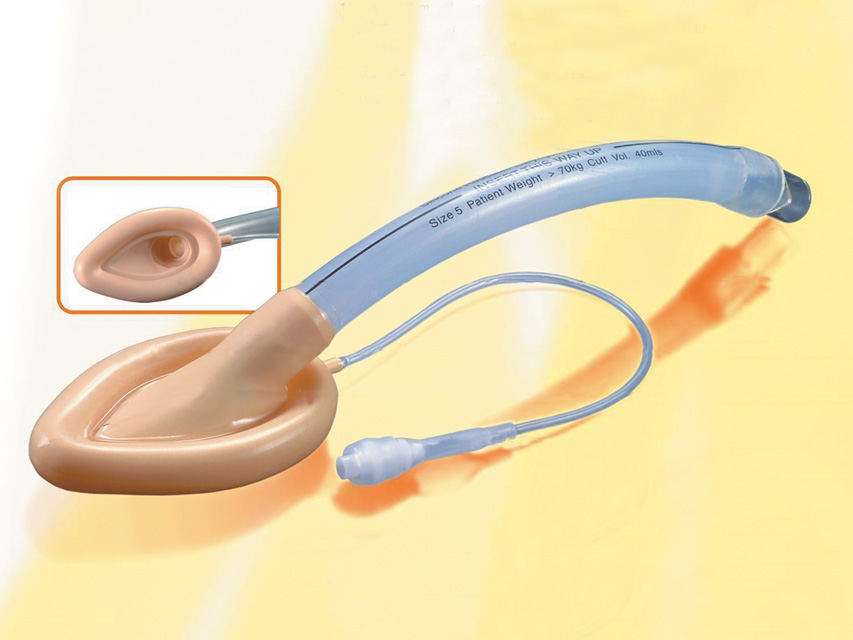

REUSABLE SILICONE LARYNGEAL MASK

<img src="http://www.gimaitaly.com/it/assets/altreimmagini/34424-29_point.jpg">

1. Excellent anatomical design ensures a comfortable and safe insertion. 15 mm universal connector (ISO).

2. Transparent hose. Guide for easy insertion.

3. Slight protuberances minimise vomiting of substances from oesophagus and stomach.

4. The seamless edge offers maximum comfort.

5. The reinforced oval tip prevents bending during insertion.

6. A pilot balloon helps manage sensitivity during insertion

Each laryngeal mask has a serial number to ensure traceability.

AUTOCLAVABLE UP TO 40 TIMES. - Size: 5
- Patient type: adult
- Weight: &gt; 70 kg
- Cap volume (air flow in ml): 40 ml

REUSABLE SILICONE LARYNGEAL MASK

<img src="http://www.gimaitaly.com/it/assets/altreimmagini/34424-29_point.jpg">

1. Excellent anatomical design ensures a comfortable and safe insertion. 15 mm universal connector (ISO).

2. Transparent hose. Guide for easy insertion.

3. Slight protuberances minimise vomiting of substances from oesophagus and stomach.

4. The seamless edge offers maximum comfort.

5. The reinforced oval tip prevents bending during insertion.

6. A pilot balloon helps manage sensitivity during insertion

Each laryngeal mask has a serial number to ensure traceability.

AUTOCLAVABLE UP TO 40 TIMES. - Dimensions: 2.5
- Patient type: child
- Weight: 20-30 kg
- Cap volume (air flow in ml): 14 ml

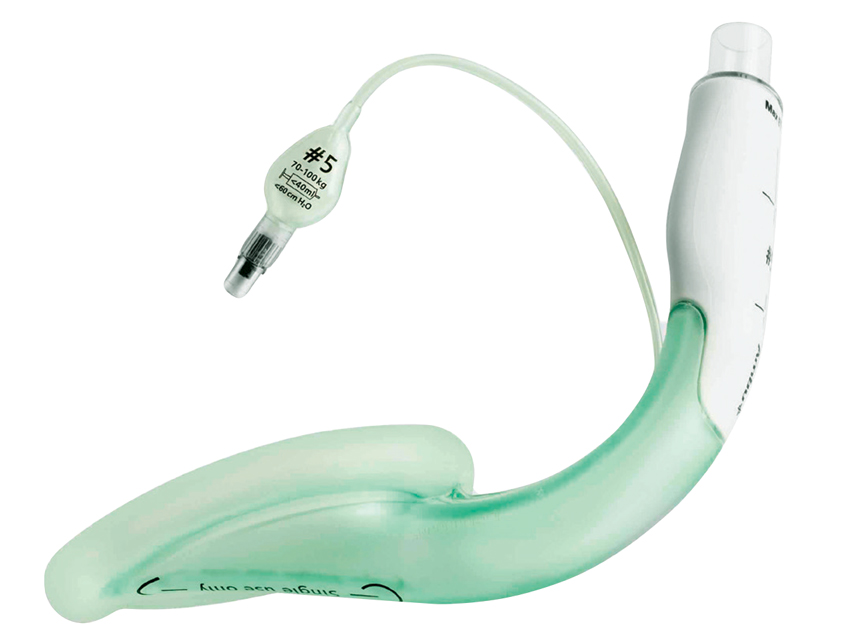

AMBU® AURA-i™ DISPOSABLE LARGE MASK

- Laryngeal mask N 5
- Colour: blue
- Patient weight: 70-100 kg
- Max. cuff inflation volume: 40 ml
- Max. ET tube (max. endotracheal tube Ø): 8.0 mm

Aura-i's soft curvature, preformed to follow the anatomy of the human airway, ensures quick and easy positioning and long-term performance.
Aura-i is the ideal device for routine interventions to maintain the airway when the use of an ET tube is not deemed necessary. At the same time, it can be useful for the management of difficult airways.
In CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-i can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.
The ventilation tube is designed to facilitate passage of appropriately sized endotracheal tubes.
The recommended ET tube size is indicated on the mask connector block.

AMBU® AURA-i™ VENTILATION &amp; INTUBATION
Curved anatomical shape for quick and easy insertion.
Navigation markers to guide the flexible videoscope.
Facilitates intubation with standard ET tubes.
Reinforced tip resists bending during insertion and seals the upper oesophageal sphincter.
Smooth edges without protrusions or fins that could scratch delicate tissue.
The ultra-thin pilot balloon recognises the size of the mask and provides precise tactile indication of the level of inflation.
Direct endotracheal intubation using a flexible videoscope and standard ET tubing.
15 mm universal connector (ISO). Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/headphone material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

REUSABLE SILICONE LARYNGEAL MASK

<img src="http://www.gimaitaly.com/it/assets/altreimmagini/34424-29_point.jpg">

1. Excellent anatomical design ensures a comfortable and safe insertion. 15 mm universal connector (ISO).

2. Transparent hose. Guide for easy insertion.

3. Slight protuberances minimise vomiting of substances from oesophagus and stomach.

4. The seamless edge offers maximum comfort.

5. The reinforced oval tip prevents bending during insertion.

6. A pilot balloon helps manage sensitivity during insertion

Each laryngeal mask has a serial number to ensure traceability.

AUTOCLAVABLE UP TO 40 TIMES. - Size: 2
- Patient type: newborn
- Weight: 10-20 kg
- Cap volume (air flow in ml): 10 ml

REUSABLE SILICONE LARYNGEAL MASK

<img src="http://www.gimaitaly.com/it/assets/altreimmagini/34424-29_point.jpg">

1. Excellent anatomical design ensures a comfortable and safe insertion. 15 mm universal connector (ISO).

2. Transparent hose. Guide for easy insertion.

3. Slight protuberances minimise vomiting of substances from oesophagus and stomach.

4. The seamless edge offers maximum comfort.

5. The reinforced oval tip prevents bending during insertion.

6. A pilot balloon helps manage sensitivity during insertion

Each laryngeal mask has a serial number to ensure traceability.

AUTOCLAVABLE UP TO 40 TIMES. - Size: 1.5
- Patient type: newborn
- Weight: 5-10 kg
- Cap volume (air flow in ml): 7 ml

REUSABLE SILICONE LARYNGEAL MASK

<img src="http://www.gimaitaly.com/it/assets/altreimmagini/34424-29_point.jpg">

1. Excellent anatomical design ensures a comfortable and safe insertion. 15 mm universal connector (ISO).

2. Transparent hose. Guide for easy insertion.

3. Slight protuberances minimise vomiting of substances from oesophagus and stomach.

4. The seamless edge offers maximum comfort.

5. The reinforced oval tip prevents bending during insertion.

6. A pilot balloon helps manage sensitivity during insertion

Each laryngeal mask has a serial number to ensure traceability.

AUTOCLAVABLE UP TO 40 TIMES. - Size: 4
- Patient type: adult
- Weight: 50-70 kg
- Cap volume (air flow in ml): 30 ml

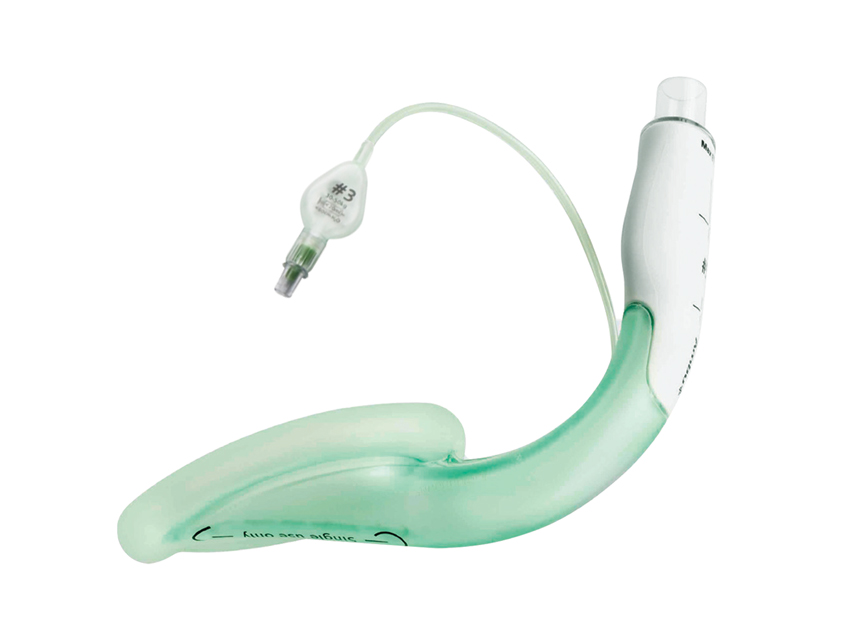

AMBU® AURA-i™ DISPOSABLE LARGE MASK

- Laryngeal mask N 3
- Colour: green
- Patient weight: 30-50 kg
- Max. cuff inflation volume: 20 ml
- Max. ET tube (max. endotracheal tube Ø): 6.5 mm

Aura-i's soft curvature, preformed to follow the anatomy of the human airway, ensures quick and easy placement and long-term performance.
Aura-i is the ideal device for routine interventions to maintain the airway when the use of an ET tube is not deemed necessary. At the same time, it can be useful for the management of difficult airways.
In CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-i can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.
The ventilation tube is designed to facilitate passage of appropriately sized endotracheal tubes.
The recommended ET tube size is indicated on the mask connector block.

AMBU® AURA-i™ VENTILATION &amp; INTUBATION
Curved anatomical shape for quick and easy insertion.
Navigation markers to guide the flexible videoscope.
Facilitates intubation with standard ET tubes.
Reinforced tip resists bending during insertion and seals the upper oesophageal sphincter.
Smooth edges without protrusions or fins that could scratch delicate tissue.
The ultra-thin pilot balloon recognises the size of the mask and provides precise tactile indication of the level of inflation.
Direct endotracheal intubation using a flexible videoscope and standard ET tubing.
15 mm universal connector (ISO). Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/headphone material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

AMBU® AURAGAIN™ DISPOSABLE LARYNGEAL MASK

- N 2 laryngeal mask
- Patient weight: 10-20 kg
- ET tube max (max. endotracheal tube Ø): 5.0 mm
- Max. gastric probe: 10 FR
- Max. cuff inflation volume: 10 ml

AuraGain fulfils 3 fundamental requirements for airway management, integrating gastric access and intubation capability in a single-use device with anatomical curvature that facilitates the rapid establishment of a safe airway.

- Rapid positioning
AuraGain's soft curvature, preformed to follow the anatomy of the human airway, ensures rapid positioning and long-term performance. AuraGain's thin, soft cuff is designed to offer high seal pressure.

- Gastric control
The integrated gastric access channel is designed to reduce friction when passing the gastric tube, to enable management of gastric contents
gastric contents and prevent gastric insufflation.

- Possibility of intubation
AuraGain has an additional safety feature: the possibility of intubation. It means that in case of unexpected difficult airway or in
CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-Gain can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.

- Excellent versatility
The quick positioning, high holding pressure, gastric access and intubation capability make AuraGain the safest choice for any procedure where the use of a laryngeal mask is indicated.

AMBU® AURAGAIN™ VENTILATION, INTUBATION, GASTRIC ACCESS
Bite resistance area made of soft material with useful markers and accessory size information.
Navigation markers to guide the flexible videoscope.
Direct endotracheal intubation using a flexible videoscope and standard ET tubes.
Unique anatomical curve ensures easy insertion.
Soft inflatable cuff for high sealing pressures. Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/cuff material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

AMBU® AURAGAIN™ DISPOSABLE LARYNGEAL MASK

- N 1 laryngeal mask (Dead space reduced by up to 39%)
- Patient weight: &lt;5 kg
- ET tube max (max. endotracheal tube Ø): 3.5 mm
- Max. gastric probe: 6 FR
- Max. cuff inflation volume: 4 ml

AuraGain fulfils 3 basic requirements for airway management, integrating gastric access and intubation capability in a single-use device with anatomical curvature that facilitates the rapid establishment of a safe airway.

- Rapid positioning
AuraGain's soft curvature, preformed to follow the anatomy of the human airway, ensures rapid positioning and long-term performance. AuraGain's thin, soft cuff is designed to offer high seal pressure.

- Gastric control
The integrated gastric access channel is designed to reduce friction when passing the gastric tube, to enable management of gastric contents
gastric contents and prevent gastric insufflation.

- Possibility of intubation
AuraGain has an additional safety feature: the possibility of intubation. It means that in case of unexpected difficult airway or in
CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-Gain can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.

- Excellent versatility
The quick positioning, high holding pressure, gastric access and intubation capability make AuraGain the safest choice for any procedure where the use of a laryngeal mask is indicated.

AMBU® AURAGAIN™ VENTILATION, INTUBATION, GASTRIC ACCESS
Bite resistance area made of soft material with useful markers and accessory size information.
Navigation markers to guide the flexible videoscope.
Direct endotracheal intubation using a flexible videoscope and standard ET tubes.
Unique anatomical curve ensures easy insertion.
Soft inflatable cuff for high sealing pressures. Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/cuff material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use

AMBU® AURAGAIN™ DISPOSABLE LARYNGEAL MASK

- N 5 laryngeal mask
- Patient weight: 70-100 kg
- ET tube max (max. endotracheal tube Ø): 8.0 mm
- Max. gastric probe: 16 FR
- Max. cuff inflation volume: 40 ml

AuraGain fulfils 3 fundamental requirements for airway management, integrating gastric access and intubation capability in a single-use device with anatomical curvature that facilitates the rapid establishment of a safe airway.

- Rapid positioning
AuraGain's soft curvature, preformed to follow the anatomy of the human airway, ensures rapid positioning and long-term performance. AuraGain's thin, soft cuff is designed to offer high seal pressure.

- Gastric control
The integrated gastric access channel is designed to reduce friction when passing the gastric tube, to enable management of gastric contents
gastric contents and prevent gastric insufflation.

- Possibility of intubation
AuraGain has an additional safety feature: the possibility of intubation. It means that in case of unexpected difficult airway or in
CI-CV situations ("impossible to intubate - impossible to ventilate"), where the ultimate goal is to intubate the patient, Aura-Gain can be used as a direct channel for endotracheal intubation assisted with a flexible videoscope.

- Excellent versatility
The quick positioning, high holding pressure, gastric access and intubation capability make AuraGain the safest choice for any procedure where the use of a laryngeal mask is indicated.

AMBU® AURAGAIN™ VENTILATION, INTUBATION, GASTRIC ACCESS
Bite resistance area made of soft material with useful markers and accessory size information.
Navigation markers to guide the flexible videoscope.
Direct endotracheal intubation using a flexible videoscope and standard ET tubes.
Unique anatomical curve ensures easy insertion.
Soft inflatable cuff for high sealing pressures. Maximum intra-cuff pressure: 60 cm H2O
Connection to ventilator: 15 mm ISO 5356-1
Tube/cuff material: PVC (latex and phthalate free)
Full range for neonatal (AuraGain only), paediatric and adult patients
Packaged sterile and ready to use
