SPIROBANK II SMART + WINSPIROPRO SOFTWARE

Spirometer with memory capacity of 10,000 spirometry tests, monochrome LCD display, 6-key membrane keyboard.
Battery power supply (lithium 3.7 V - 1100 mA) with approximately 50 hours of continuous use, rechargeable via USB port.
- connection via cable (USB 2.1) or wireless (Bluetooth 2.0)
- internal temperature sensor for BTPS conversion
- high-resolution graphic display
- automatic recording of an entire spirometry session, including best tests
- USB cable, carrying case, manual on CD (GB, FR, IT, ES, DE, PT) reusable turbine and software included Selectable internal software (GB, FR, IT, ES, DE, PT)

Winspiropro software functions: (PC system requirements: XP, Seven, Vista, 8, 10)
- Languages: GB, FR, IT, DE, ES, PT, PL, SE, NL, LV, CZ, TR, RU, CN, JP
- on-line PC connection with intuitive icons
- real-time oximetry testing, new curves
- bronchial dilatation protocols with FEV1
- attractive paediatric incentives
- integration with EPR system
- lung age estimation (ELA)
- data reports and graphs also via e-mail

PC system requirements: XP, Seven, Vista, 8, 10
160 x 80 pixel display
Weight 140 g
Dimensions 55 x 160 x 25 mm
PC connection via USB or Bluetooth®
Compatible with iPad or tablet mini iPad TECHNICAL SPECIFICATIONS - SPIROMETER
- Measured parameters: FVC, FEV1, FEV1/FVC%, DTPEF, FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FEF75-85%, FET, Vext, Lung

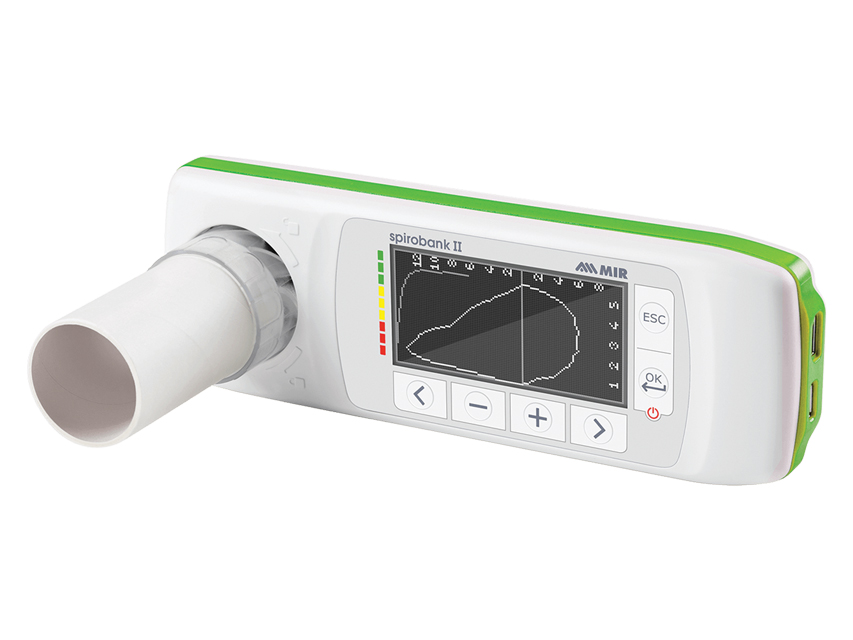

SPIROBANK II BASIC + WINSPIROPRO software

Complete and fast spirometer, extremely compact and portable. Ideal for general practitioners.
Does not require calibration, uses Flowmir® disposable turbine with integrated mouthpiece (33507) or reusable turbine (33526).

- Measures the main spirometric parameters: FVC, VC, IVC, IC, ERV, FEV1, FEV1%, PEF, FEF 25-75, FET, EVOL, TEST POST BD
- indicator lights for immediate test interpretation
- memory for up to 10,000 tests
- long-life rechargeable battery (40 hours of continuous operation)
- real-time testing via USB
- selectable display language and manual on CD (GB, IT, ES, FR, DE, PT).
Supplied with Winspiro PRO software, USB cable, 1 disposable turbine in a transportable case.

Winspiropro software functions: (PC system requirements: XP, Seven, Vista, 8, 10)
- Languages: GB, FR, IT, DE, ES, PT, PL, SE, NL, LV, CZ, TR, RU, CN, JP
- on-line PC connection with intuitive icons
- real-time oximetry testing, new curves
- bronchial dilatation protocols with FEV1
- attractive paediatric incentives
- integration with EPR system
- lung age estimation (ELA)
- data reports and graphs also via e-mail

System requirements: Microsoft Windows Vista, 2000, XP, ME, Seven, 8, 10
Weight 140 g including battery
Dimensions 55 x 160 x 25 mm - Power supply: lithium battery 3.7 V, 110 mA, rechargeable via USB
- Keyboard: 6-key membrane keyboard
- Display: monochrome LCD 160x80 pixels
- Flow range: +16 l/s
- Flow accuracy: ± 5% or 200 ml/s select the higher
- Vol

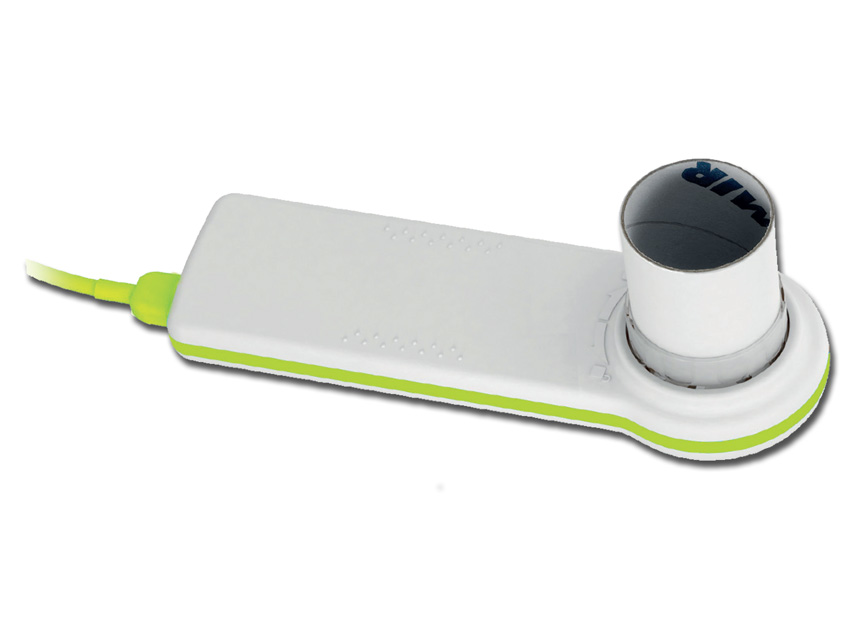

MINISPIR with Winspiro Light

Measures 10 essential parameters for a basic spirometric diagnosis: FEV6, FVC, FEV1, FEV1%, PEF, FEF2575, FIVC, lung age, VC, IVC.

Paediatric incentives. Flow/Volume and Volume/Time curves. Spirometry test interpretation. Temperature sensor for conversion to BTPS. Minispir light meets the requirements of integrated healthcare platforms and tablet applications.

For use only with FlowMir® disposable turbine (33507).

Winspiro Light is an intuitive and effective software that enables reliable first-level diagnostics. - Temperature sensor: semiconductor (0-45°)
- Flow sensor: bi-directional digital turbine
- Flow range: ±16 L/s
- Volume accuracy: ± 3% or 50 mL
- Flow accuracy: ± 5% or 200 mL/s
- Dynamic resistance at 12 L/s: <0.5 cm H2O/L/

SMART ONE® OXI - Peak Flow and FEV1

Ideal in respiratory disease control and management of asthma, COPD, lung transplantation and cystic fibrosis, as well as in clinical trials.

Peak Flow and FEV1 on your smartphone
Simple and portable wireless device that connects via Bluetooth to iOS and Android systems of smartphones and tablets.

App with an exclusive incentive for adults and children, based on exhaled flow and volume, providing accurate and precise results.

Graphical trend of peak flow and FEV1
Measurements include the option to tick each test. Test result history with peak flow, health indicator traffic light, symptom score and annotations.

Low battery consumption.

New turbine with plastic mouthpiece.
For personal use, hygienic and easy to clean.

Manual in GB, FR, IT, ES, DE, PT, PL, RU, TR, CN.

Made in Italy. General
Power supply: 2 x AAA 1.5 V batteries included
Autonomy: 1,000 tests
Connection: Bluetooth® 4.0 low consumption
Dimensions - weight: 49x109x21 mm - 61 g (including batteries)
Mouthpiece: Ø 30 mm (1.18 inch)

Spirometry
Flow sensor: turbo

- Foerster spoon tongs - 25 cm

A complete line of robust stainless steel disposable instruments as an alternative to classic plastic instruments.
Each item has a blue-coloured part to avoid confusion with reusable instruments and is individually packaged in a pouch.

Sterilisation with gamma rays.
Instructions: GB, FR, IT, ES, DE, PT, PL, NL, SE, HU, GR, Arabic.

- Bellucci Micro Ear Scissors - 15 cm - 3 mm

A complete line of robust stainless steel disposable instruments as an alternative to classic plastic instruments.
Each item has a blue-coloured part to avoid confusion with reusable instruments and is individually packaged in a pouch.

Sterilisation with gamma rays.
Instructions: GB, FR, IT, ES, DE, PT, PL, NL, SE, HU, GR, Arabic.

- Magill pliers - 25 cm for adults

A complete line of robust stainless steel disposable instruments as an alternative to classic plastic instruments.
Each item has a blue-coloured part to avoid confusion with reusable instruments and is individually packaged in a pouch.

Sterilisation with gamma rays.
Instructions: GB, FR, IT, ES, DE, PT, PL, NL, SE, HU, GR, Arabic.

- Magill pliers - 20 cm for children

A complete line of robust stainless steel disposable instruments as an alternative to classic plastic instruments.
Each item has a blue-coloured part to avoid confusion with reusable instruments and is individually packaged in a pouch.

Sterilisation with gamma rays.
Instructions: GB, FR, IT, ES, DE, PT, PL, NL, SE, HU, GR, Arabic.

- Hartmann Micro Ear Pliers - 15 cm - 3 mm

A complete line of robust stainless steel disposable instruments as an alternative to classic plastic instruments.
Each item has a blue-coloured part to avoid confusion with reusable instruments and is individually packaged in a pouch.

Sterilisation with gamma rays.
Instructions: GB, FR, IT, ES, DE, PT, PL, NL, SE, HU, GR, Arabic.

- Pean Pliers - curved - 18 cm

A complete line of robust stainless steel disposable instruments as an alternative to classic plastic instruments.
Each item has a blue-coloured part to avoid confusion with reusable instruments and is individually packaged in a pouch.

Sterilisation with gamma rays.
Instructions: GB, FR, IT, ES, DE, PT, PL, NL, SE, HU, GR, Arabic.
