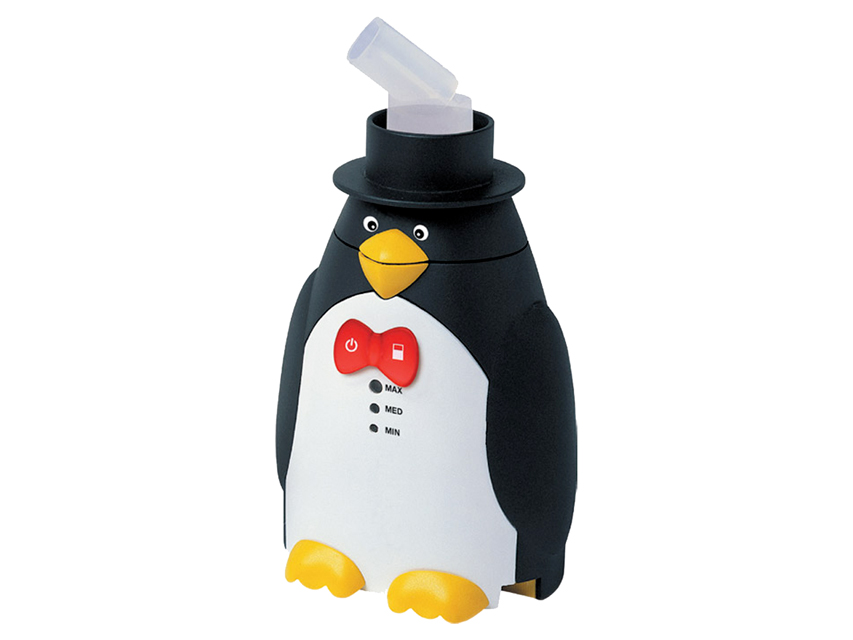

Ni cd 12V DC rechargeable battery for Pingoo ultrasonic aerosol (code 28117).

Compact, handy and lightweight atomiser for treating respiratory disorders such as acute inflammation, tracheitis, bronchitis, throat swelling and burning.

Works with 2 standard AA batteries or USB cable.
optimises the benefits of the medicine
portable and handy (it is only 117 mm high)
ultra-quiet and ultra-light (weighs only 104 g)
one button for easy use
for adults and children: its quietness and compact design allow inhalation even while children sleep

Supplied with mask for adults and children, mouthpiece, 2 AA batteries, USB cable, carry bag, manual and multilingual box (GB, IT, FR, ES, PT, DE). Power supply: 2 AA batteries or DC 5V USB cable
Ultrasound frequency: approx. 110kHz
Nebulisation rate: =0.25ml / min
Max. liquid volume/min: 10ml / 0.5ml
MMAD approx. 4µm
Nebuliser duration: 180 hours
Battery life: 60 minutes
Switch-off: automatic

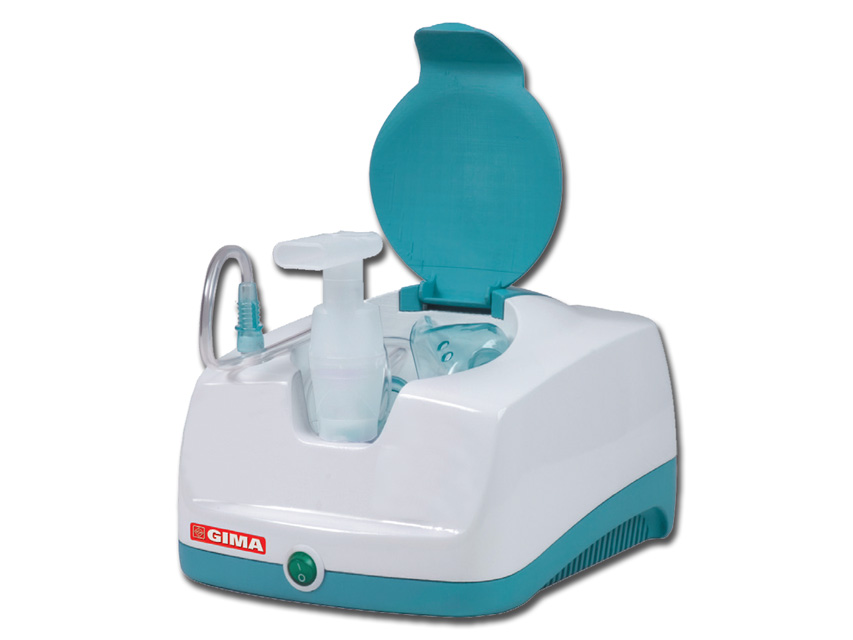

PROFESSIONAL AEROSOL COURSE piston without pressure gauge

Aerosol with piston compressor, without manometer, specially designed for continuous use. Guarantees high performance with any type of medicine, ideal for clinical use, recommended for nebulising antibiotics and bronchodilators.
Manufactured in a plastic construction with excellent thermal and electrical insulation that complies with the latest safety standards.
The compressor with oil-free piston has a long service life and includes a HIFLO jet nebuliser for fast and precise drug delivery.
Easy to lift and transport. - Power supply: 220230 V / 5060 Hz
- Power consumption: 184 VA
- Maximum pressure: 250 kPa (2.5 bar)
- Air flow rate: 16 l/min
- Operating pressure: 130 kPa (1.30 bar)
- Air flow rate: 5.2 l/min. at 130 kPa
- Nebulisation: 0.50 ml/min. with 4 ml - HIFLO Jet Ampoule
- Adult and child mask
- Mouthpiece
- Nasal fork
- Air tube and filter
- Multilingual manual: GB, FR, IT, ES, DE, PT, RO.

ULTRASONIC AEROSOL

Thanks to innovative electronic technologies, these portable and easy-to-use ultrasonic atomisers enable quiet and fast operation with a small particle size.

- Portable: small and lightweight, they allow patients to carry out their treatments anywhere, anytime.
- Optimum particle size: their size determines the extent to which the medicine will be inhaled by the patient and penetrate deep lung tissue. Approximately 90% of the particles generated by the Family or Pingoo models are within the optimal particle size range of 1.5 µ (microns).
- Fast treatment: its high efficiency allows a short treatment time, generally less than 6 minutes, with limited energy consumption.
- Low noise level: treatments are fast and quiet thanks to advanced ultrasound technology.
- Rechargeable battery: optional
- User manual in 8 languages: GB, FR, DE, IT, ES, PT, GR, Arabic - Power supply: 220240 V 50/60 Hz
- Absorption: 10W
- Ultrasound frequency: 2.5 MHz
- Nebulisation time: 0.20.7 ml/min depending on drug density
- Bowl capacity: max 4.5 ml
- Automatic switch-off
- Partice dimensions - Child mask
- Nasal fork and mouthpiece
- Connecting tube
- Medication cup
- Transformer (DC 220240V 12V DC)
- Transport bag
- User's manual

Accessory kit (mask for adults and children, mouthpiece) replacement for cod. 28066

Compact, fast and silent aerosol.
Suitable for the treatment of respiratory, bronchial, asthmatic and allergic diseases.
Ideal for atomising any medicine, even oily ones such as cortisone essential oils and active ingredients with solid elements (suspensions).

Supplied with carrying bag, ampoule, mask for adults and children, air tube, nozzle and nasal fork.
Box and multilingual manual: GB, FR, IT, ES, DE.
Class IIa.
Made in Italy. AC adapter:
input 100240 V 50/60 Hz 0.6 A
output 12 V DC 2 A
Duty cycle: 30/30 min. ON/OFF
Noise level: 51 dB
Atomisation rate: 0.45 ml/min with 0.9% NaCl
Air flow: 12 l/min
Maximum pressure: 165 kPa/1.65 bar
Dimens

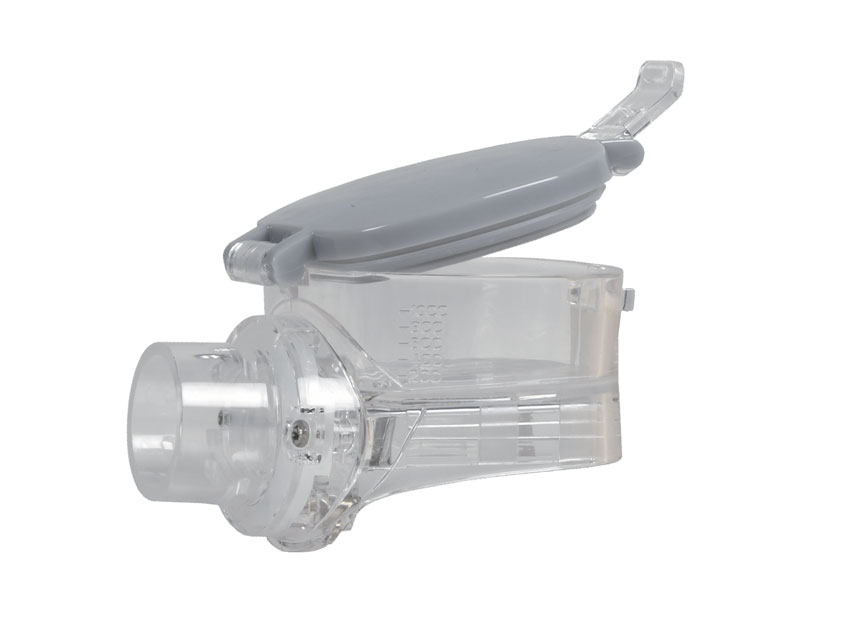

Replacement head for nebuliser cod. 28066

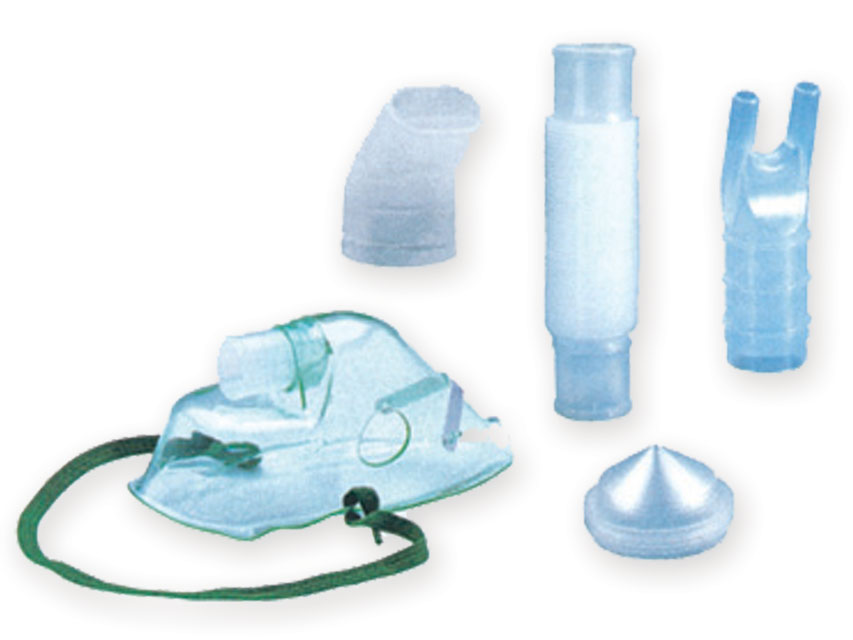

Spare parts kits for Family (code 28106) and Pingoo (code 28117) ultrasonic aerosols:
adult mask
paediatric mask
nasal fork
mouthpiece
connection tube

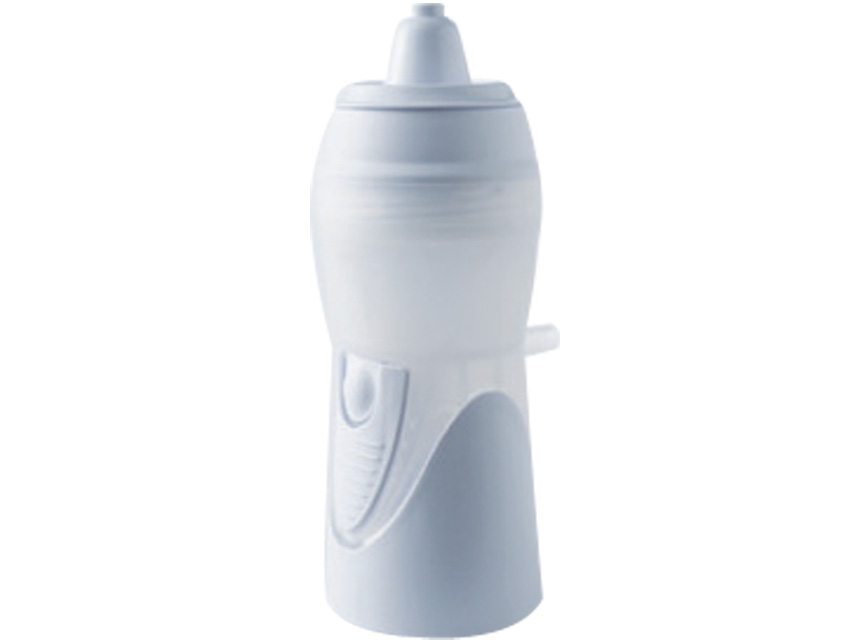

Nasaljet is a fast and effective nasal irrigation device for rinsing the nasal and nasopharyngeal cavities.

Spare PEDIATRIC KIT

Kits include; container with antimicrobial filter, adult or paediatric suction tube, adapter.
