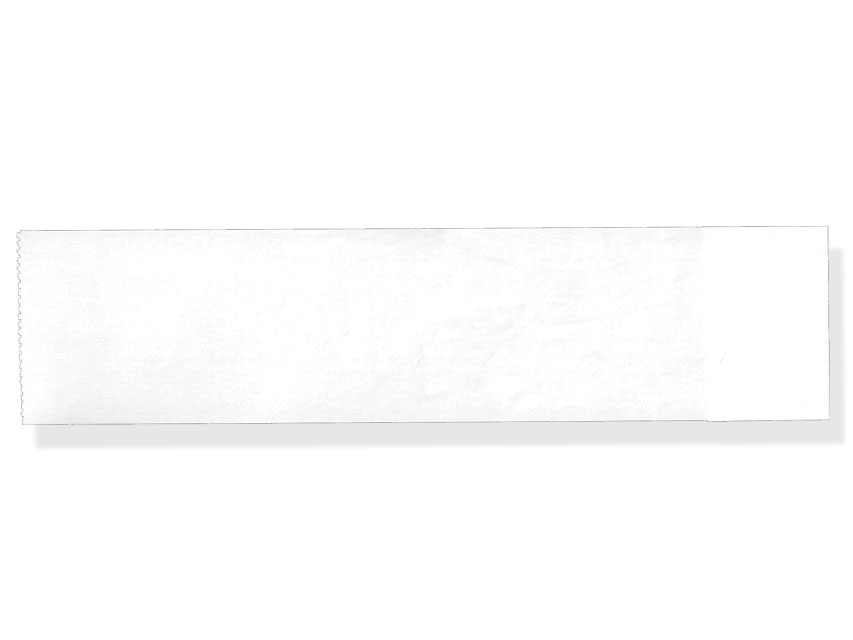

Accessories and spare parts for VITAL and UP 7000 line.

PHENOL FREE: completely phenol-free, ensures maximum safety for the user

Ear muffs - pack of 500

VITAL SIGNS MONITOR CHECKME™ PRO - with Bluetooth

Complete, compact, versatile and portable wireless devices allow you to monitor your health status anytime, anywhere.
Can be used in various contexts: outpatient, emergency, doctor's office, telemedicine.
MyBeats Hub app.

Dimensions: 88x56x13 mm
Weight: 80 g ECG
- usable with and without cables
- 500 Hz sampling frequency and wide bandwidth
- possibility of playing back 30/60 s ECG traces
- professional ECG algorithm to provide heart rate, QRS duration, ST segment, interval ECG cable, SpO2 sensor, ECG electrodes, charging cable, shoulder strap, protective case, wrist strap

Manual: GB, ES, IT, DE, FR.

Audio instructions: GB, ES, IT, DE, FR, PL, RU, HU.

PC software: GB.

App: GB, DE, FR, ES.

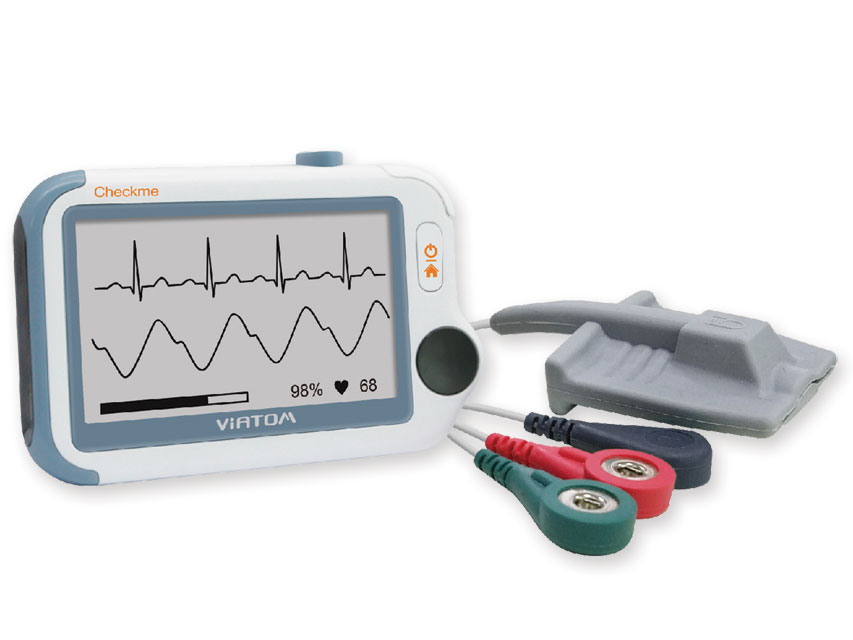

CHECKME™ PRO VITAL SIGNS MONITOR WITH ECG HOLTER - with Bluetooth

Complete, compact, versatile and portable wireless devices allow you to monitor your health status anytime, anywhere.
Can be used in various contexts: outpatient, emergency, doctor's office, telemedicine.
MyBeats Hub app.

Dimensions: 88x56x13 mm
Weight: 80 g ECG
- usable with and without cables
- 500 Hz sampling frequency and wide bandwidth
- possibility of playing back 30/60 s ECG traces
- professional ECG algorithm to provide heart rate, QRS duration, ST segment, intervall ECG cable, SpO2 sensor, ECG electrodes, charging cable, shoulder strap, protective case, wrist strap, y-adapter and sports chest belt

Manual: GB, ES, IT, DE, FR.

Audio instructions: GB, ES, IT, DE, FR, PL, RU, HU.

PC software:

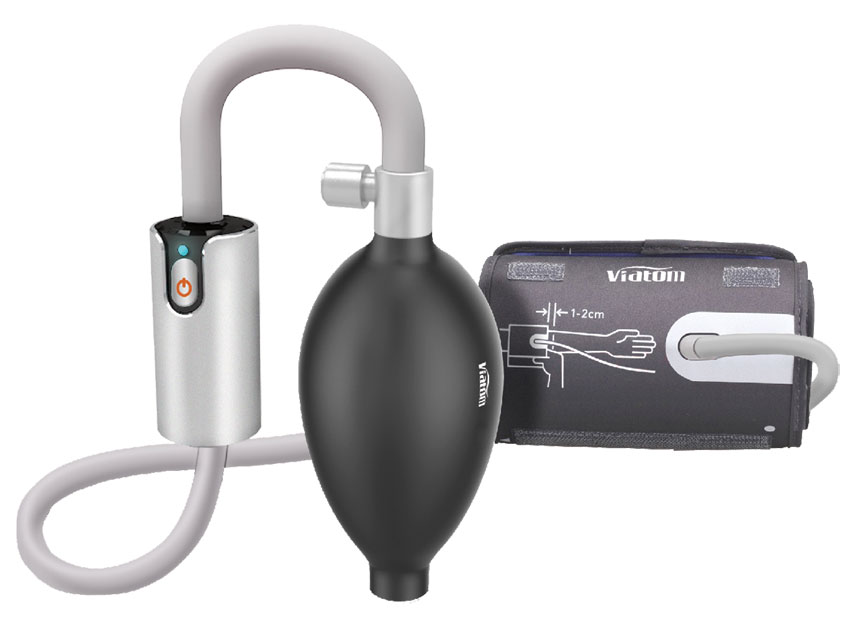

AIR BP PRESSURE MEASUREMENT MODULE

Portable smart device for measuring blood pressure.
- one battery charge for 1000 measurements
- easy to use, robust and durable
- professional measurement
- readings:
- systolic pressure, diastolic pressure, heart rate;
- pulse pressure, MAP (mean arterial pressure)
- irregular heartbeat
- works with Smartphone
- real-time virtual mercury column in the App during measurement
- real-time heart rate waveform
- multi-patient management
- unlimited recordings
- works with Checkme Pro 35186, 35187.

Supplied with armband, charging cable and multilingual manual (GB, FR, IT, ES, DE). Armband: Arm circumference: 22-42cm
Wireless: Bluetooth 4.0 BLE
Charging input: Micro USB, 5V DC
Battery life: 1000 measurements, rechargeable
Pressure measurement range: 0-300 mmHg ±3 mmHg
Heart rate: 40-200 bpm ±2 bpm
App

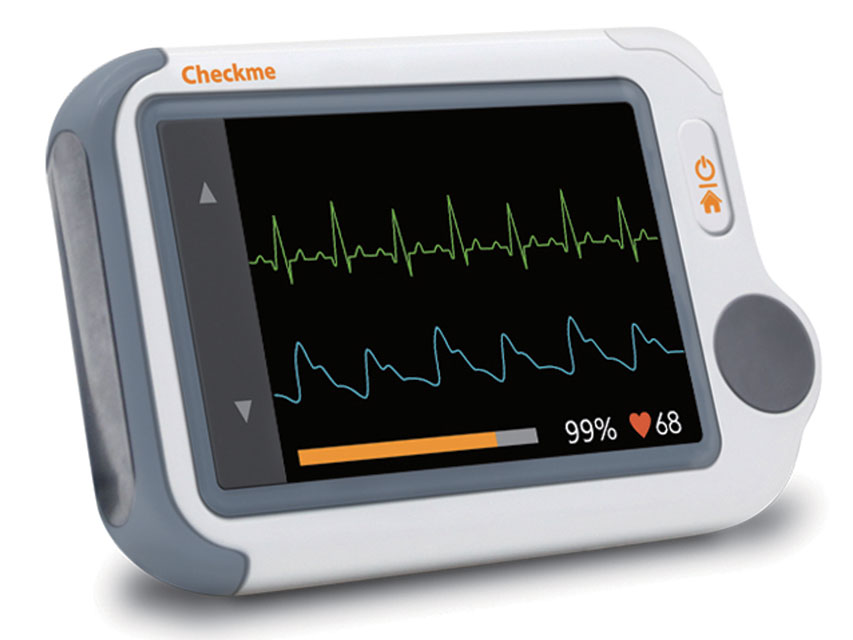

CHECKME™ lite with Bluetooth

The Checkme lite multi-parameter monitor is an innovative, compact and portable device with multiple functionalities.

The colour touch screen, well-organised interface and audio instructions make Checkme lite a very intuitive and easy-to-use tool.

Portable and convenient to use, it simultaneously measures ECG, heart rhythm, QRS duration, SpO2, pulse rate and perfusion index anywhere, anytime.

Clinically proven accuracy, professional quality.

- support of both measurement modes, wired and wireless for ecg and SpO2 (optional cable)
- health status update in 20 seconds at the touch of a button
- professional ECG algorithm is able to derive not only the heart rate, but also QRS duration, ST segment and rhythm analysis
- control of blood oxygenation in 20 seconds
- high quality ECG traces that can be saved and played back
- professional software for PC-based data management and report writing (Windows oS compatible)

Manual: GB, IT, ES, DE, FR.
Audio instructions: GB, PL, DE, IT, FR, ES, HU.
PC software: GB. PC software
Shoulder strap
ECG cable
ECG electrodes
USB charging cable, micro D

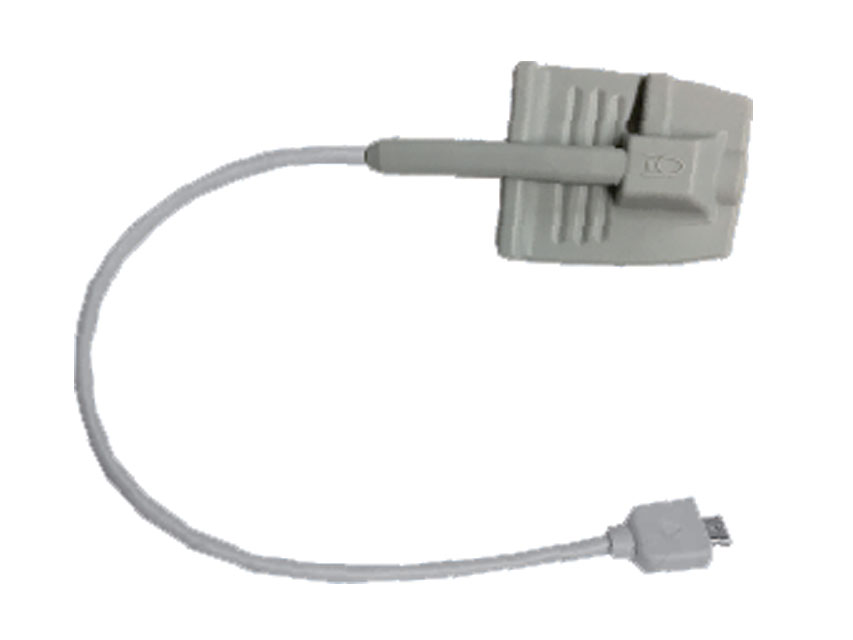

ADULT spo2 EXTERNAL SENSOR - reusable - optional

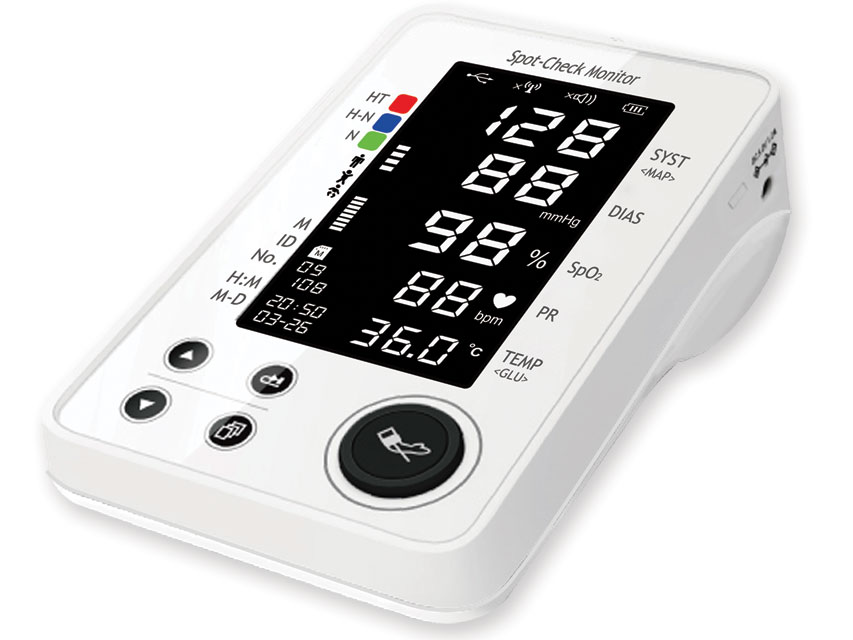

The PC-300 portable monitor measures SpO2, pulse rate, NIBP and temperature.

Suitable for home and hospital use.

Equipped with Bluetooth technology and USB interface, it enables data transfer to PCs, tablets and smartphones (Android and iOS).

- up to 6,000 pressure recordings for up to 100 different patients (each user can record 999 measurements)
- ear probe that measures temperature in 5 seconds
- data transfer to PC/Smartphone via USB or Bluetooth
- optional paediatric NIBP cuff and paediatric SpO2 probe
- optional ECG and glucometer
- rechargeable lithium battery included
- communication protocols available on request

Dimensions: 165 x 96 x 68 mm.
Memory of 6,000 NIBP SpO2 measurements
Measurement range: 0-100%
Accuracy: ±3% (70-100%)

Pulse Rate
Measurement range: 30-240 bpm
Accuracy*: ±2% or ±2 bpm (whichever is greater)
*Square Mean Deviation value in accordance with ISO 80601-2-61, Reusable Adult SpO2 Probe
Adult NIBP cuff
Ear thermometer (probe covers not included)
Lithium battery with charger
Carrying case
User manual: GB, FR, IT, ES

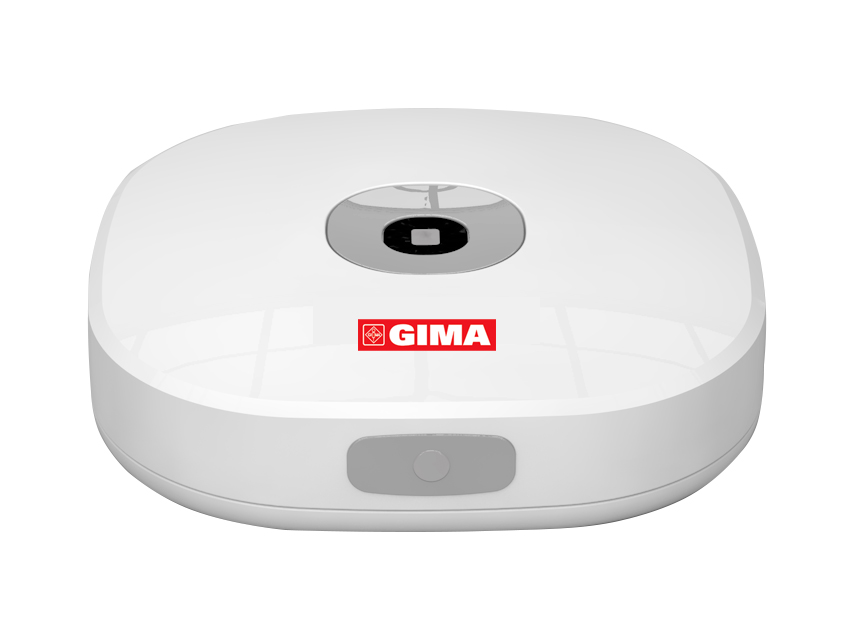

GIMA HEALTH MONITOR 5 IN 1 MULTI FUNCTIONAL

Gima Health Monitor 5 in 1 is a compact, portable and multifunctional device for measuring 5 vital signs: body temperature, blood pressure, blood oxygen, ECG-detected heart rate and respiratory rate.

The Gima Health Monitor works with a Bluetooth connection for data transmission to a mobile phone application, where the measured values are recorded and stored.

Infrared sensors and pressure sensors capture the information.

Free Health Monitor app (GB, IT).
Supplied with detachable magnetic wristband, USB charging cable, multilingual manual (GB, FR, IT, ES, DE). Blood pressure, Heart rate
Measurement method: oscillometric
Cuff size: 22-35 cm
Measurement range: 0-300 mmHg ±3 mmHg
Heart rate: 40-180 bpm ±5%.
Systolic pressure: 60-230 mmHg
Diastolic pressure: 40-1

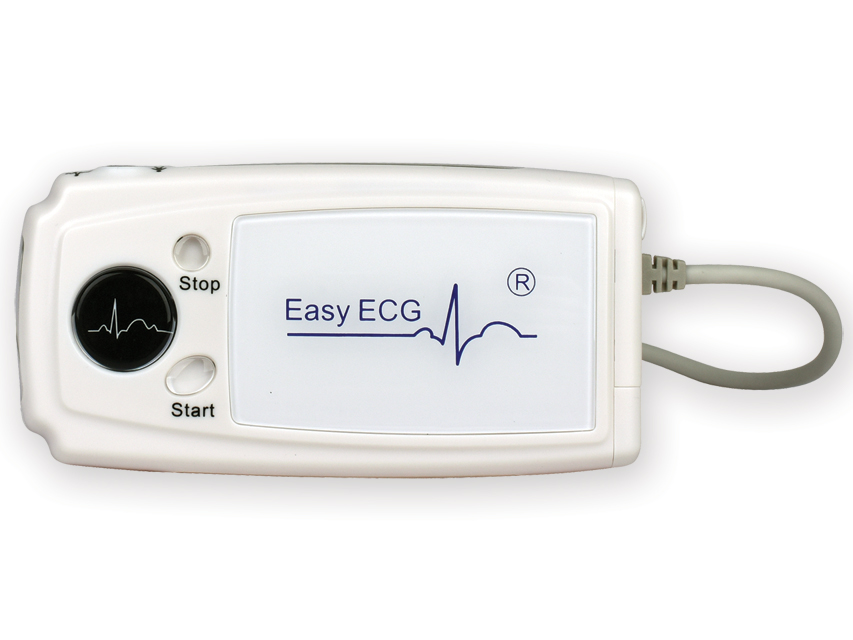

Optional ECG module for hand-held multi-parameter monitor.

This accessory can be connected to:
- Multi-parameter monitor PC-200 (part no. 35160) Requires three-lead ECG cable (part no. 35179).
- Multi-parameter monitor PC-300 (part no. 35162) Requires three-lead ECG cable (part no. 33248).

In Handheld Mode, the ECG module can be connected without the three-lead cable.
