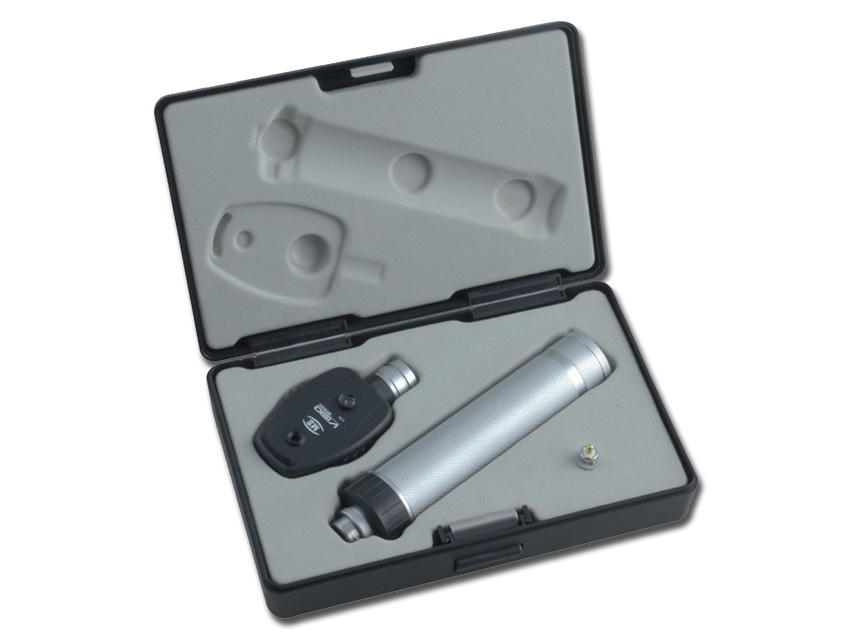

Professional diagnostic set with 2.5V halogen/xenon fibre optic lighting system, rheostat to adjust light intensity. Powered by rechargeable Li-ion batteries. All products are made of impact-resistant reinforced plastic and locking system for hospital use. Supplied in a hard plastic case, requires a rechargeable Li-ion battery (31541) and charger (31542).

Oto/ophthalmoscope set xenon F.O 3.5 V
- Ophthalmoscope head F.O
- Battery handle with bayonet connection

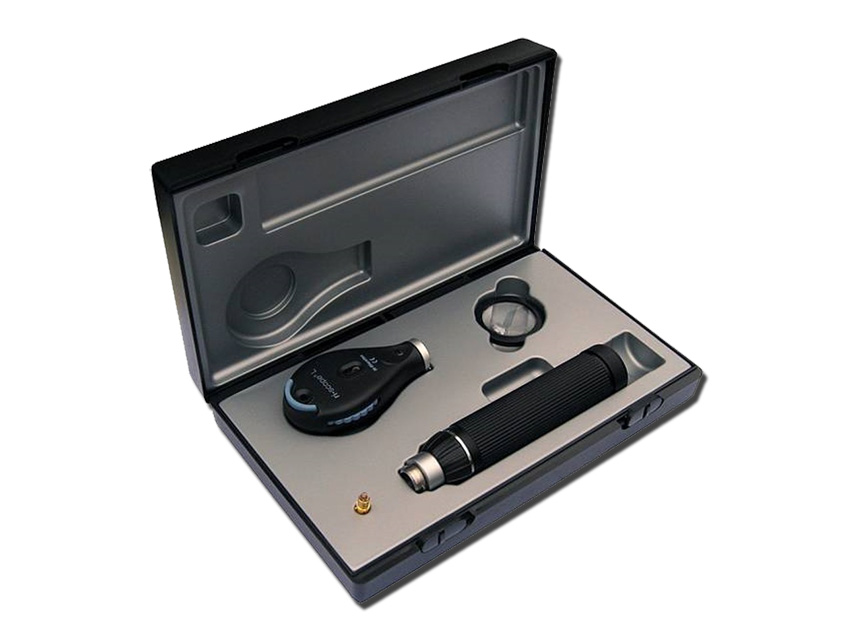

- In hard case Xenon ophthalmoscope
- 6 selectable apertures for:
- Microspot aperture
- Small opening
- Large aperture
- Fixation star
- Slot
- Green filter
- Very bright xenon light
- Simple and durable locking system

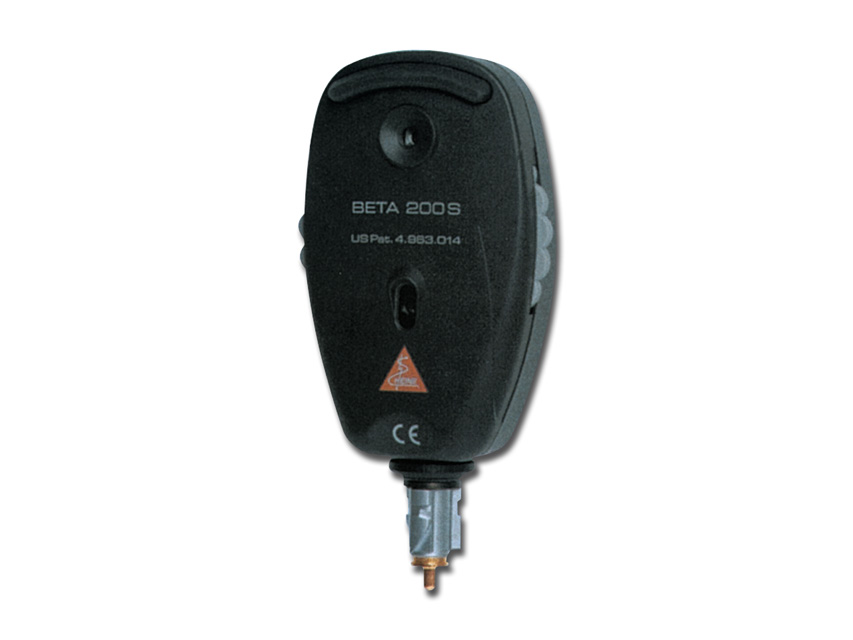

BETA metal handle with batteries (2 x 2.5 V) with rheostat. Aspheric optical system for fundus examination even with small, undilated pupils. No corneal or iris reflections. Hermetically sealed. 6 diaphragms, anti-eritro filter (green) usable with all diaphragms, lenses from -35 to + 20. Supplied with 4 re-sterilisable nylon speculum, 10 disposable speculum, replacement bulb. - 74 single corrective lenses

+ in unit values: +1 to +38 D
- in unit values: -1 to -36 D

- Cobalt blue filter, fixation star with polar co-ordinates, large spot, small spot, microspot, slit, semi-circle with green filter,

Like code 31730 but with rechargeable handle and Li-Ion batteries. - 6 standard diaphragms with polar co-ordinates, cobalt blue filter, large spot, small spot, microspot
- 6 diaphragms with green filter

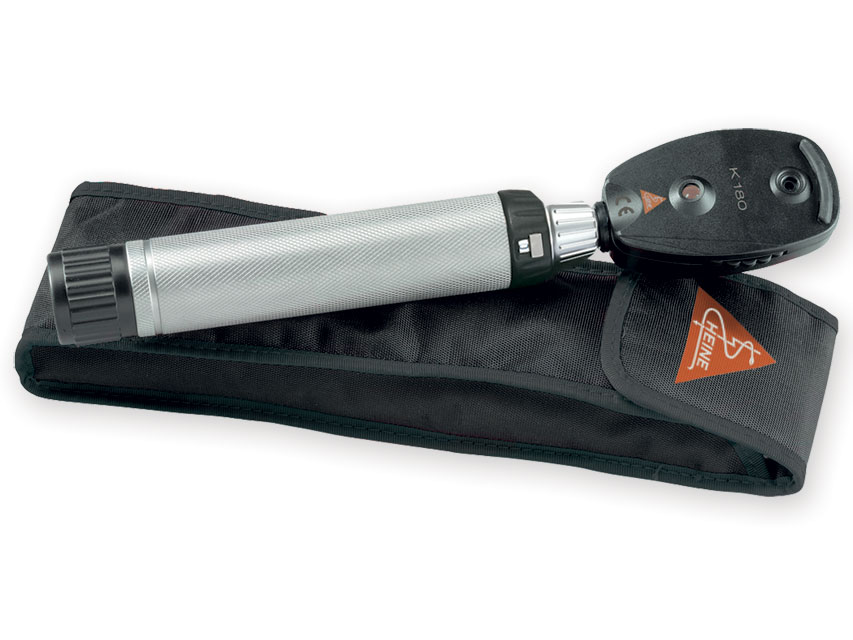

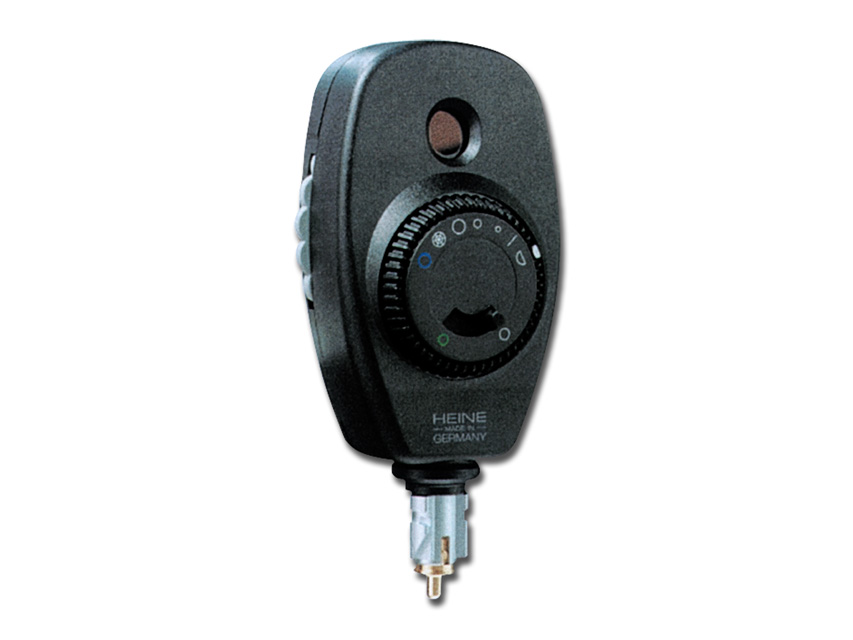

BETA 200 Otoscope, Ophthalmo K180 with spherical optics, 5 diaphragms, blue filter, 28 lenses (-35 + 20 D). Supplied with 4 re-sterilisable specs.

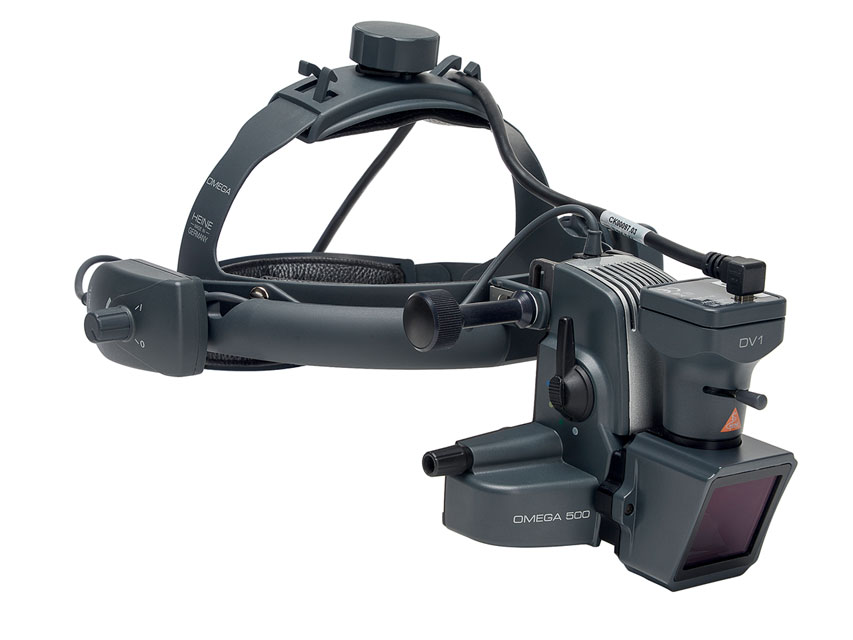

HEINE OMEGA 500 LED HQ INDIRECT OPHTHALMOSCOPE WITH DIGITAL CAMERA - C-008.33.561

With mPack UNPLUGGED with plug-in transformer

- 1280 x 960 Image: capable of capturing high definition video
- easy to use: digital image without additional adjustments
- comfortable and balanced: the helmet distributes the light weight of the camera and lens evenly
- integrated focus adjuster
- interface and software: connects to any laptop or computer via USB 2.0 port. Supplied with software for video recording and image capture. For more information see http://dv1.heine.com
- cable-free power supply: mPack UNPLUGGED rechargeable battery system

Advanced basic model with blue and polarising filters that can be activated
separately for each aperture.
Dioptric wheel with 29 corrective lenses: +1-10, 12, 15, 20, 40 -1-10, 15, 20, 25, 30, 35
- Easy-to-use aperture via manual wheel with semi
circle, small/medium/large circle, fixation star, and slit
- Includes activatable filter wheel for each aperture with display of the
symbol, red-free filter, blue filter and polarising filter.

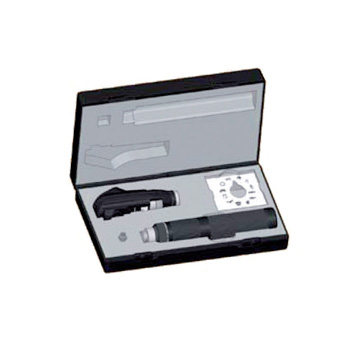

RI-SCOPE® l2 xenon retinoscope - 3.5 V - 'C' handle

mPack portable battery integrated in the helmet, plug-in transformer, rheostat and 90° angle adapter

-Lightweight: weighs only 450 g
-Clearer and more detailed vision: a new multi-layer illumination system with state-of-the-art XHL Xenon halogen bulb technology reduces corneal reflections and guarantees a high and clear resolution of the fundus image that is 100% brighter.
- Improved function even with the smallest pupils.
Patented synchronised adjustment ensures precise selection of observation and illumination optics with any pupil size from 10 mm down to 1 mm.
- Complete product: 3 different diaphragms with small, medium and large spots. Fine adjustment of the illumination beam.
3 integrated filters: red absorbing green, cobalt blue and yellow.
- Headband comfort: adjustable hinges allow vertical adjustment of the back of the headband to suit personal requirements.
- LED technology: absolute homogeneity, uniform illumination, up to 100% brighter than XHL (xenon technology)
- rechargeable battery integrated in the helmet
- mPack rechargeable battery: charging time: 2 hours, battery life 8 hours

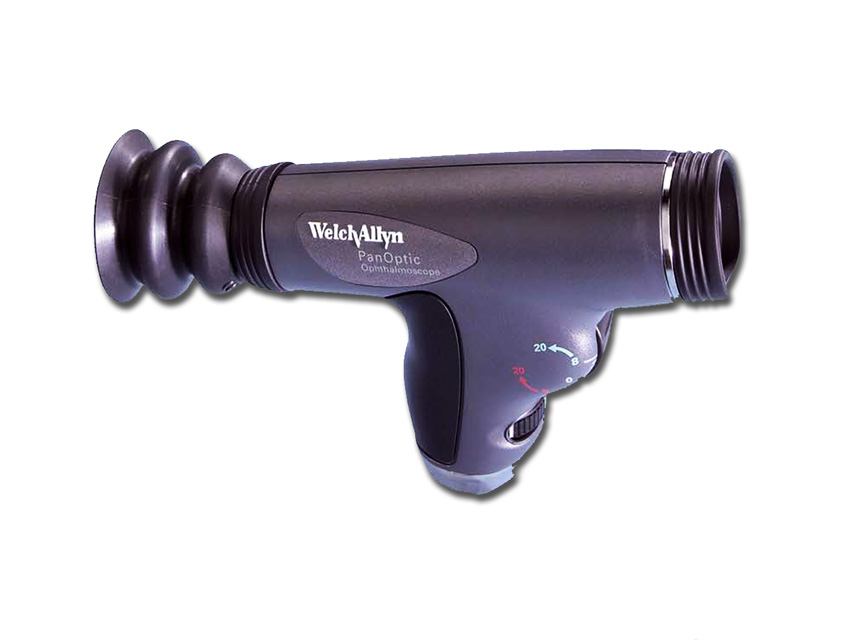

PanOptic represents a revolutionary concept in ophthalmoscopy. Thanks to its innovative proprietary optical technology called Axial PointSource, PanOptic enables significantly enhanced ophthalmoscopic investigations of the fundus of the eye.

- Immediate and easy diagnostic investigation in the presence of undilated pupils
- Five times better fundus vision than with a standard ophthalmoscope and undilated pupils
- 25° field of view compared to 5° with standard ophthalmoscopes
- 26% higher magnification for an easier and better view of the retina in the smallest detail
- Greater distance between patient and physician for optimal comfort for both

Patented Axial PointSource™ optics:
Facilitates diagnosis in the presence of undilated pupils and provides a 25° field of view allowing a five-fold increase in fundus vision compared to that obtained with a standard ophthalmoscope and undilated pupils.

HPX™ Halogen Bulb:
Provides a whiter and brighter light

Anti-reflection system:
Eliminates interference from unwanted reflections.

3.5V Welch Allyn power supply:
Compatible with any standard 3.5V power supply, including: desktop recharger handles, convertible battery handles, wall transformers and the lithium battery handle.

Eye support for the patient:
Allows the correct visual distance to be adjusted and maintained, provides image stability for a panoramic view around the retina and insulates from ambient light. The eye support can be cleaned and reused.

Soft PanOptic handle:
The ergonomic handle provides maximum comfort, stability and access to optimal adjustments.

Diaphragm selector switch:
Allows selection of micro-spot, small and large diaphragms. Also includes red-opaque filter, slit diaphragm and half-moon diaphragm for corneal examinations.

Dynamic focusing disc:
Allows focus adjustment by a simple continuous movement for more precise control and optimal vision. Focusing with dioptric power between -20 and +20 dioptres.

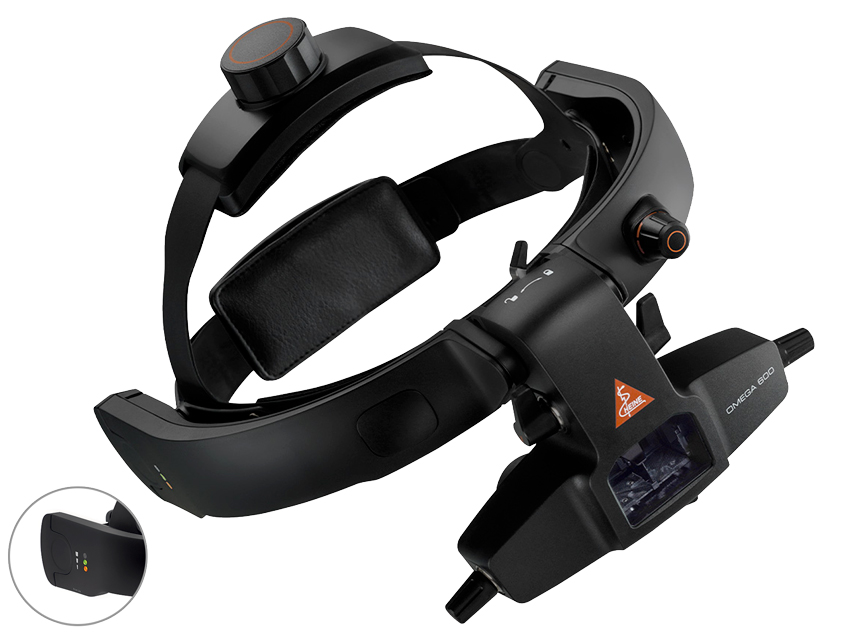

HEINE OMEGA 600 LED INDIRECT OPHTHALMOSCOPE - C-008.33.610

Binocular, lightweight, superior quality indirect ophthalmoscope; offers impeccable optics, very sharp images and realistic colours.
Enables you to explore the entire retina, even at the most remote end, and obtain more reliable diagnostics thanks to the unique VisionBOOST function, which allows you to safely increase the illumination of the device beyond the normal light intensity, obtaining up to 20% more detail of the observed area, especially in patients with ocular opacity (cataracts).

Features:
- sharp image of the ocular fundus thanks to superior glass optics
- clear illumination of the ocular fundus and realistic colour rendition thanks to unique LEDHQ
- optimal 3D images due to unique Stereoscopic Adjustment Technology in dilated and undilated pupils, even in premature and newborn babies
- ergonomic positioning of controls and levers
- adaptable for left and right-handed people
- override function of the optical unit for easier interaction with the patient
- robust construction and quality materials
- compact lithium battery
- electronics integrated in the case
- maximum wearability - latex-free

Supplied with battery, +2D eyepiece, E4-USBC power supply with cable, 0D eyepiece and multilingual manual: GB, FR, IT, ES, PT, DE, NL, SE, DK, NO, FI.

Made in Germany.

Durable leatherette upholstery: comfortable and easy to clean

Practical wireless helmet, maintenance-free and easy to clean thanks to smooth surface

Ultra-light lithium polymer battery: up to 8 hours working time depending on lighting intensity

Intuitive locking of the optical unit just adjust height, distance and angle

Yellow, blue or red-free filter adjustable according to diagnostic needs

Optimal 3D images for any pupil and peripheral vision thanks to Stereoscopic Adjustment Technology

With VisionBOOST, up to 20 % better vision in case of opacity. From 3 to 100 % and even 245 % for cataract examination

Aperture selection lever: HEINE diffuser, small, medium and large spot

Highly durable thanks to sealed optical unit

Better vision thanks to maintenance-free front glass optimised for the exclusive LedHQ Material: plastic, metal, glass, synthetic leather
Optical system: aspherical illumination distance
Illumination: 560 lux at 400 mm distance / 1380 lux at 400 mm distance with Boost mode
Colour temperature: 3000 K
Colour rendering index
