GIMA negativoscopes are designed in accordance with clinical recommendations with a very white light to provide an accurate and precise reading of any detail.

- External dimensions
- Length: 158 cm
- Height: 2x43 cm
- Depth: 12 cm
- Weight: 36 kg
- 2x4 panels

They are fitted with an acrylic screen, 3 mm thick, and are constructed in accordance with current safety regulations (fuse, Schuko plug, green ON/OFF light, etc.).

They can be used on the wall or table, in a horizontal or vertical position.

Aluminium prolicate chassis pre-painted with epoxy powder (RAL 7035).
Colour temperature: cold white 6,500°K
Power supply: 230 V - 50 Hz (60 Hz available at extra charge)
Protection fuse: 2x1A
Double-pole switch
Plug: Schuko with 2 metre cable
All components UL, DVE, IMQ approved
Production Italy

Replacement neon tube for part numbers 27366 - 27372

GIMA negativoscopes are designed in accordance with clinical recommendations with a very white light to provide an accurate and precise reading of any detail.

- External dimensions
- Length: 43 cm
- Height: 127 cm
- Depth: 12 cm
- Weight: 14 kg
- 2 vertical panels

They are fitted with an acrylic screen, 3 mm thick, and are constructed in accordance with current safety regulations (fuse, Schuko plug, green ON/OFF light, etc.).

They can be used on the wall or table, in a horizontal or vertical position.

Aluminium prolicate chassis pre-painted with epoxy powder (RAL 7035).
Colour temperature: cold white 6,500°K
Power supply: 230 V - 50 Hz (60 Hz available at extra charge)
Protection fuse: 2x1A
Double-pole switch
Plug: Schuko with 2 metre cable
All components UL, DVE, IMQ approved
Production Italy

Fluorescent circulating light 32 W - replacement

GIMA negativoscopes are designed in accordance with clinical recommendations with a very white light to provide an accurate and precise reading of any detail.
Manufactured in enamelled steel.
Unbreakable white monochrome diffuser, stainless steel pick-up system.

- Homogeneous cold fluorescent light
- Brightness = 1,700 cd/m2
- Power supply = 230 V - 50/60 Hz

- External dimensions
- Length: 43 cm
- Height: 46 cm
- Depth: 14 cm
- Weight: 6 Kg
- Type: 1 panel

42 x 144 cm wall-mounted negativoscope

- External measurements
- Length: 154 cm
- Height: 50.5 cm
- Depth: 3.8 cm
- Weight: 16 Kg
- Switches: 1
- Model: 4 panels

ULTRA-FLAT NEGATIVOSCOPES WITH LED TECHNOLOGY

Latest generation of negativoscopes with LED technology and 7,200°K colour temperature for excellent viewing and reading of X-rays.
Total elimination of flicker and luminance of 5,000 cd/sqm with high homogeneity of light distribution.
Scratch-proof anodised aluminium frame with roller plate holding system included.
Dimmer for light intensity adjustment in a range between 30% and 100%.

Economic advantages:
- LED life of 80,000 hours, with low maintenance costs
- low consumption, in line with European Directives

Double bracket for table-top mounting horizontally or vertically on the wall

All negativoscopes are equipped with FAS (Film Automatic Switching), a presence sensor that switches the device off in the absence of the film. - Colour temperature: cold white 7200° K
- Brightness: 5000 cd/m2
- LED life: 80000 hours
- Power supply: 110-230V - 50/60 Hz
- Compliance with Low Voltage Directive 2014/35/EC
- Compliance with Electromagnet Compatibility Directive

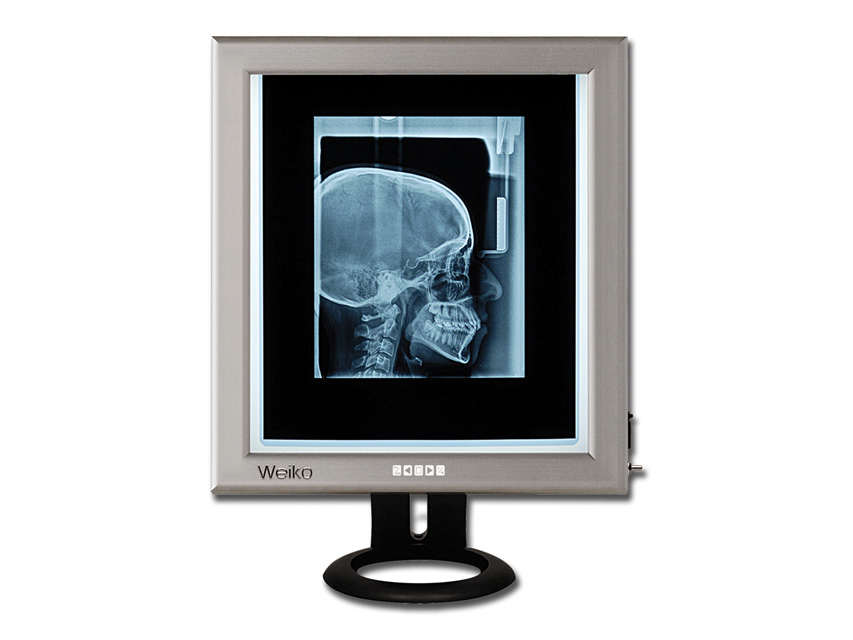

Table-top negativoscope 42 x 36 cm x1

- External measurements
- Length: 46 cm x1
- Height: 50.5 cm
- Depth: 3.8 cm
- Weight: 6 Kg
- Switches: 1
- Model: 1 panel

Fully adjustable table top model:
- height adjustment 13 cm
- inclination 35° (+25°/-5°)
- vertical or horizontal position
- horizontal rotation 270°

ULTRA-FLAT LED NEGATIVOSCOPES

Latest generation of negativoscopes with LED technology and 7,200°K colour temperature for excellent viewing and reading of X-rays.
Total elimination of flicker and luminance of 5,000 cd/sqm with high homogeneity of light distribution.
Scratch-proof anodised aluminium frame with roller plate holding system included.
Dimmer for light intensity adjustment in a range between 30% and 100%.

Economic advantages:
- LED life of 80,000 hours, with low maintenance costs
- low consumption, in line with European Directives

Double bracket for table-top mounting horizontally or vertically on the wall

All negativoscopes are equipped with FAS (Film Automatic Switching), a presence sensor that switches the device off in the absence of the film. - Colour temperature: cold white 7200° K
- Brightness: 5000 cd/m2
- LED life: 80000 hours
- Power supply: 110-230V - 50/60 Hz
- Compliance with Low Voltage Directive 2014/35/EC
- Compliance with Electromagnet Compatibility Directive

Table-top negativoscope 42 x 36 cm x3

- External measurements
- Length: 46 cm x3
- Height: 50.5 cm
- Depth: 3.8 cm
- Weight: 26 kg
- Switches: 3
- Model: 3 panels

Fully adjustable table top model:
- height adjustment 13 cm
- inclination 35° (+25°/-5°)
- vertical position
- horizontal rotation 10°

ULTRA-FLAT LED NEGATIVOSCOPES

Latest generation of negativoscopes with LED technology and 7,200°K colour temperature for excellent viewing and reading of X-rays.
Total elimination of flicker and luminance of 5,000 cd/sqm with high homogeneity of light distribution.
Scratch-proof anodised aluminium frame with roller plate holding system included.
Dimmer for light intensity adjustment in a range between 30% and 100%.

Economic advantages:
- LED life of 80,000 hours, with low maintenance costs
- low consumption, in line with European Directives

Double bracket for table-top mounting horizontally or vertically on the wall

All negativoscopes are equipped with FAS (Film Automatic Switching), a presence sensor that switches the device off in the absence of the film. - Colour temperature: cold white 7200° K
- Brightness: 5000 cd/m2
- LED life: 80000 hours
- Power supply: 110-230V - 50/60 Hz
- Compliance with Low Voltage Directive 2014/35/EC
- Compliance with Electromagnet Compatibility Directive

GIMA negativoscopes are designed in accordance with clinical recommendations with a very white light to provide an accurate and precise reading of any detail.
Manufactured in enamelled steel.
Unbreakable white monochrome diffuser, stainless steel pick-up system.
On/off switch to use each panel separately.

- Homogeneous cold fluorescent light
- Brightness = 1,700 cd/m2
- Power supply = 230 V - 50/60 Hz

- External dimensions
- Length: 83 cm
- Height: 46 cm
- Depth: 14 cm
- Weight: 10 Kg
- Type: 2 panels

42 x 108 cm wall-mounted negativoscope

- External measurements
- Length: 118 cm
- Height: 50.5 cm
- Depth: 3.8 cm
- Weight: 12 kg
- Switches: 1
- Model: 3 panels

ULTRA-FLAT NEGATIVOSCOPES WITH LED TECHNOLOGY

Latest generation of negativoscopes with LED technology and 7,200°K colour temperature for excellent viewing and reading of X-rays.
Total elimination of flicker and luminance of 5,000 cd/sqm with high homogeneity of light distribution.
Scratch-proof anodised aluminium frame with roller plate holding system included.
Dimmer for light intensity adjustment in a range between 30% and 100%.

Economic advantages:
- LED life of 80,000 hours, with low maintenance costs
- low consumption, in line with European Directives

Double bracket for table-top mounting horizontally or vertically on the wall

All negativoscopes are equipped with FAS (Film Automatic Switching), a presence sensor that switches the device off in the absence of the film. - Colour temperature: cold white 7200° K
- Brightness: 5000 cd/m2
- LED life: 80000 hours
- Power supply: 110-230V - 50/60 Hz
- Compliance with Low Voltage Directive 2014/35/EC
- Compliance with Electromagnet Compatibility Directive
