REM RUBBER PLATE 20x15 cm - requires cable 30575

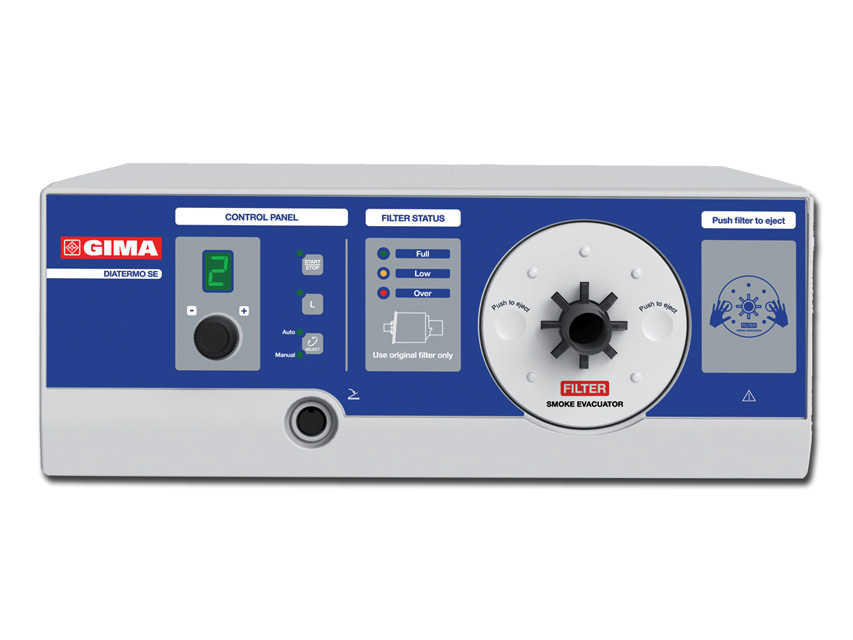

Extraction and filtering system for fumes produced during electrosurgical procedures. Fumes generated during electrosurgical procedures have an unpleasant, strong and long-lasting odour. These fumes consist mainly of water vapour, organic gases, visible or invisible solid particles and viral particles. Good suction and filtration eliminates unpleasant odours, reduces bacteriological and/or viral risks and solves the problem of optimal vision of the operating area during laparoscopic procedures.

Suction activation can take place
- Automatically, by means of the remote electronic activation detection system of a high-frequency electrosurgical unit
- Manually, by acting directly on the unit
- Via a foot control (optional)
The suction flow can be adjusted to suit individual needs.

For laparoscopic procedures there is a specific function, which can be called up quickly. It has an electronic suction control with filter wear status indication. Two types of filters are available, which are quickly replaceable and consist of ULPA-type filtration with an active carbon stage: The BLUE filter is the standard filter supplied with the unit, for initial use time (5 hours), The RED filter is an optional replacement filter, ideal for high use time (20 hours). They have a 7/8" connection. - Supply voltage: 230 V (115 V on request)
- Mains frequency: 50/60 Hz
- Max. power consumption: 800 VA
- Maximum suction (vacuum): 1000 LPM (35 CFM)
- Maximum static suction: 250 mbar (83 in H2O)
- Filter type: ULPA with carbon - ULPA filter for initial delivery (5h) - blue
- Suction kit
- filter
- tube Ø 22 mm length 2.4 m
- Handpiece suction kit
- adapter 10/22 mm
- tube Ø 10 mm, length 1.8 m
- clip
- handpiece adapter
- Power supply cable

CABLES FOR CONNECTING PLATES TO ELECTROSURGICAL UNITS

- PLATE CABLE - 5 m - Universal mono jack plug 6.3 m

The universal two-pole cables are supplied with a two-pole clamp for connection to single-use plates with a tab (size 22-25 mm).
Various connectors make the cables compatible with numerous electrosurgical devices.
During the operation, the cable can be fixed to the surgical drape by means of a metal sliding clamp.

Latex-free.
Individually packaged in sealed polyethylene bags.
Class I medical devices in accordance with 93/42/EEC.

COMPATIBLE ELECTROSURGICAL UNITS:
- Aesculap: TM,TM401
- Alexandra: D205,E300,500D,102/201, 2020/E, 202, MICRO180
- ALSA: All MF100,MF360/A360,380100,180
- Berchtold: Elektrotom 200,390,400,540
- Birtcher: 772,773,737,737XL,774
- Bovie: Bovie CSV,URO,BS,400/400,400SR,X10,X10L
- Burdick: U-7,SU-8
- Cameron-Miller: 26-1290
- Cobe: TS-403
- Concept: 9600,9700,9800,9900
- Dolley: COBII 203T, 502,503T,505T
- Ems Davol: System 2000,5000
- Faset: COBI Series
- Gima: all models
- GPS: all models
- I Cuatro: Megeri1
- Lamidey Subtilec series: All
- Lamidey Surgilec series: All
- Led: all models
- Martin: all models
- Neomed: 3000 Series, 3000A, 3002,3006; 3010, 3020
- Philips: TS-403
- Ritter/Mdt: Solide State 400,400B, 400SR
- Sidevan: Seb2
- Soxil: BP 2000,X10
- Thackray: T300S
- Torry: Lem 300 CST

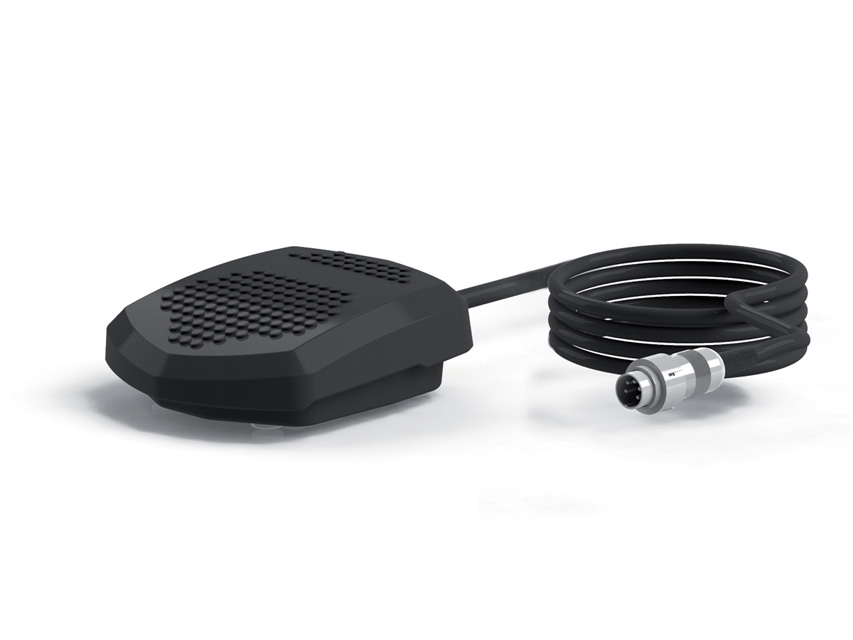

MB waterproof foot pedal with 3 m cable.

For 50, 80, 106, MB 80D, 120D, 120F, 122, 132, 160, 160D, 200, 200D, 200F, 200 T, 202

MB waterproof foot pedal with 2 m cable.

For 50, 80, 106, MB 80D, 120D, 120F, 122, 132, 160, 160D, 200, 200D, 200F, 200 T, 202

MONOUSED SOLID GEL PLATE - adults

All plates are individually wrapped.

REM SINGLE-USE BIPARTIC SOLID GEL PLATE - paediatric

All plates are individually packaged.

REM SINGLE-USE PLATE IN NON-WOVEN - adult/pediatric

All plates are individually wrapped.

3M 9160 BIPARTIC PLATE - pack of 100 pcs.

3M Universal Grounding Plates have a conduction area of 15 square inches and are equipped with 3M's patented green safety ring, which guarantees the same performance as plates with a 33% larger conduction area.

Fully liquid impermeable, woven fabric backing allows 25% faster heat transfer than foam.
Can be used for both adult and paediatric patients and without weight limitation.

BIPARTITE REM SINGLE GEL SOLID PLATE - Adults

All plates are individually wrapped.
