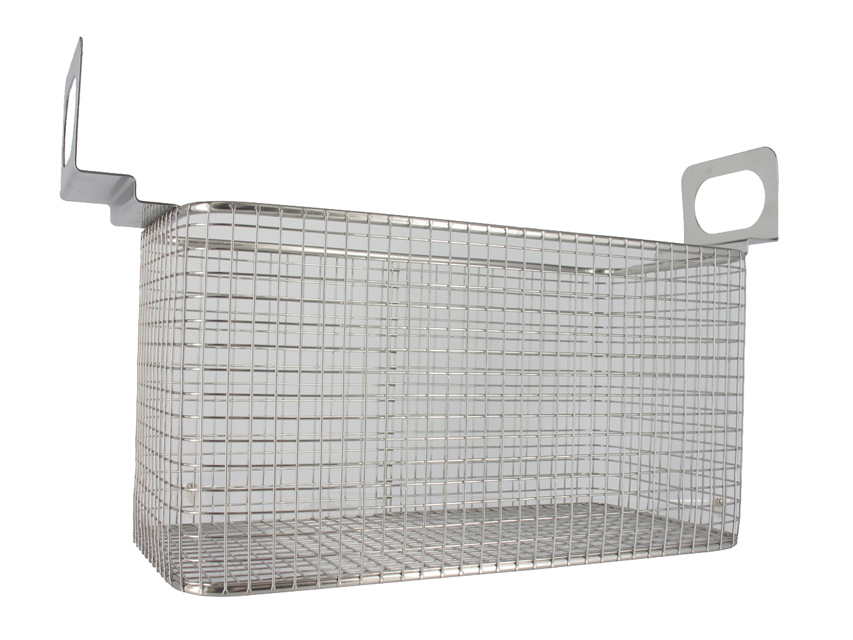

Perforated basket for Branson 2800 ultrasonic cleaners

Compatible with:
- BRANSON 2800 M - with mechanical timer (Code 35501)
- BRANSON 2800 MH - with mechanical timer and heating (cod. 35502)
- BRANSON 2800 CPXH - with digital timer and heater (cod. 35503)

Perforated basket for Branson 5800 ultrasonic cleaners (codes 35521-35522-35523).

Perforated basket for Branson 8800 ultrasonic cleaners (codes 35531-35532-35533).

M series (mechanical timer): includes a mechanical timer with an adjustment scale of up to 60 minutes.

Cleaning precision
Ultrasonic cleaning is faster, more effective and safer than any other method. It is powerful enough to remove heavy oils and waxes and allows it to penetrate deep into the most insidious places where a manual cleaning brush cannot fit.

Ultrasound are sound waves that radiate into the liquid contained in the tray, generating an effect called cavitation, i.e. a rapid formation and implosion of microscopic bubbles. Heat enhances the process.

Deep ultrasonic cleaning removes even the most stubborn dirt and contamination.

Branson: at the forefront of ultrasonic cleaning
GIMA selected Branson for its half-century of experience in ultrasonic cleaning, which brings these cleaners to the technical forefront:
- higher than average frequency, which results in a deeper and more effective effect
- extreme silence
- ease of use even for the inexperienced

All Branson cleaners are supplied with a tray cover and a multilingual manual (GB, FR, IT, ES, DE, PT, SE, NL, RU).

We recommend use with the optional perforated basket. M Series (mechanical)
- Timer: 60 minutes
- Lid
- Continuous operation
- Scanning frequency

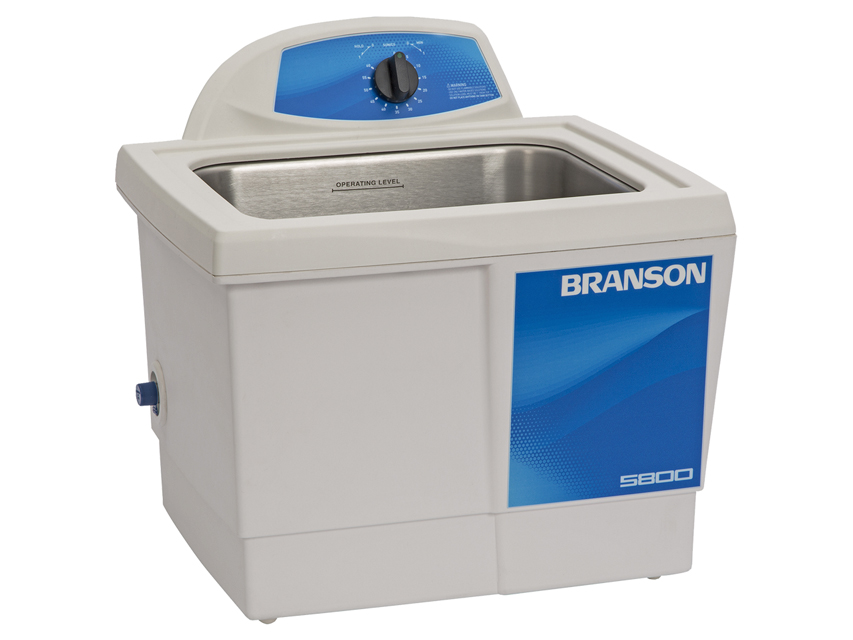

BRANSON 5800
- Pan dimensions: 290 x 240 x 150 mm
- External dimensions: 397 x 401 x 378 mm
- Tray capacity: 9.5 l
- Drain kit: inc

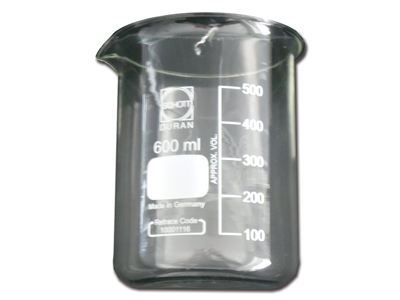

600 ml beaker for ultrasonic cleaners:
- Branson 2800 (codes 35501-35502-35503)
- Branson 3800 (part numbers 35510-35511-35512)
- Branson 5800 (part numbers 35520-35521-35522)
- Branson 8800 (part numbers 35531-35532-35533)

The ultrasonic tank is designed for washing instruments used in the medical, dental, aesthetic and veterinary fields. The device by means of ultrasonic cleaning (cavitation) allows cleaning in places that are difficult to reach by manual cleaning.

Heating
The device heats up the washing liquid. It stops automatically when the set temperature is reached.

Degassing (degas)
This process reduces the gases dissolved in the liquid and improves the efficiency of subsequent washing.

Ultrasonic washing
Washing stage using ultrasonic cavitation.

Sweap
Ultrasound is frequency modulated to reduce the negative effects of standing waves by increasing the distribution of ultrasonic energy in the washing liquid.

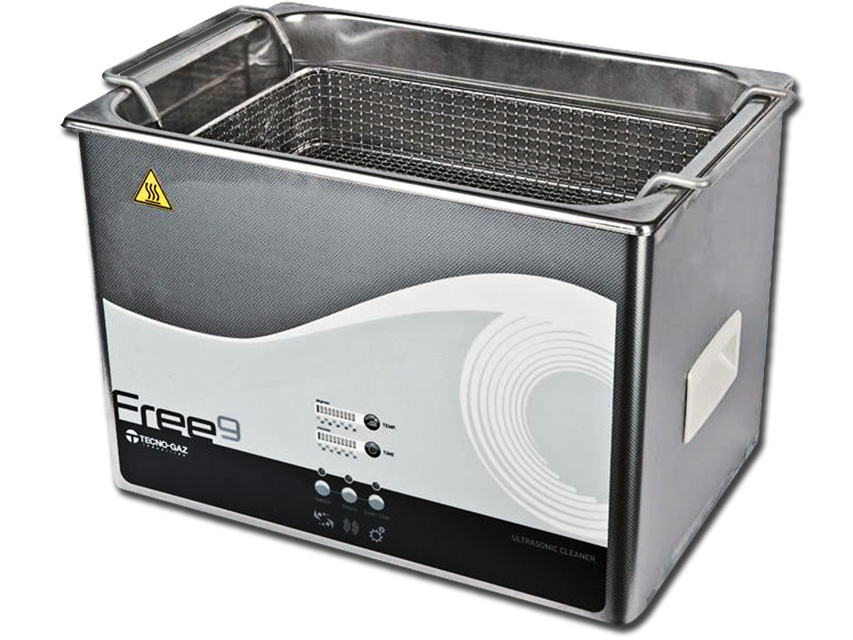

Drain
The tank of the BASIC model is emptied manually, the hose of the free model can be emptied by opening the valve. All ultrasonic cleaners are supplied with a basket and lid. - Basket dimensions: 332 x 120 x 227 mm
- Overall dimensions: 418 x 268 x 269 mm
- Weight: 7.4 kg
- Ultrasonic power: 300W

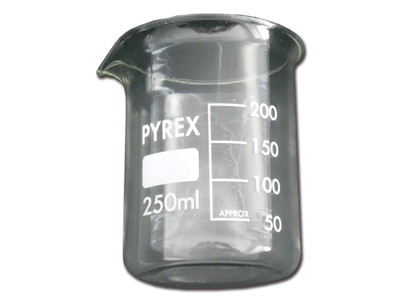

250 ml beaker for ultrasonic cleaners:
- Branson 2800 (codes 35501-35502-35503)
- Branson 3800 (codes 35510-35511-35512)

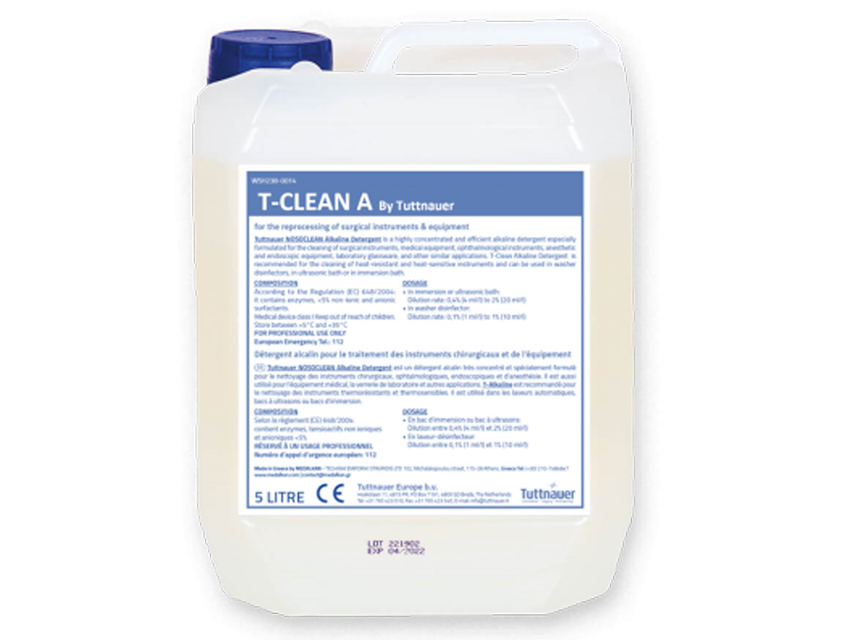

T-CLEAN ALKALINE DETERGENT A TUTTNAUER - 5 litres

Highly concentrated and effective alkaline cleaner for cleaning surgical instruments, medical equipment, ophthalmic instruments, anaesthetic and endoscopic equipment, laboratory glassware and similar applications.

Formulated with alkaline agents, surfactants, highly stabilised enzymes and powerful anti-corrosives, it facilitates the dissolving of organic residues such as fatty and protein deposits, while effectively contributing to the removal of biofilm.

T-CLEAN A is recommended for both heat-resistant and heat-sensitive instruments.
It can be used in automatic instrument washes, ultrasonic baths or immersion baths.
Leaves no residue.
For use in softened water or limy water.
Does not foam and prevents corrosion and discolouration of instruments.

Compatible with most materials such as stainless steel, glass, ceramic, hard plastic, ebonite, etc.

Professional use.

Label: GB, FR, IT, DE.

Medical device, class I.
Complies with MDR (EU) 2017/745 Density: 1.02 g/cm3 at 20°C
pH: 10.00-10.50 at 20°C
pH (1% in deionised water): 10.20-10.80 at 20°C
Viscosity: <50 mPas at 20°C
Biodegradability: complies with OECD 301D

CHEMICAL COMPOSITION
Ingredients: < 5% non-ionic and anionic surfactants, agents

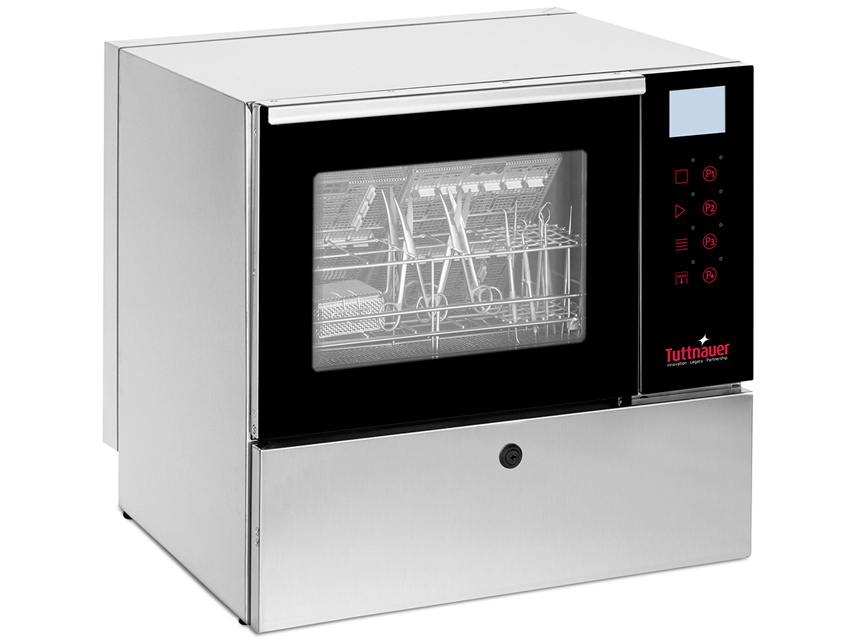

BENCH WASHER WITH DRYING SYSTEM

Easy-to-use bench-top washer-disinfectors for washing and disinfection procedures.
The washing chamber is made of high quality stainless steel, AISI 316L.
Elegant and efficient design, touch keyboard and 3.5" LCD graphic screen in 7 selectable languages (GB, FR, IT, ES, PT, DE, SE).

Choice of 3 pre-set and 37 customised programmes.
Both equipped with a dosing pump with flowmeter and level sensor.
Manual door with interlock and integrated water softener to reduce the level of limescale in the incoming water.

- complete drying with dedicated fans
- integrated steam condenser
- real-time indication of water level and quality
- data transfer via USB and R232 with optional software
- 2 PT100 temperature sensors
- standard electrical connection (230V - 1 phase - 50Hz)

Supplied with standard wash basket, insert for vertical instruments, insert for 8 surgical cassettes, USB stick with demo software* and manual in GB, IT. Available at www.gimaitaly.com FR, ES, PT, DE, PL, RO, SE, RU.

*Demo software includes a one-week free trial, after which a licence must be purchased (code 35569)

Made in Italy. Chamber capacity: 65 litres
Flushing pump capacity: 100 l/mn
Fan flow rate: 18 m3/h, 30 W
Energy consumption: 2.9 kW
Internal tank: 0.6 l
Dimensions - weight: 59.5x52xh 60 cm - 75 kg
Standards: EN ISO 15883-1/2; EN 1717
Operating voltage: 230 V - Standard washing basket (38.7x40.1x7.8 cm)
Insert with 8 positions (18x37x10.5 cm)
Insert for vertical instruments (11.9x37x12.4 cm)

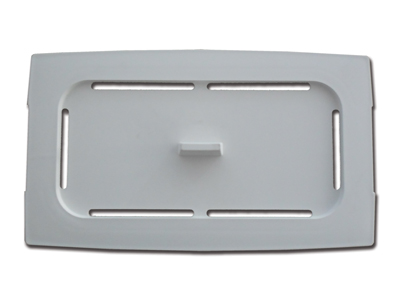

Plastic cover for Branson 3800 ultrasonic cleaners (codes 35510-35511-35512).
