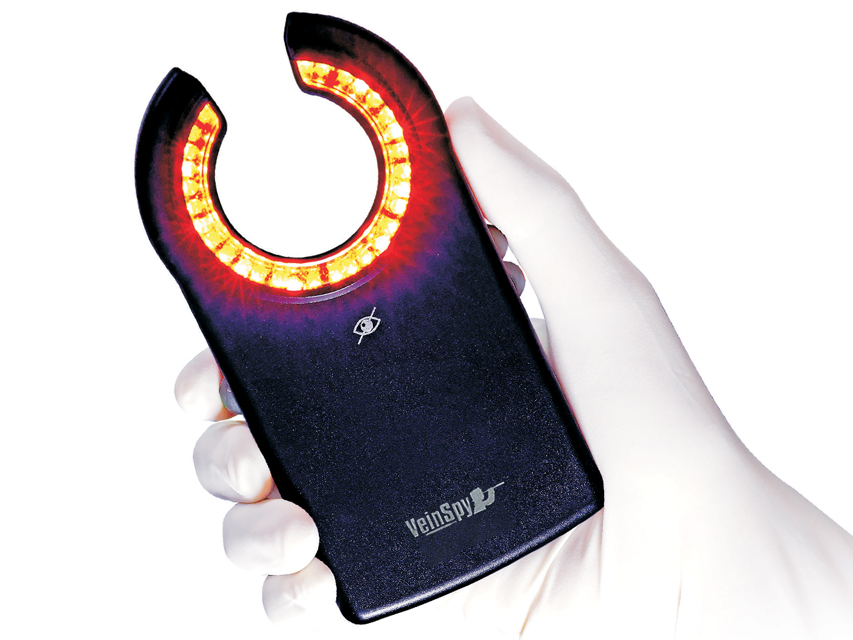

VeinSpy is a portable device to facilitate visualisation of veins in adult, paediatric, geriatric, obese and dark-skinned patients with difficult venous access.

It is based on cross-illumination technology: light beams from a circular array of LEDs penetrate the skin and act as a light source to achieve deep illumination of subcutaneous tissue.
Veins in the illuminated area absorb the light and stand out as dark lines.

The VeinSpy device consists of two coloured LED arrays: one array emits optimal orange light for superficial veins, another array emits red light to find deeper veins.

Advantages of VeinSpy
reduces multiple needle pricks and facilitates choice of needle insertion point
no delay in treatment due to difficult venous access
reduces patient pain due to needle insertion
increases patient comfort, avoids bruising

How to use VeinSpy
1 Clean the area of the patient's skin with a pad soaked in alcohol
2 Insert VeinSpy into the disposable sheath and switch on the device.
3 Move VeinSpy transversely and forwards to obtain a clear visualisation of the specific vein
4 After visualising the vein, move the device so that lago can be inserted easily
5 Gently press VeinSpy onto the vein, insert lago into the vein through the open end of VeinSpy Number of LEDs: 22 orange, 8 red
Functional aperture: 17 mm
Viewing diameter: 33 mm
Rechargeable battery: lithium-ion, 3.7V, 1150mAh
Charger: 110240V AC input, 5V DC 750mA output
Battery backup: one and a half hours of use co Rechargeable battery
Battery charger
50 disposable plastic sleeves
Multilingual user manual: GB FR, IT, PT, ES

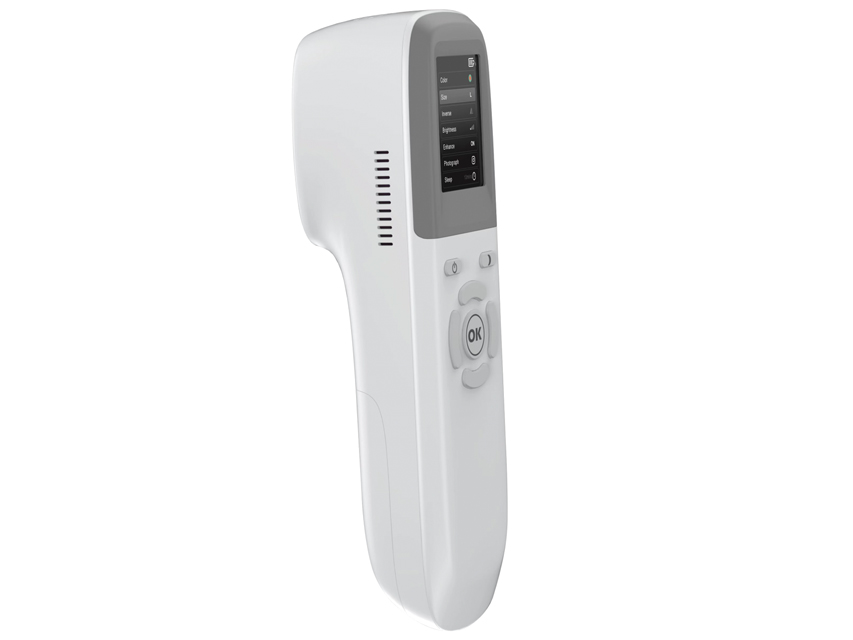

PROFESSIONAL VEIN DETECTOR QV600 with display

Portable vein detector that projects the image of blood vessels onto the skin surface, accurately and quickly.
Ergonomic design, advanced infrared technology for accurate digital images of veins on the patient's skin in real time.
They enable doctors and nurses to easily find veins in obese patients, patients undergoing chemotherapy, patients with thick hair, dark skin, varicose veins, thin blood vessels or vascular obstruction.

They come in 12 different colours according to age, body shape, skin tone and working environment.

Suitable for adults, children and babies.
They allow observation of vascular thickness, length, curve and branching to determine the ideal puncture site to avoid pain.
Table stand and mobile trolley also available.

Additional QV600 features
display with selectable languages (GB, FR, IT, ES, DE, PL, RU)
possibility to photograph and store up to 6,000 images for pathology tracking and analysis Light: harmless infrared
Infrared wave: 760940 nm
Display: 2.4"
Image: 3D pseudocolour, AI algorithm
Adjustable brightness: 6 levels
Sensing distance: 1525 cm ± 0.3 mm
Sensing depth: 010 mm
Noise level: =30 dB
l Battery Aluminium carrying case
Calibration card
Charging cable
Adapter
User manual GB, FR, IT, ES

PROFESSIONAL VEIN VISUALISATION SYSTEM

The vein visualisation system with real-time high-definition 3D images helps healthcare professionals find veins in patients with difficult venous access. A harmless near-infrared light is projected onto the skin and thus absorbed by the blood, but reflected by the surrounding tissue.

Five different colours are projected: green, blue, violet and white, so that veins can be found much more effectively in patients with different skin tones and reduce eye fatigue for the practitioner.

Size of the projection area: adjustable from basic mode 480x640 to reduced mode 120x320 and vice versa.

Application:
The vein visualisation system is particularly suitable for patients with small veins, veins with low blood perfusion rate, frequent venipuncture, vascular injuries and patients who require puncture in a specific vein. Also suitable for cosmetic procedures. The vein visualisation system works for all body types and skin tones: neonatal/pediatric, geriatric, oncology, obese, dark-skinned, dermatosis and scar patients.

Clinical areas: Paediatrics, emergency, plastic surgery, radiology, laboratory, operating theatre, vascular surgery, geriatrics and so on.

The medical grade design allows the device to be easily dusted off and stored in an insulated package, ready for use and with no need for calibration as it always stays aligned. Easy to use, it can be moved in any direction by holding it over the vein to be viewed. Screen: 1.3" OLED and DLP projection
Input power: 35 VA
Light: Infrared
Radiation: NO
Image resolution (pixels): 640x480, 480x640, 120x320
Projection accuracy: Vertical and horizontal offset =0.3mm per 2026 cm
Projection distance ot Power cable
Rechargeable battery with charger
Multilingual user manual: GB, IT
Cleaning cloth

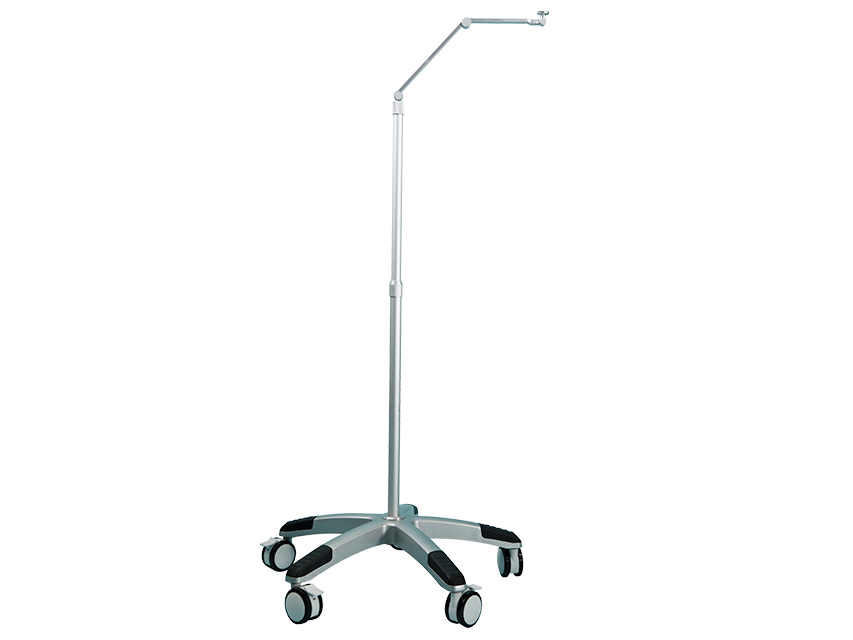

MOBILE SUPPORT for 23456 optional

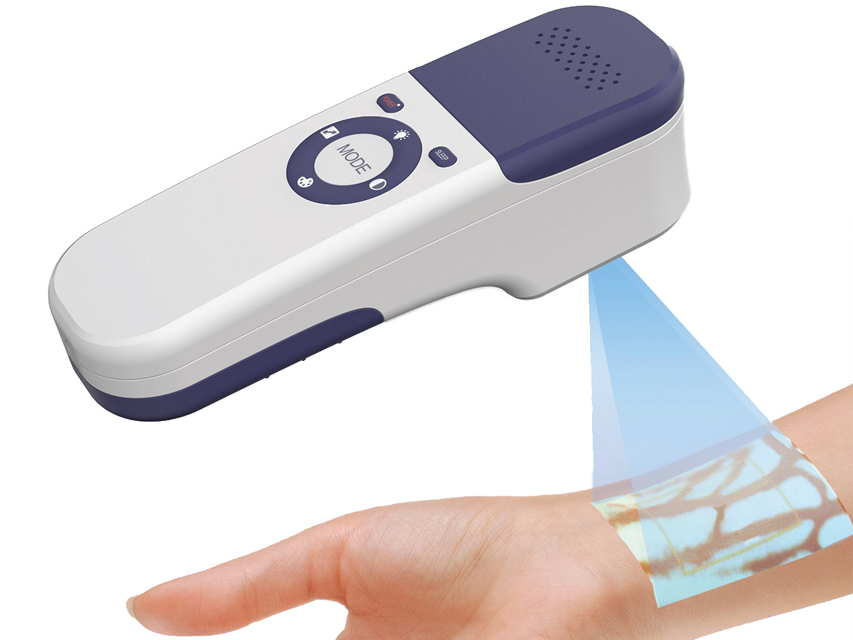

QV500 PROFESSIONAL VEIN DETECTOR

Portable vein detector that projects the image of blood vessels onto the skin surface, accurately and quickly.
Ergonomic design, advanced infrared technology for accurate digital images of veins on the patient's skin in real time.
They allow doctors and nurses to easily find veins in obese patients, patients undergoing chemotherapy, patients with thick hair, dark skin, varicose veins, thin blood vessels or vascular obstruction.

They come in 7 different colours according to age, body shape, skin tone and working environment.

Suitable for adults, children and babies.
They allow observation of vascular thickness, length, curve and branching to determine the ideal puncture site to avoid pain.
Table stand and mobile trolley also available.

Additional QV600 features
display with selectable languages (GB, FR, IT, ES, DE, PL, RU)
possibility to photograph and store up to 6,000 images for pathology tracking and analysis Light: harmless infrared
Infrared wave: 760940 nm
Display:
Image:
Adjustable brightness: 5 levels
Sensing distance: 1525 cm ± 0.3 mm
Sensing depth: 08 mm
Noise level: =20 dB
Rechargeable lithium battery: 3400mAh
Alime Aluminium carrying case
Calibration card
Charging cable
Adapter
User manual GB, FR, IT, ES

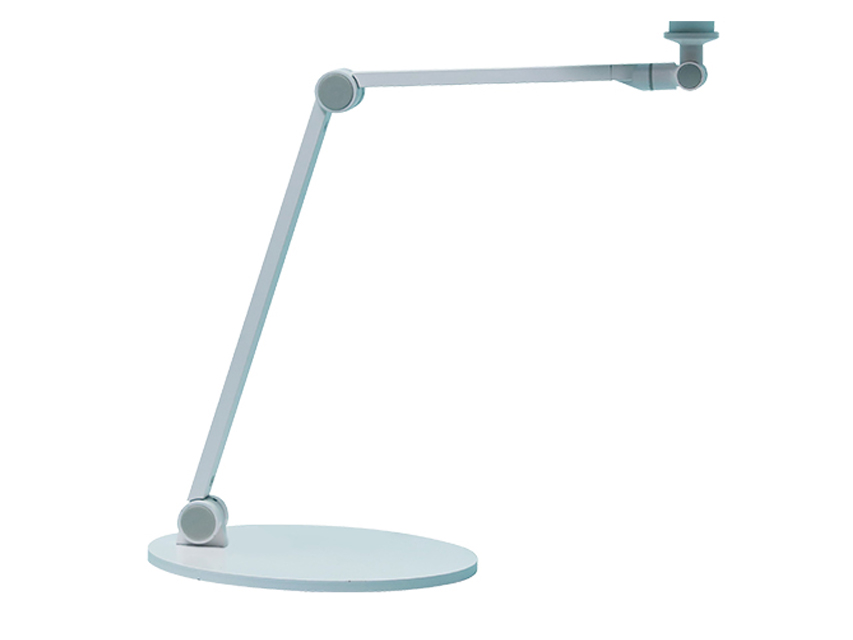

TABLE SUPPORT for 23456 optional

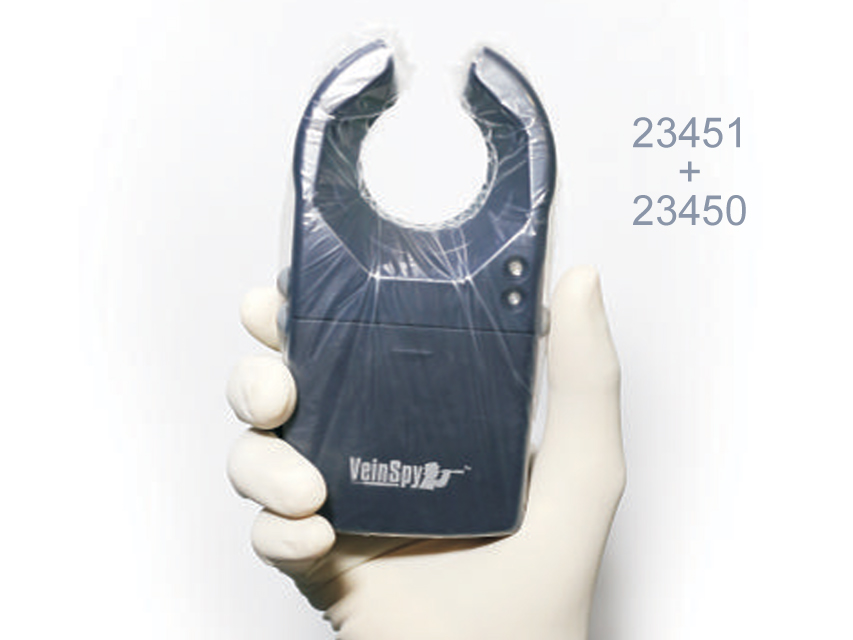

Disposable liners for VeinSpy code 23450 pack of 50

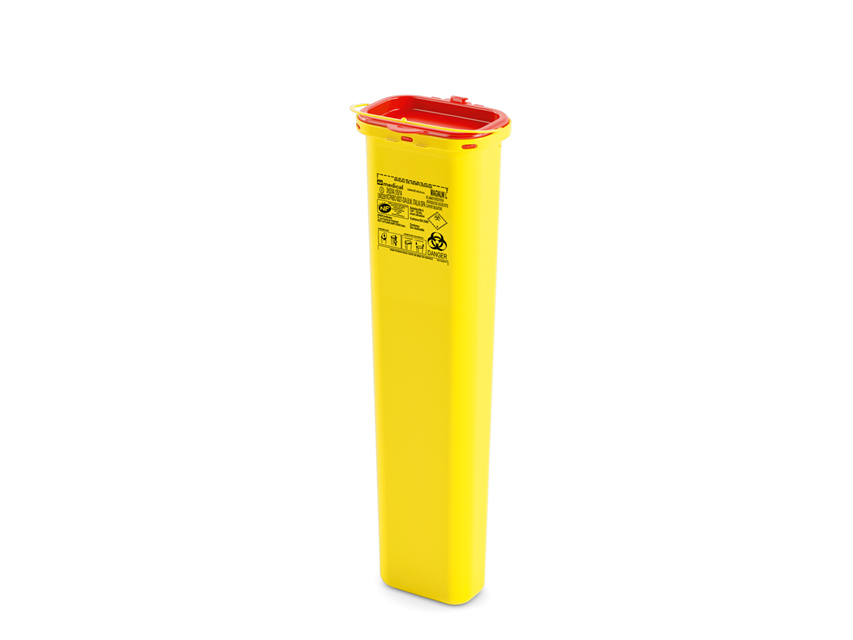

LONG CUTTING WASTE CONTAINERS
Magnum L 6.3 l 17.2x12xh 61.7 cm

Disposable containers for disposing of long objects up to 72 cm long, such as biopsy forceps and blades.
Large opening for removal of bulky objects, temporary and permanent closure, ergonomic handle.
Autoclavable at 134°C for 18'.

Made in Italy.

WASTE CONTAINERS 3 sizes
Containers for disposing of special hospital waste, in 3 sizes, with 2 different lids.

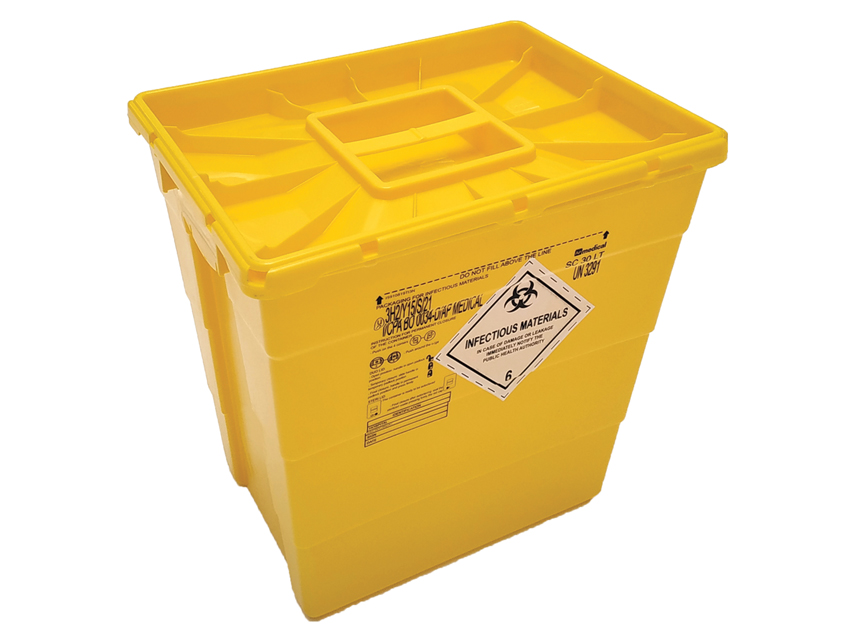

WASTE CONTAINERS LINE SC
Capacity: Container 30 l
Lid: single
Max. capacity kg: 15
Dimensions: 40x30xh 39 cm

extremely solid, impact-resistant at both high and low temperatures
hermetically sealed by perimeter adhesive on the lid (single or double)
side and central handles tested for double the maximum load capacity
stackability up to a maximum of 3 m when fully loaded
conformity: ISO 239071:2019

Made in Italy.

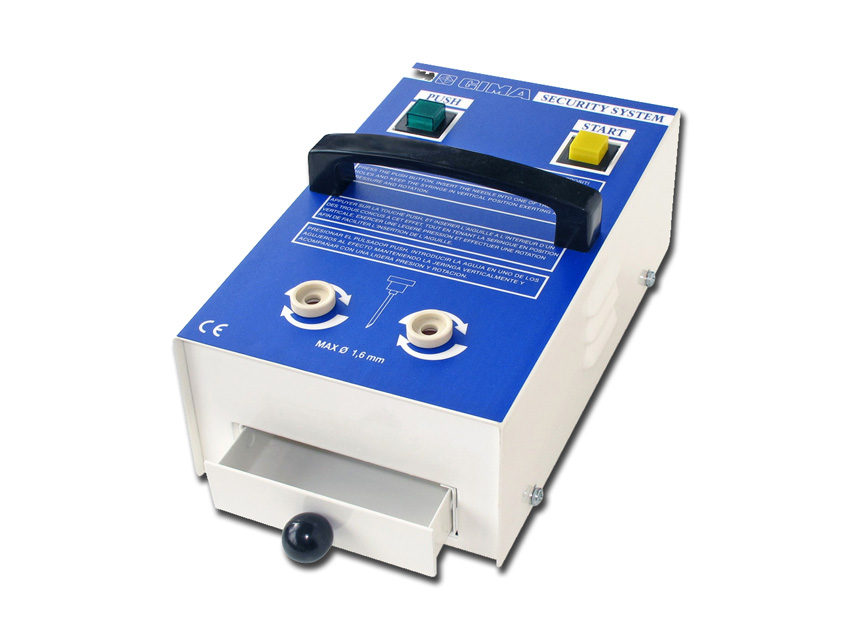

SECURITY SYSTEM needle destroyer

REDUCES THE RISK OF INFECTIOUS DISEASES CAUSED BY ACCIDENTAL NEEDLE STICKS.

For easy disposal of used needles, GIMA has developed the Security System.
This needle destroyer is designed to quickly melt needles up to 1.2 mm in diameter; thanks to its power, reaching a temperature of 1,000 °C, it can also melt needles up to 1.6 mm in diameter.
The needles are destroyed and sterilised simultaneously, while the waste material, collected in a drawer at the base of the device, can be disposed of through normal routes without the problems and costs of disposal as special waste.
Simple, safe, built with the best quality materials, it is guaranteed for a long service life. It weighs just over 4 kg.
Casting charcoals must be replaced every 4,000 needles to maintain maximum efficiency. Dimensions: 22 x 14 x h 9 cm
Weight: 4 kg
Power supply: 220V 50 Hz
Melting temperature: 1000°C
Absorption: 90 Watt
Fuses: 2 x 2.5 A T
Standards: CEI 625 IEC 6011
Italian production: GIMA S.p.A.
