TABLE SUPPORT for 23456 optional

Disposable liners for VeinSpy code 23450 pack of 50

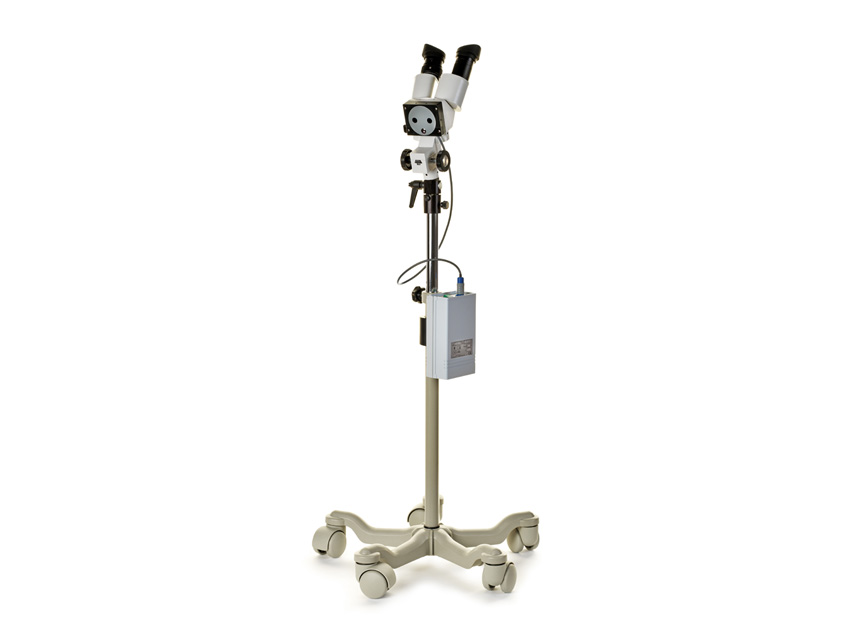

The Gima Colpy colposcope provides stereoscopic vision that enables both diagnosis and operability. The high optical quality of the lenses ensures an exceptional depth of field and a sharp view of details without the slightest eye fatigue, for the benefit of accurate and safe diagnosis. Thanks to the interchangeability of the wide-field eyepieces, the Gima Colpy colposcope covers the entire range of magnifications most commonly used in routine colposcopy. The 45° inclination of the binocular head respects the ergonomics of observation, while the vision of the innermost details is favoured by the solar-emitting LED illumination that restores the true colours of the epithelial tissue. This colposcope does not use a lamp or optical fibre, which means no maintenance costs. There is no fan and, therefore, no heat or buzz is generated. It also consumes only 10% of the power of a halogen colposcope. Compact, practical and easy to handle thanks to its small base, the Gima Colpy colposcope features a sophisticated design that integrates well into any medical practice. The Italian design and manufacture of the Colpy, which comes with a 24-month warranty, are synonymous with high quality and safety.
Fixed magnification 8.2X with standard 10X eyepiece
Field of view: 35 mm
Optical system: stereo with interpupillary adjustment and 45° optical head
Illumination: LED lamp
Working distance: 280 mm
Interpupillary distance: 4877 m

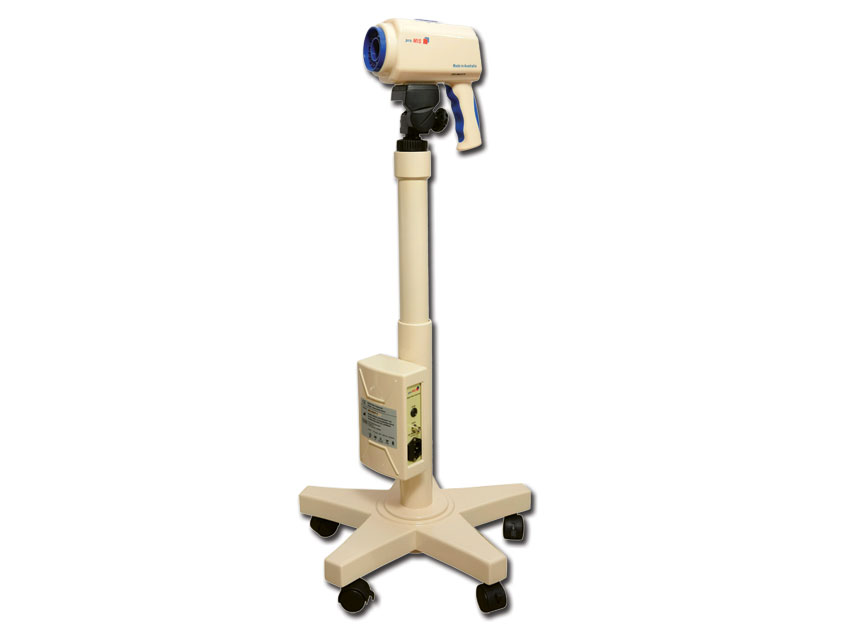

COLPRO LED COLPOSCOPE VIDEO

COLPRO video colposcopes represent the perfect combination of state-of-the-art video technology and all the expertise received by gynaecologists, regular users and professionals. Known for their robustness and versatility, they provide high resolution images of the cervix and genital area for
genital area for accurate diagnosis and treatment.

Main features:
5 levels of light intensity: in order to observe even the smallest changes in tissue structure.
Green electronic filter: the 4 different grades guarantee optimal observation without loss of light.
5 image colour settings: allow better differentiation of the epithelium tissues.
Eflip function and image mirror: facilitates changing image direction from left to right horizontally (mirror) or from top to bottom vertically (Eflip).
Gamma processor: offers high quality image processing for better visualisation of blood vessels and tissue structure.
Up to 55X magnification and Autofocus: the colposcope focuses even if the patient moves. 155X.
Remote control: allows commands to be given even remotely.
Multiple connections: Can be connected to a TV or monitor and PC via USB. 2 video outputs to connect 2 screens simultaneously.
User-friendly design: ergonomic design, easy to use and move. Adjustable height allows for the best viewing position.
Maintenance-free, shadow-free LED light. Image processor: Sony Japan colour CCD
Pixels: 1,200,000
Resolution: 825 TV Lines
Eflip: yes
Mirror image: yes
Electronic shutter: Automatic
S/N ratio: >48 db
Illumination: MCD super bright white LED light without om

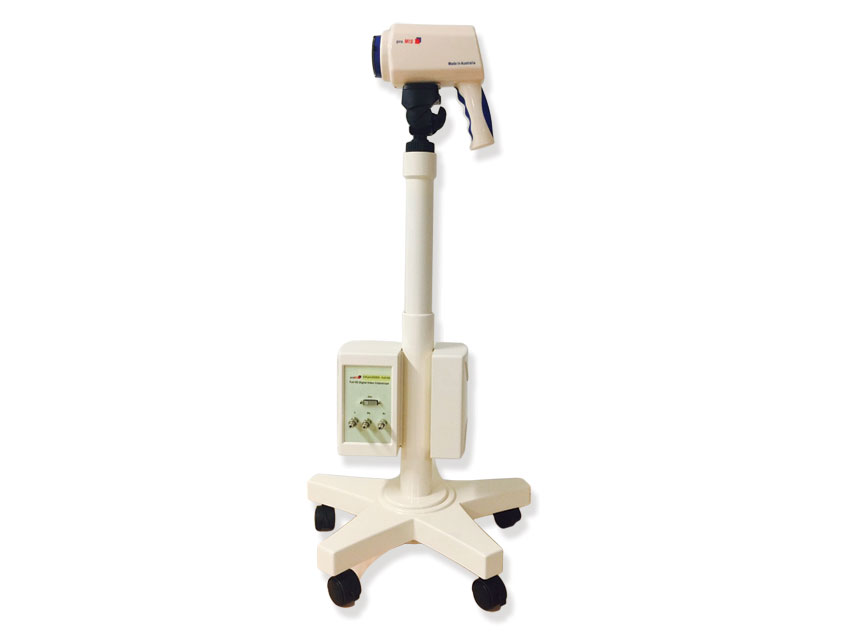

COLPRO LED FULL HD COLPOSCOPE VIDEO

COLPRO video colposcopes represent the perfect combination of state-of-the-art video technology and all the expertise received by gynaecologists, regular users and professionals. Known for their robustness and versatility, they provide high resolution images of the cervix and genital area for diagnosis and treatment.
genital area for accurate diagnosis and treatment.

Main features:
5 levels of light intensity: in order to observe even the smallest changes in tissue structure.
Green electronic filter: the 5 different degrees guarantee optimal observation without loss of light.
5 image colour settings: enable better differentiation of epithelium tissues.
Eflip function and image mirror: facilitates changing image direction from left to right horizontally (mirror) or from top to bottom vertically (Eflip).
Gamma processor: offers high quality image processing for better visualisation of blood vessels and tissue structure.
Up to 55X magnification and Autofocus: the colposcope focuses even if the patient moves. 145X.
Remote control: enables remote control.
Multiple connections: Can be connected to a TV or monitor and PC via USB. 2 video outputs to connect 2 screens simultaneously.
User-friendly design: ergonomic design, easy to use and move. Adjustable height allows for the best viewing position.
Maintenance-free, shadow-free LED light. Image processor: Sony Japan colour CCD
Pixels: 2,000,000
Resolution: 1,000 TV Lines
Eflip: yes
Mirror image: yes
Electronic shutter: Automatic
S/N ratio: >50 db
Illumination: MCD super bright white LED light without

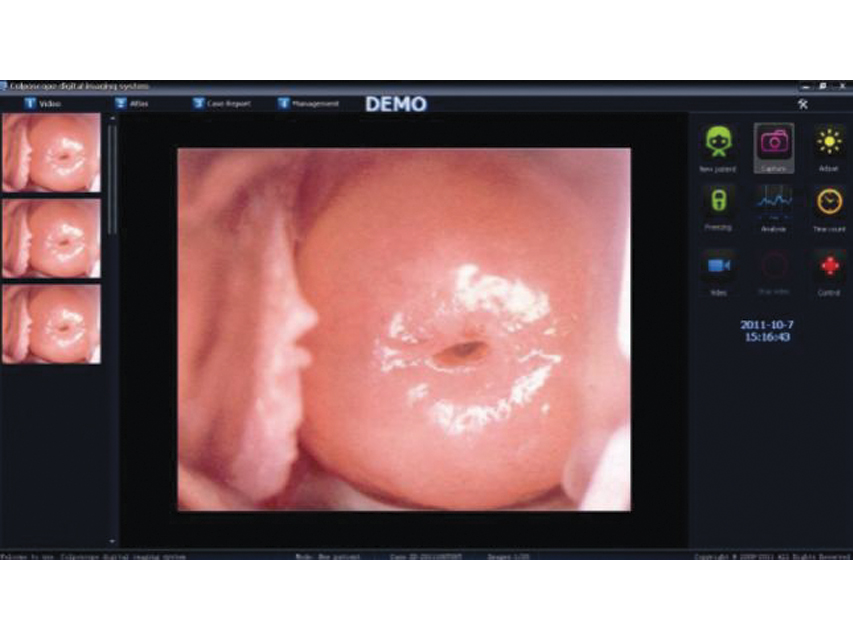

LED COLPOSCOPE SOFTWARE WITH CAMERA (296245)

Set with HDMI capture board and professional colposcopy software, comprising: external capture board, UDisc software and driver, 2 HDMI cables, HDMI connector, dongle for simultaneous connection of AC2311 to desktop computer (or laptop) and monitor.

The software allows images to be acquired at every examination for analysis, diagnosis and disease detection.
It can be used in colposcopic examination and dynamic observation of operative treatment.

Features:
guidance for viewing, locking, capturing and deleting images
1 to 99 colour images captured at each visit
Operating system: Windows 7, Windows 10

175 standard atlases useful for comparison, analysis and diagnosis.

Software marking on images: marking of pathological alterations, addition of notes, measurement of pathological alteration size and partial or total enlargement.

Entry of clinical symptoms: printing of 11 types of reports, Reid's colposcopic index (RCI) evaluation function.

Search and edit case information: cases can be searched by name, case number, age or date and can be added, deleted, edited, stored and reviewed.

Replacement bulb for Gima Colpy Colposcope (code 29600).

ALLTION LED COLPOSCOPE (3.75x, 7x, 15x) > 28,000 LUX

High-quality colposcope offering excellent optics and long-lasting cold white light. Compact, lightweight and easy to handle.
Offers excellent quality at a competitive price.
Thanks to the special Teflon® ball joint, it allows the operator easy focusing and 360° rotation.
Supplied assembled and ready to use.

Manual: GB, IT. Magnification 3.75X, 7X, 15X
Focal length: 300 mm
Field of view: Ø 30.93/15.50/7.74 mm
Depth of field: > 18/4/2 mm
Illumination intensity: > 28,000 lux
Interchangeable and adjustable 12.5X eyepiece
Illumination: LED 5.9

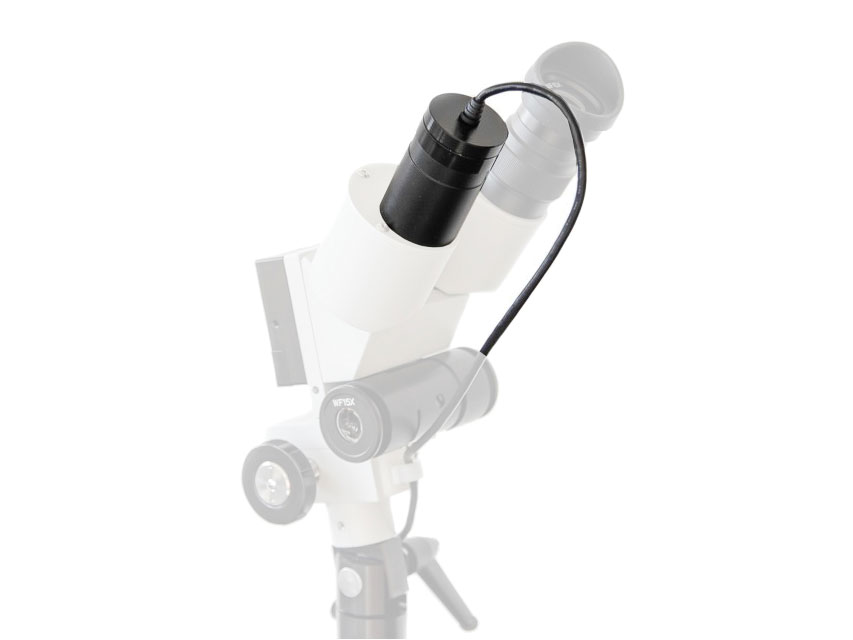

Mounted on an eyepiece, it displays the image on the monitor, via USB, and becomes a high-definition vidoecolposcope. 1/3 CMOS sensor
Maximum image resolution: 1280 x 1024 pixels
Maximum video resolution: 440 x 480 pixels

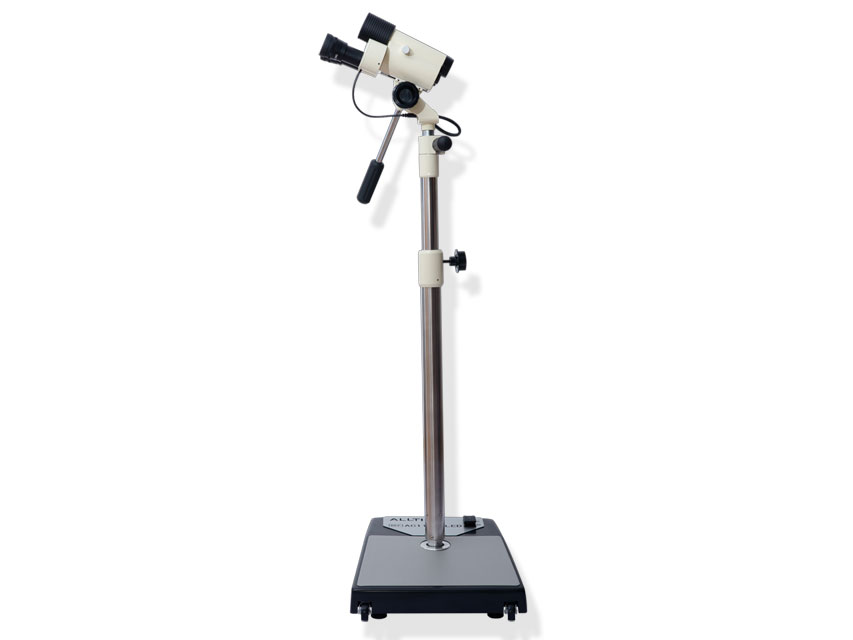

COLPOSCOPE LED ALLTION 9X

High-quality colposcope offering excellent optics and long-lasting cold white light. Compact, lightweight and easy to handle.
Offers excellent quality at a competitive price.
Thanks to the special Teflon® ball joint, it allows the operator easy focusing and 360° rotation.
Supplied assembled and ready to use.

Manual: GB, IT. Magnification: 9X
Focal length: 316 mm
Field of view: Ø 22 mm
Depth of field: > 4 mm
Illumination intensity: > 28,000 lux
Interchangeable and adjustable 12.5X eyepiece
Illumination: LED 5.9 V / 5 W
Superior optics c
